FLSR090ID - Littelfuse Class RK5 90A 600VAC Time Delay Indicating Fuse

FLSR090ID

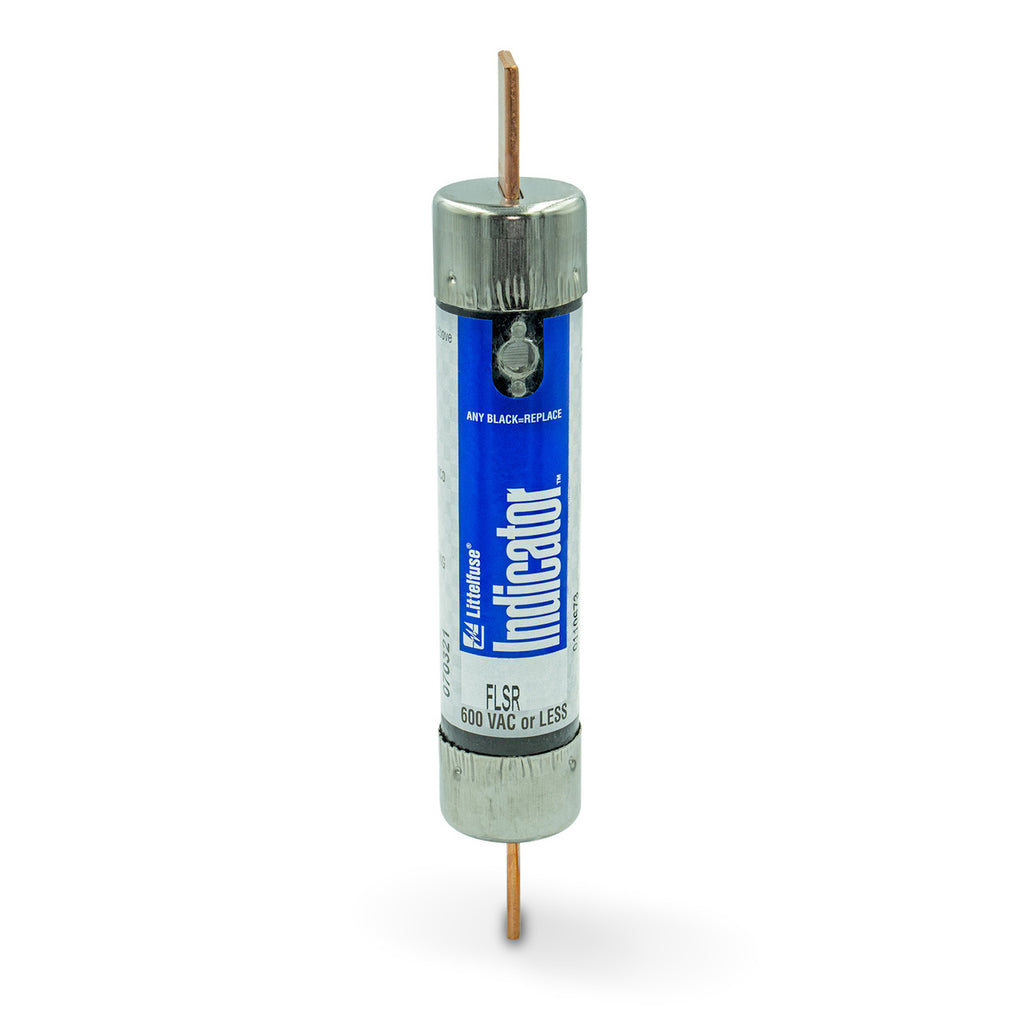

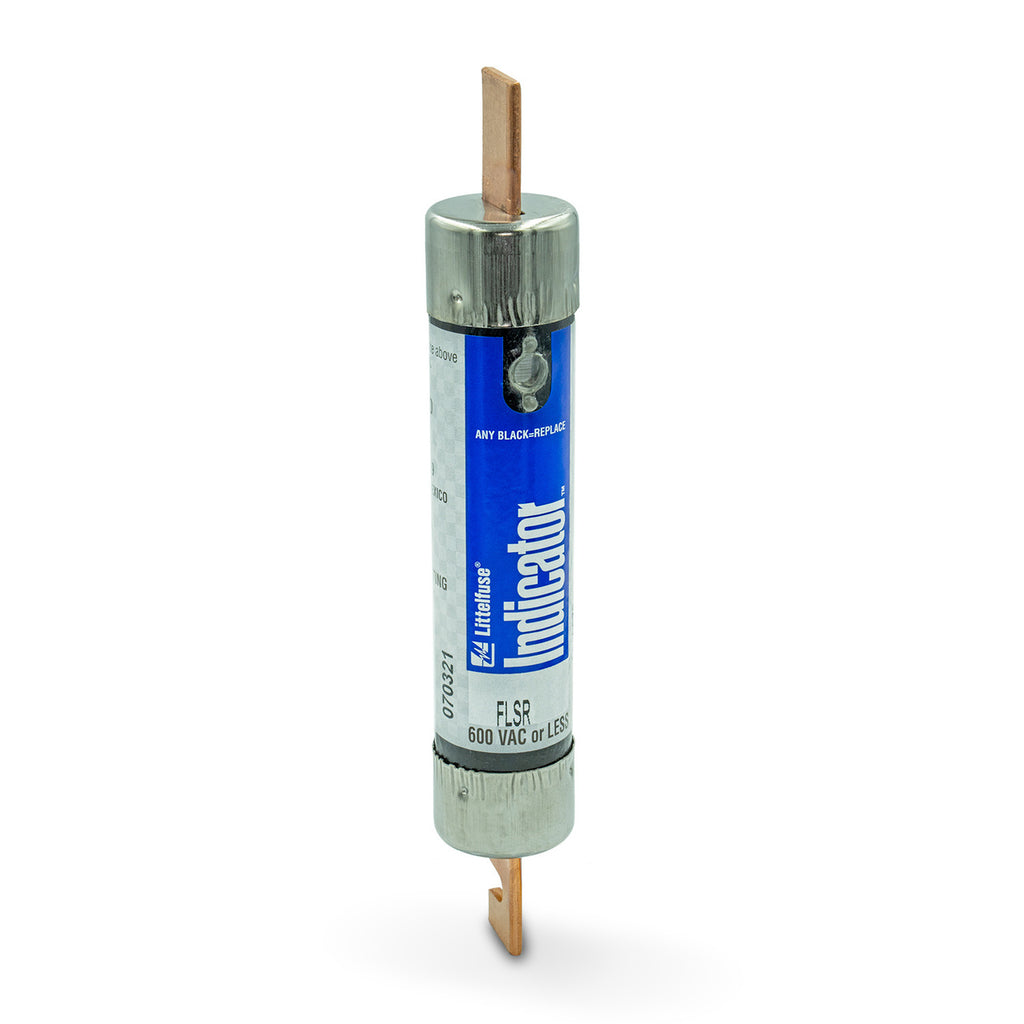

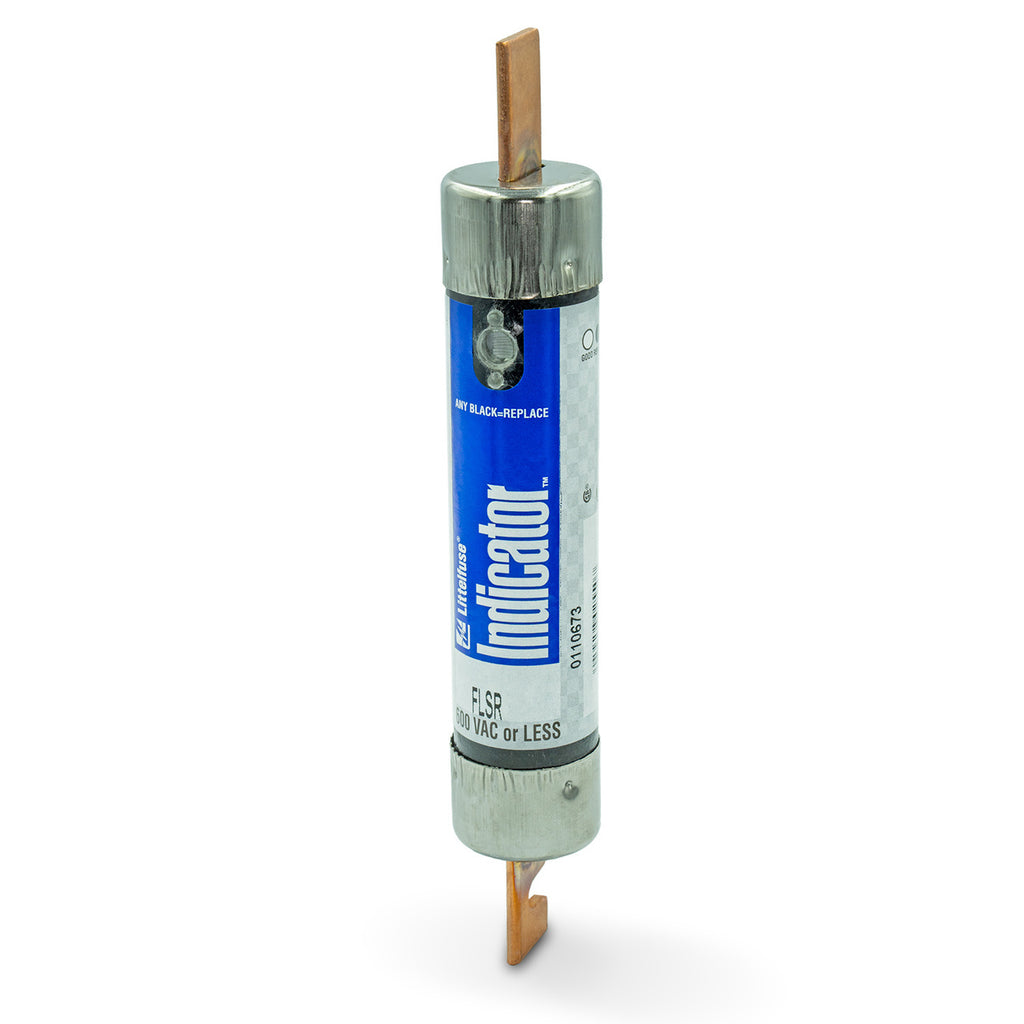

FLSR090ID is a Class RK5 time-delay indicating fuse rated for 90 amperes at 600 volts AC and 300 volts DC, designed for all general purpose circuits and industrial applications. This dual-element, current-limiting fuse features a patented solid-state indicator design that provides visual blown fuse indication at a glance, reducing downtime and nuisance openings. The knife-blade terminal construction and cylindrical body measure 1-5/16 inches in diameter by 7-7/8 inches in length, making it compatible with standard fuse blocks and holders. Key Specifications

• Amperage Rating: 90 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK5
• Response Time: Time Delay (Slo-Blo)
• Interrupting Rating: 200 kA AC @ 600V, 300 kA AC @ 600V (self-certified), 20 kA DC @ 300V
• Terminal Type: Knife-Blade
• Body Style: Cartridge
• Element Design: Dual Element
• Indicating Feature: Yes
• Physical Dimensions: 1-5/16 inch diameter x 7-7/8 inch length
• Certifications: UL 248-12, CSA, CE, Federal Spec WF-1814
• Applications: Service entrance switches, transformers, switchboard mains and feeders, motor control circuits, distribution panelboards

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR090ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 90
• AIC rating : 200kA@600V
• Diameter : 1.31
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 079458025491
• GTIN : 00079458025491
• Country of Origin : Mexico
• Dimensions : x 7 7/8 in x
• Weight : 0.61
• Certification : CSA, cUL, UL
