FLSR075ID - Littelfuse 75A 600V Class RK5 Time Delay Dual-Element Fuse

FLSR075ID

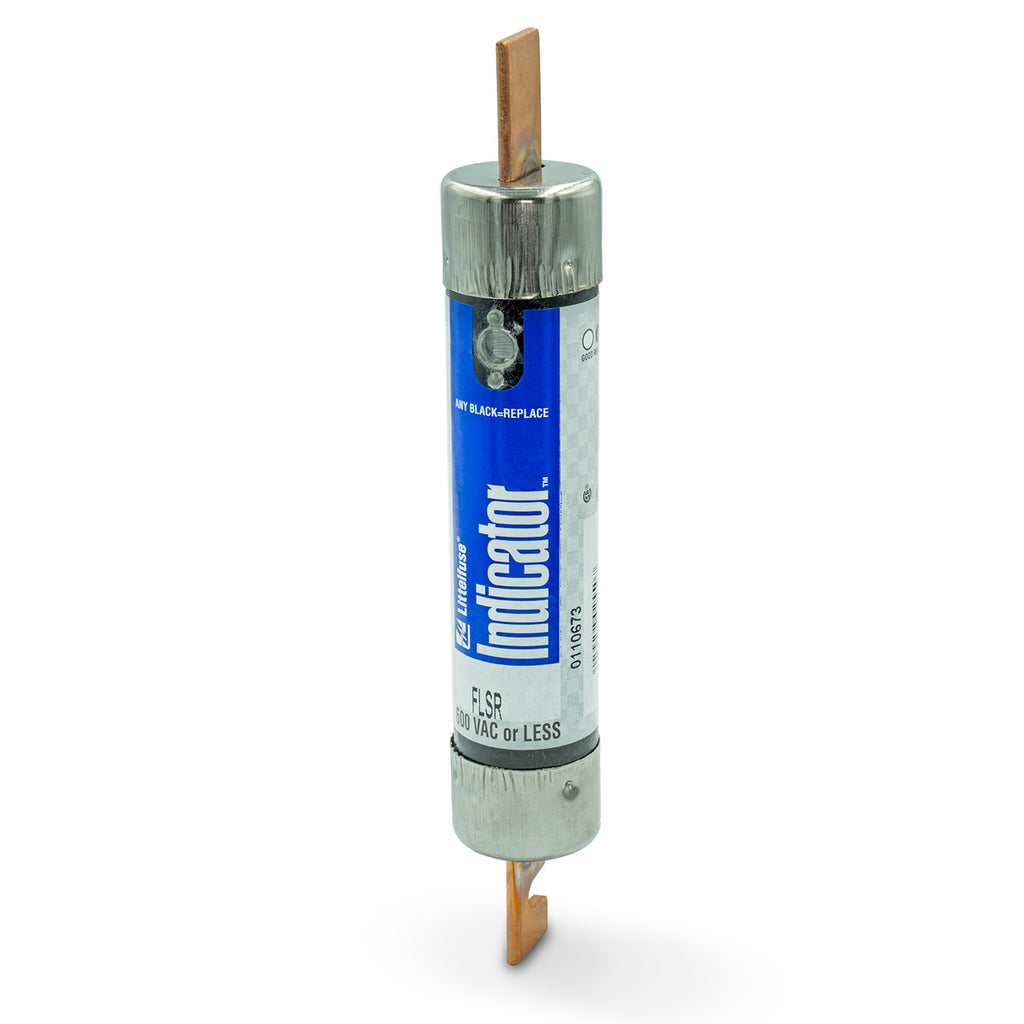

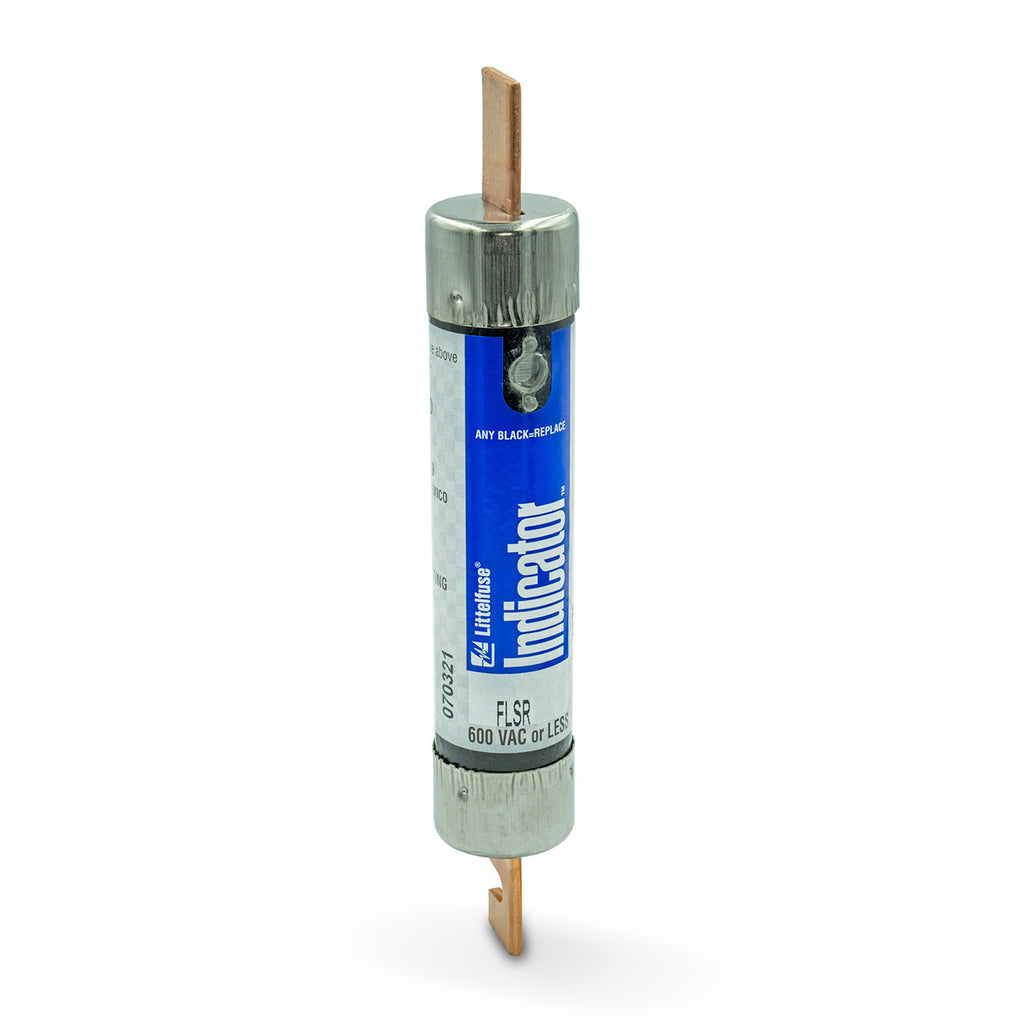

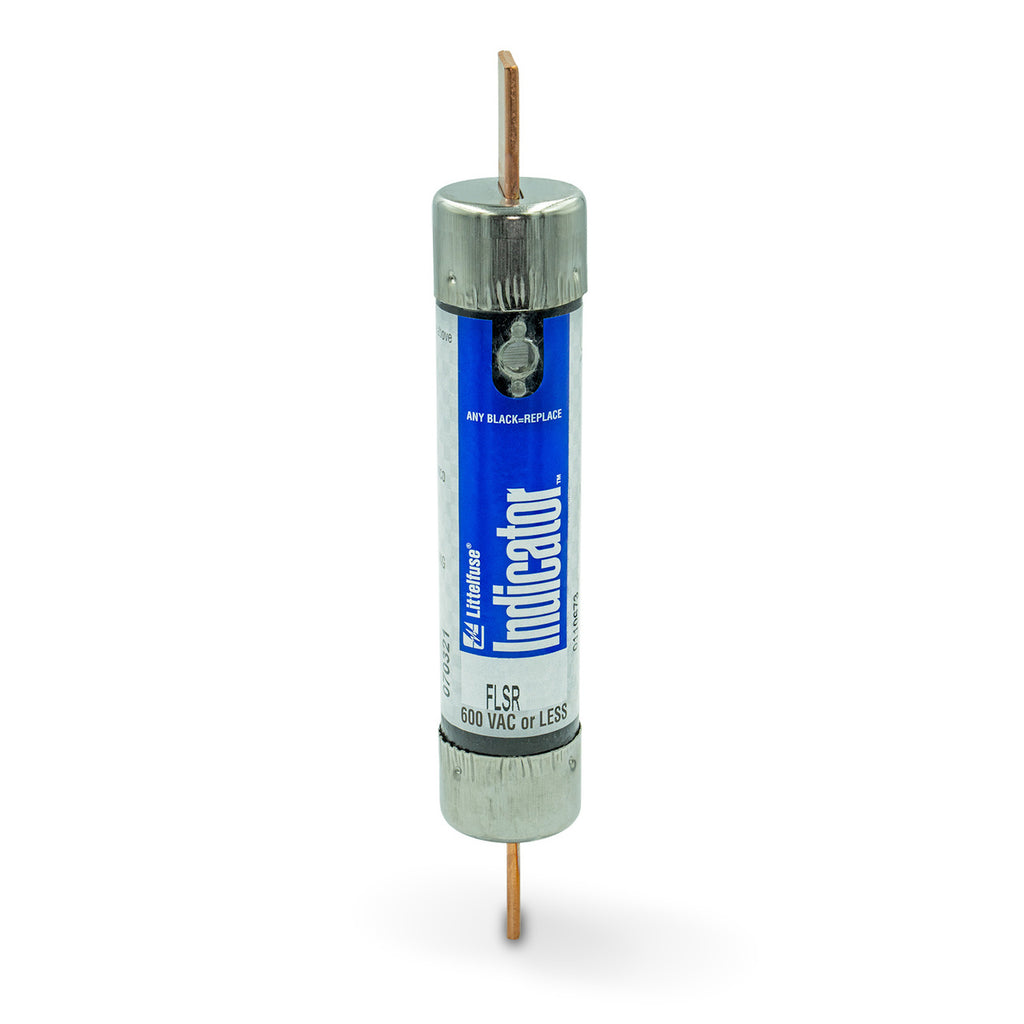

FLSR075ID is a Class RK5 dual-element time-delay fuse rated for 75 amperes at 600 volts AC and 300 volts DC, designed for general purpose circuit protection in industrial and commercial applications. This current-limiting fuse features a cylindrical body with blade mounting and visual blown fuse indication through a patented solid-state indicator design that turns black when the fuse operates, enabling quick identification without removing the fuse from the holder. The dual-element construction provides advanced short-circuit and overload protection while the time-delay characteristic reduces nuisance openings on inrush currents.

• Amperage Rating: 75 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Class: RK5
• Fuse Type: Dual-Element, Time Delay
• Interrupting Rating: 200 kA @ 600 VAC, 20 kA @ 300 VDC
• Physical Size: 1 5/16 inch diameter x 7 7/8 inch length
• Mounting: Blade
• Visual Indication: Blown fuse indicator window
• Standards: UL 248-12, CSA Certified
• Applications: Service entrance switches, transformers, motor control centers, distribution panelboards, all general purpose circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR075ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 75
• AIC rating : 200kA@600V
• Diameter : 2.59
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945802547
• GTIN : 00079458025477
• Country of Origin : Mexico
• Weight : 3.02
• Certification : Standard 248-12 UL Listed/CSA
