Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR075

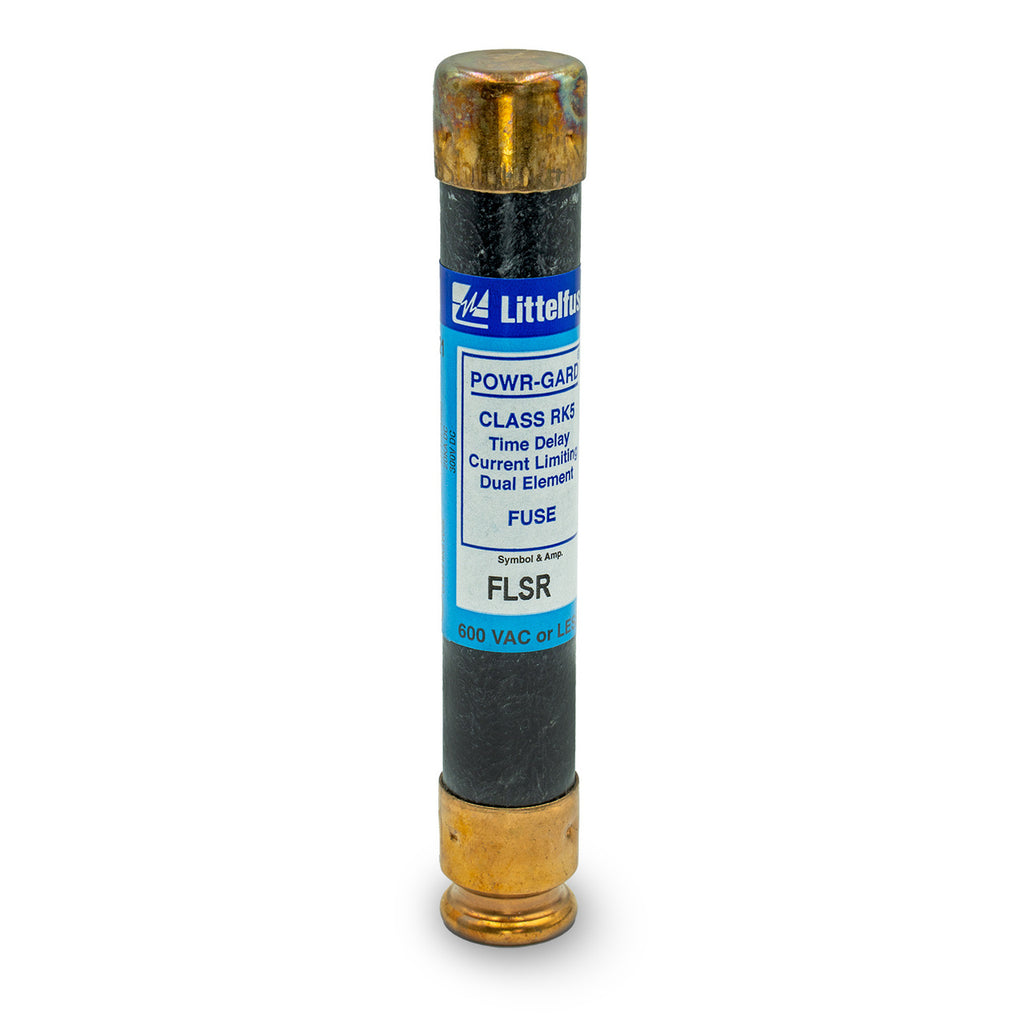

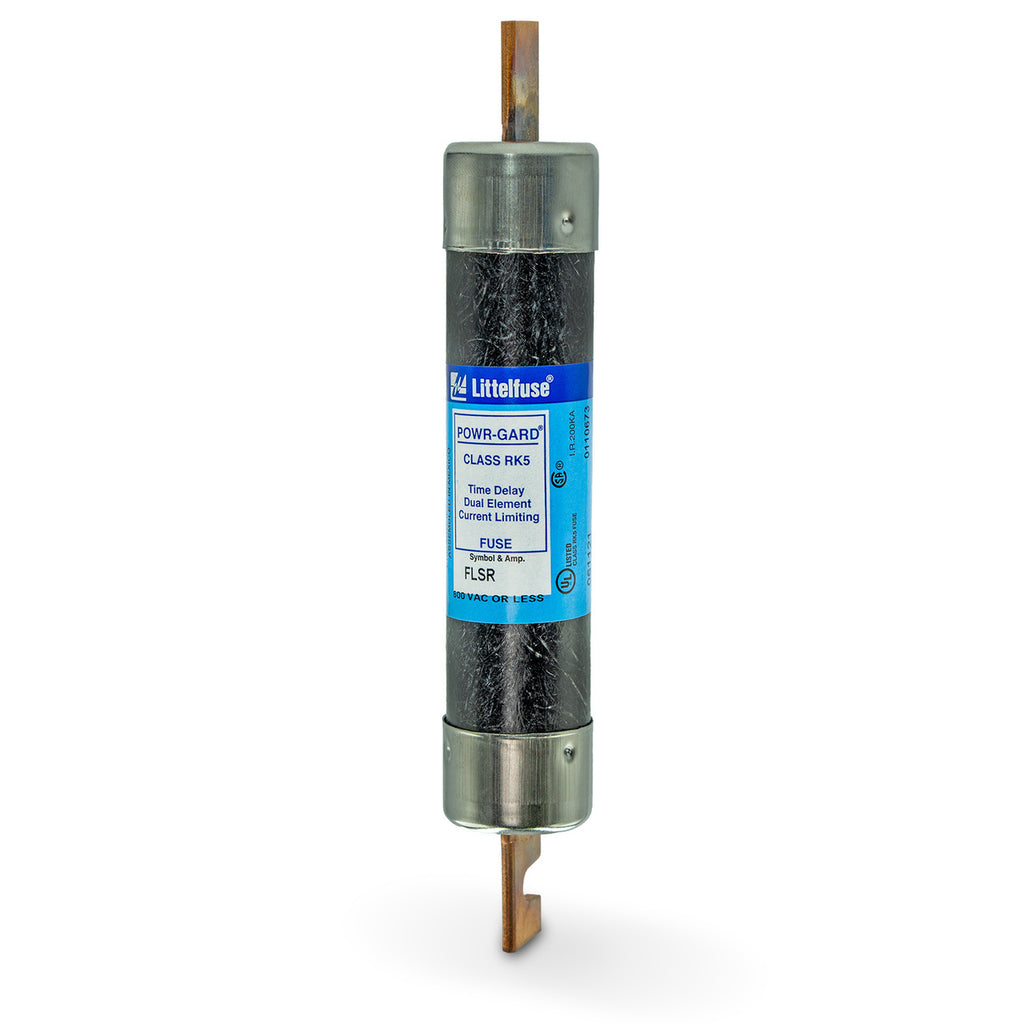

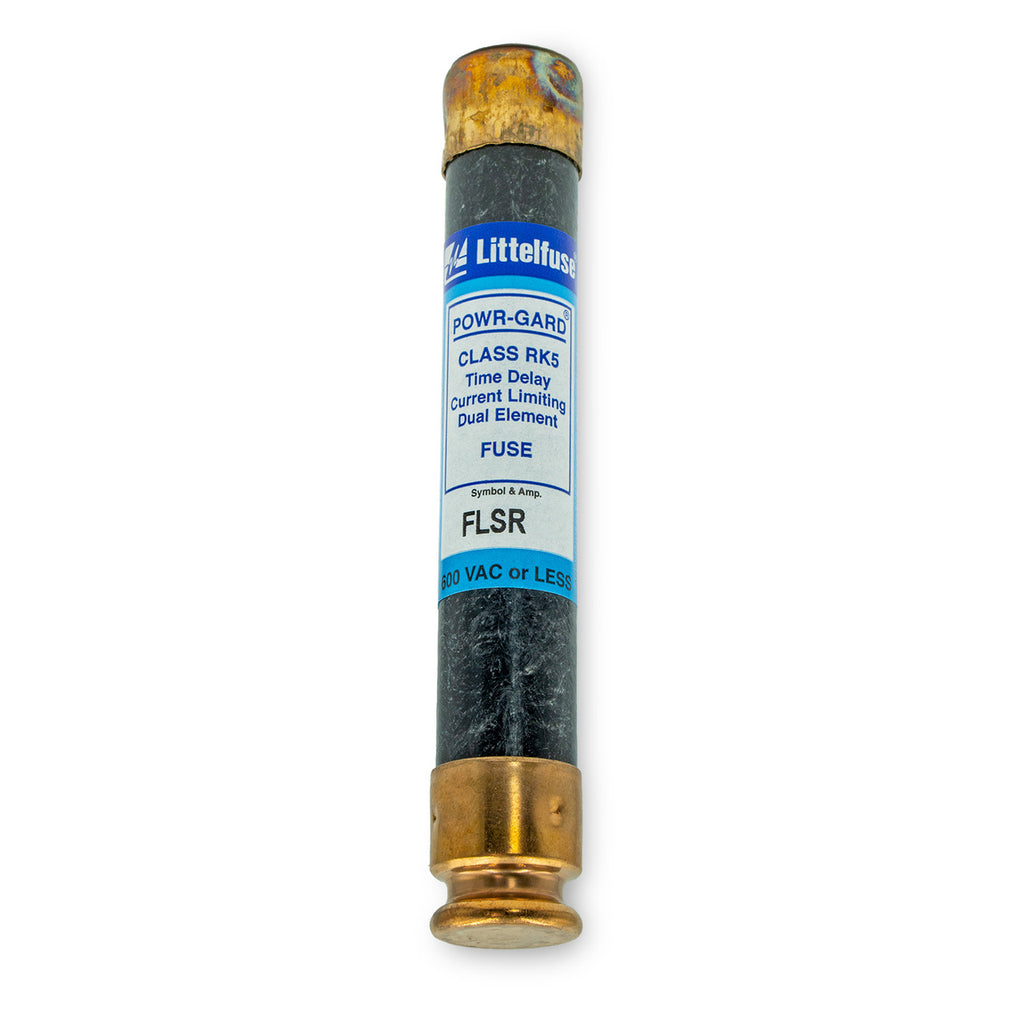

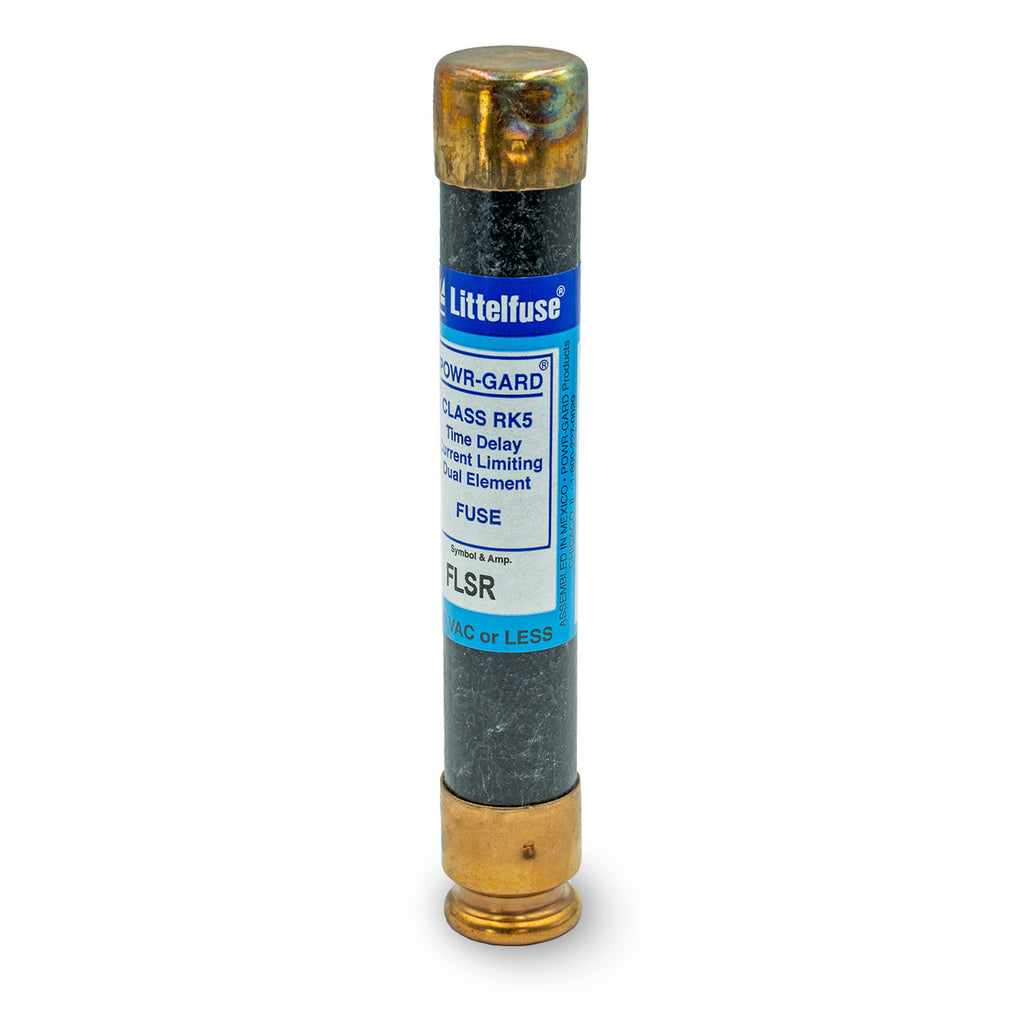

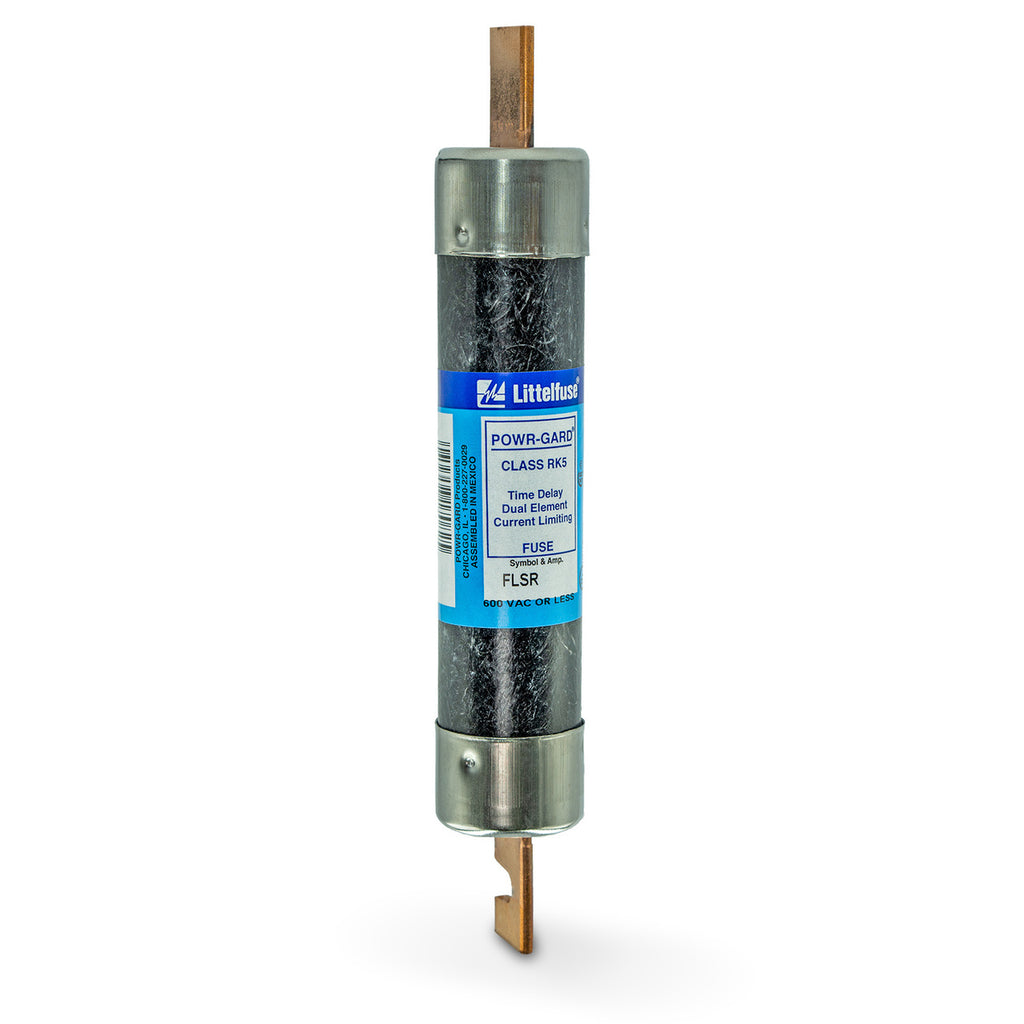

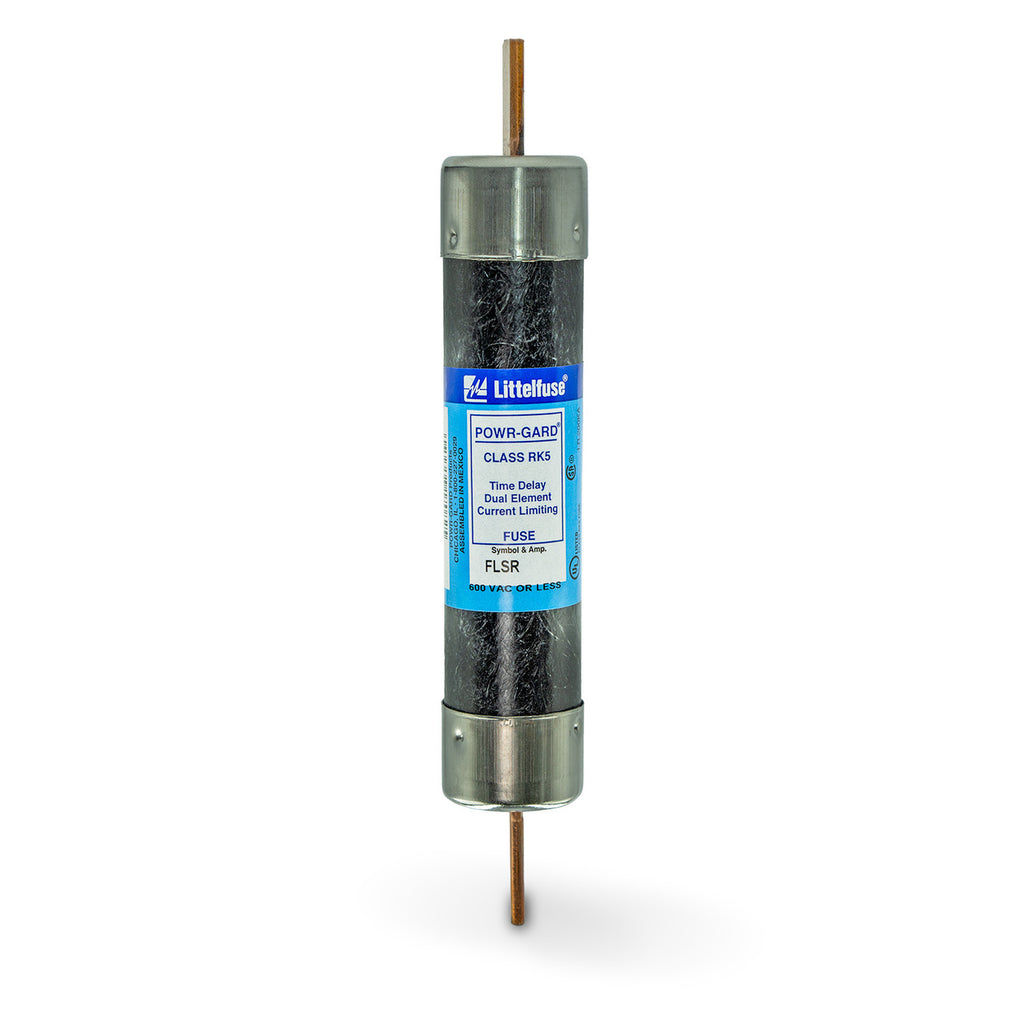

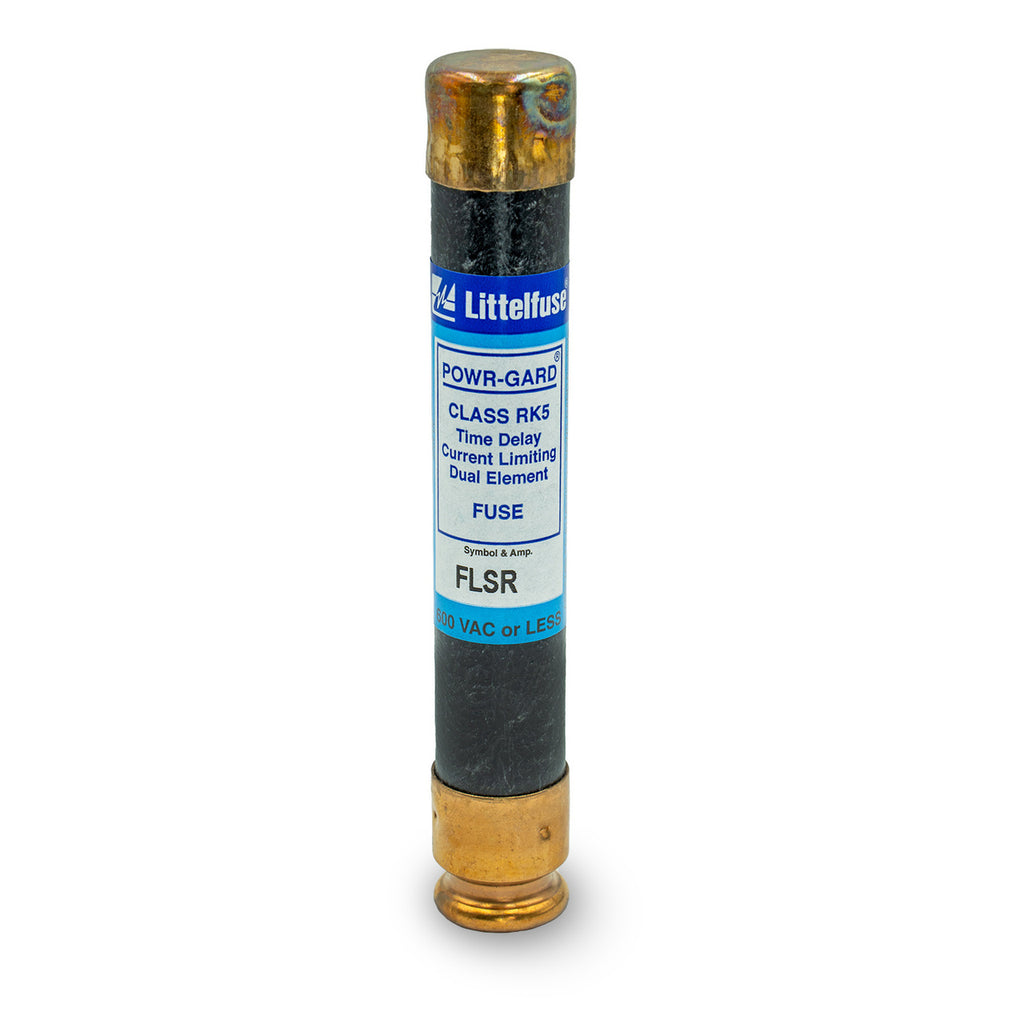

FLSR075 is a Littelfuse Class RK5 dual-element, time-delay fuse rated for 600V AC and 300V DC applications. This precision-manufactured fuse provides superior short-circuit protection and overload response, making it ideal for motor circuits, service entrance switches, transformers, and general-purpose circuit protection. The dual-element design delivers advanced protection through current-limiting technology that restricts fault currents and ensures consistent response to overloads and short-circuits. Key Specifications
- Amperage: 75A
- Voltage Rating: 600V AC, 300V DC
- Fuse Class: UL Class RK5
- Response Type: Dual-Element Time-Delay (Slow Blow)
- Interrupting Rating: 200 kA rms symmetrical at 600V AC; 20 kA at 300V DC
- Certification: UL 248-12
- Country of Origin: Mexico
- Applications: Service entrance, transformers, switchboard mains, motor control circuits, general-purpose circuits
Specifications
- Part Number: FLSR075
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 600
- Amperage : 75
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945800217
- GTIN : 00079458002171
- Country of Origin : Mexico
- Dimensions : x 7-7/8 in x
- Weight : 5.19
- Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
