FLSR070ID - Littelfuse 70A 600VAC/300VDC Class RK5 Time Delay Indicating Fuse

Save $62.58
SKU: FLSR070ID-New
Condition: New
Price:
$44.98 $107.56
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

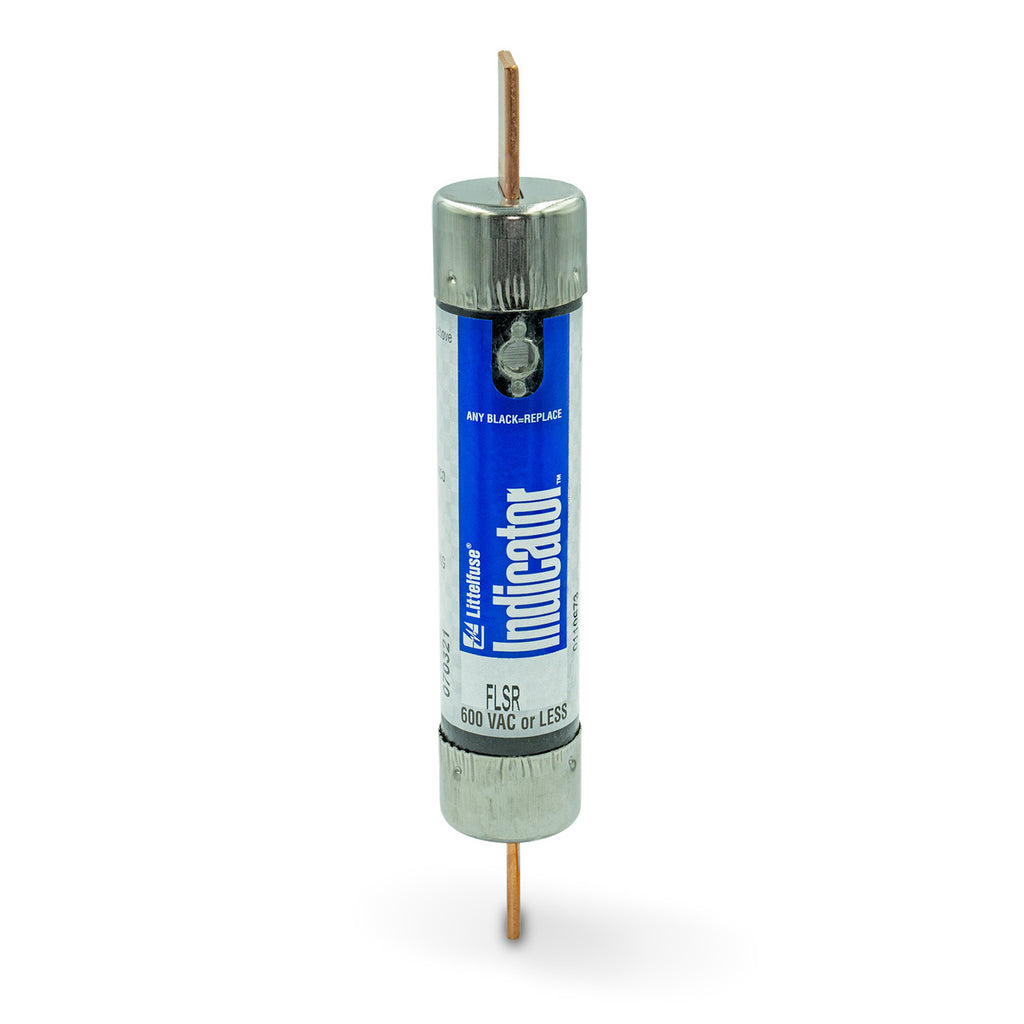

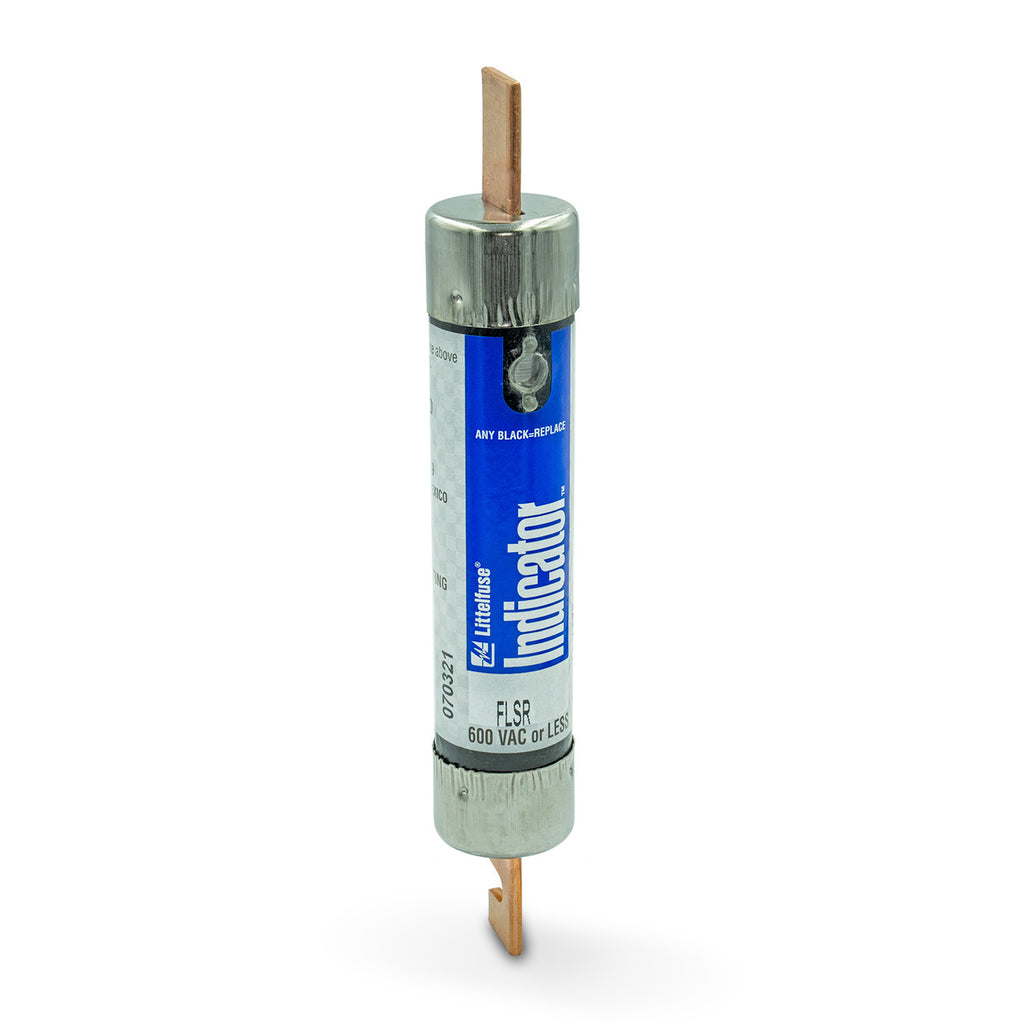

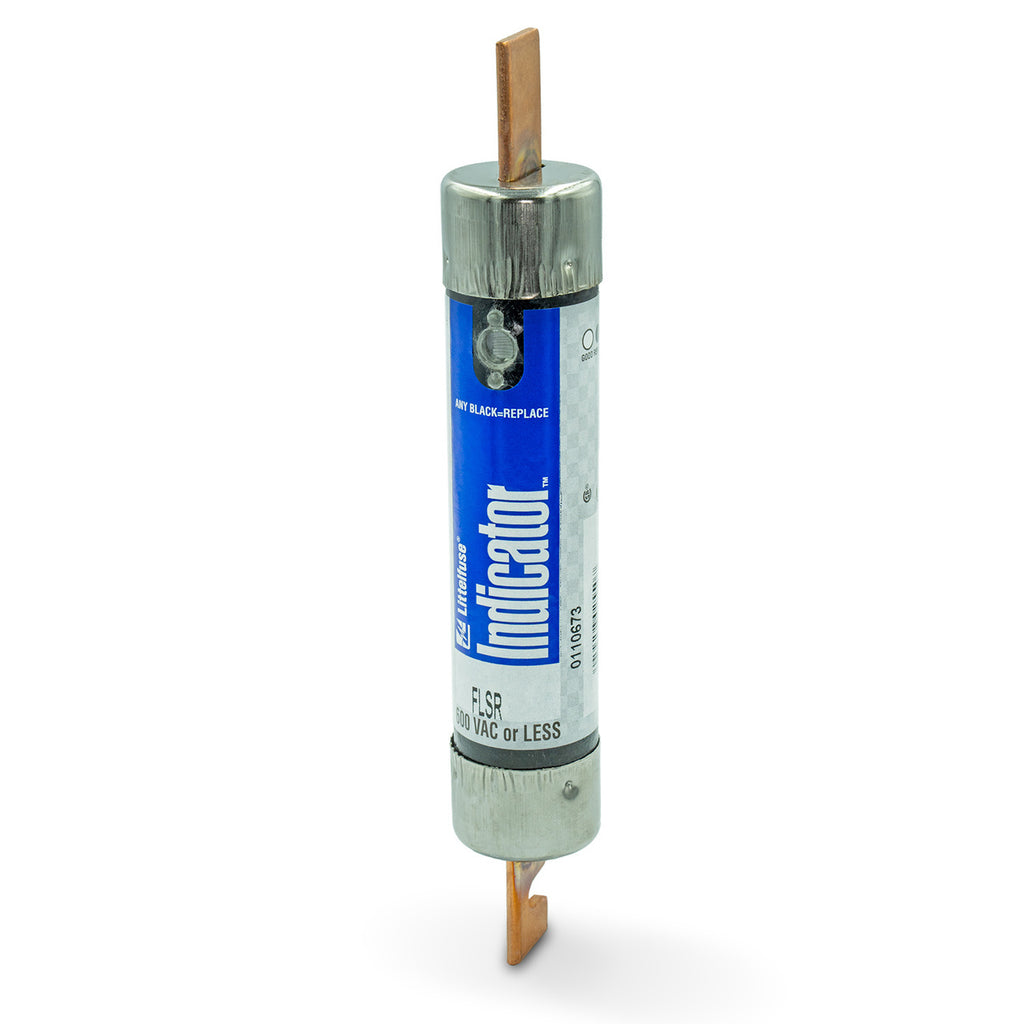

FLSR070ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 70A Fuse - Essential Electric Supply
FLSR070ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 70A Fuse - Essential Electric Supply
FLSR070ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 70A Fuse - Essential Electric Supply
FLSR070ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 70A Fuse - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
FLSR070ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 70A Fuse - Essential Electric Supply
FLSR070ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 70A Fuse - Essential Electric Supply
FLSR070ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 70A Fuse - Essential Electric Supply
FLSR070ID Littelfuse FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 600V 70A Fuse - Essential Electric Supply

Description

FLSR070ID


FLSR070ID is a Littelfuse Class RK5 time delay indicating fuse designed for advanced circuit protection with visual blown fuse indication.This fuse features a dual-element design that provides current limiting and time delay characteristics, ensuring superior short-circuit and overload protection. It is rated for 70 amps with a voltage rating of 600 VAC and 300 VDC. The fuse has a knife-blade terminal style and a cylindrical body, allowing easy installation and reliable connection. It offers a high interrupting rating of 200 kA RMS symmetrical AC and 20 kA DC, suitable for demanding electrical applications. The built-in indicator window turns black when the fuse blows, enabling quick and easy identification to reduce downtime.
  • Amperage: 70 A
  • Voltage Rating: 600 VAC / 300 VDC
  • Interrupt Rating: 200 kA AC / 20 kA DC
  • Fuse Class: RK5
  • Fuse Style: Dual Element, Time Delay
  • Terminal Type: Knife-Blade
  • Body Style: Cylindrical
  • Visual Blown Fuse Indication
  • Length: 7-7/8 inches
  • Diameter: 1-5/16 inches
  • Certifications: UL 248-12, CSA, CE
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: FLSR070ID
  • Manufacturer : Littelfuse
  • Brand : Littelfuse
  • Category : Fuse
  • Item Subcategory : Low Voltage Fuse
  • Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
  • Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
  • Voltage : 600
  • Amperage : 70
  • AIC rating : 200kA@600V
  • Diameter : 1.31
  • Class Rating : RK5
  • Barrels : 1

Product Data

  • UPC : 079458025460
  • GTIN : 00079458025460
  • Country of Origin : Mexico
  • Dimensions : x 7 7/8 in x
  • Weight : 0.6
  • Certification : CSA, cUL, UL
