FLSR060ID - Littelfuse 60A 600VAC/300VDC Class RK5 Time Delay Dual Element Fuse with Indicator

FLSR060ID

FLSR060ID is a Littelfuse Class RK5 time delay dual element fuse with visual blown fuse indication, rated for 60 amps and 600 VAC/300 VDC.

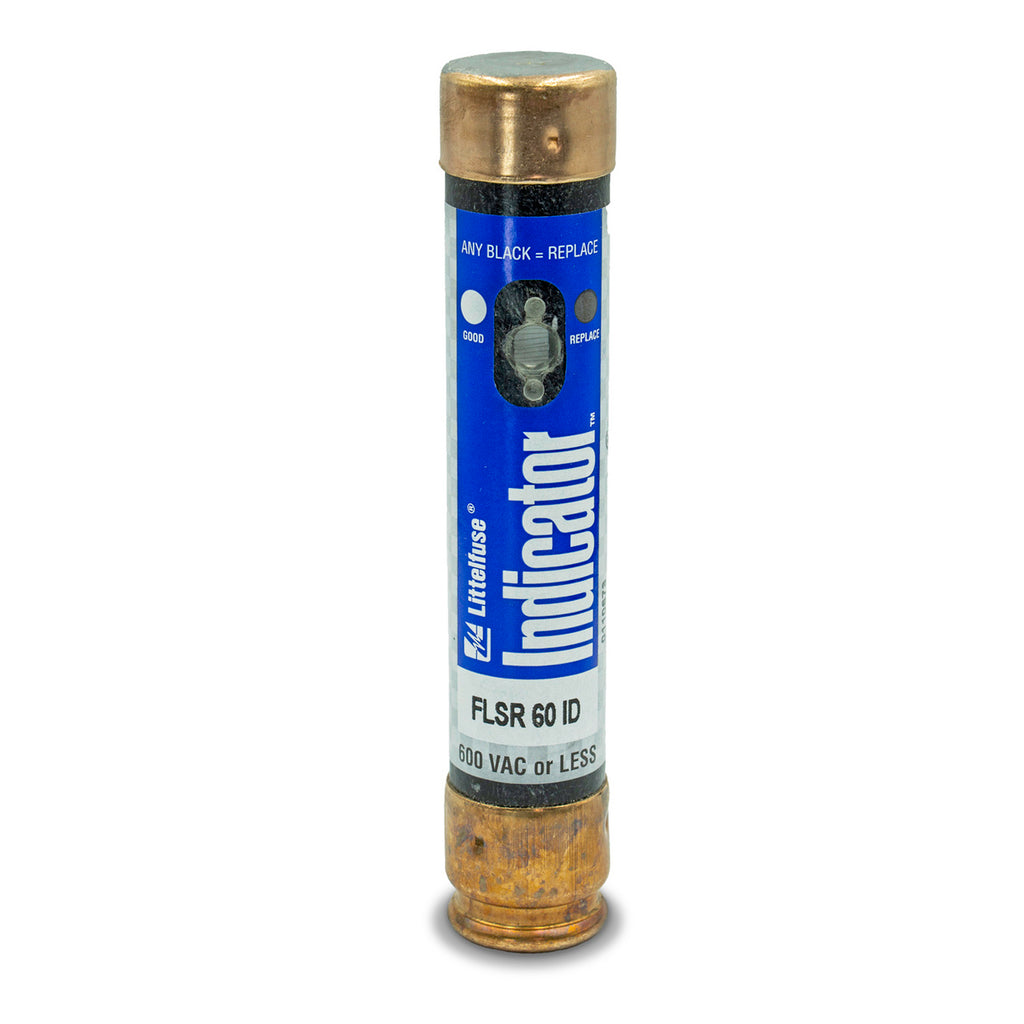

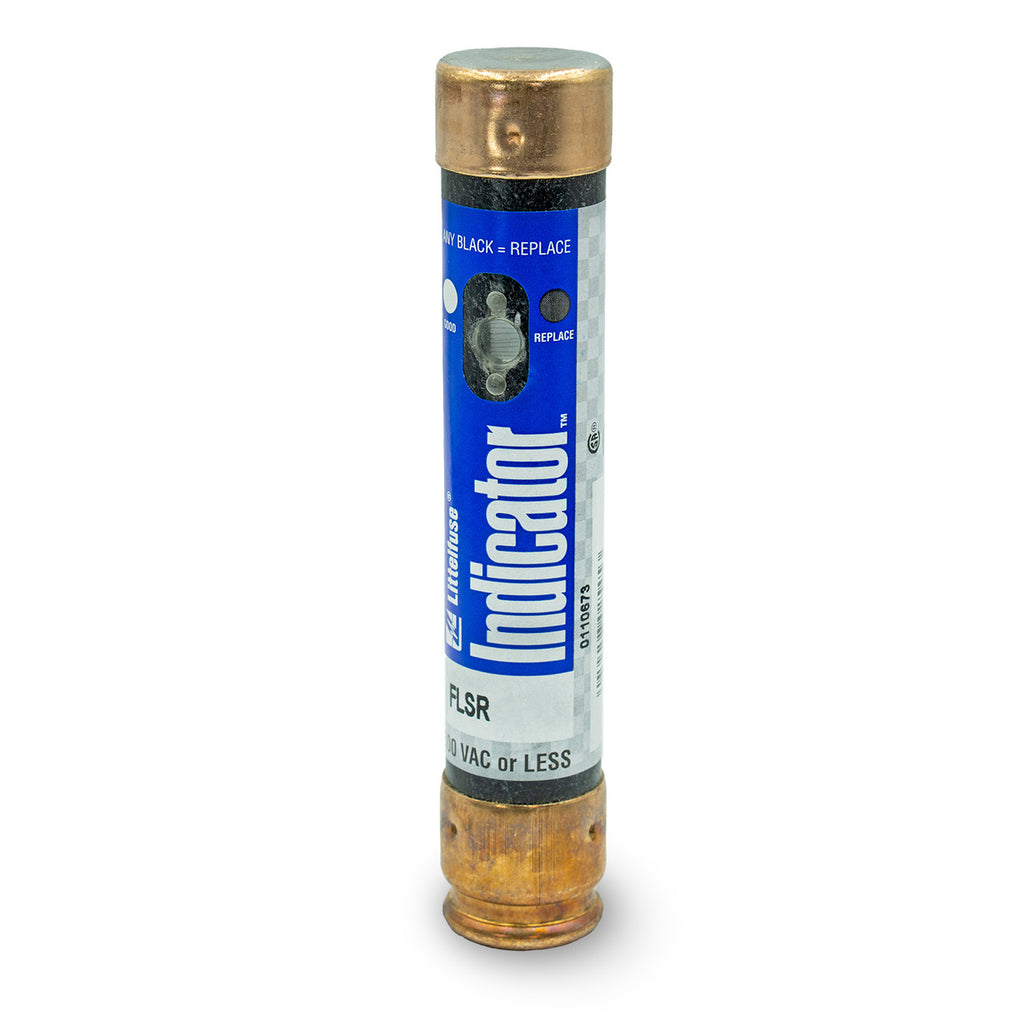

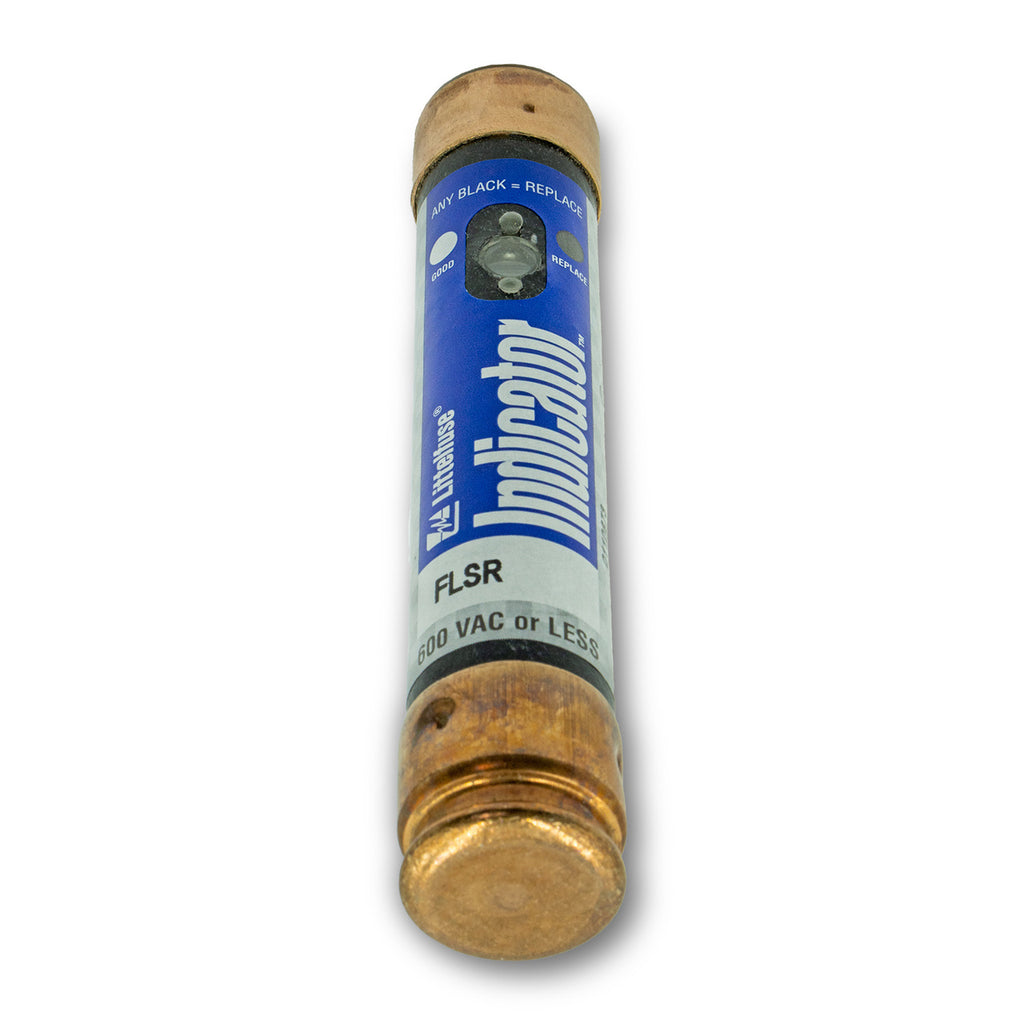

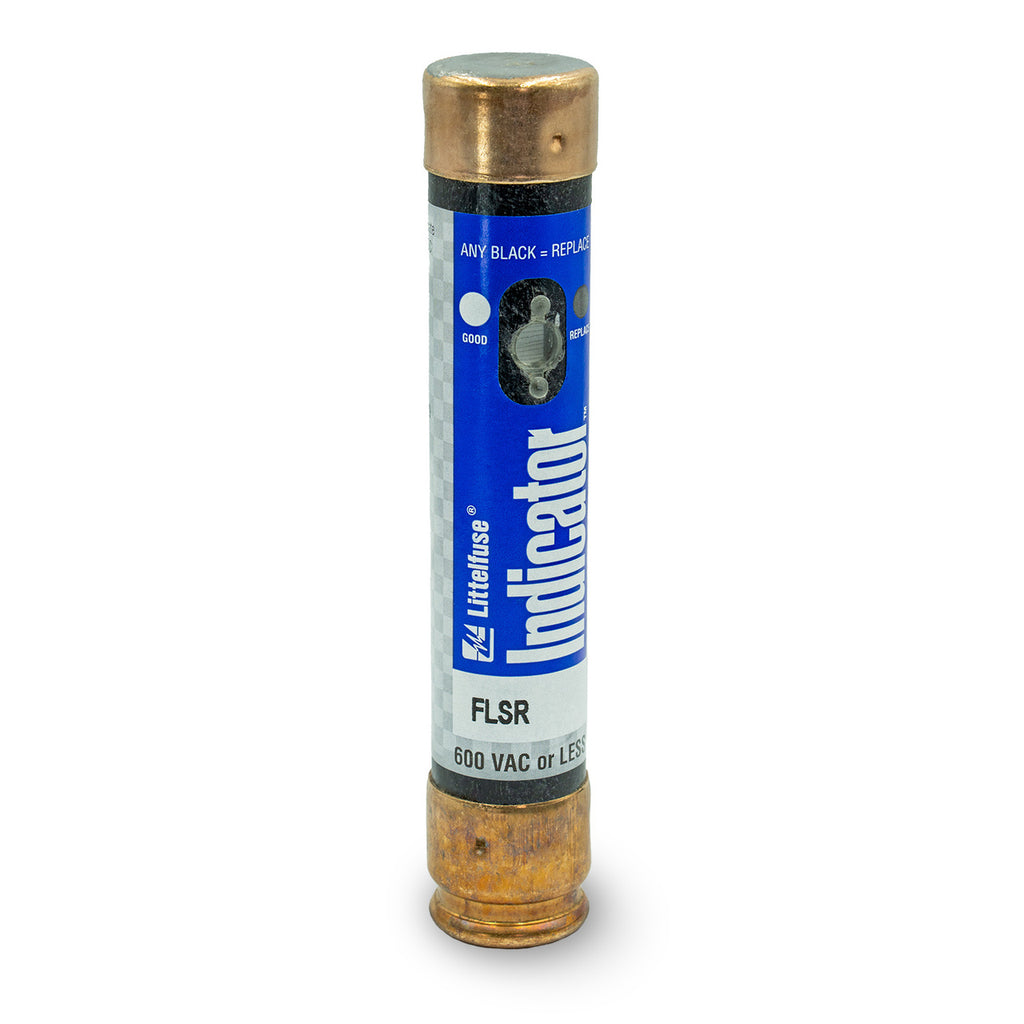

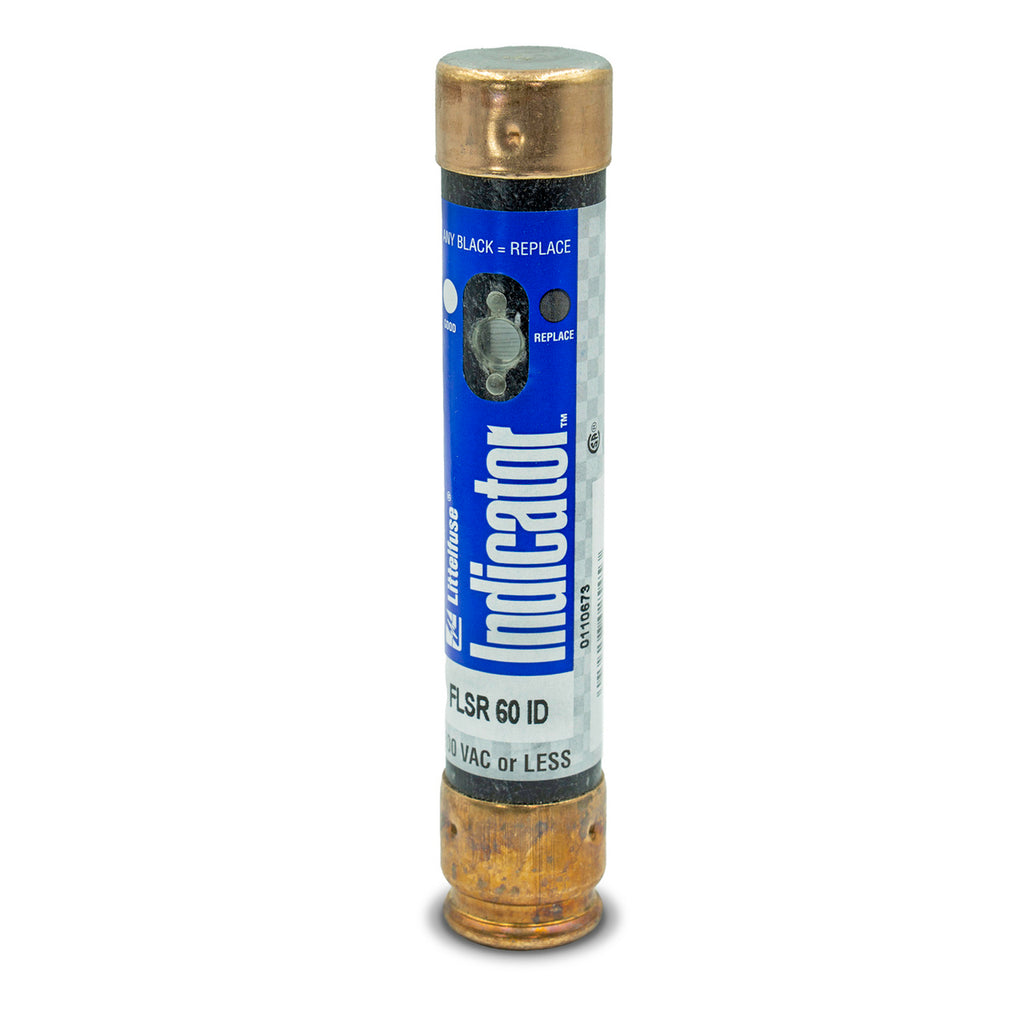

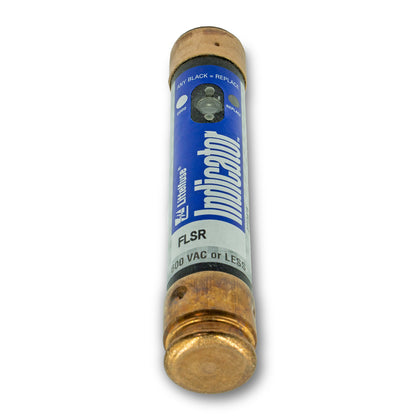

This POWR-GARD® FLSR_ID series fuse features a cylindrical cartridge body with clip terminals, providing advanced short-circuit and overload protection with current limiting capability. It has a slow-blow (time delay) characteristic and a patented solid-state indicator window that turns black to signal a blown fuse, reducing downtime and improving safety. The fuse is suitable for general purpose circuits, service entrance switches, switchboard mains and feeders, and motor control applications. It meets UL 248-12 standards and is rated for 200 kA rms symmetrical interrupt at 600 VAC and 20 kA DC interrupt rating.

Key Specifications
• Amperage Rating: 60 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 kA AC / 20 kA DC
• Fuse Class: RK5
• Fuse Type: Time Delay (Slow Blow), Dual Element
• Body Style: Cylindrical Cartridge
• Terminal Type: Clip
• Visual Blown Fuse Indicator: Yes
• Mounting Method: Fuse Block / Clip / Holder
• Length: 5-1/2 inches
• Diameter: 1-1/16 inches
• Applicable Standards: UL 248-12

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR060ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 60
• AIC rating : 200kA@600V
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 079458025453
• GTIN : 00079458025453
• Country of Origin : Mexico
• Dimensions : x 5 in x
• Weight : 0.35
• Certification : CSA, cUL, UL
