FLSR060 - Littelfuse 60A 600V AC/300V DC Class RK5 Time Delay Fuse

FLSR060

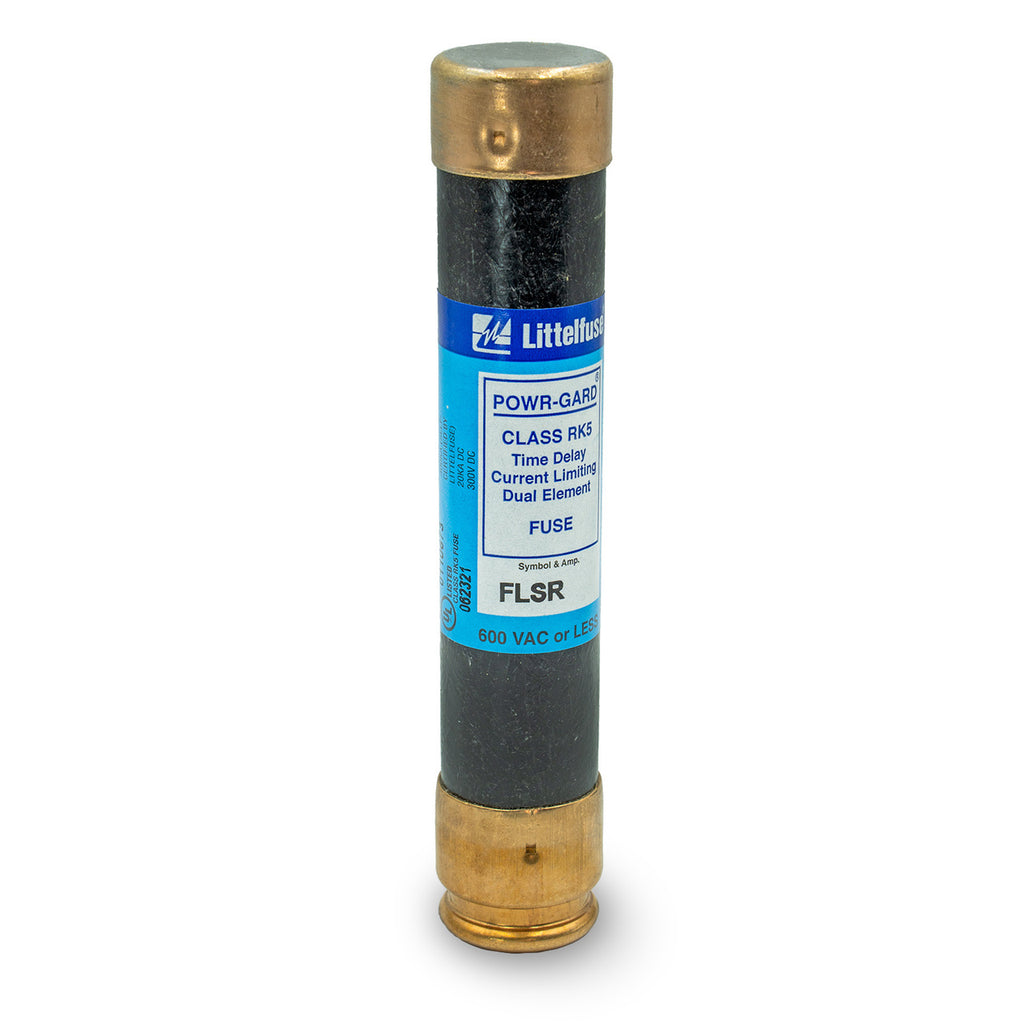

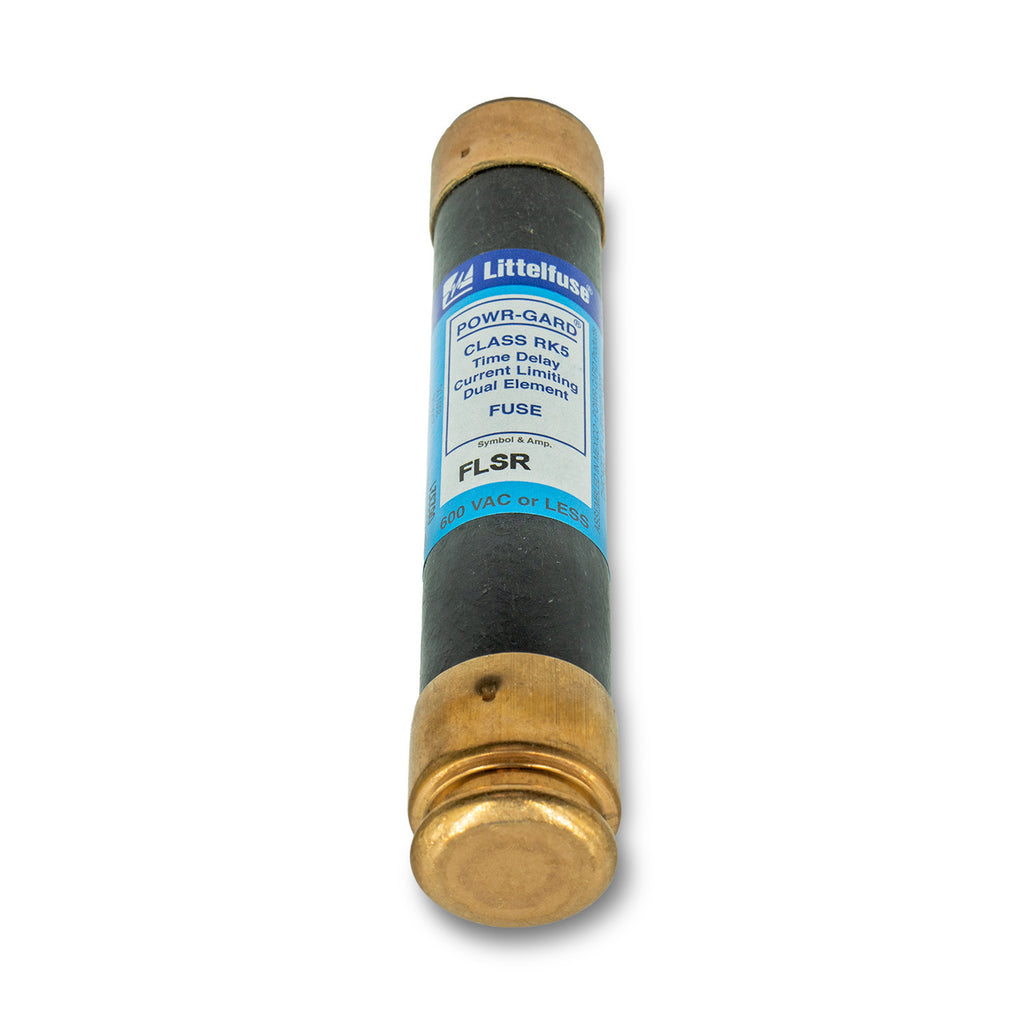

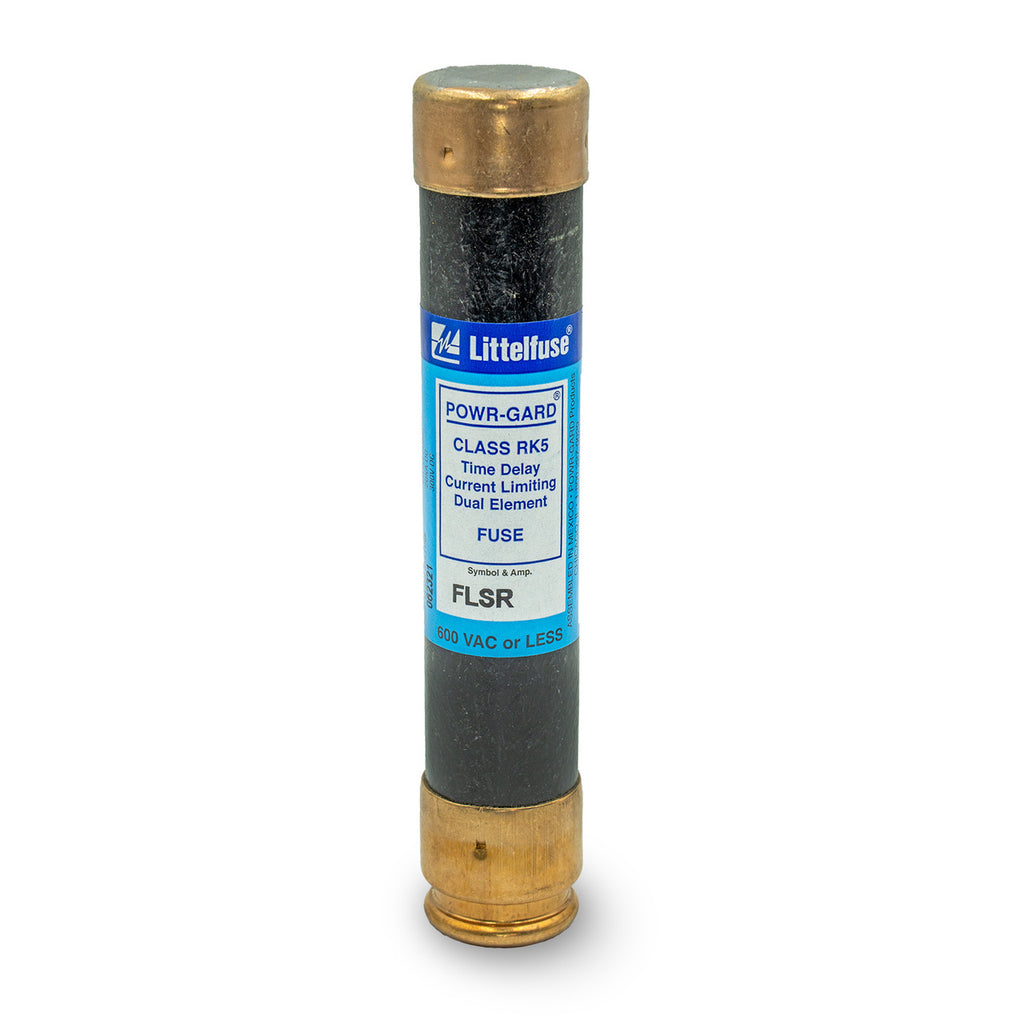

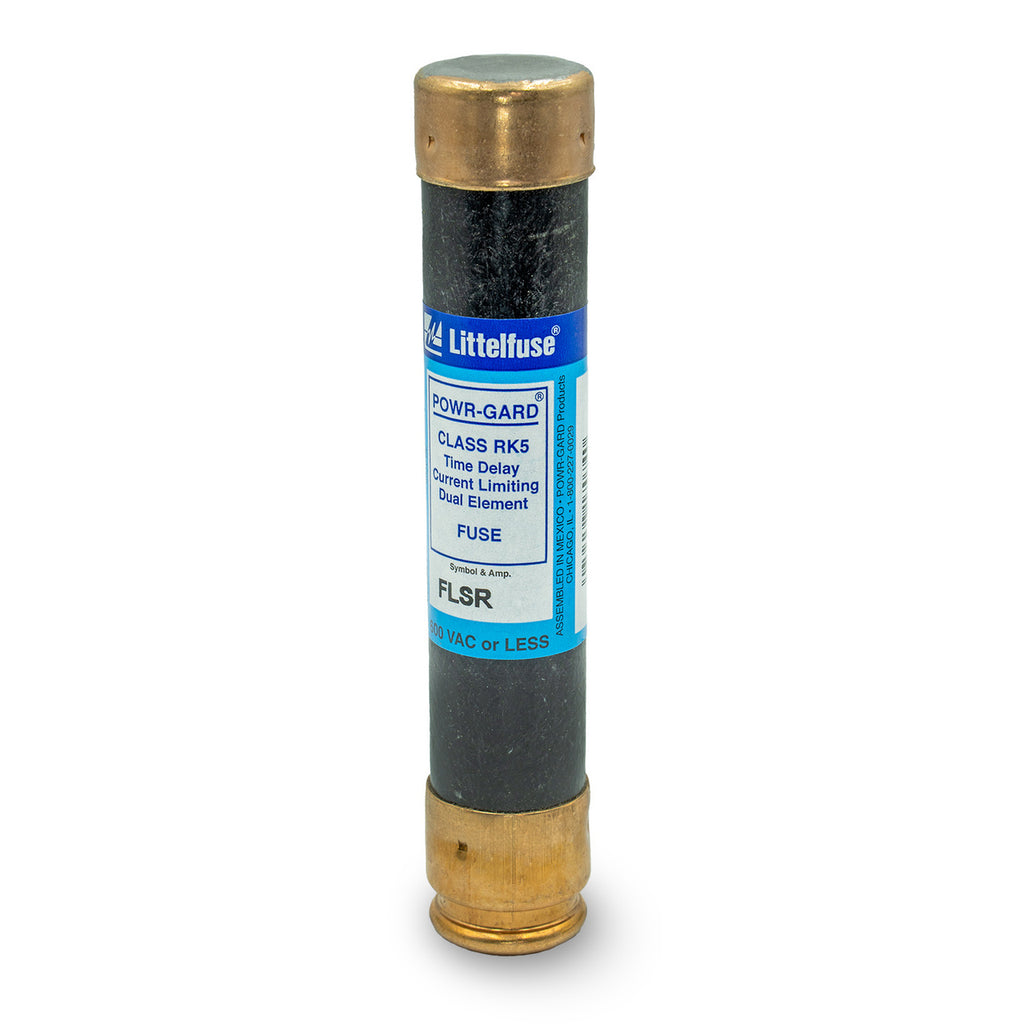

FLSR060 is a Littelfuse Class RK5 time delay fuse designed for reliable circuit protection in general purpose applications.This dual-element, current-limiting fuse features a cylindrical cartridge body and provides superior short-circuit and overload protection with a 60 ampere rating. It is rated for 600 volts AC and 300 volts DC, with an interrupting rating of 200 kA at 600 VAC and 20 kA at 300 VDC. The fuse is designed for holder mounting and uses ferrule terminals for secure connections. It offers precise and consistent response to overloads and short circuits, making it suitable for motor circuits, switchboard mains, transformers, and service entrance switches.

• Amperage: 60 A
• Voltage Rating: 600 V AC / 300 V DC
• Interrupt Rating: 200 kA AC / 20 kA DC
• Class: RK5
• Type: Dual-element, time delay, current limiting
• Body Type: Cylindrical cartridge
• Mounting Type: Holder
• Terminal Type: Ferrule
• Frequency Rating: 50/60 Hz
• Dimensions: Approximately 1-1/16 inch diameter x 5-1/2 inch length
• Country of Origin: Mexico

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR060
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 600
• Amperage : 60
• AIC rating : 200kA@600V
• Diameter : 2.59
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945817078
• GTIN : 00079458170788
• Country of Origin : Mexico
• Dimensions : x 5-1/2 in x
• Weight : 25
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
