FLSR050ID - Littelfuse 50 Amp 600V AC 300V DC Class RK5 Time Delay Indicating Fuse

FLSR050ID

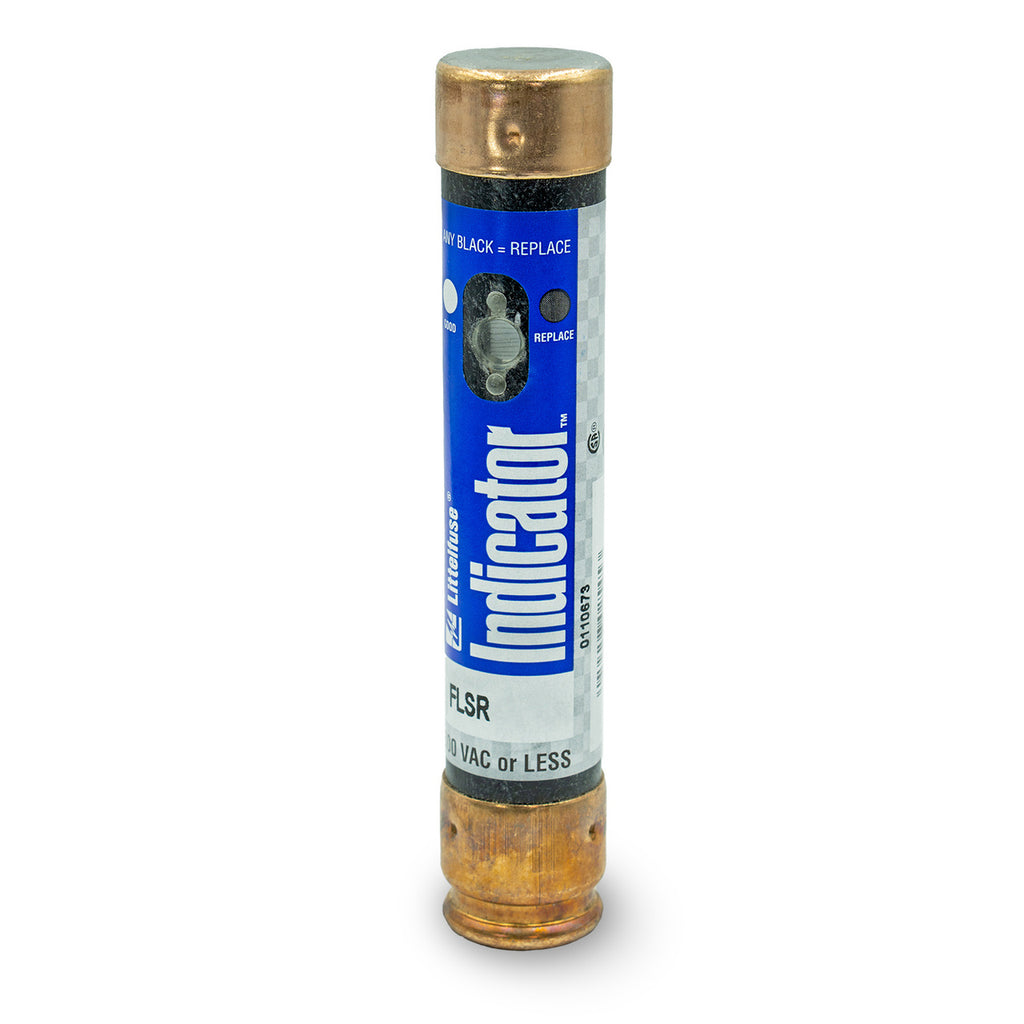

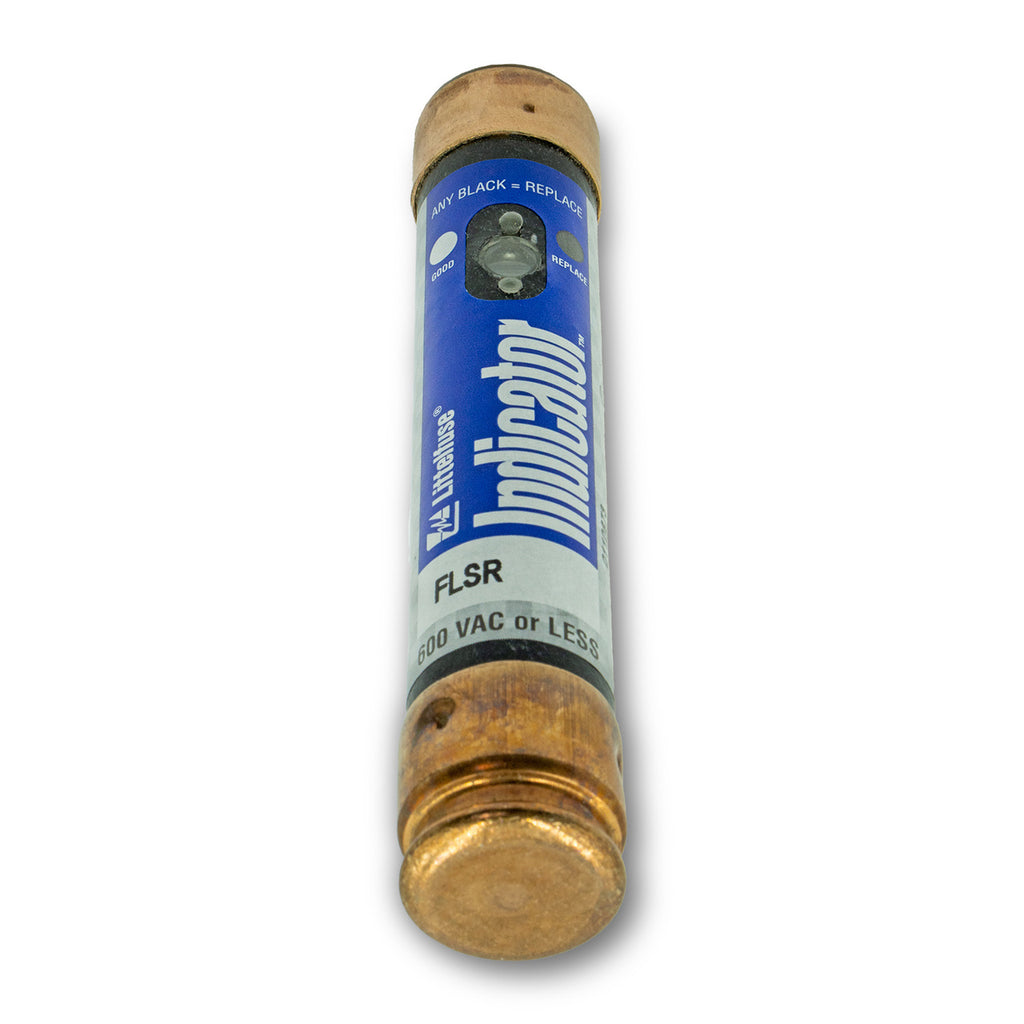

FLSR050ID is a Littelfuse Class RK5 indicating fuse rated for 50 amps with a voltage rating of 600 VAC and 300 VDC. It features a dual-element, time-delay design for advanced short-circuit and overload protection.FLSR050ID provides excellent short-circuit protection with a current-limiting dual-element construction and visual blown fuse indication for quick fault identification. It is cartridge style with a 1-1/16 inch diameter and 5-1/2 inch length, suitable for general purpose circuits including motor control and switchboard mains. The fuse has an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC, meeting UL 248-12 and CSA certifications.

• Amperage Rating: 50 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK5
• Fuse Type: Dual Element, Time Delay (Slow Blow)
• Interrupting Rating: 200,000 AIC AC, 20,000 AIC DC
• Body Style: Industrial Cartridge
• Diameter: 1-1/16 inch
• Length: 5-1/2 inch
• Visual Blown Fuse Indication
• Mounting Method: Fuse Block / Clip / Holder
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR050ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 50
• AIC rating : 200kA@600V
• Diameter : 1.84
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945802544
• GTIN : 00079458025446
• Country of Origin : Mexico
• Dimensions : x 5 in x
• Weight : 0.35
• Certification : CSA, cUL, UL
