Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR040ID

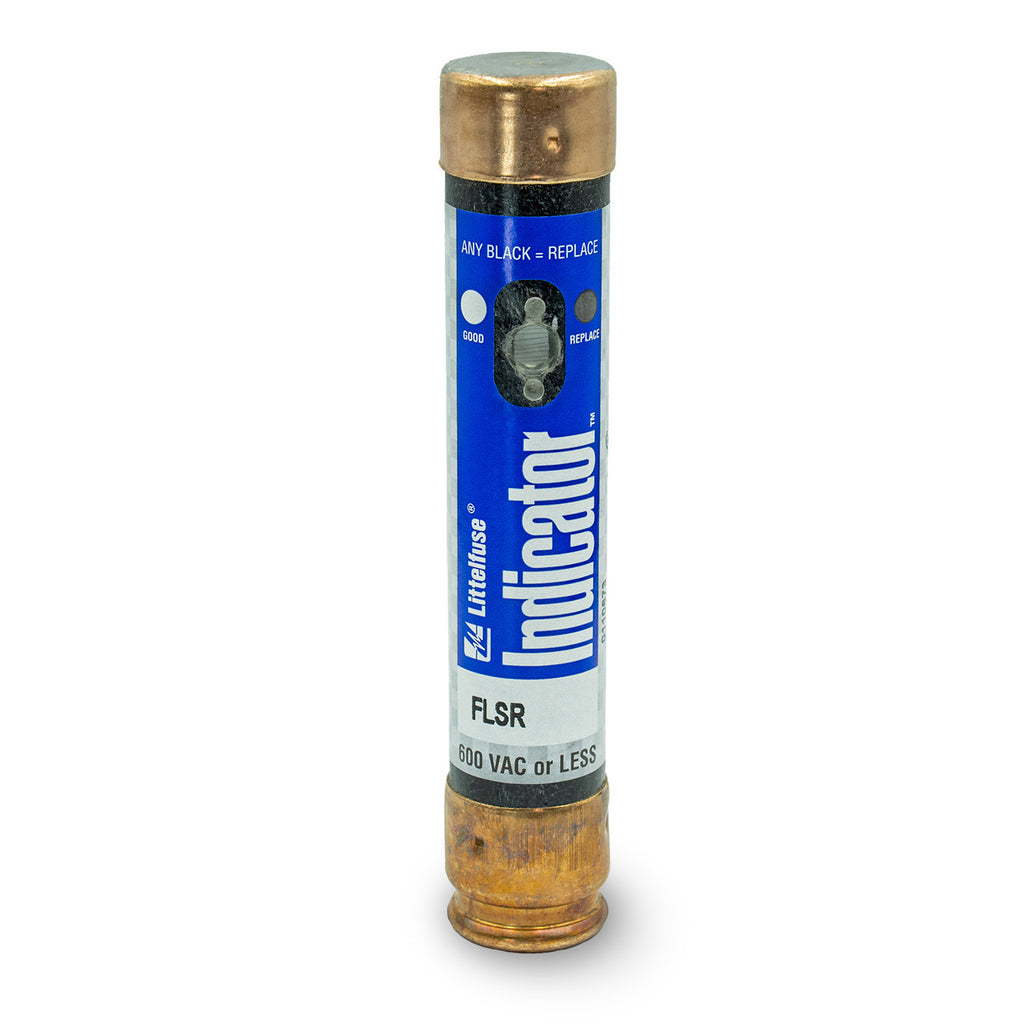

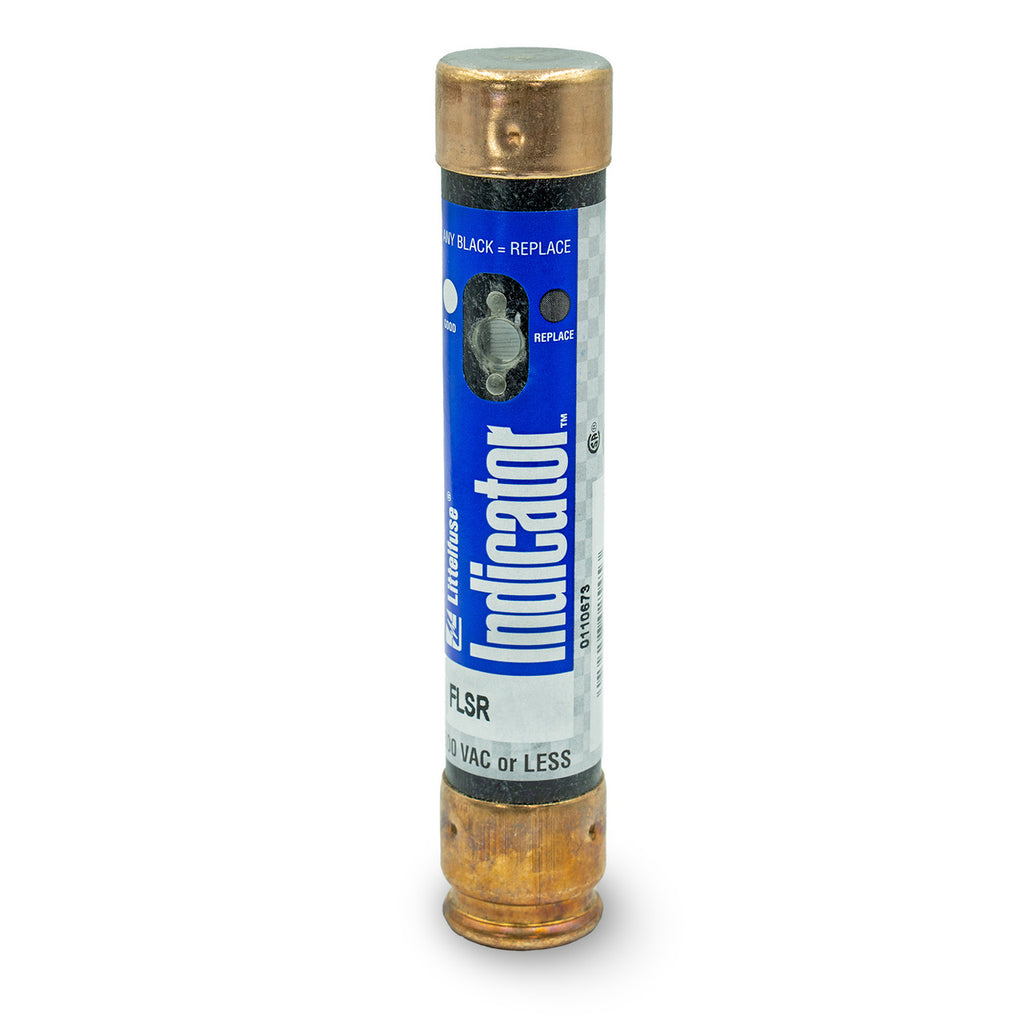

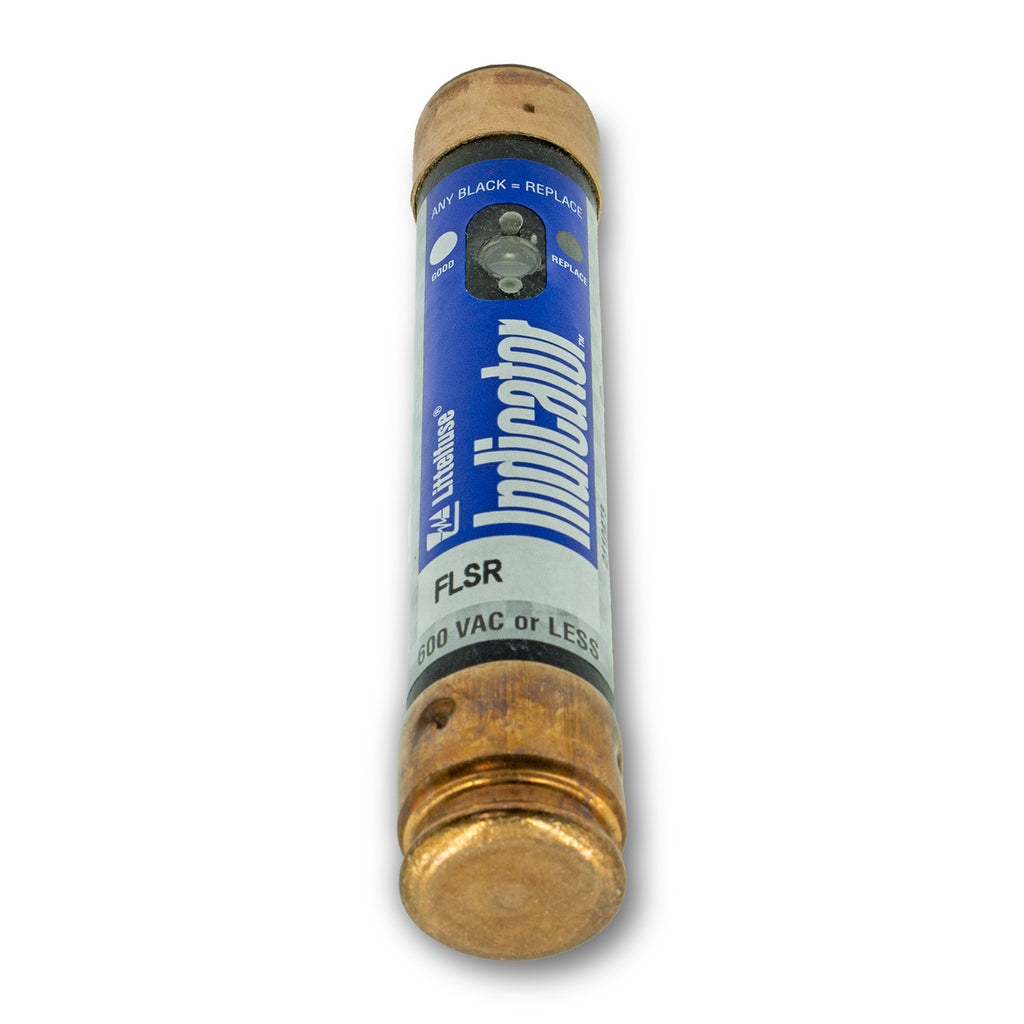

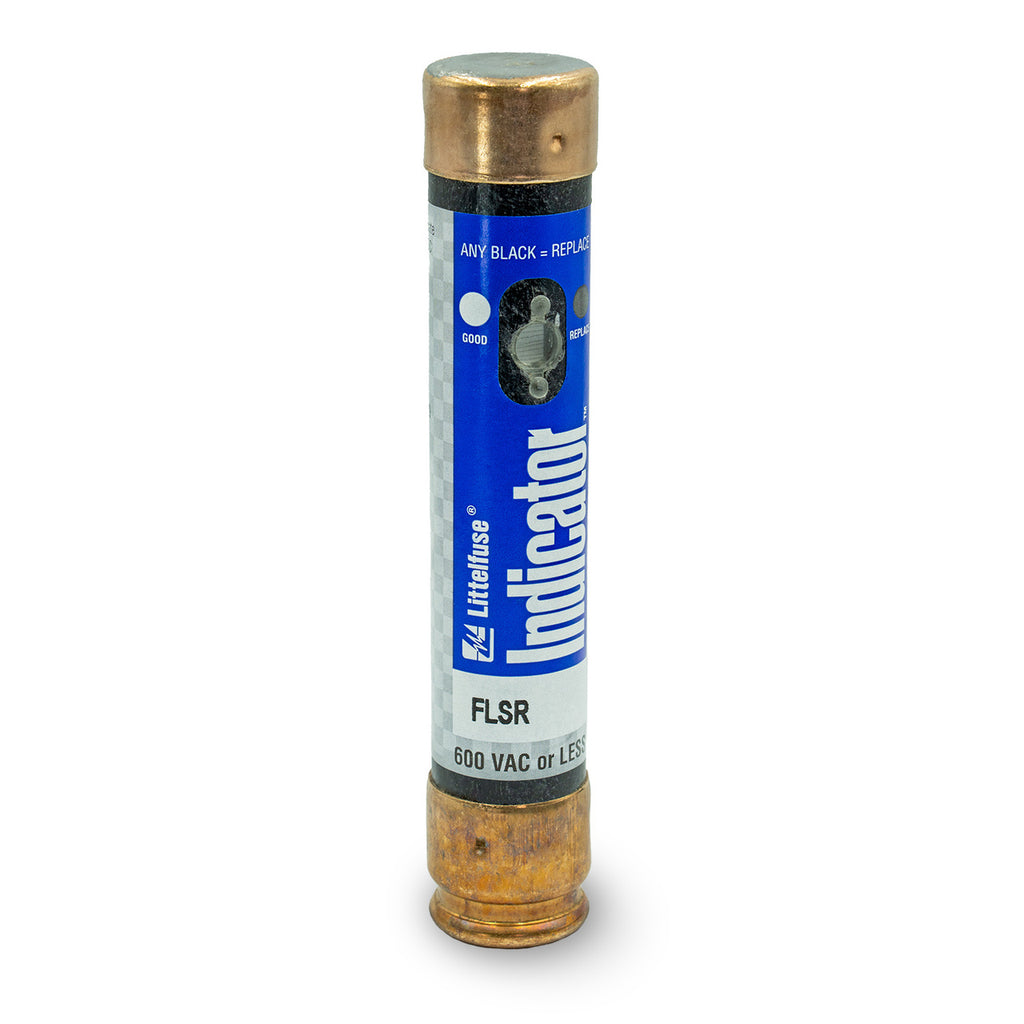

FLSR040ID is a 40 amp, 600 VAC/300 VDC Class RK5 time delay indicating fuse from Littelfuse's POWR-GARD® FLSR series.
This dual-element industrial cartridge fuse provides advanced short-circuit and overload protection with a current limiting design. It features a visual blown fuse indicator for quick identification, a slow-blow (time delay) characteristic, and is suitable for general purpose circuits including motor control and switchboard mains. The fuse has a high interrupt rating of 200 kA at 600 VAC and 20 kA at 300 VDC, ensuring reliable performance under fault conditions. It mounts in fuse blocks, clips, or holders compatible with the LFR60060 series.
- Key Specifications
- Amperage Rating: 40 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Fuse Type: Time Delay (Slow Blow), Indicating
- Interrupt Rating: 200 kA AC, 20 kA DC
- Construction: Dual Element Industrial Cartridge
- Mounting Method: Fuse Block / Clip / Holder (LFR60060 Series)
- Visual Blown Fuse Indication
- Part Number: FLSR040ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
- UPC : 079458025422
- GTIN : 00079458025422
- Country of Origin : Mexico
- Dimensions : x 5 in x
- Weight : 0.35
- Certification : CSA, cUL, UL
