Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR040

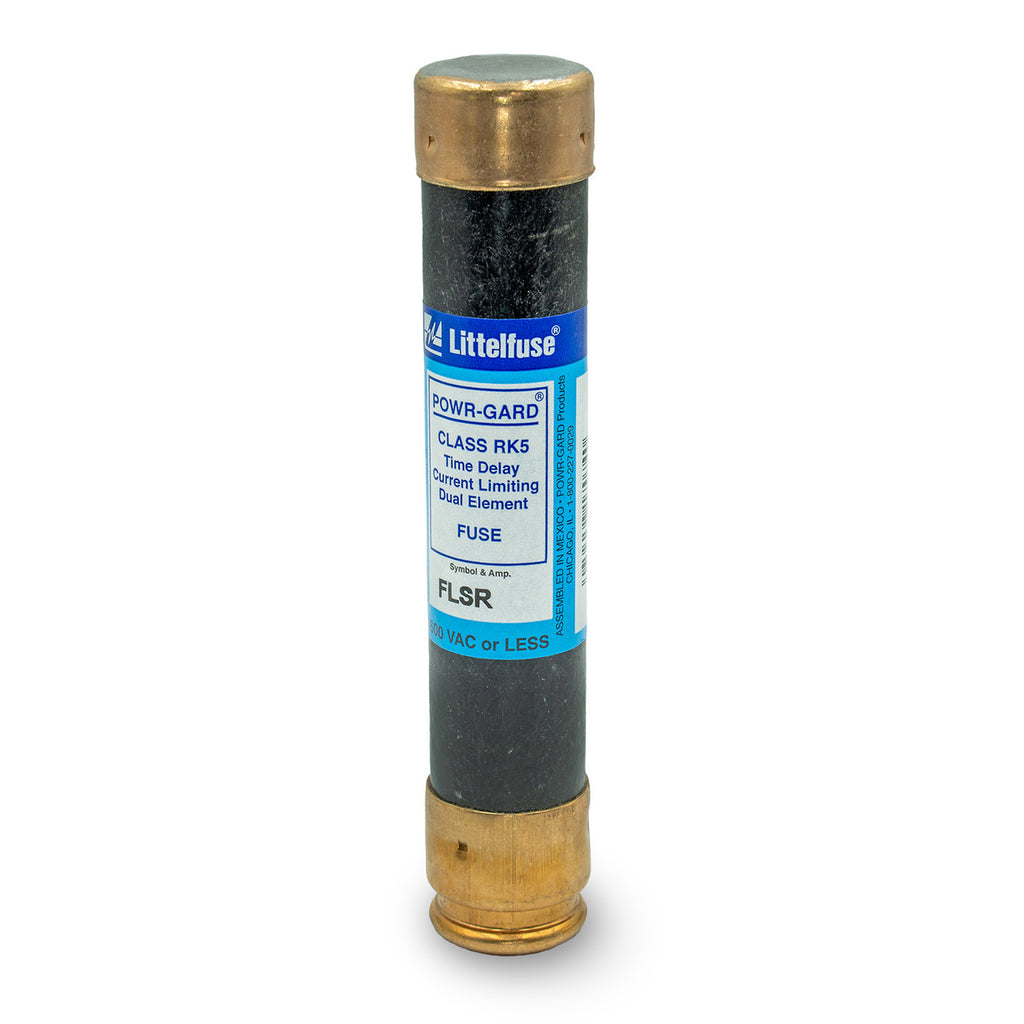

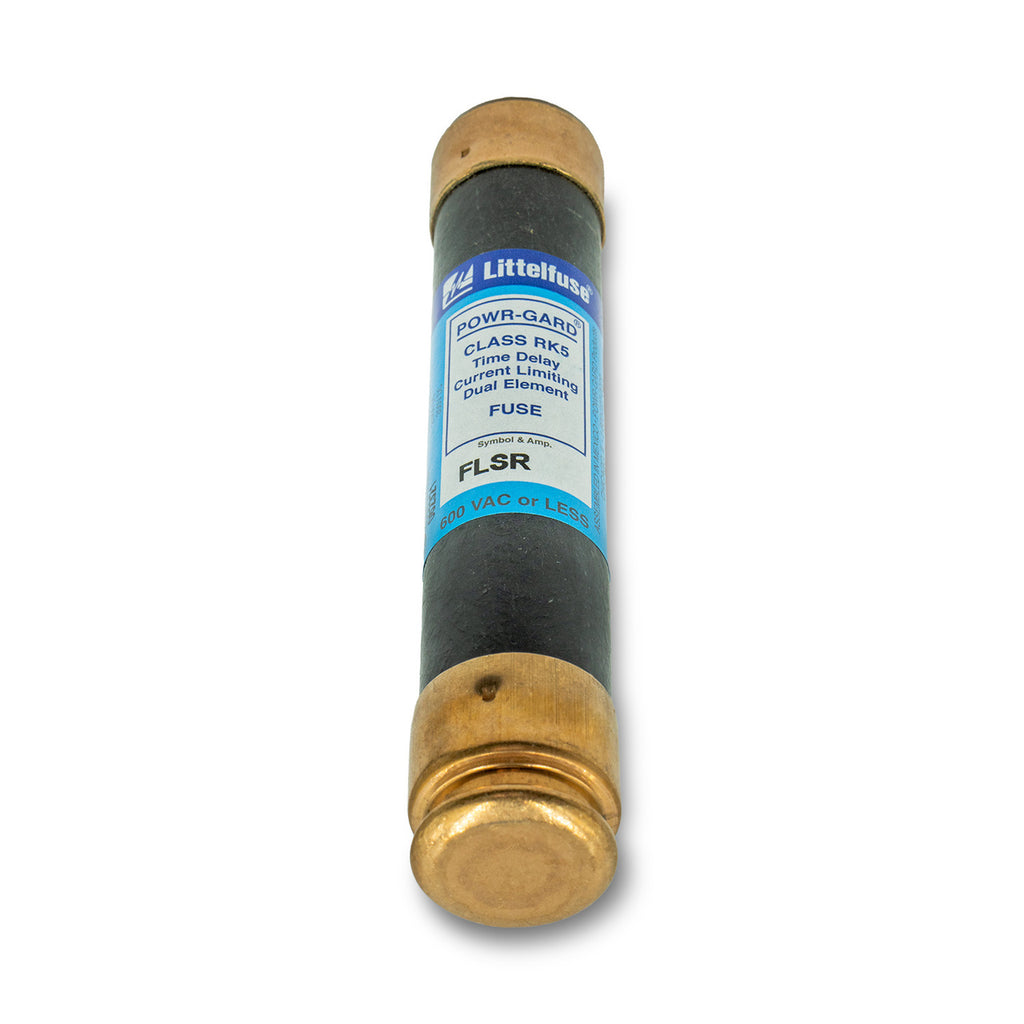

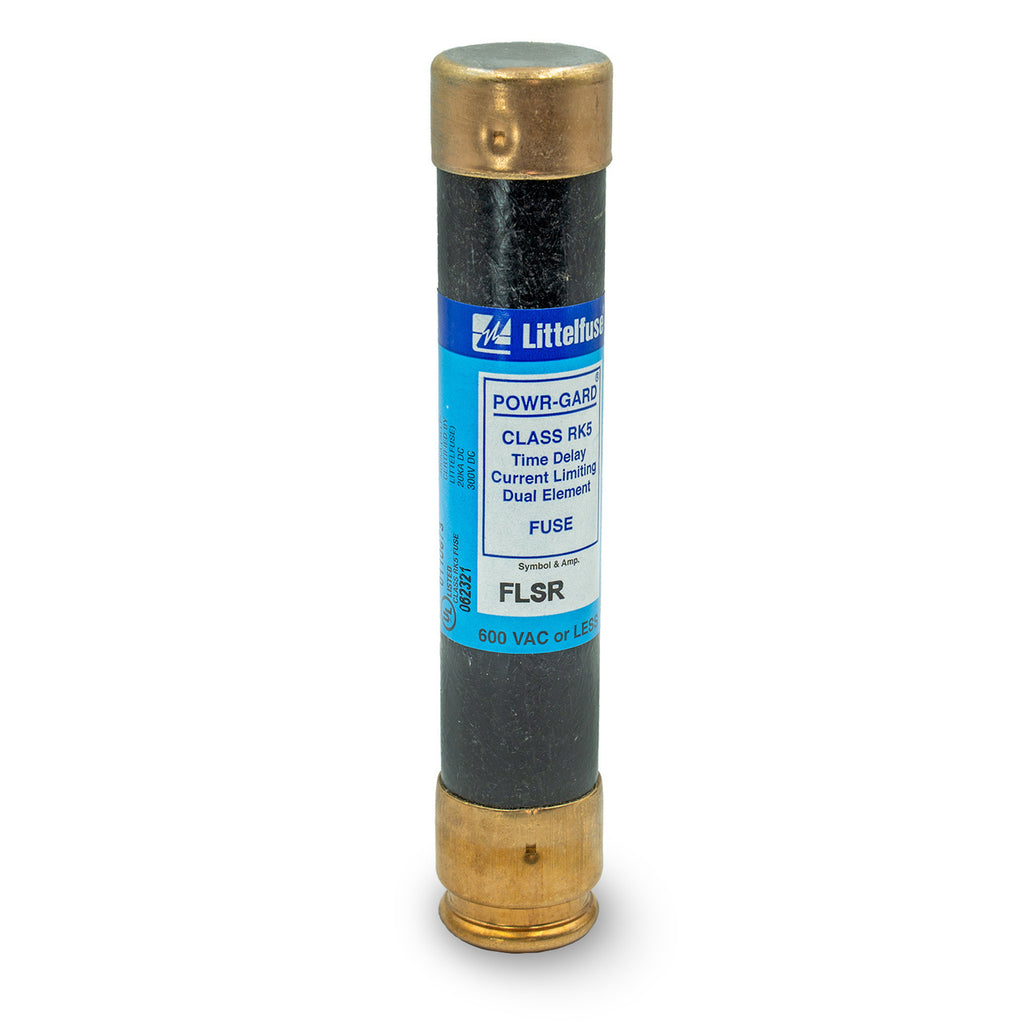

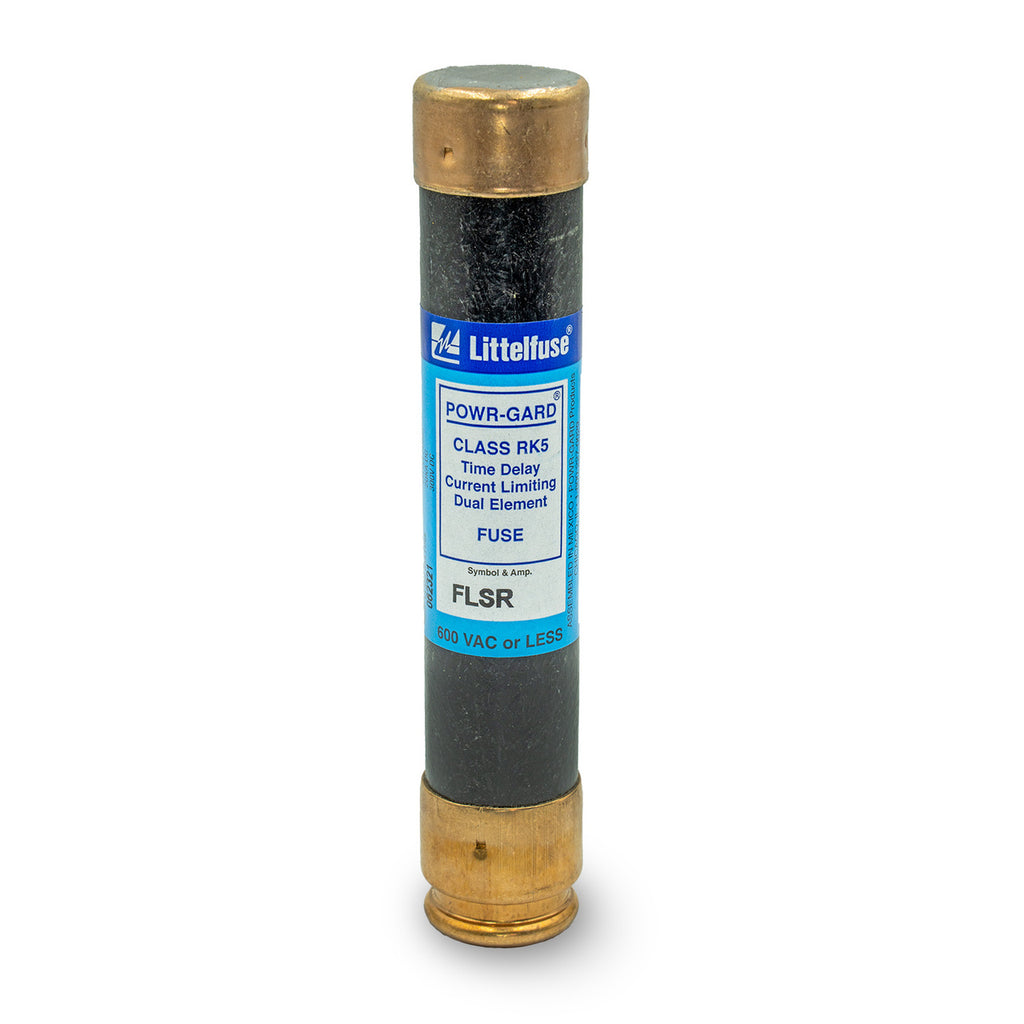

FLSR040 is a Littelfuse Class RK5 fuse designed for reliable circuit protection in general purpose applications. This dual-element, time-delay fuse provides advanced short-circuit and overload protection with a current-limiting design. The FLSR040 features a cartridge-style construction and is suitable for use in fuse blocks, clips, or holders. It offers a 40 amp continuous current rating, 600VAC and 300VDC voltage ratings, and high interrupting capacity for demanding environments. The fuse is ideal for service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.
- 40 Amp continuous current rating
- 600VAC maximum AC voltage
- 300VDC voltage rating
- Time-delay (slow-blow) response
- Dual-element design
- Current-limiting
- Interrupting rating: 200,000A AC, 20,000A DC
- Cartridge-style mounting
- Class RK5
- UL 248-12 listed
- CSA certified
- CE approved
Specifications
- Part Number: FLSR040
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLSR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945817075
- GTIN : 00079458170757
- Country of Origin : Mexico
- Dimensions : x 5-1/2 in x
- Weight : 5.19
- Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
