Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

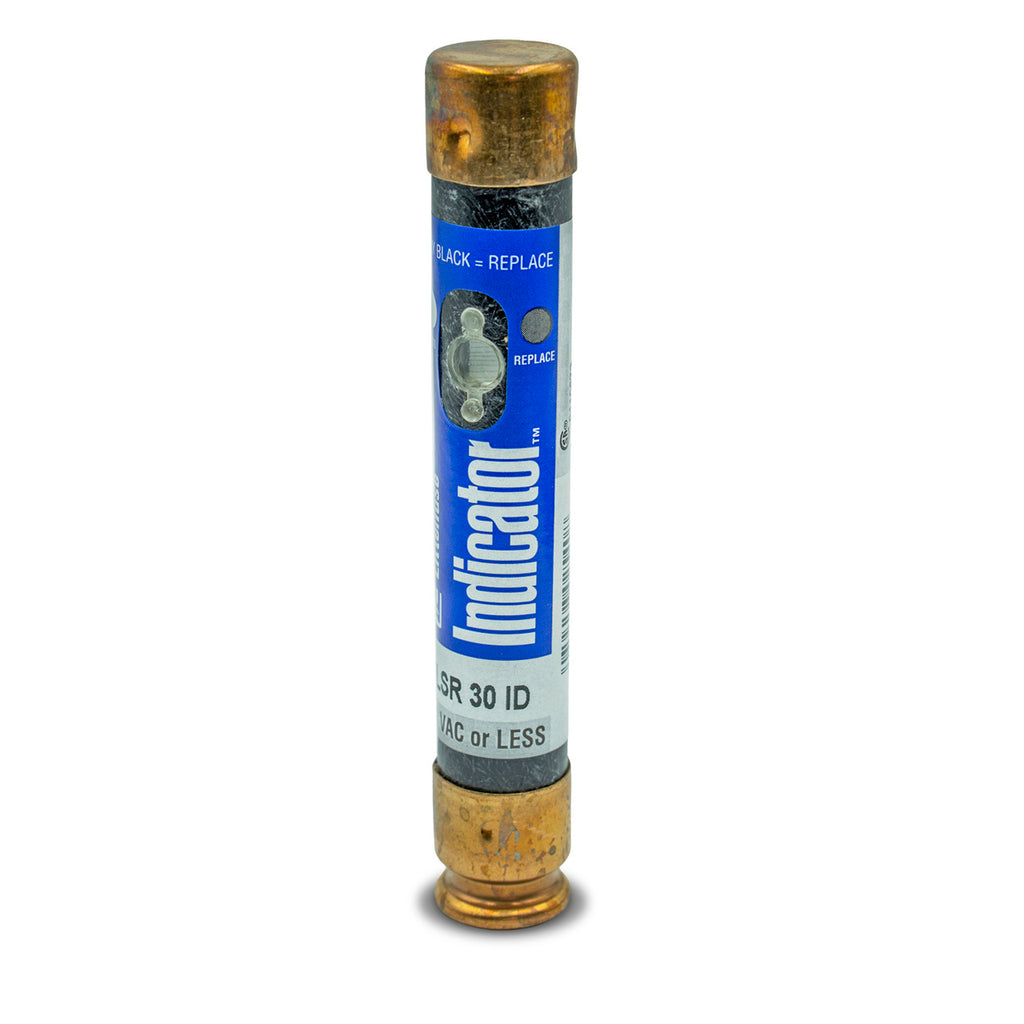

FLSR030ID
FLSR030ID is a 30 Amp, 600 Volt Class RK5 indicating fuse from Littelfuse designed for low voltage applications.This fuse features a dual-element, time delay design providing advanced short-circuit and overload protection with current limiting capabilities. It includes a visual blown fuse indicator for quick identification, reducing downtime. The cartridge-style fuse is suitable for general purpose circuits and mounts in fuse blocks or holders. It has an interrupt rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The fuse complies with UL 248-12 and CSA certifications.
- Key Specifications
- Amperage Rating: 30 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Fuse Type: Indicating, Dual Element
- Response Time: Time Delay (Slo-Blo)
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Mounting Type: Fuse Block / Clip / Holder
- Physical Size: 13/16" diameter x 5" length
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: FLSR030ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 30
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802540
- GTIN : 00079458025408
- Country of Origin : Mexico
- Dimensions : x 5 in x
- Weight : 0.18
- Certification : CSA, cUL, UL
