FLSR025ID - Littelfuse Class RK5 25A 600VAC 300VDC Time Delay Indicator Fuse

FLSR025ID

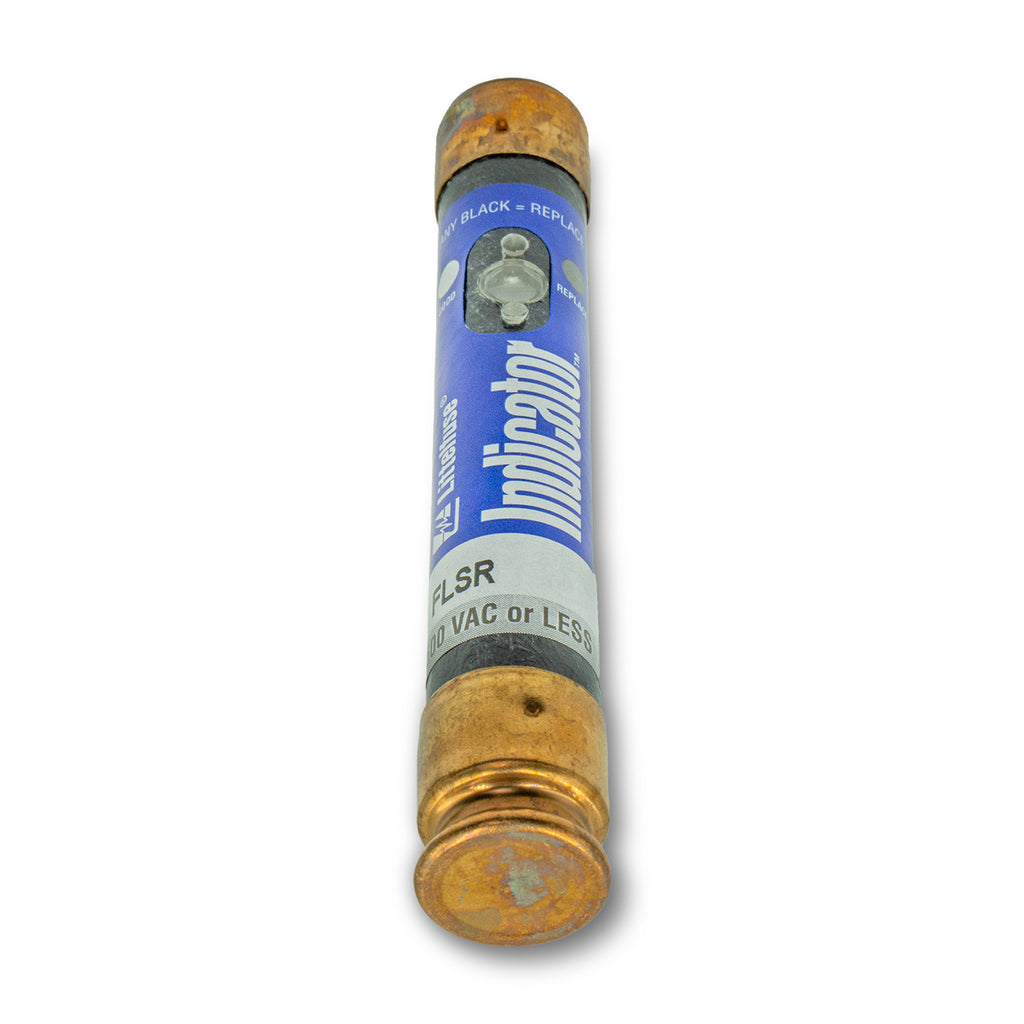

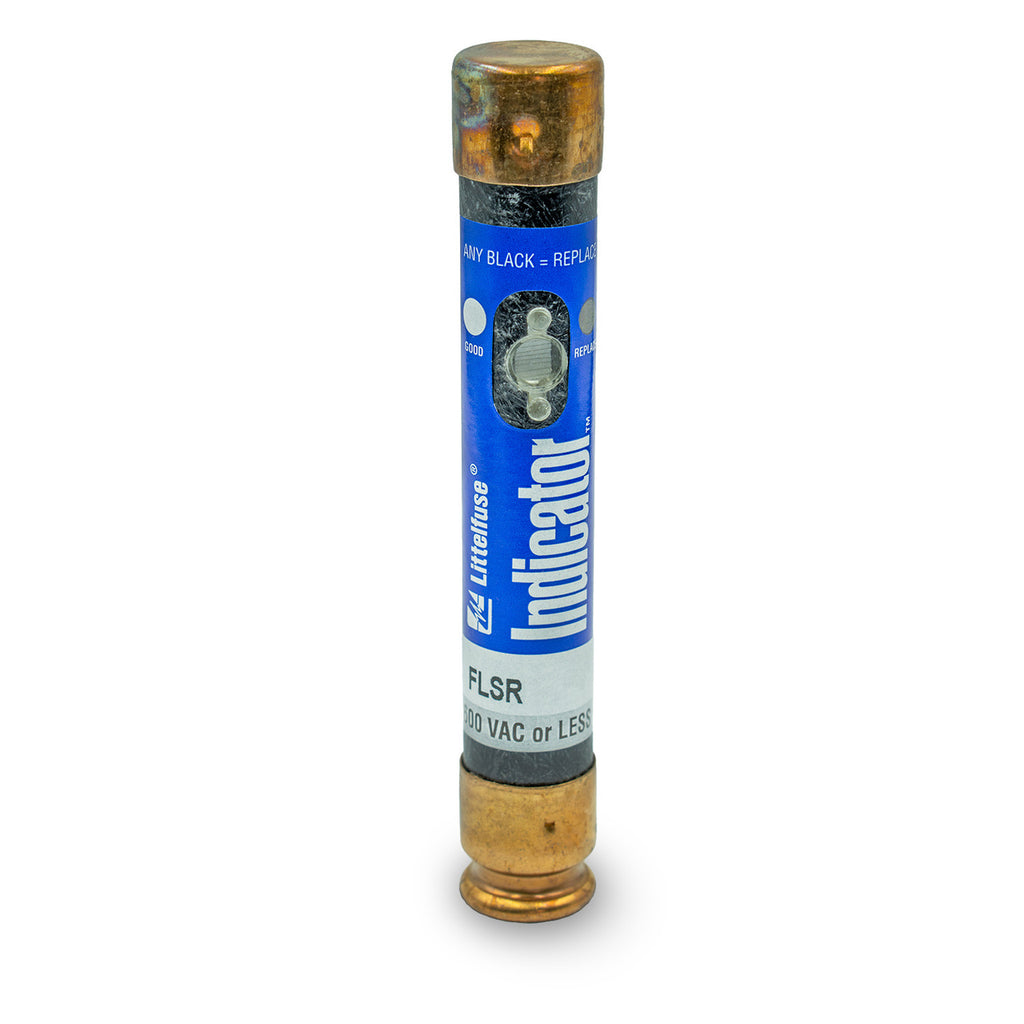

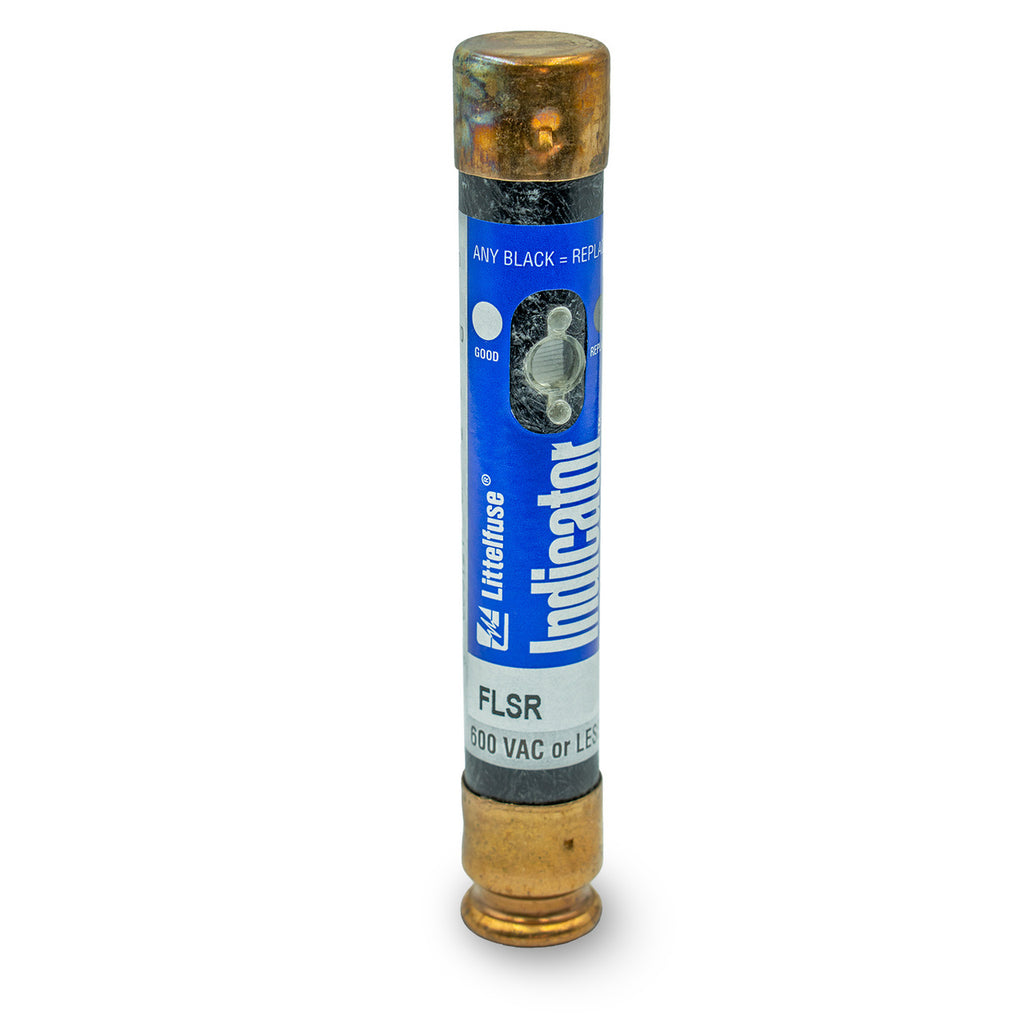

FLSR025ID is a Littelfuse Class RK5 dual-element time delay fuse with visual blown fuse indication, designed for reliable circuit protection in industrial and general purpose applications. This fuse features a current-limiting design and is suitable for use in service entrance switches, switchboards, and motor control circuits. The FLSR025ID fuse offers advanced short-circuit and overload protection with a dual-element construction. Its patented solid-state indicator provides instant visual confirmation of a blown fuse, reducing downtime and improving safety. The fuse is compatible with standard fuse blocks and holders, and is widely used in distribution panelboards and industrial control panels.

• 25 Ampere Rating
• 600 VAC / 300 VDC Voltage Rating
• Class RK5
• Time Delay (Slow Blow)
• Dual Element Design
• Visual Blown Fuse Indication
• Current Limiting
• Interrupting Rating: 200 kA RMS AC, 20 kA DC
• Cartridge Body Style
• Clip Terminal Type
• 13/16" Diameter x 5" Length
• UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR025ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 25
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 079458025392
• GTIN : 00079458025392
• Country of Origin : Mexico
• Dimensions : x 5 in x
• Weight : 0.18
• Certification : CSA, cUL, UL
