Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR007ID

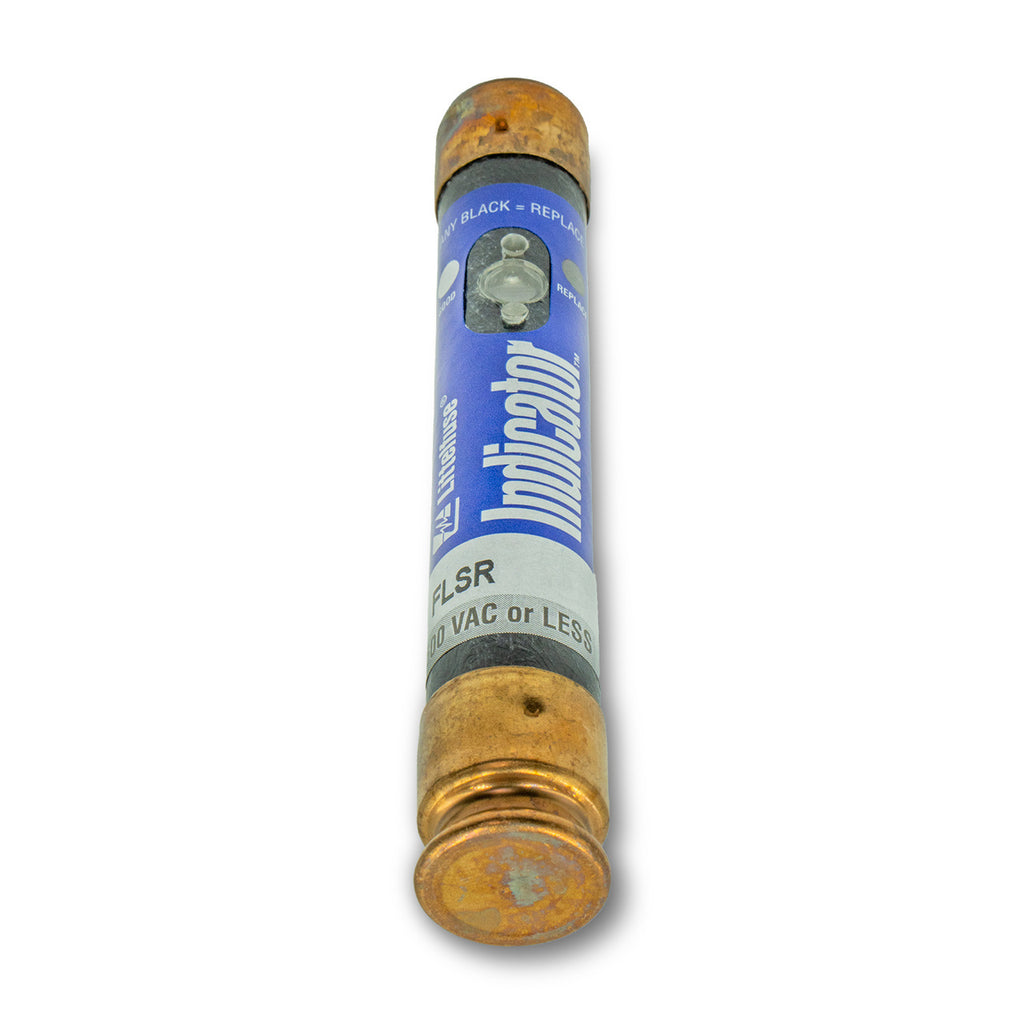

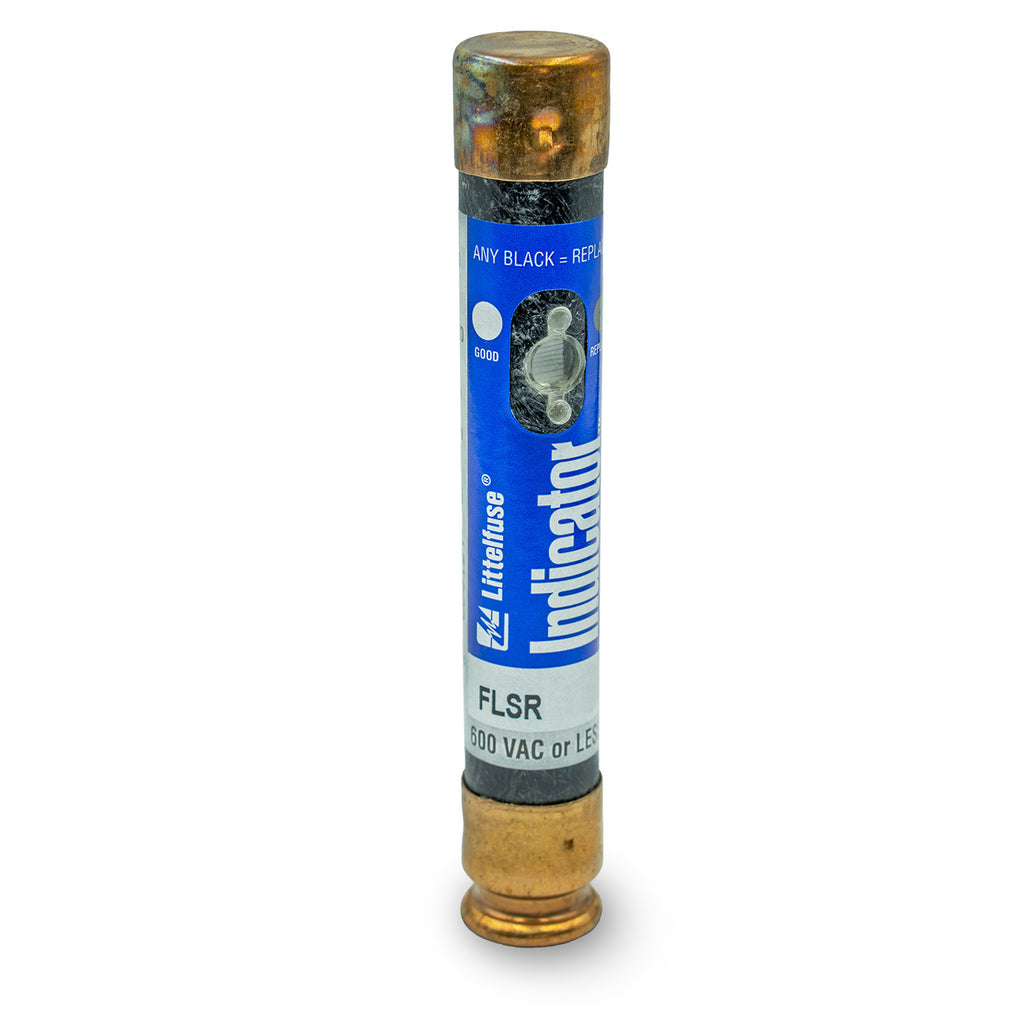

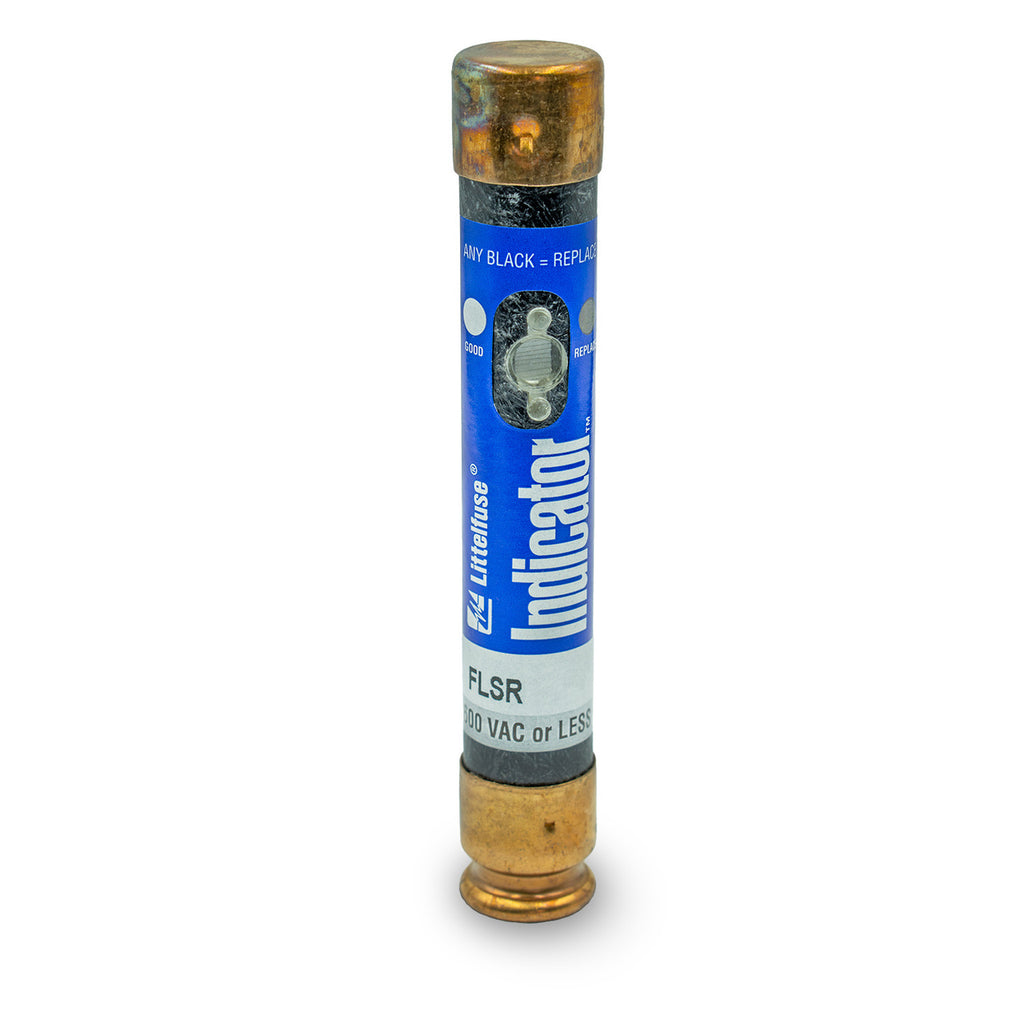

FLSR007ID is a Class RK5 cartridge fuse rated for 7 amps at 600 volts AC and 300 volts DC, featuring time-delay protection and dual-element design for superior short-circuit and overload protection. This indicating fuse from the FLSR_ID series provides visual blown fuse indication through a patented solid-state design, allowing quick identification of fuse status at a glance. The current-limiting technology restricts fault currents to provide advanced circuit protection across general purpose applications, service entrance switches, transformers, switchboards, and motor control circuits.
- Amperage Rating: 7 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Response Time: Time Delay (Slo-Blo)
- Mounting Type: Cartridge
- Physical Size: 13/16 inch Diameter x 5 inch Length
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Design: Dual Element, Current Limiting
- Indication: Visual Blown Fuse Indicator
- Standards: UL 248-12, CSA Certified
Specifications
- Part Number: FLSR007ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Voltage : 600
- Amperage : 7
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 079458025309
- GTIN : 00079458025309
- Country of Origin : Mexico
- Weight : 1.81
- Certification : Standard 248-12 UL Listed/CSA
