FLSR005ID - Littelfuse 5 Amp 600 VAC 300 VDC Class RK5 Indicating Time Delay Fuse

FLSR005ID

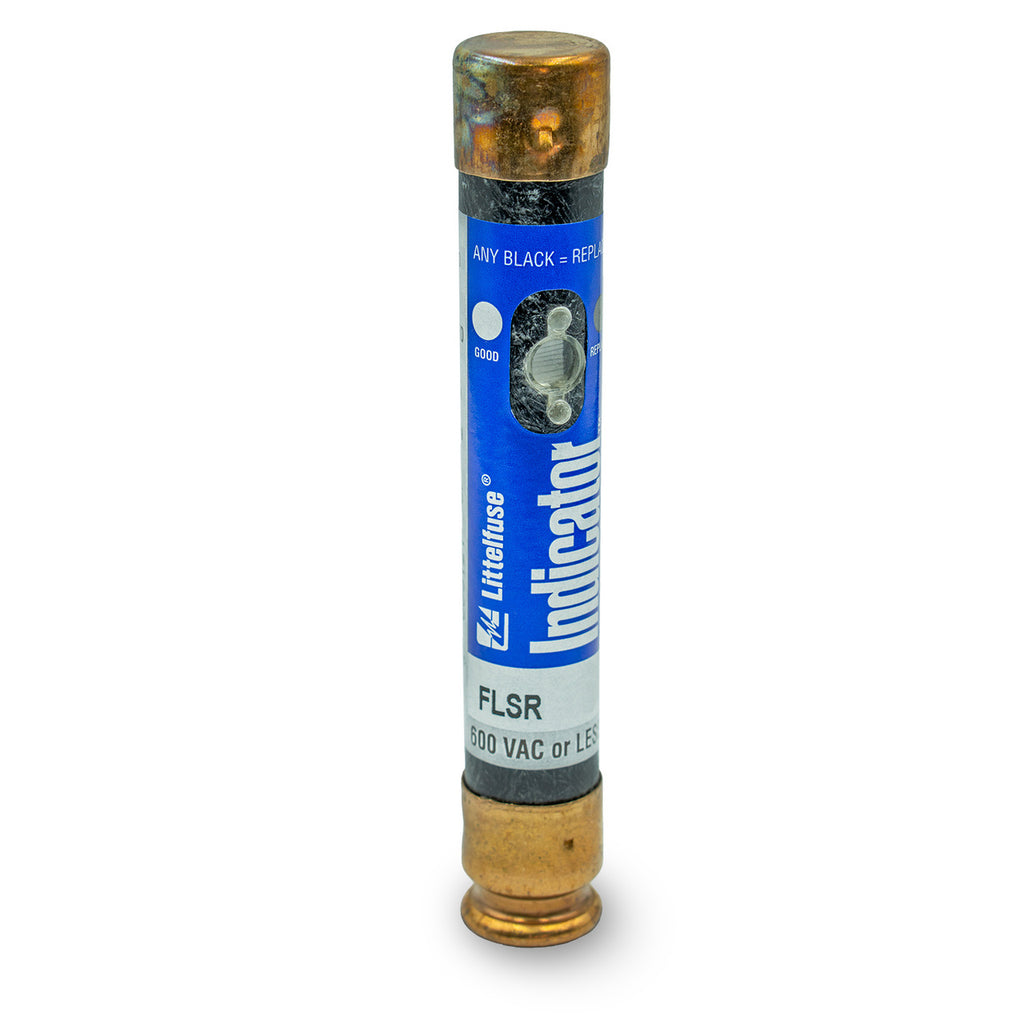

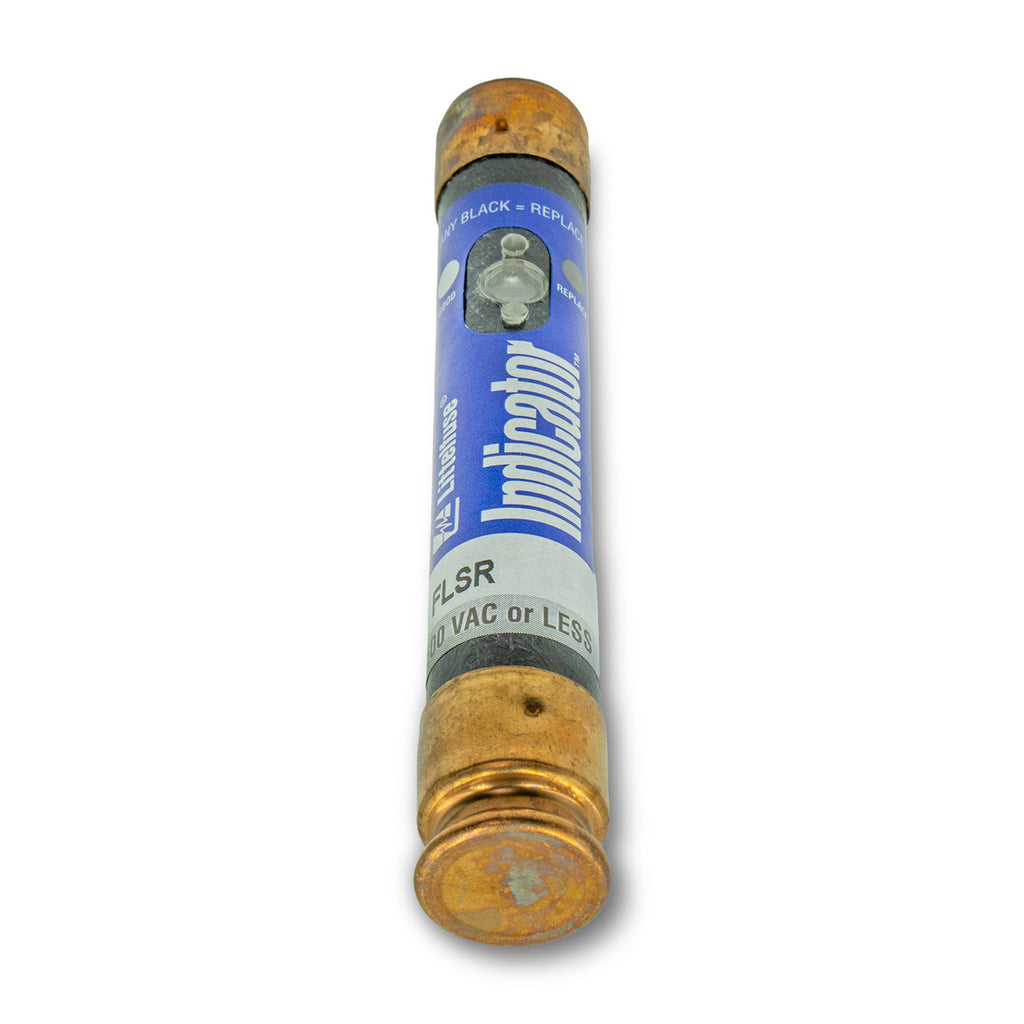

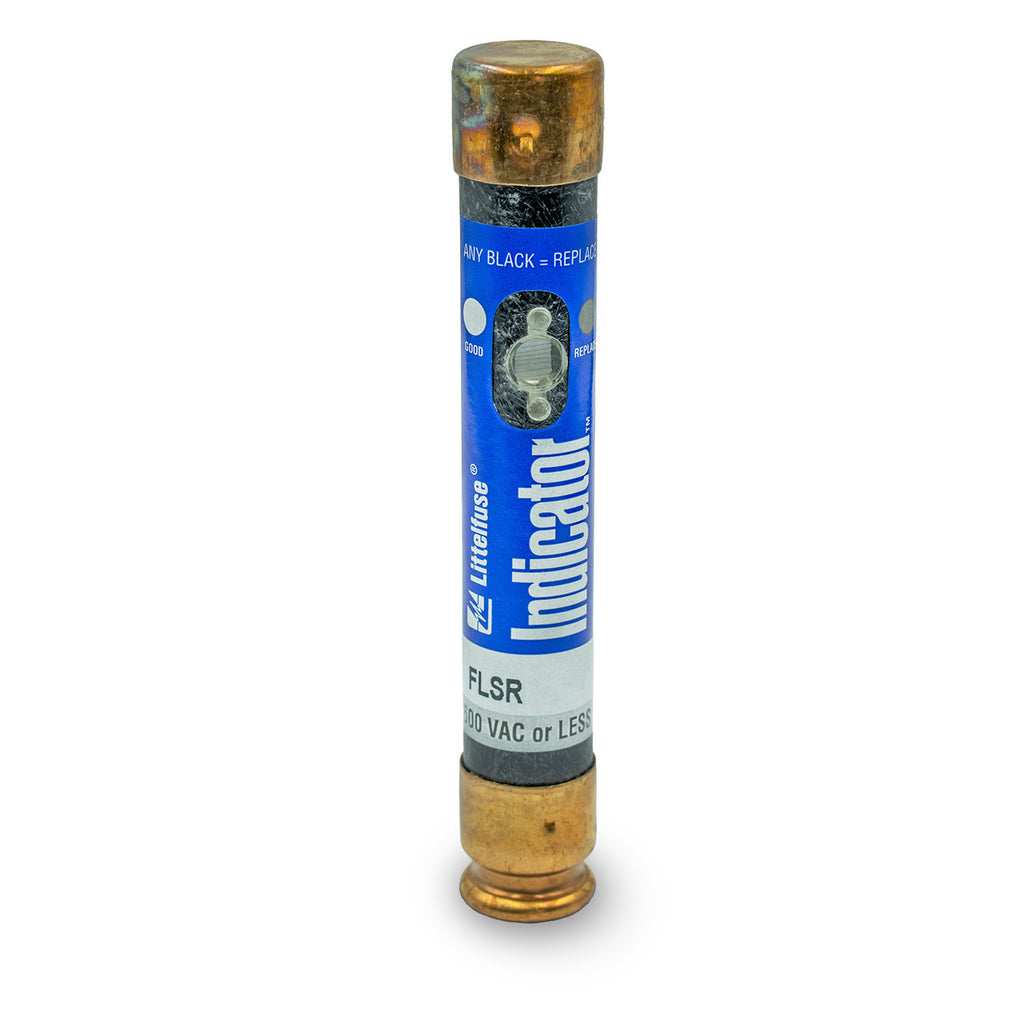

FLSR005ID is a 5 Amp indicating time delay fuse from Littelfuse's Class RK5 series designed for reliable circuit protection.This fuse features a dual-element, slow-blow (time delay) design with a cartridge body style and clip terminal mounting. It provides advanced short-circuit and overload protection with a high interrupting rating of 200 kA RMS AC at 600 VAC and 20 kA DC at 300 VDC. The patented solid-state indicator window offers quick visual blown fuse indication, reducing downtime and improving safety in industrial and general-purpose electrical circuits.

Key Specifications
• Amperage Rating: 5 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK5
• Type: Indicating, Time Delay (Slow Blow)
• Interrupting Rating: 200 kA RMS AC, 20 kA DC
• Body Style: Cartridge
• Terminal Type: Clip
• Dual Element Design
• Diameter: 13/16 Inch
• Length: 5 Inch
• Mounting Method: Fuse Block / Clip / Holder
• Certifications: UL 248-12, CSA, Federal Spec WF-1814
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FLSR005ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLSR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 600
• Amperage : 5
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 079458025262
• GTIN : 00079458025262
• Country of Origin : Mexico
• Dimensions : x 5 in x
• Weight : 0.18
• Certification : CSA, cUL, UL
