Description
FLSR-600ID

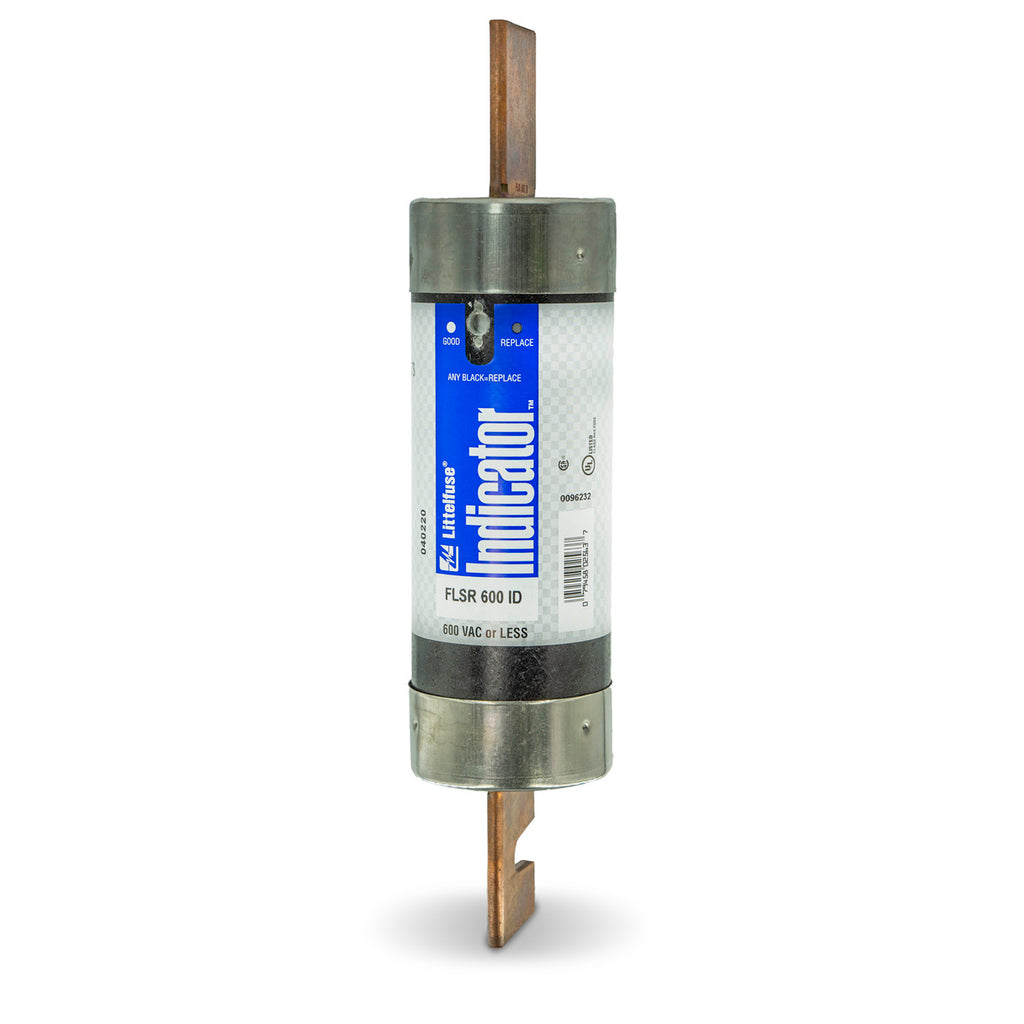

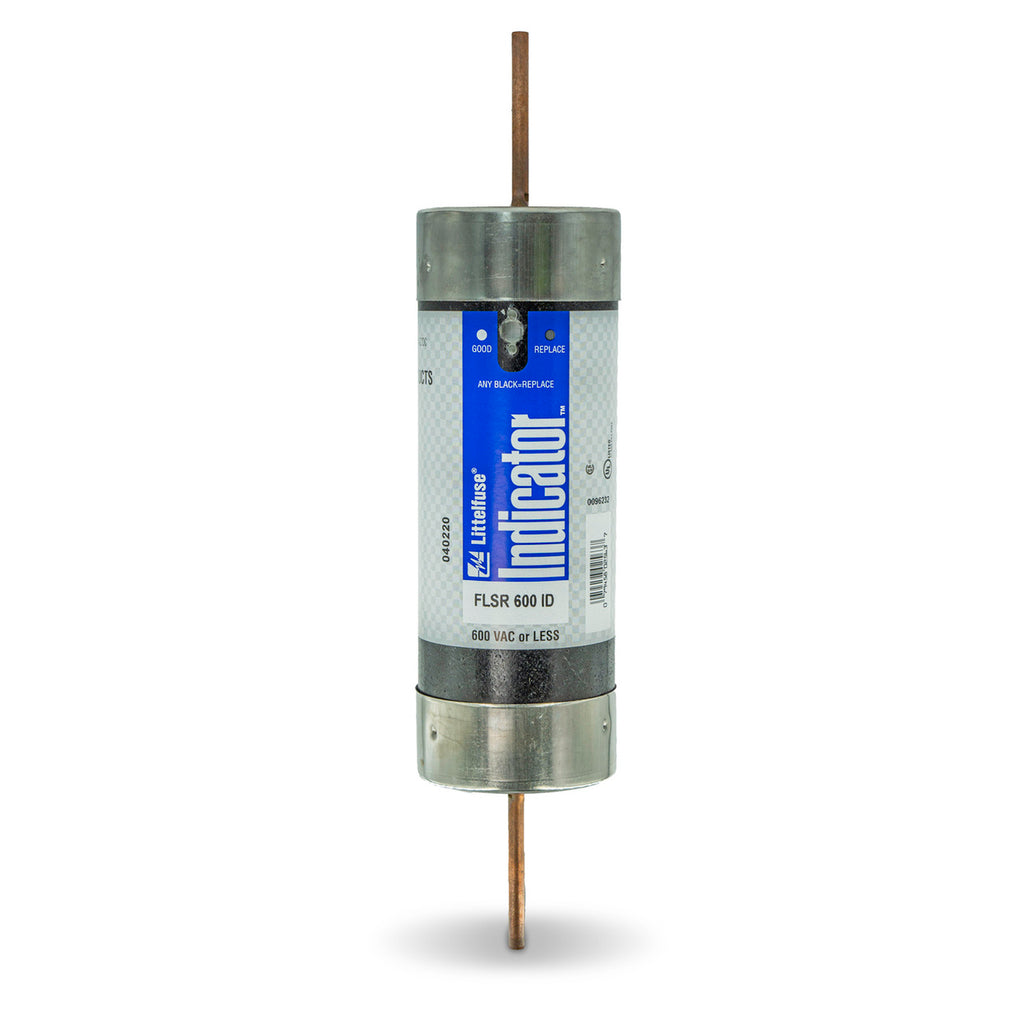

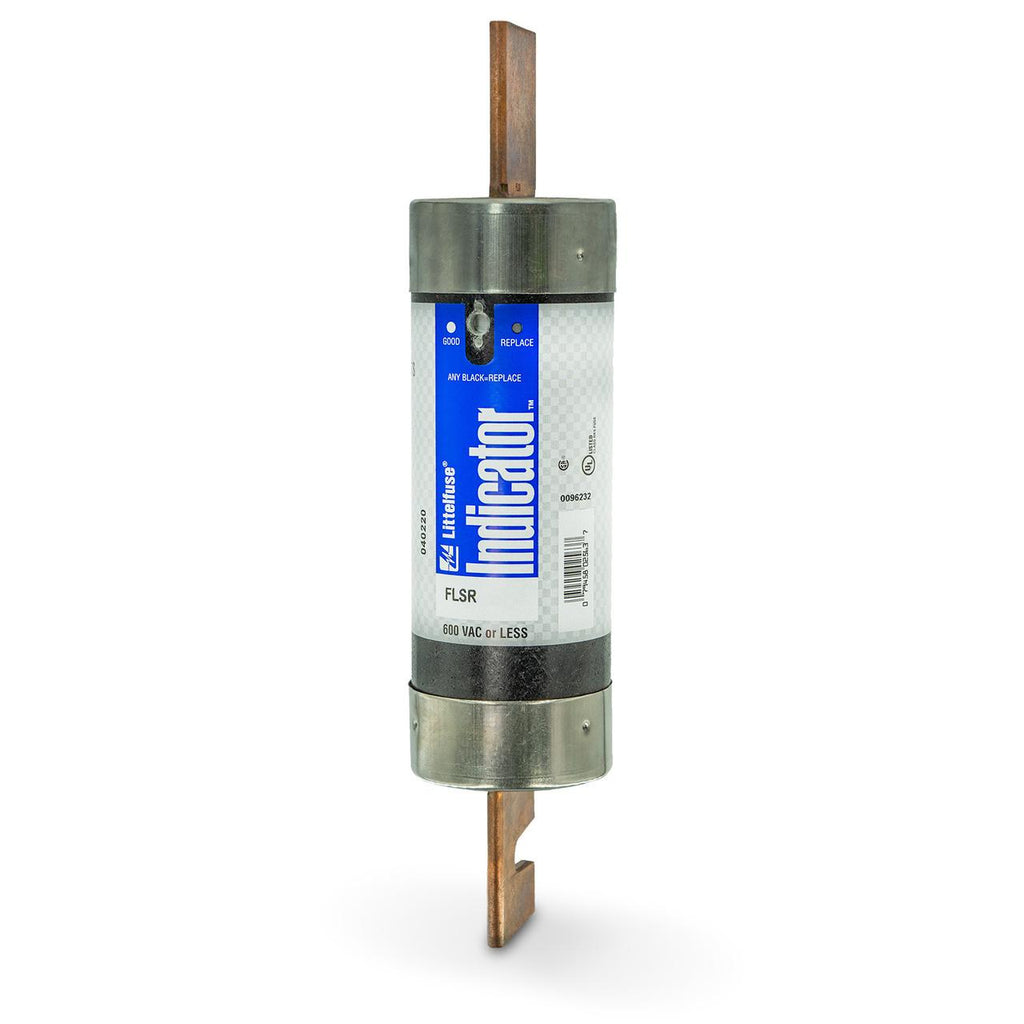

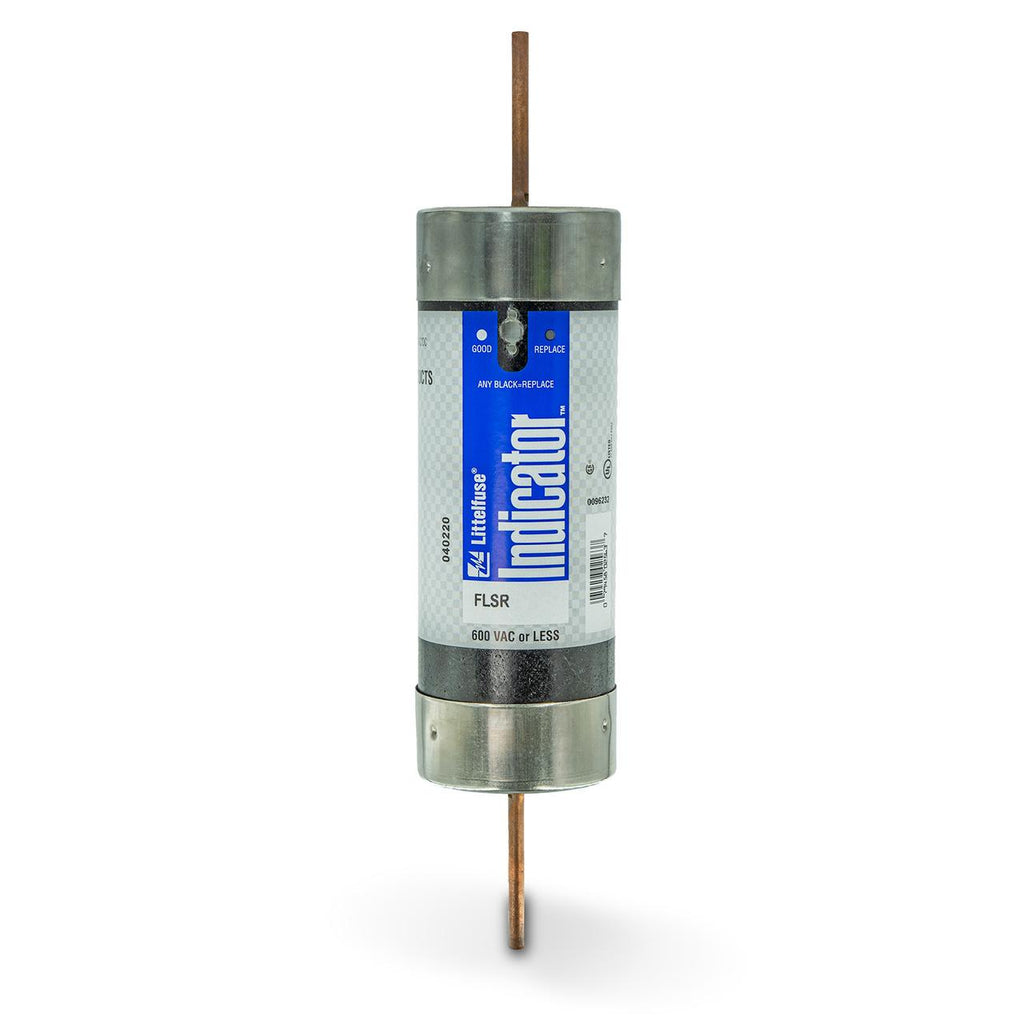

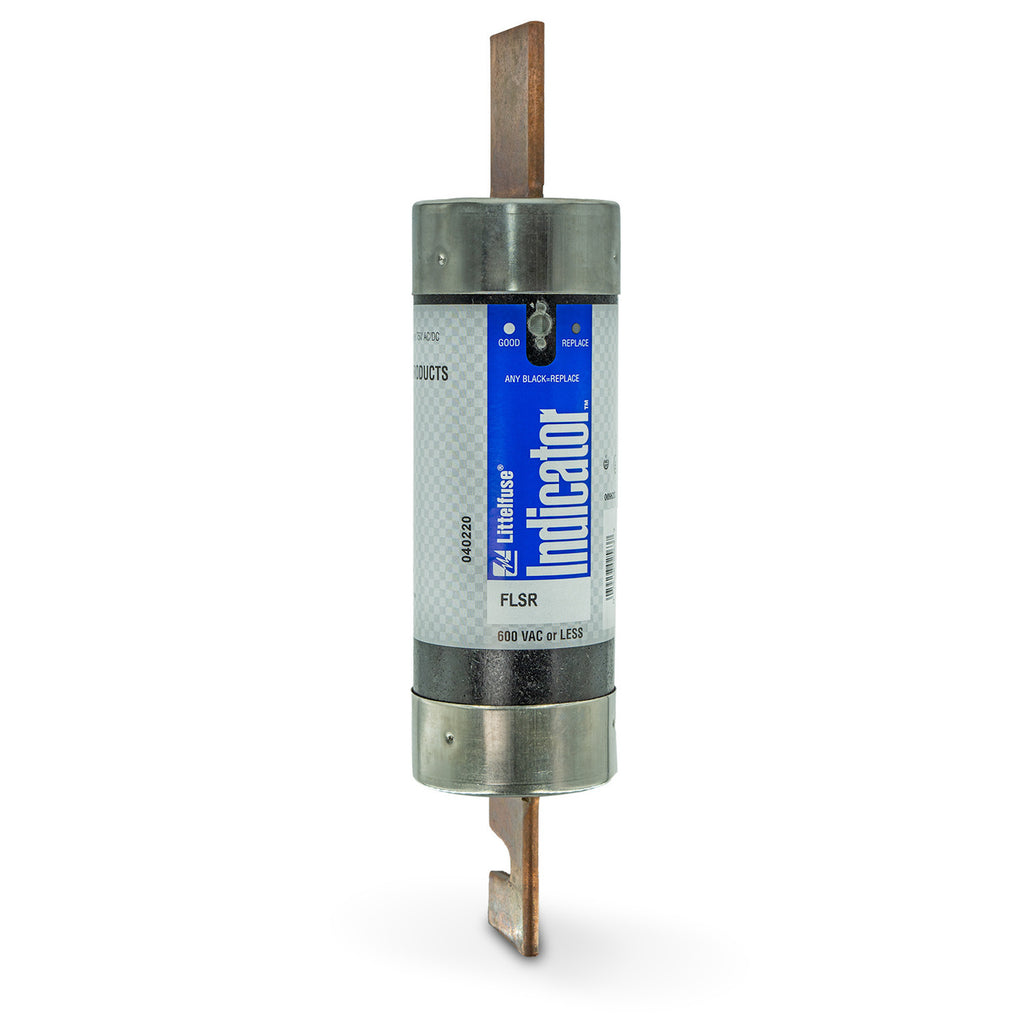

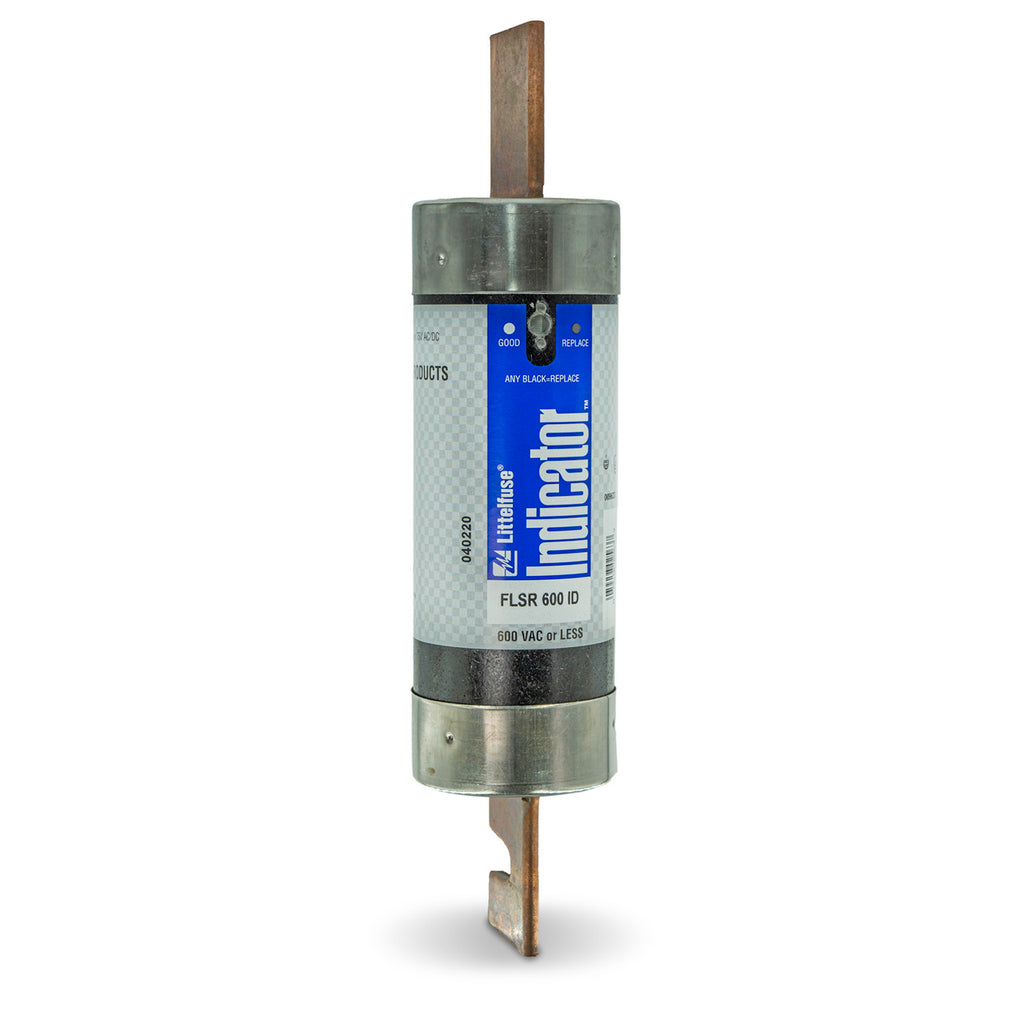

FLSR-600ID is a 600 Amp, 600 Volt AC Class RK5 time delay indicating fuse from Littelfuse designed for advanced circuit protection.This fuse features a dual-element design for superior short-circuit and overload protection, with a visual blown fuse indicator for quick fault identification. It is current limiting with a 200,000 AIC interrupt rating at 600VAC and 20,000 AIC at 300VDC. The fuse measures 3 3/32" x 13 3/8" and is UL Listed and CSA Certified for safety and reliability.
- Key Specifications
- Amperage: 600A
- Voltage Rating: 600VAC / 300VDC
- Class: RK5
- Time Delay: Yes
- Dual Element Design
- Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 300VDC
- Visual Blown Fuse Indicator
- Physical Size: 3 3/32" x 13 3/8"
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
Specifications
- Part Number: FLSR-600ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Connection : Plug-In
- Diameter : 3.09
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802563
- GTIN : 00079458025637
- Weight : 5
