Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

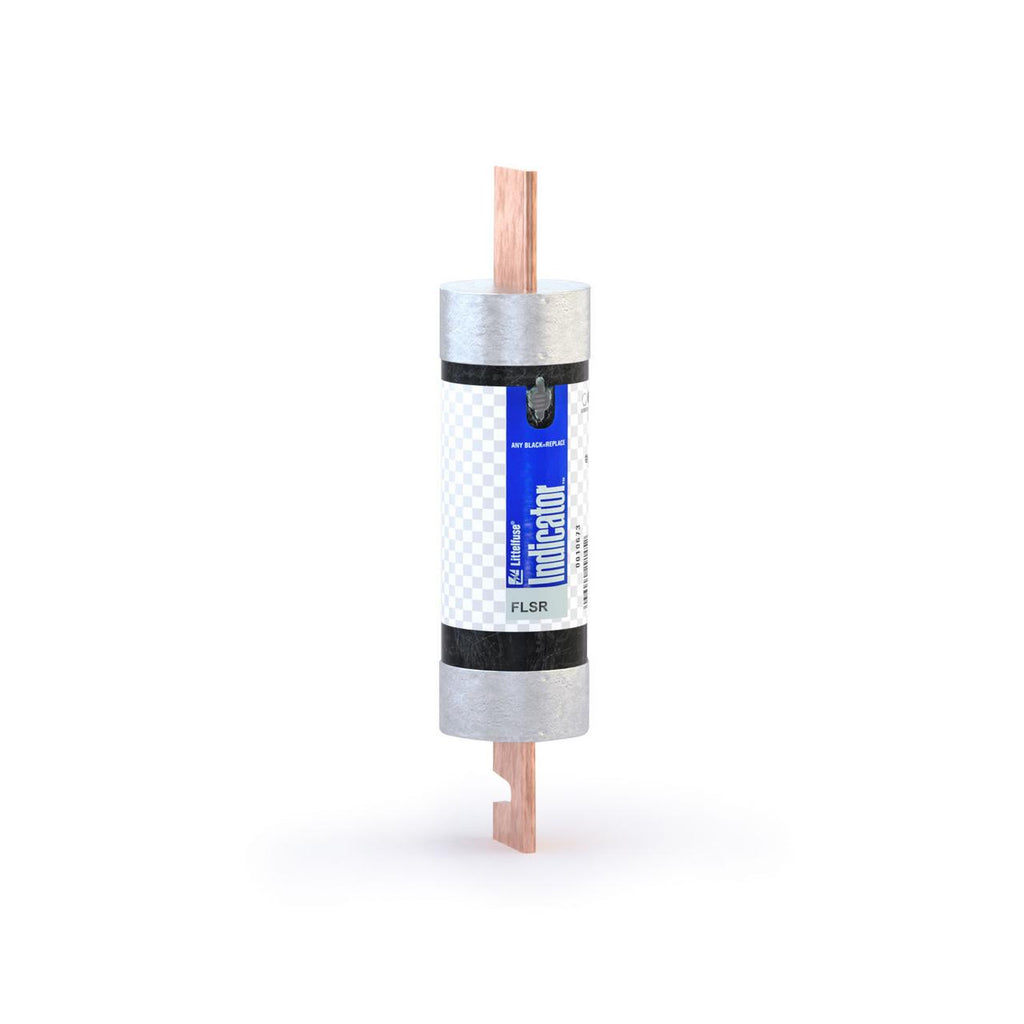

FLSR-450ID
FLSR-450ID is a 450 amp, 600 volt AC Class RK5 time delay indicating fuse from Littelfuse designed for reliable circuit protection.The FLSR-450ID fuse features a dual-element, current limiting design with visual blown fuse indication for fast identification. It is rated for 600 VAC and 300 VDC with an interrupting rating of 200 kA AC and 20 kA DC. This fuse provides advanced short-circuit and overload protection with a time delay (slo-blo) opening characteristic, suitable for service entrance switches, transformers, motor control, and general purpose circuits. It meets UL 248-12 standards and includes certifications such as CSA and CE.
- Key Specifications
- Amperage: 450 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Class: RK5
- Time Delay (Slo-Blo) Opening
- Dual Element Design
- Visual Blown Fuse Indication
- Current Limiting
- Mounting Type: Knife Blade
- Certifications: UL 248-12, CSA, CE
- Physical Size: 3 3/32" diameter x 13 3/8" length
Specifications
- Part Number: FLSR-450ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Connection : Plug-In
- Diameter : 3.09
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802561
- GTIN : 00079458025613
- Weight : 5
