Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-400ID

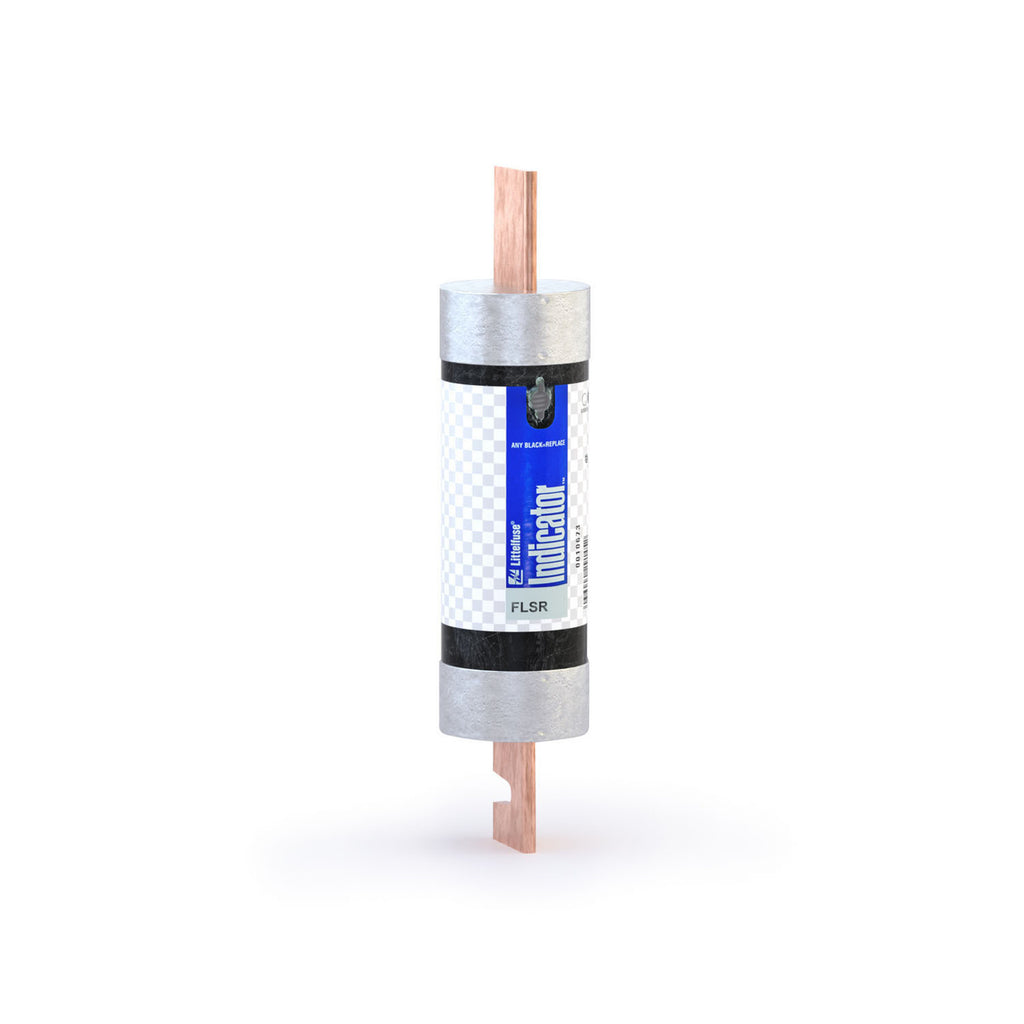

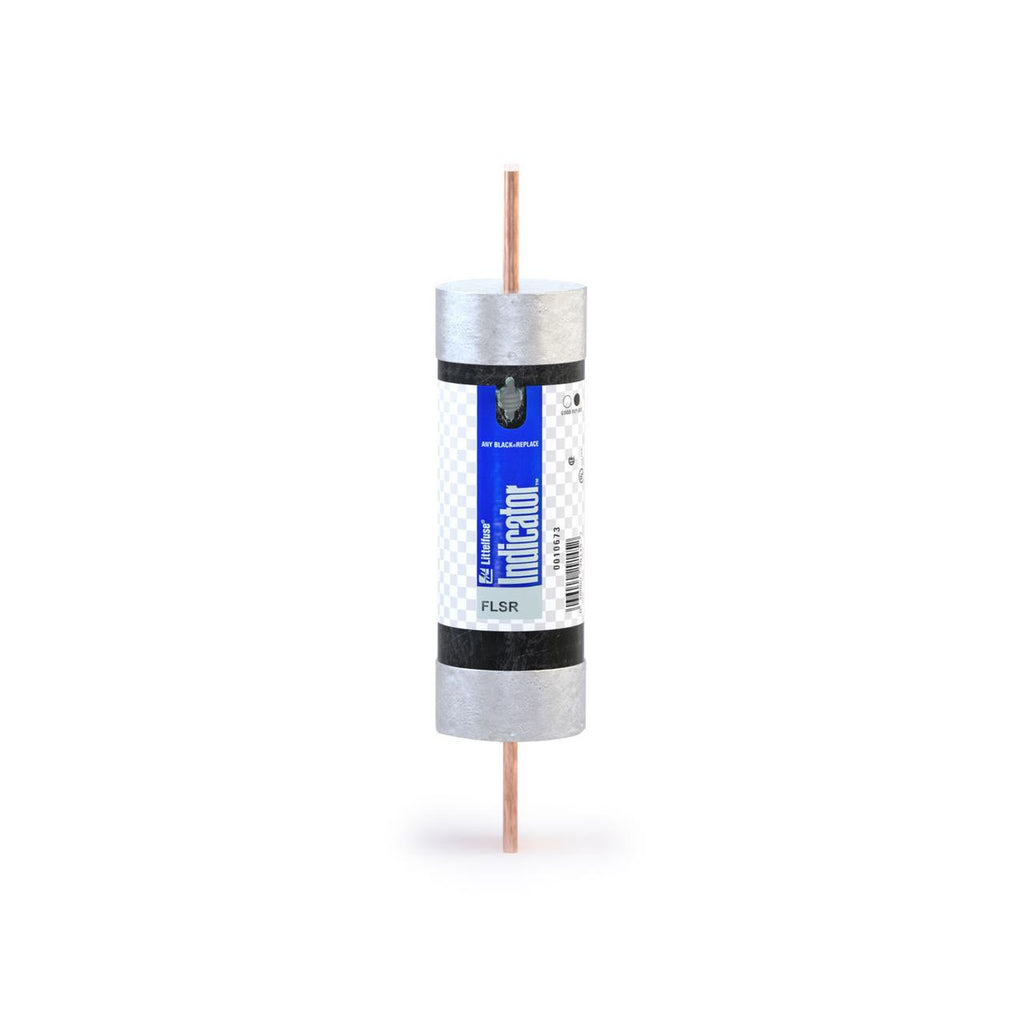

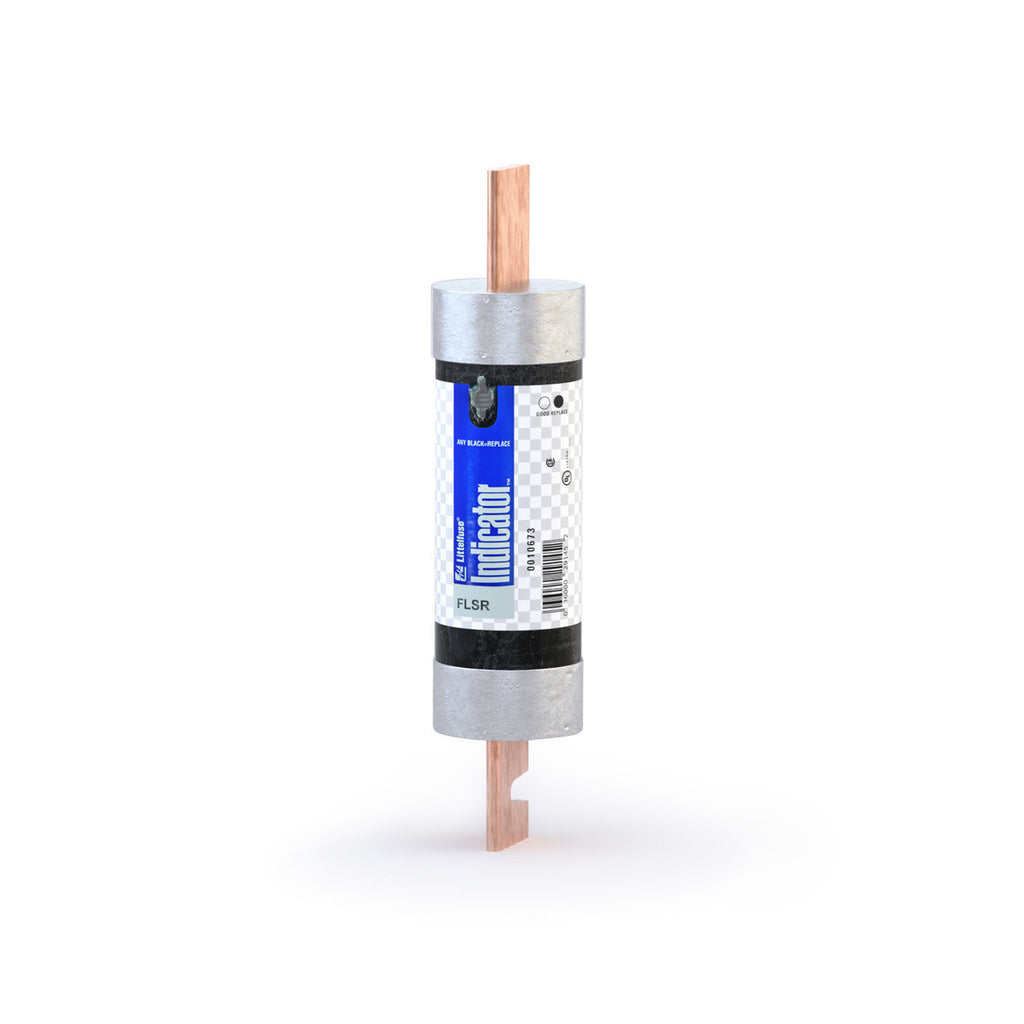

FLSR-400ID is a Littelfuse 400 Amp, 600 VAC/300 VDC Class RK5 time delay fuse with visual blown fuse indication.
This fuse features a dual-element, current limiting design with a knife-blade terminal connection for reliable circuit protection. It offers a high interrupting rating of 200kA at 600 VAC and 20kA at 300 VDC, ensuring safety and durability in general purpose circuits, switchboards, motor control centers, and service entrance switches. The patented solid-state indicator window provides quick visual confirmation of fuse status, reducing downtime and maintenance effort. UL and CSA certified for industrial applications.
- Key Specifications
- Amperage: 400 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200kA AC / 20kA DC
- Fuse Class: RK5
- Type: Time Delay, Dual Element
- Terminal Connection: Knife-Blade
- Visual Blown Fuse Indicator
- Body Style: Cartridge
- Standards: UL 248-12, CSA Certified
- Series: FLSR_ID
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FLSR-400ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 400
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802560
- GTIN : 00079458025606
- Weight : 3
