Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-350ID

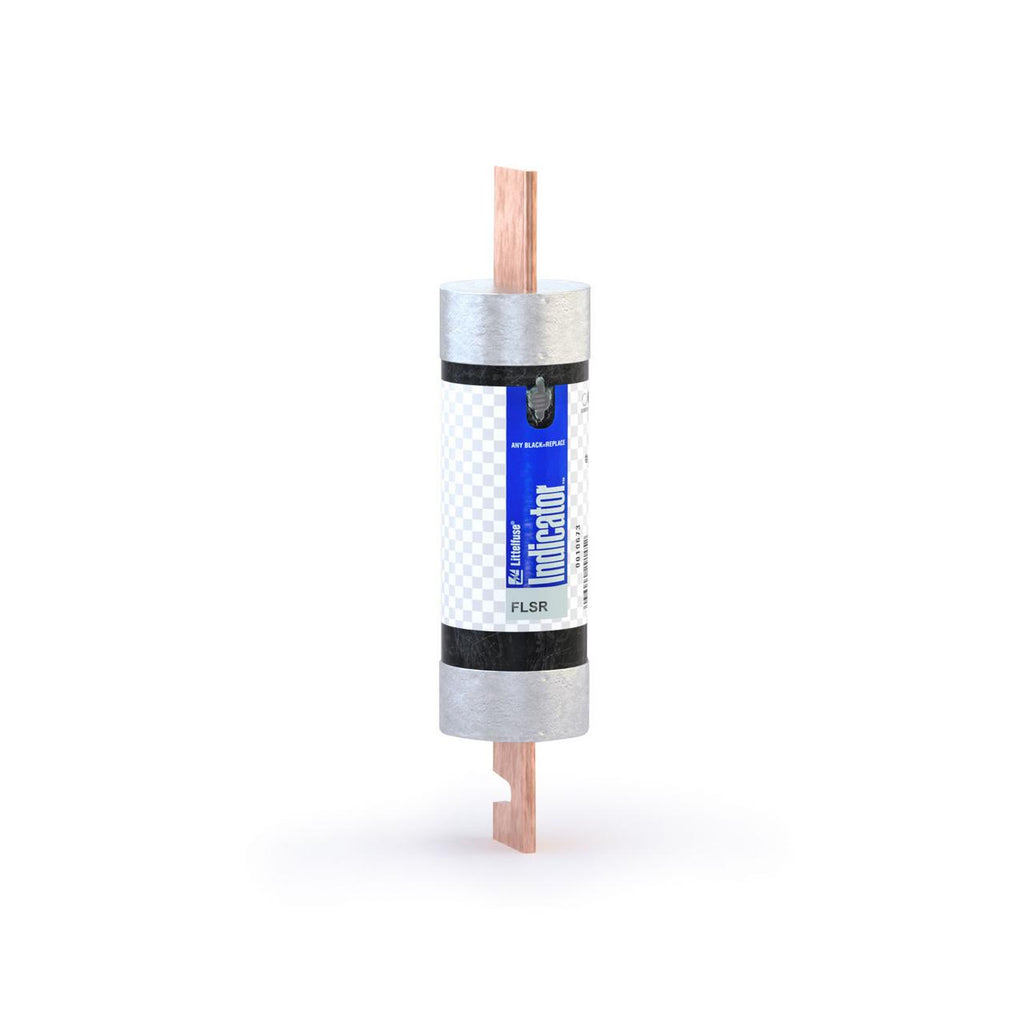

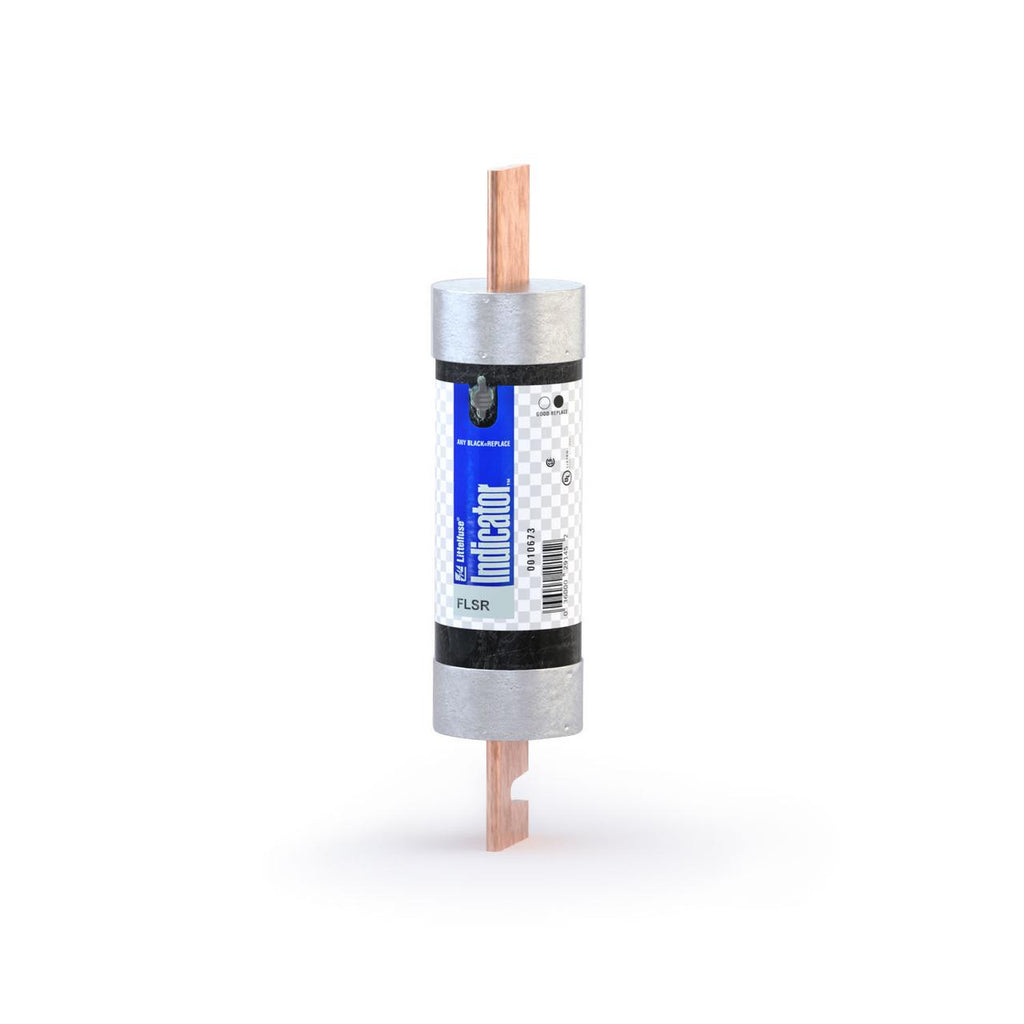

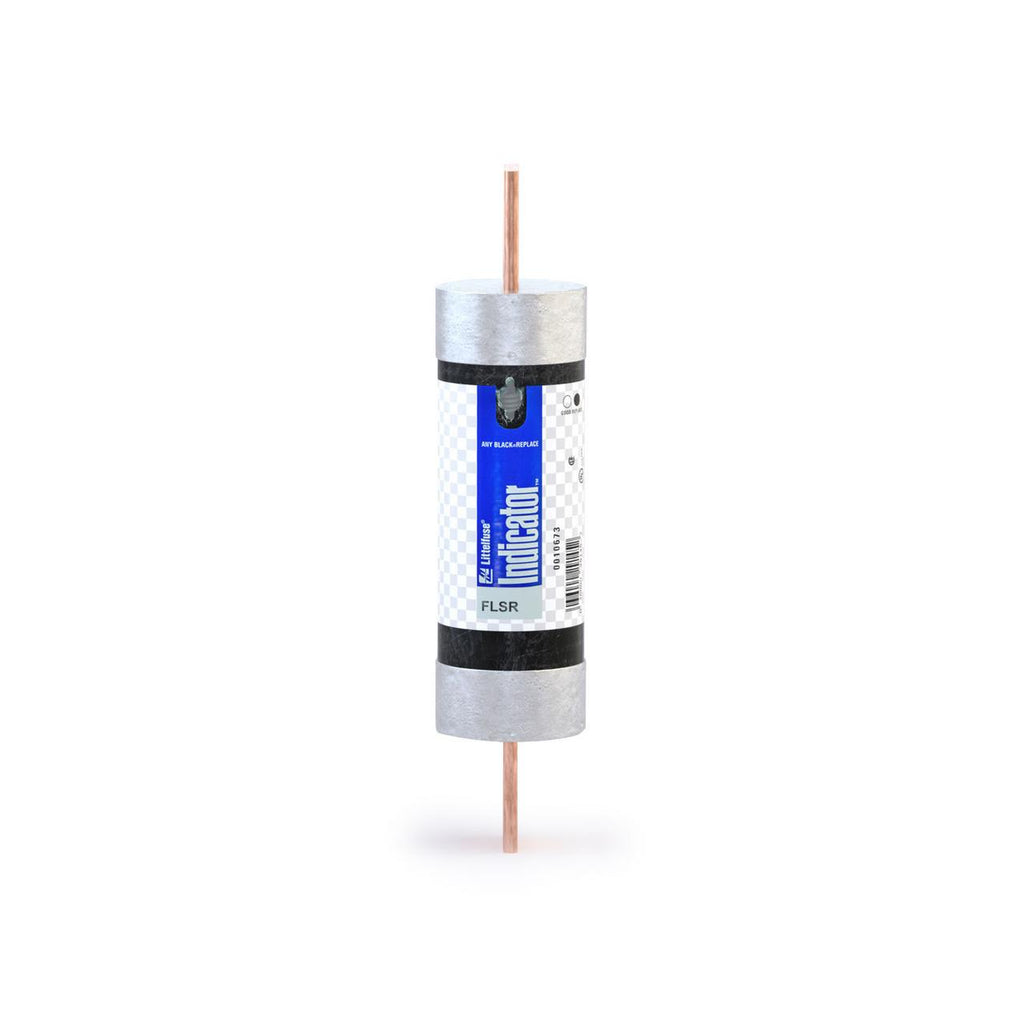

FLSR-350ID is a 350 Amp, 600 Volt Class RK5 time delay indicating fuse from Littelfuse designed for general purpose circuit protection.This fuse features a dual-element, current limiting design with a patented solid-state indicator for visual blown fuse identification. It has a physical size of 2 19/32" x 11 5/8", a 200,000 AIC interrupting rating at 600 VAC, and 20,000 AIC at 300 VDC. The FLSR-350ID is UL Listed (File: E81895) and CSA Certified (File: LR29862), suitable for service entrance switches, transformers, switchboard mains, motor control circuits, and more.
- Key Specifications
- Amperage: 350 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: Class RK5, Time Delay, Dual Element
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Physical Size: 2 19/32" x 11 5/8"
- Mounting Type: Knife-blade style
- Visual Blown Fuse Indicator: Yes
- UL Listed and CSA Certified
- Current Limiting Design
- Applications: General purpose circuits, motor control, transformers, switchboards
- Part Number: FLSR-350ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
- UPC : 07945802559
- GTIN : 00079458025590
- Weight : 3
