Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-250ID

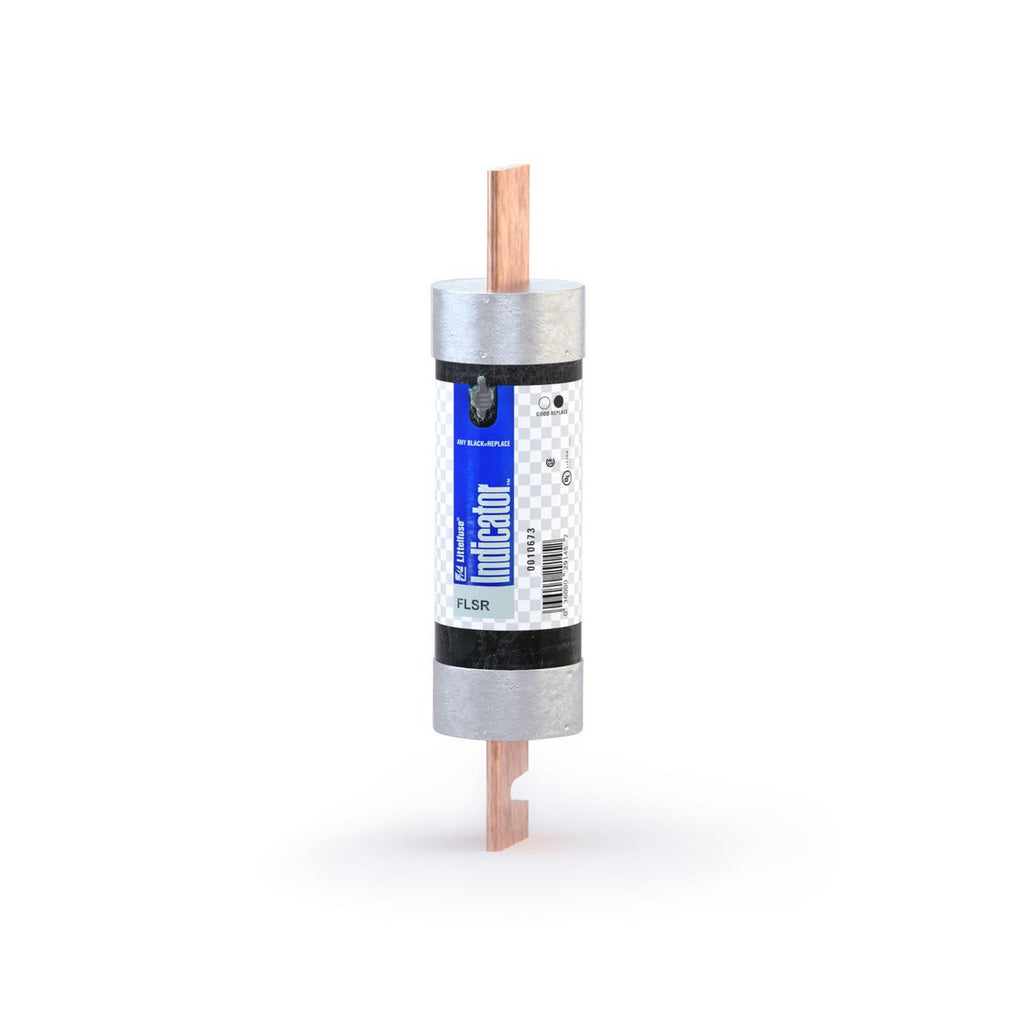

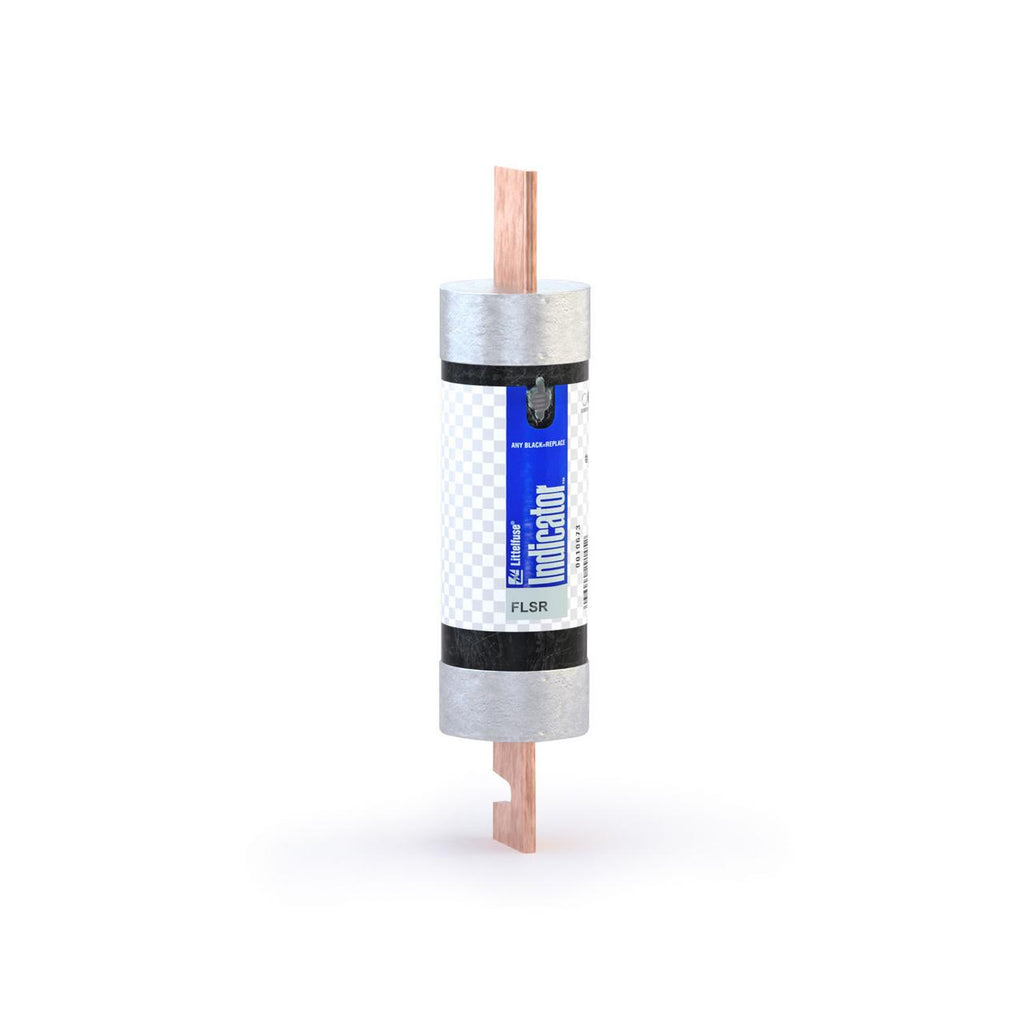

FLSR-250ID is a 250 amp, 600 volt AC Class RK5 time delay fuse with an indicator for quick blown fuse identification.The Littelfuse FLSR-250ID fuse features a dual-element, current-limiting design providing advanced short-circuit and overload protection. It includes a visual blown fuse indicator window that turns black for fast and easy identification. Rated for 600 VAC and 300 VDC, it has an interrupting rating of 200 kA AC and 20 kA DC. This fuse is UL 248-12 certified and suitable for service entrance switches, transformers, switchboard mains, motor control circuits, and general purpose applications.
- Key Specifications
- Amperage: 250 A
- Voltage Rating: 600 V AC / 300 V DC
- Interrupting Rating: 200 kA AC / 20 kA DC
- Fuse Class: RK5
- Time Delay (Dual Element)
- Indicator Type: Visual blown fuse indicator
- Mounting Type: Knife-blade style
- Standards: UL 248-12, CSA, CE
- Fuse Length: 11-5/8 inches
Specifications
- Part Number: FLSR-250ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802557
- GTIN : 00079458025576
- Weight : 3
