Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-225ID

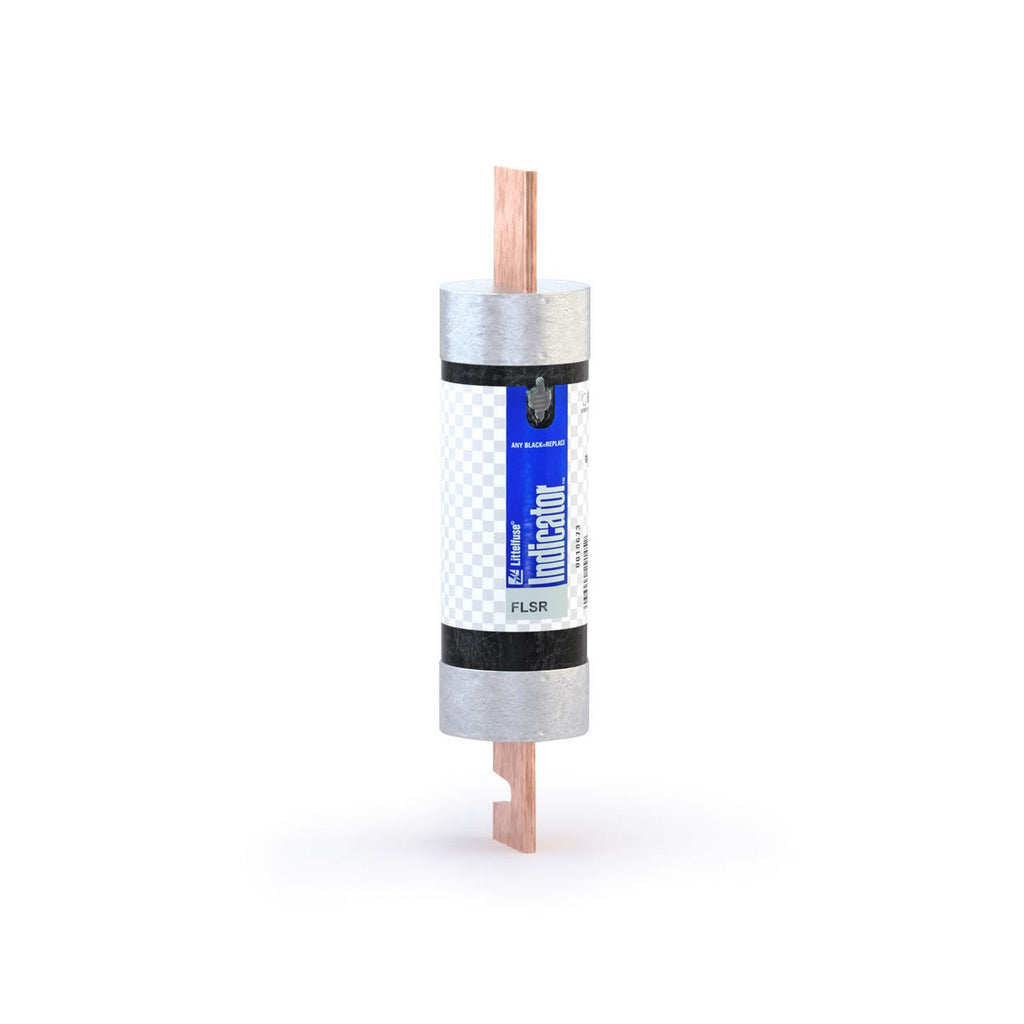

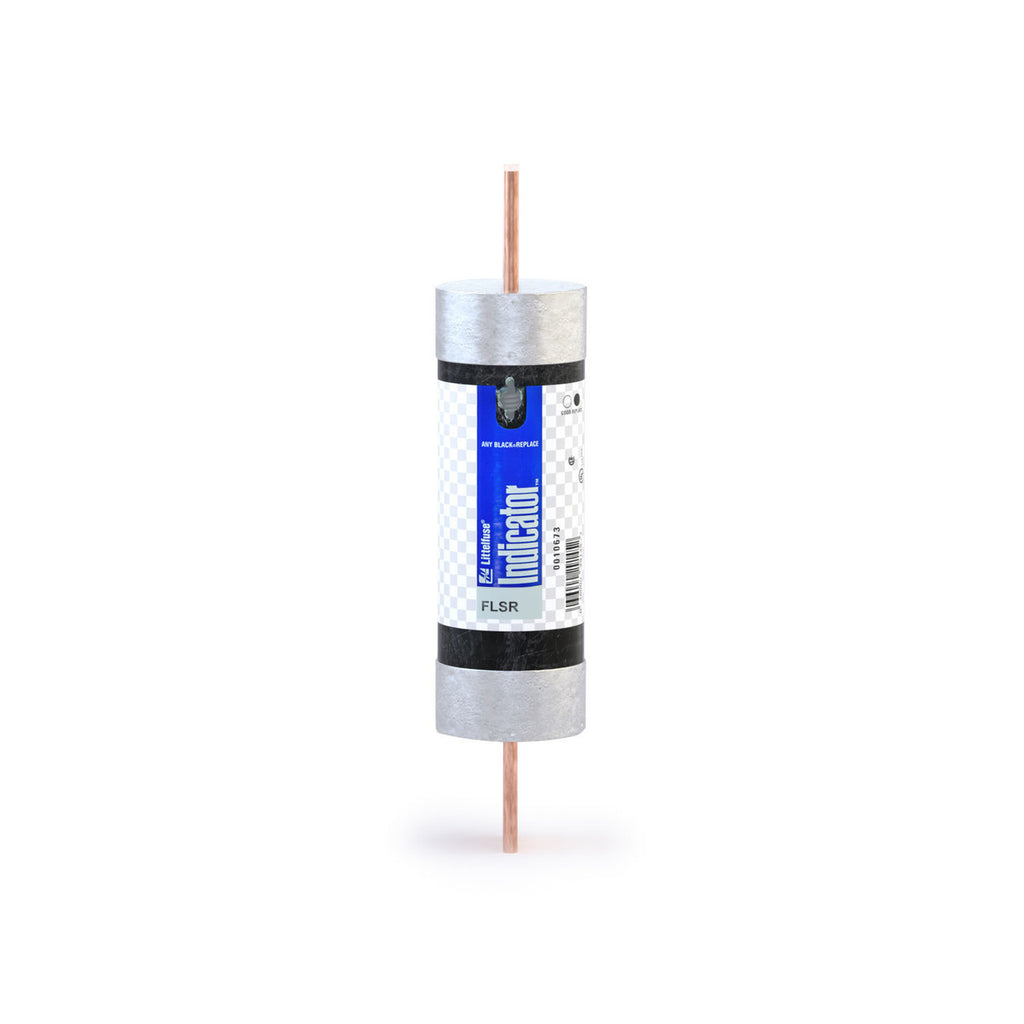

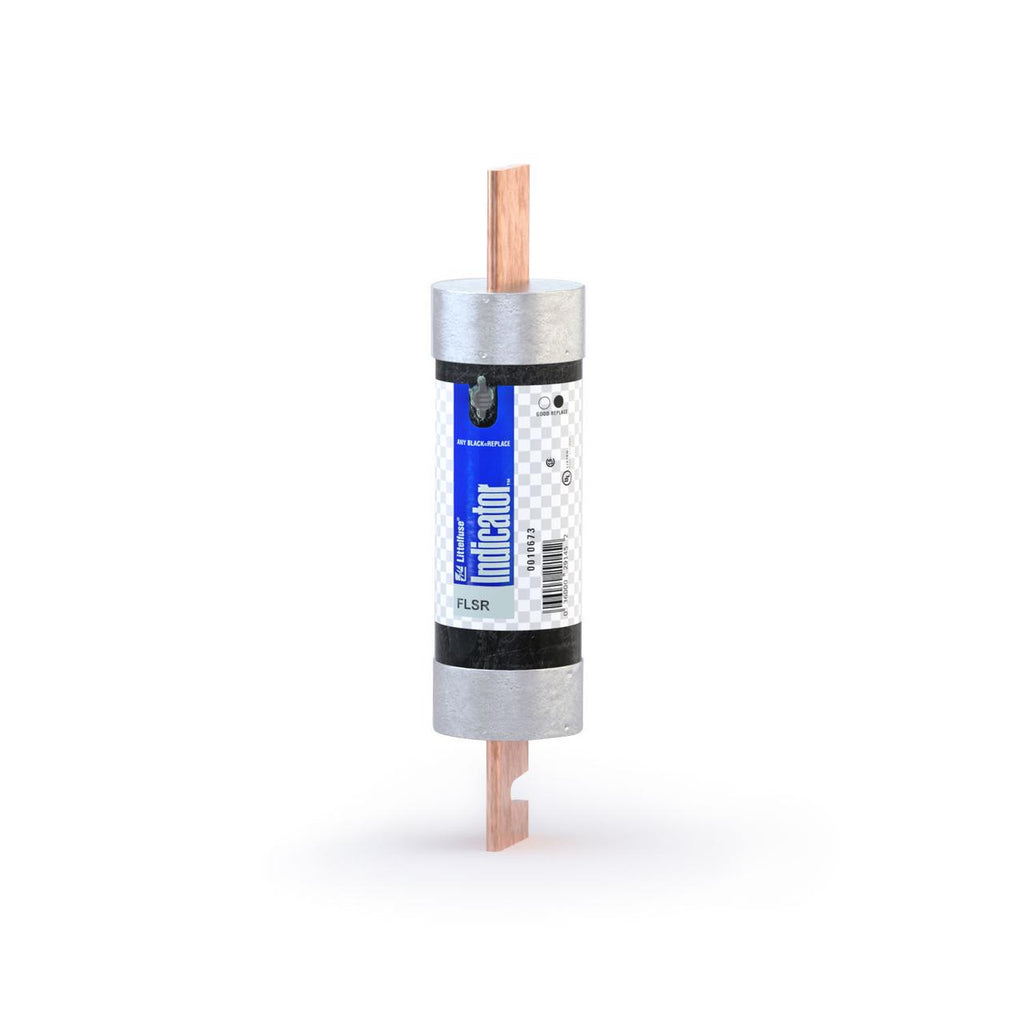

FLSR-225ID is a Littelfuse Class RK5 time delay indicating fuse rated for 225 amps and 600 VAC/300 VDC operation.
This fuse features a dual-element design for advanced short-circuit and overload protection with current limiting to restrict fault currents. It includes a visual blown fuse indicator for quick status checks, enhancing safety and reducing downtime. The fuse is UL 248-12 certified and suitable for service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.
- Key Specifications
- Amperage: 225 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200 kA RMS symmetrical at 600 VAC, 20 kA DC
- Fuse Class: RK5
- Type: Time Delay, Dual Element
- Visual Indicating Window for blown fuse
- Dimensions: 2-19/32 inch diameter x 11-5/8 inch length
- Mounting: Knife-blade style
- Certifications: UL 248-12, CSA, CE
- Part Number: FLSR-225ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Connection : Rejection Blade
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
- UPC : 07945802556
- GTIN : 00079458025569
- Weight : 3
