2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-200

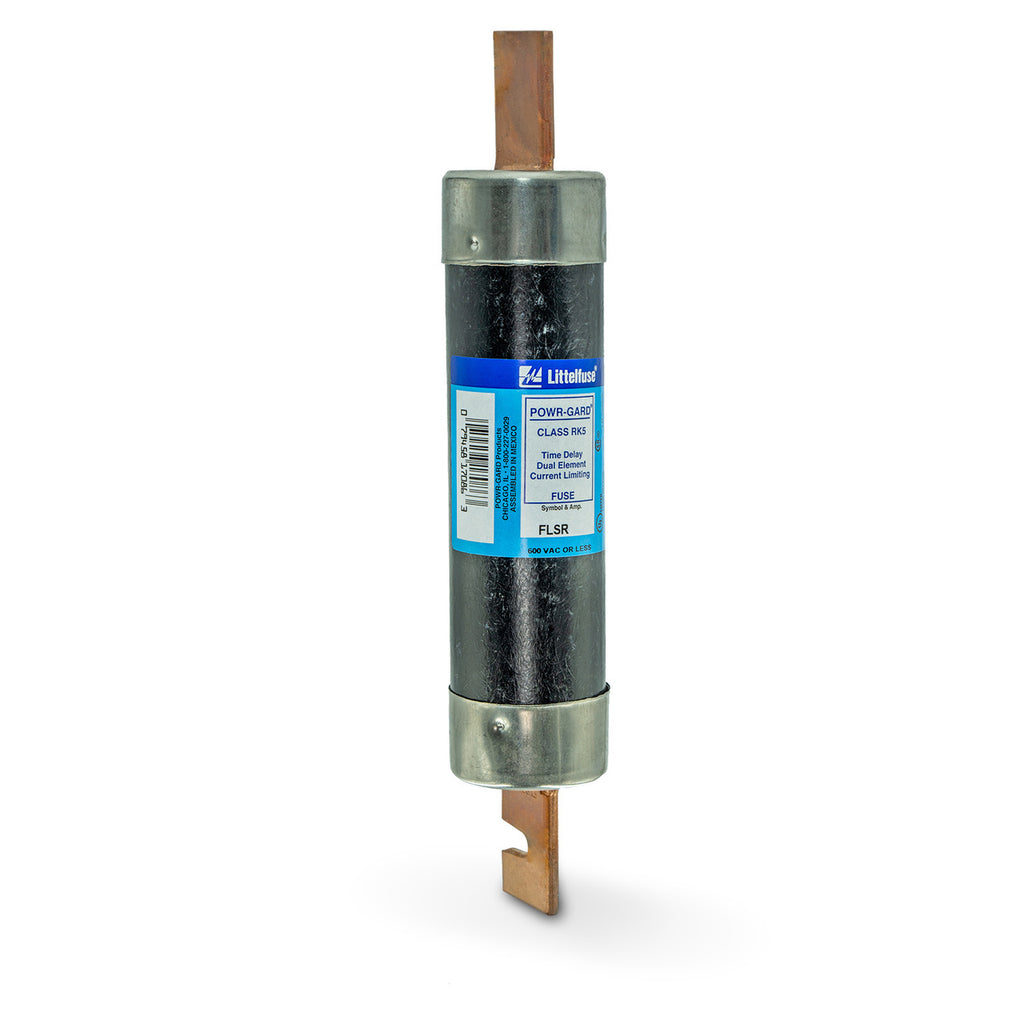

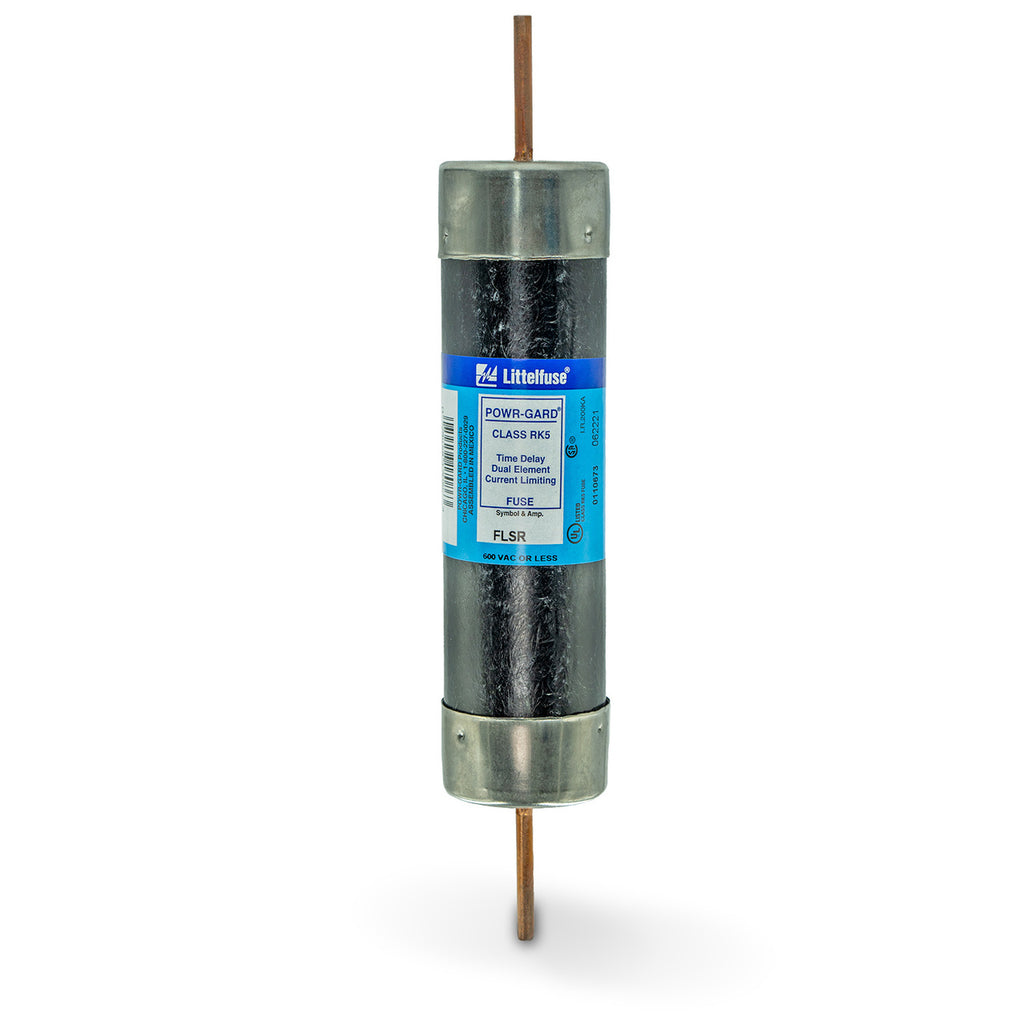

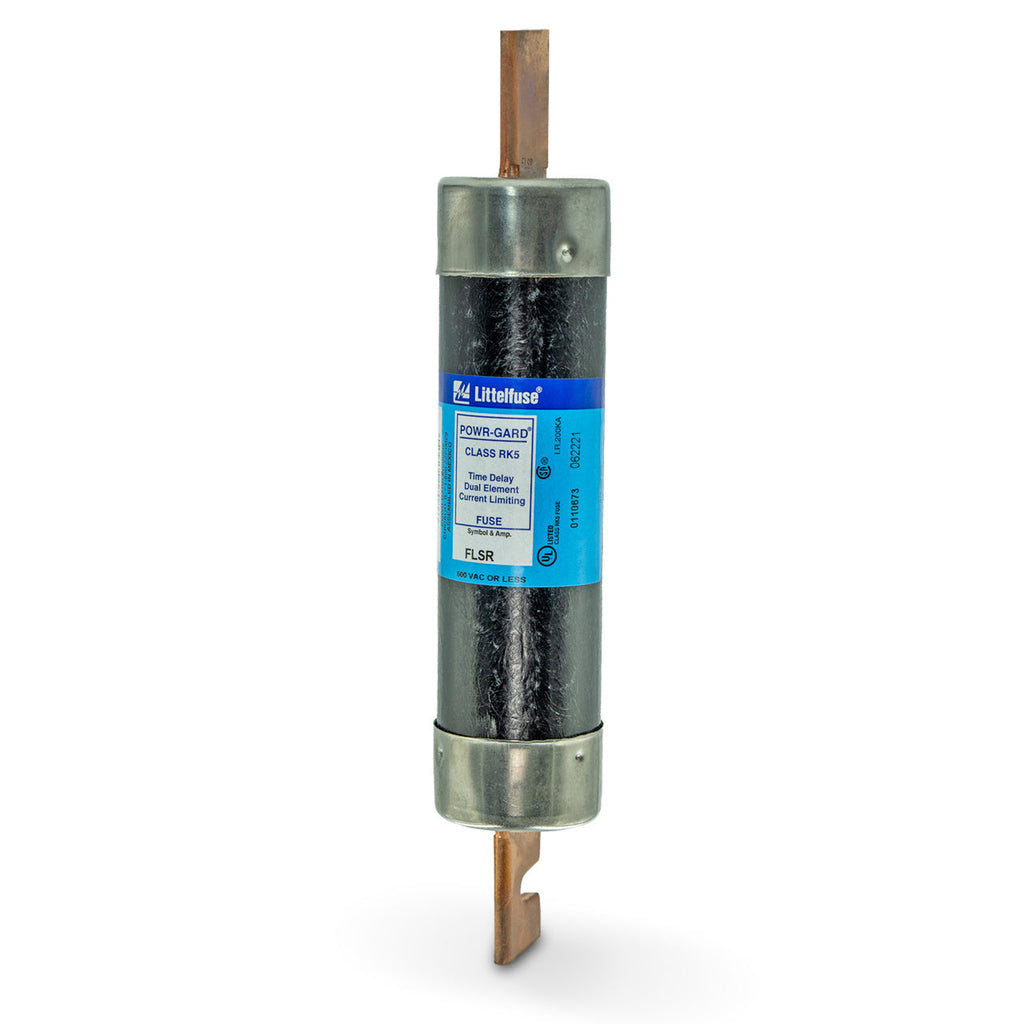

FLSR-200 is a Littelfuse 200 Amp, 600 Volt Class RK5 time delay dual-element fuse designed for superior circuit protection.This fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting capabilities. It is UL 248-12 certified, suitable for general purpose circuits including motor control and switchboard mains. The fuse has a 200,000 Amp interrupting rating at 600V AC and 20 kA at 300V DC, with a slo-blo/time lag opening characteristic. It mounts in a holder with knife blade terminals and measures approximately 1.4 inches in diameter and 9.6 inches in length.
- Key Specifications
- Amperage: 200 Amps
- Voltage Rating: 600 V AC, 300 V DC
- Fuse Class: RK5
- Time Delay: Yes (Slo-Blo/Time Lag)
- Dual Element Design
- Interrupting Rating: 200,000 A AC, 20,000 A DC
- Mounting Type: Holder
- Termination Style: Knife Blade
- Dimensions: 1.4" Diameter x 9.6" Length
- Certifications: UL 248-12
Specifications
- Part Number: FLSR-200
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Connection : Plug-In
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 079458025552
- Weight : 1
