Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage
Description

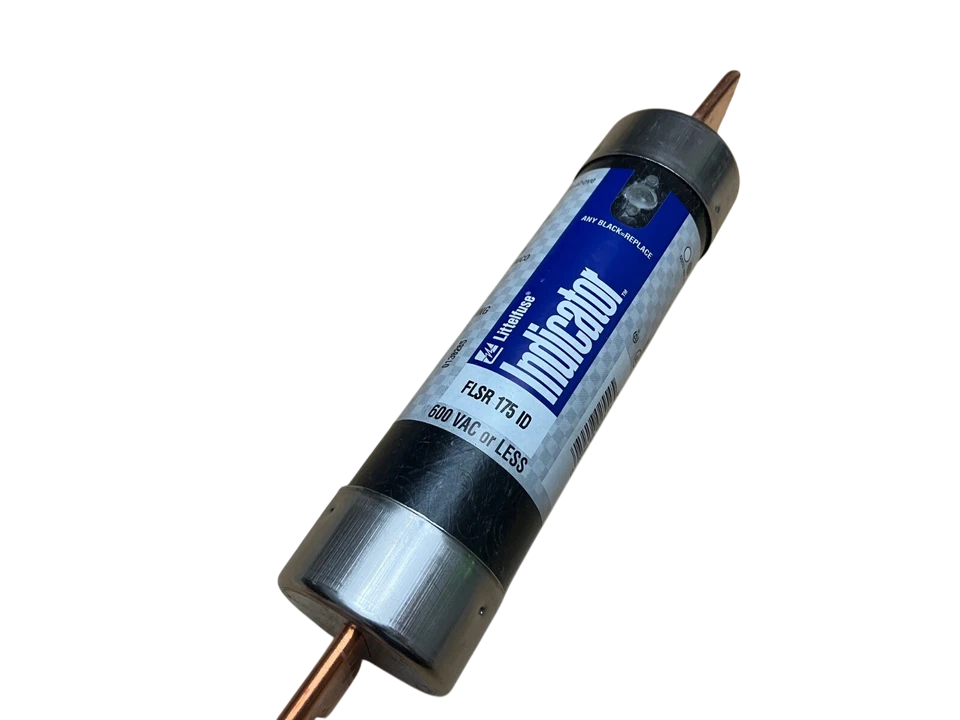

FLSR-175
FLSR-175 is a Littelfuse Class RK5 time delay fuse rated for 175 amps and 600 volts AC/300 volts DC with a knife blade terminal and holder mounting.This dual-element, current limiting fuse provides advanced short-circuit and overload protection with a 200kA AC and 20kA DC interrupting rating. It features a cylindrical composite body, 50/60 Hz frequency rating, and is designed for general purpose circuits including motor control and switchboard mains. The fuse is non-indicating and rejection type for safe and reliable operation.
- Amperage: 175 A
- Voltage: 600 V AC / 300 V DC
- Class: RK5
- Interrupt Rating: 200 kA AC / 20 kA DC
- Mounting Type: Holder
- Terminal Type: Knife Blade
- Body Type: Cylindrical Composite
- Frequency: 50/60 Hz
- Response Time: Time Delay, Dual Element
- Series: FLSR
- Non-Indicating
- UL Listed and CSA Certified
Specifications
- Part Number: FLSR-175
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Powr-Gard
- Type : FLSR
- Voltage : 600
- Amperage : 175
- AIC rating : 200kA@600V
- Connection : Plug-In
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 007945817087
- GTIN : 00079458170870
- Weight : 1
