Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

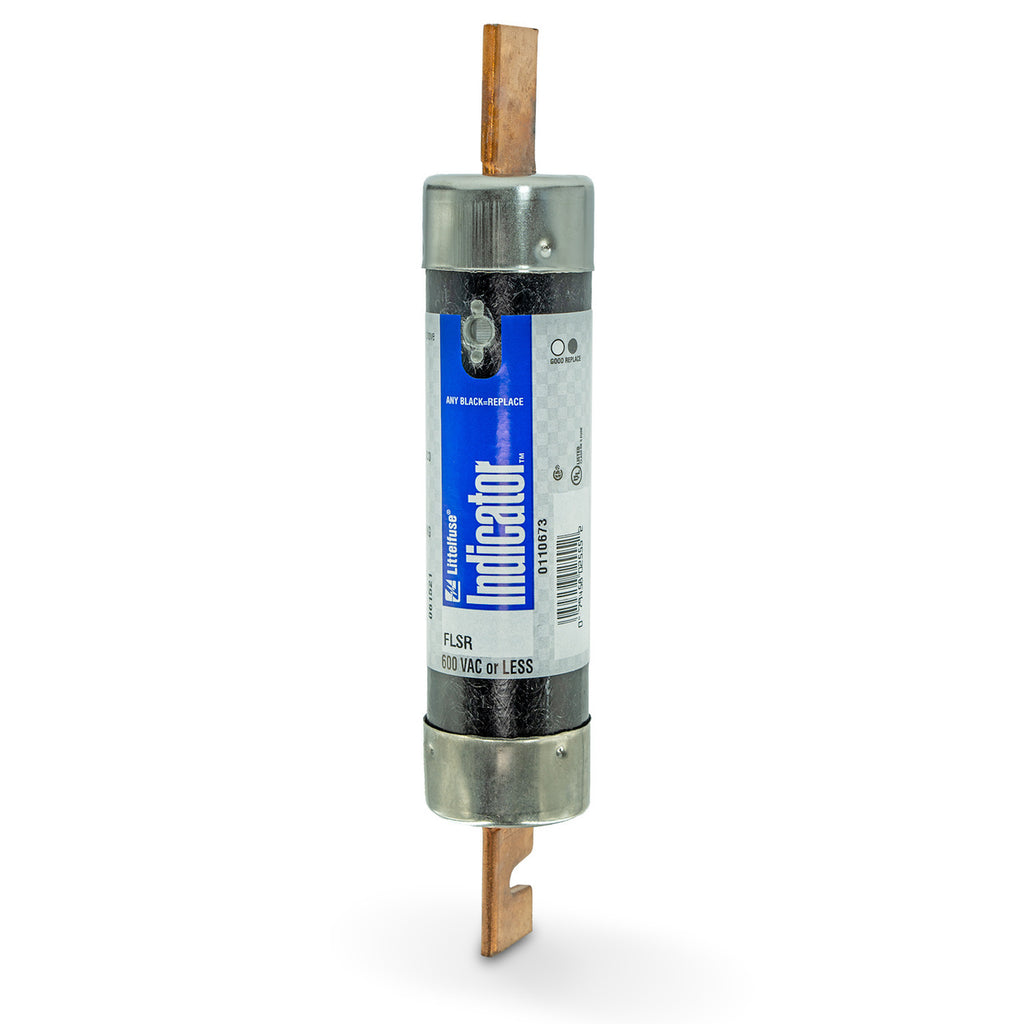

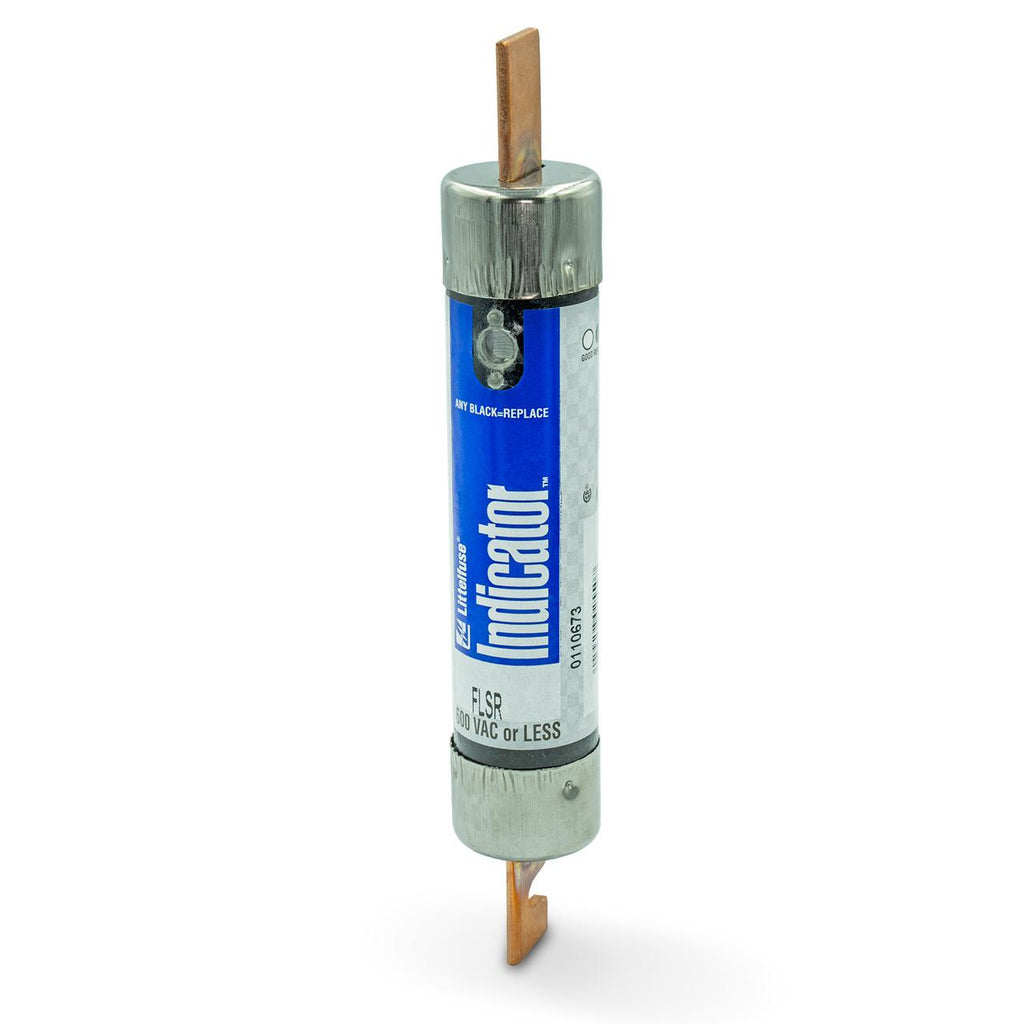

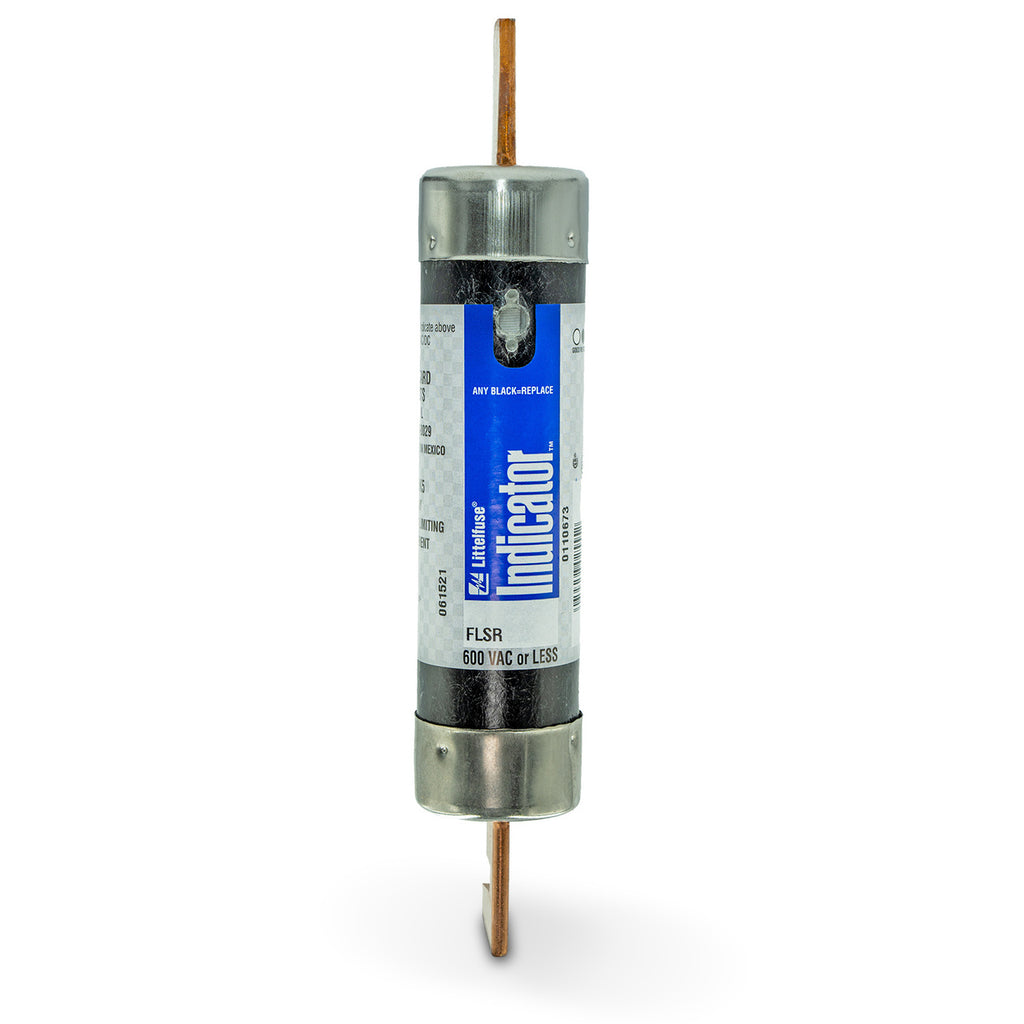

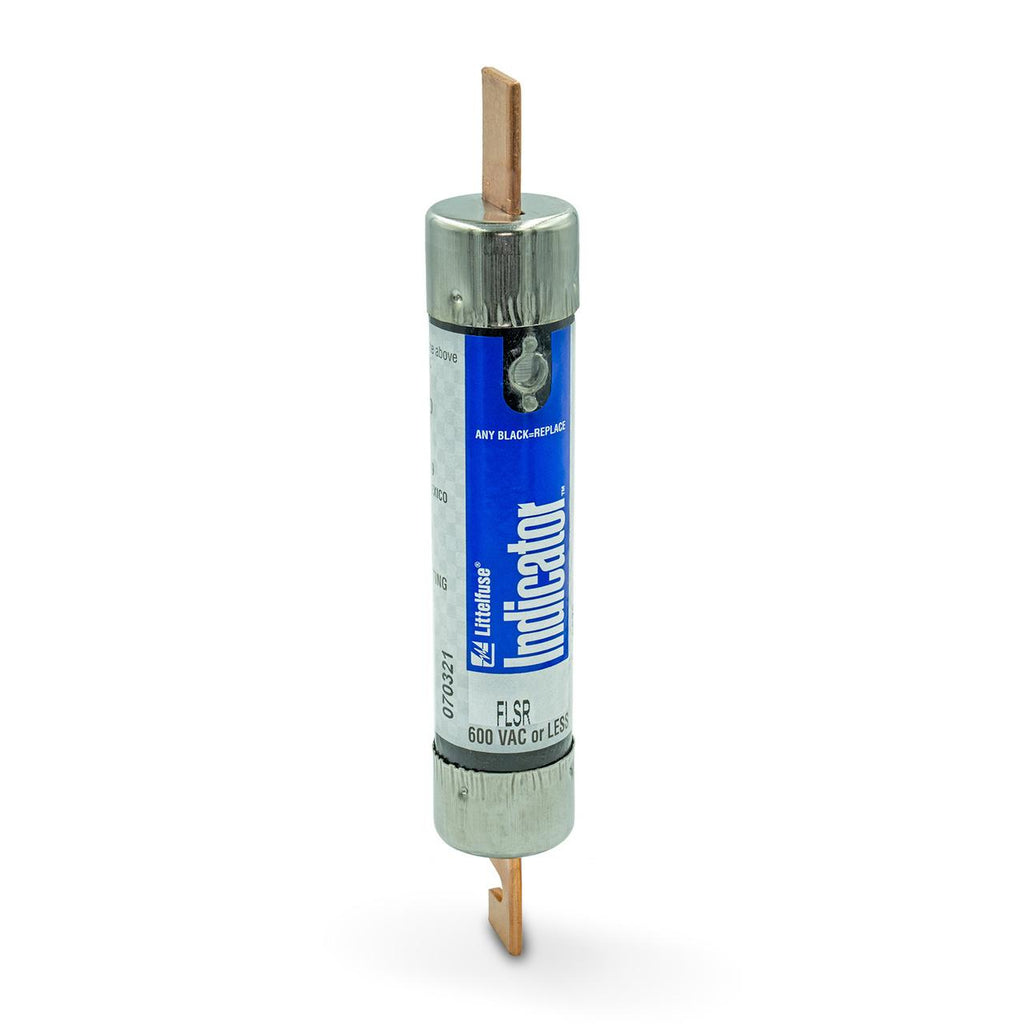

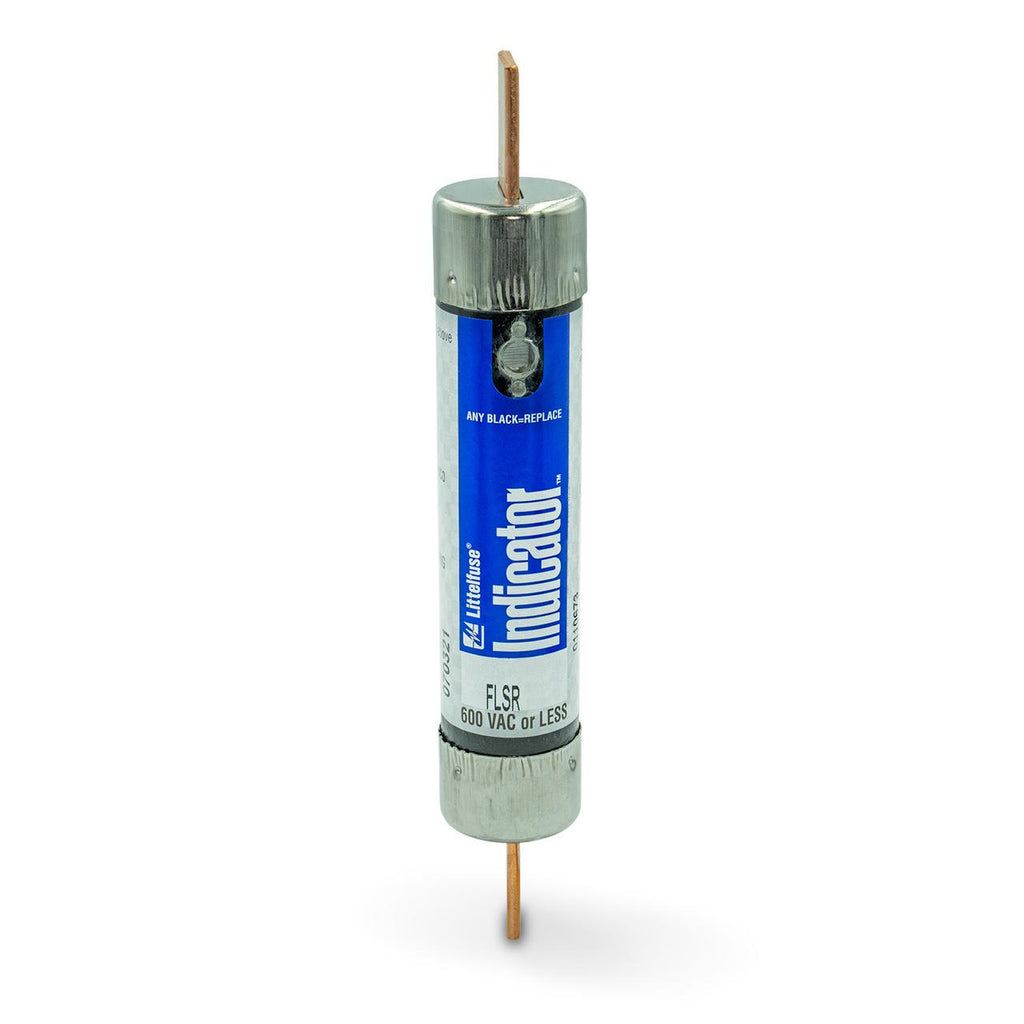

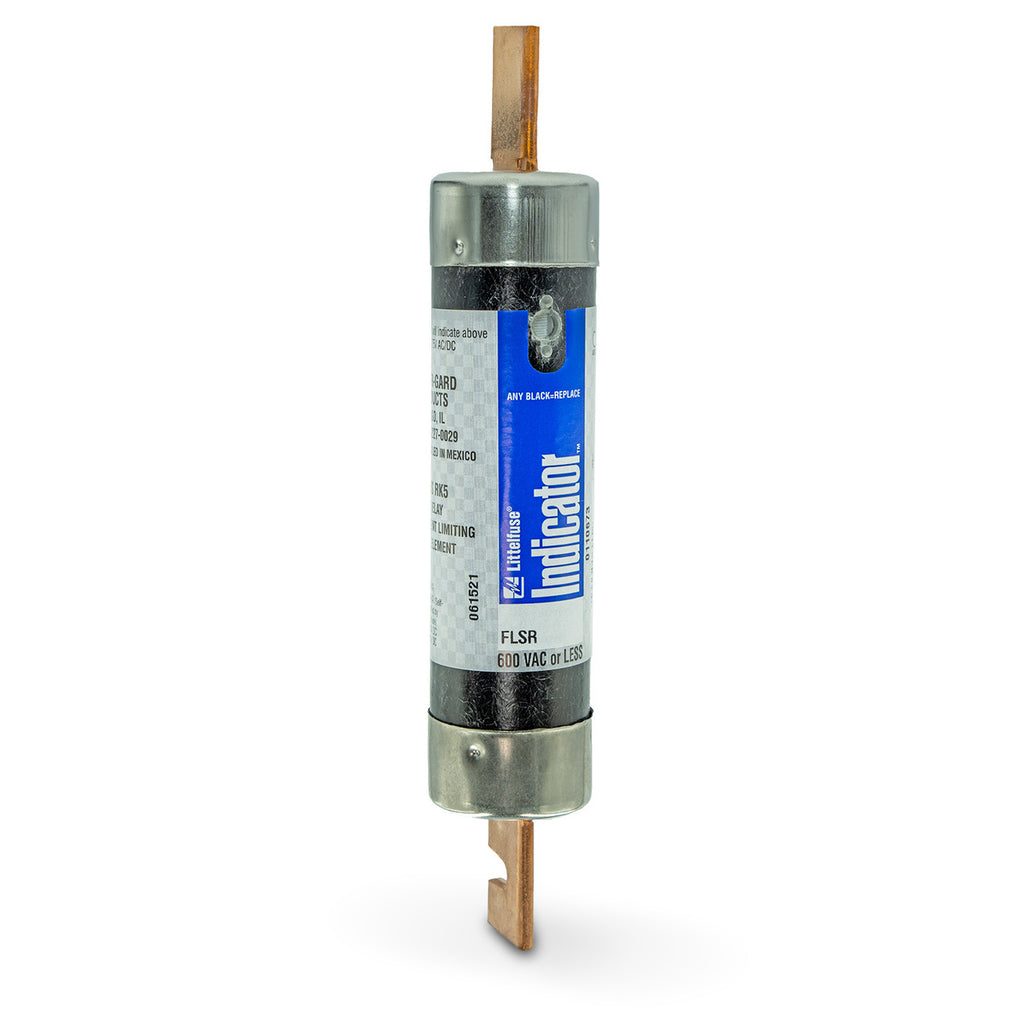

FLSR-125ID
FLSR-125ID is a 125 Amp, 600 Volt AC/DC indicating fuse from Littelfuse's Class RK5 series designed for reliable circuit protection.This dual-element, time-delay fuse features a visual blown fuse indicator for quick identification and provides excellent short-circuit and overload protection. It is current limiting and rated for 200kA RMS symmetrical interrupting capacity at 600V AC and 20kA at 300V DC. The fuse meets UL 248-12 standards and is suitable for service entrance switches, transformers, switchboard mains, motor control circuits, and general purpose applications.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 600 V AC, 300 V DC
- Interrupting Rating: 200kA RMS AC, 20kA DC
- Fuse Type: Indicating, Class RK5
- Design: Dual Element, Time Delay
- Visual Blown Fuse Indication
- Current Limiting
- Standards: UL 248-12, CSA, CE
- Mounting: Plug-In
- Length: 9-5/8 inches
Specifications
- Part Number: FLSR-125ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 125
- AIC rating : 200kA@600V
- Connection : Plug-In
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802552
- GTIN : 00079458025521
- Weight : 1
