Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

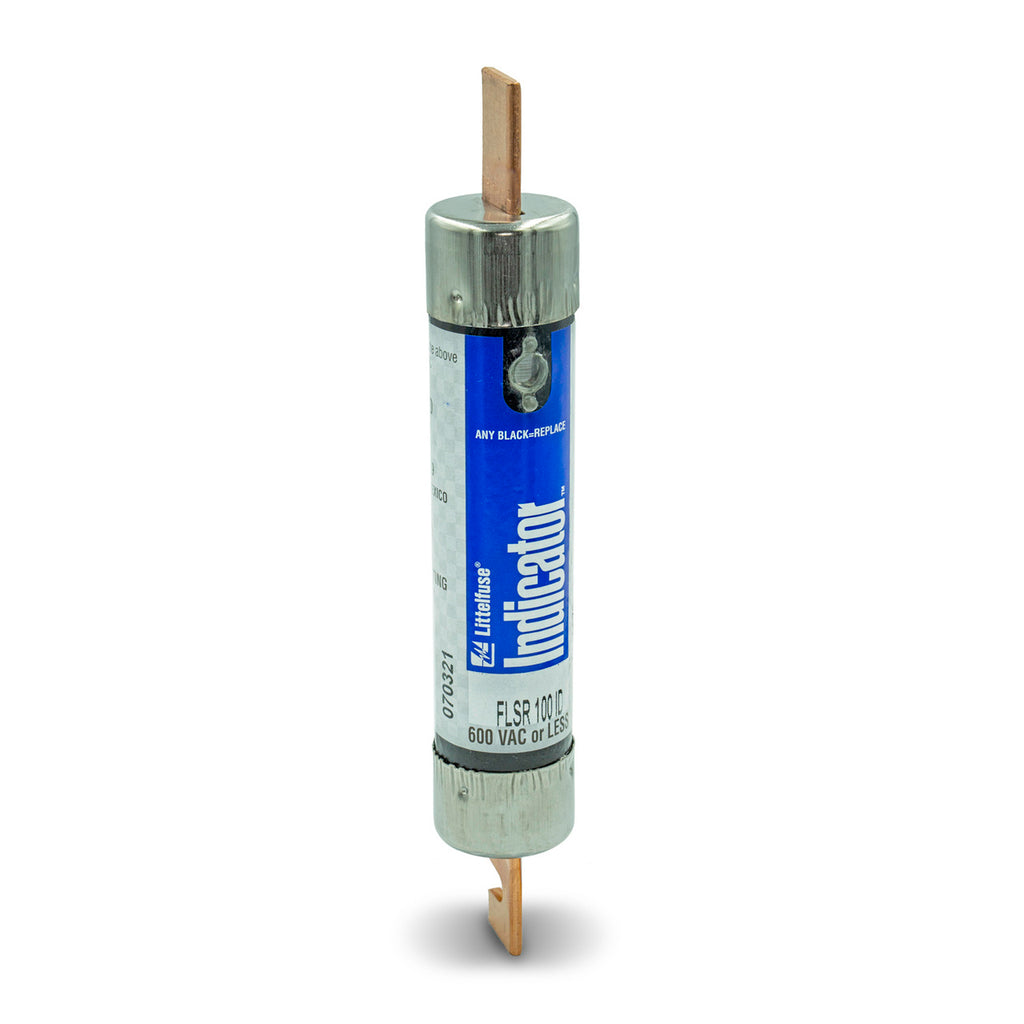

FLSR-100ID

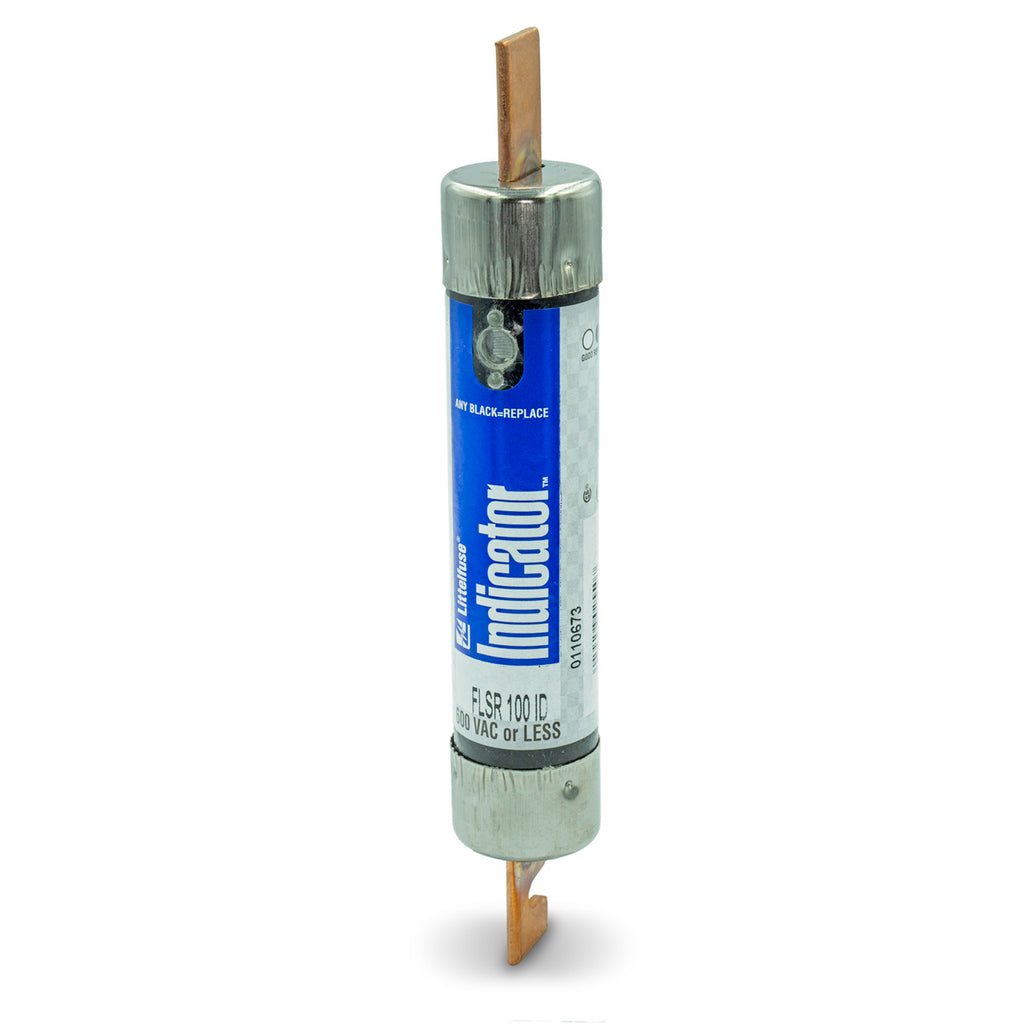

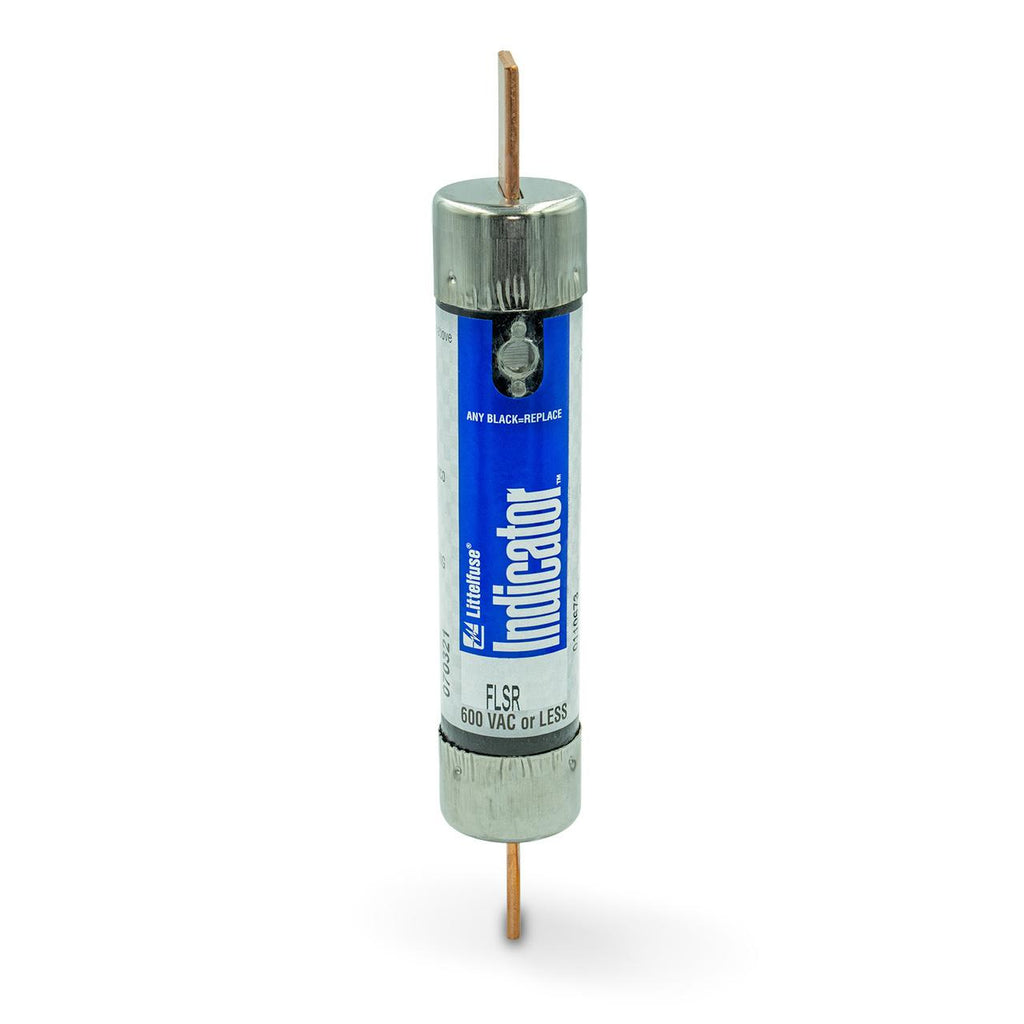

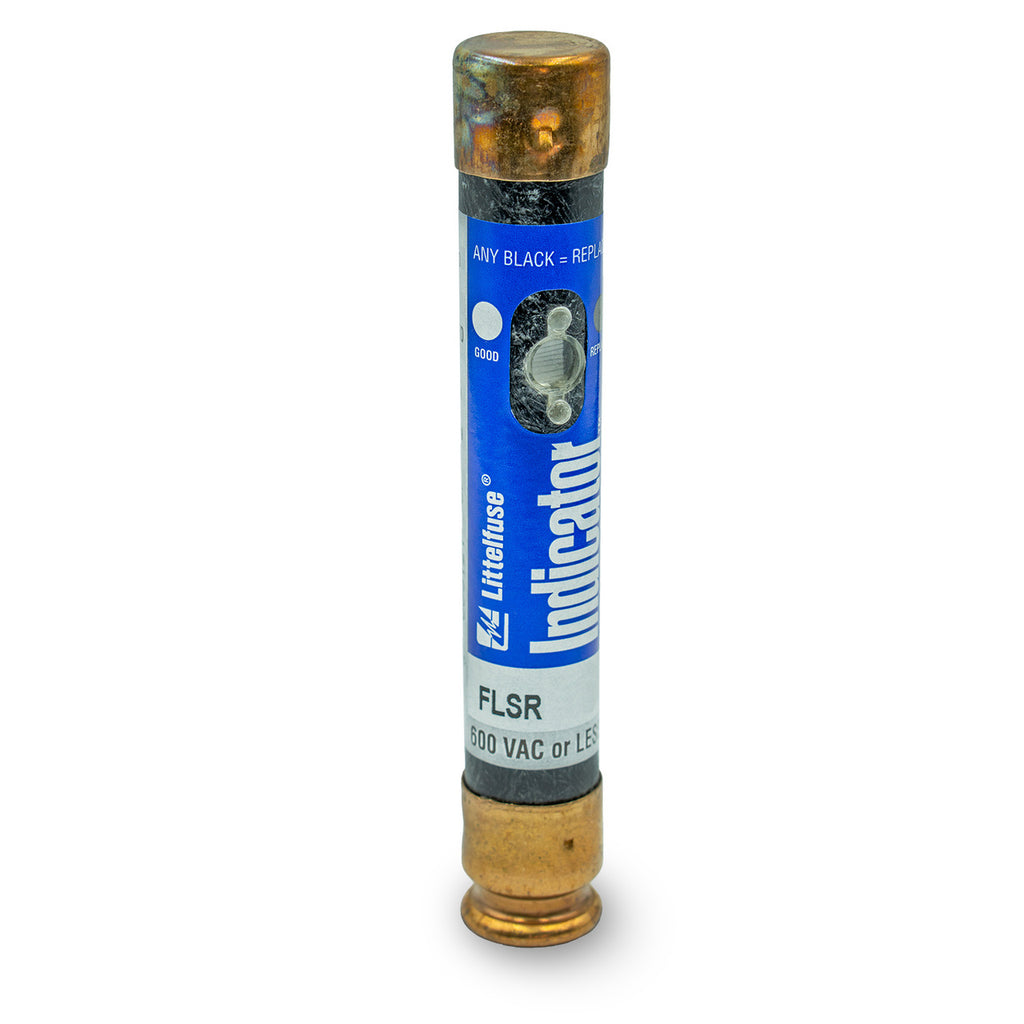

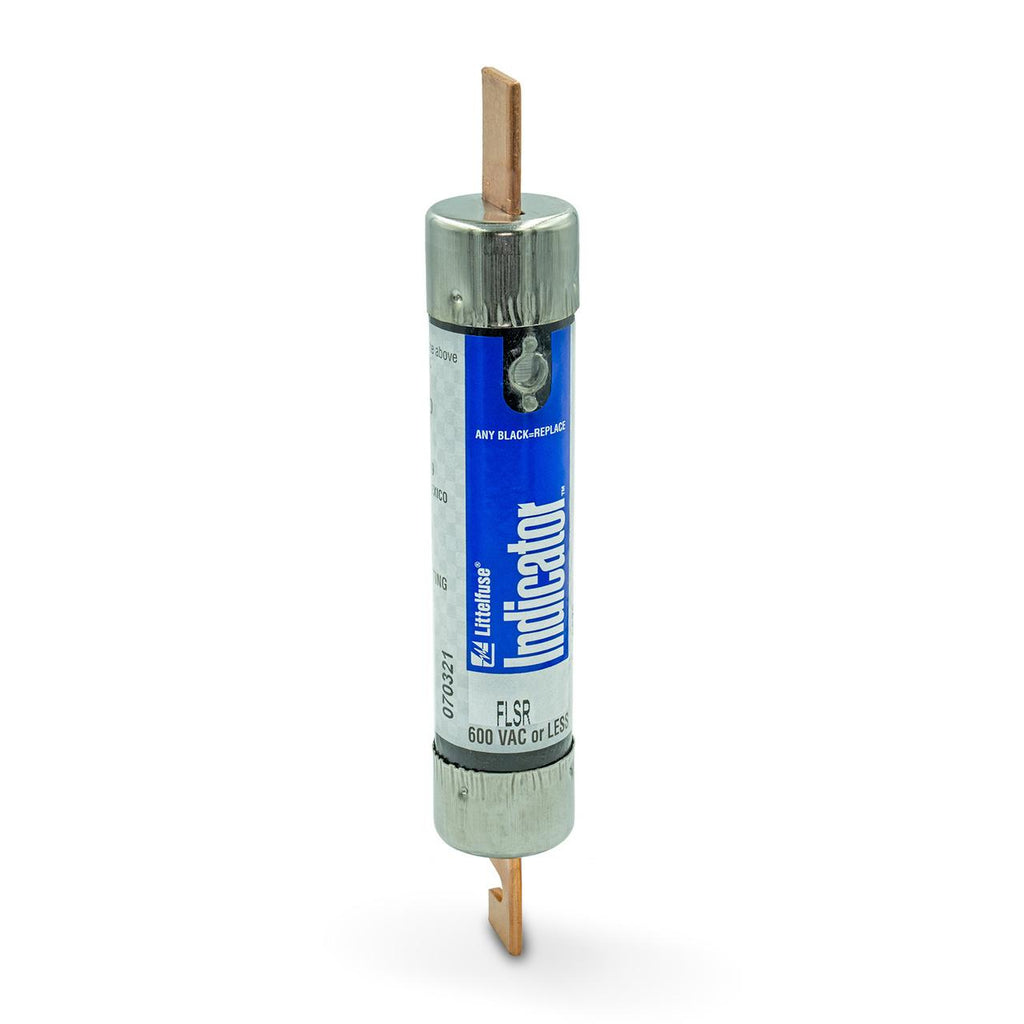

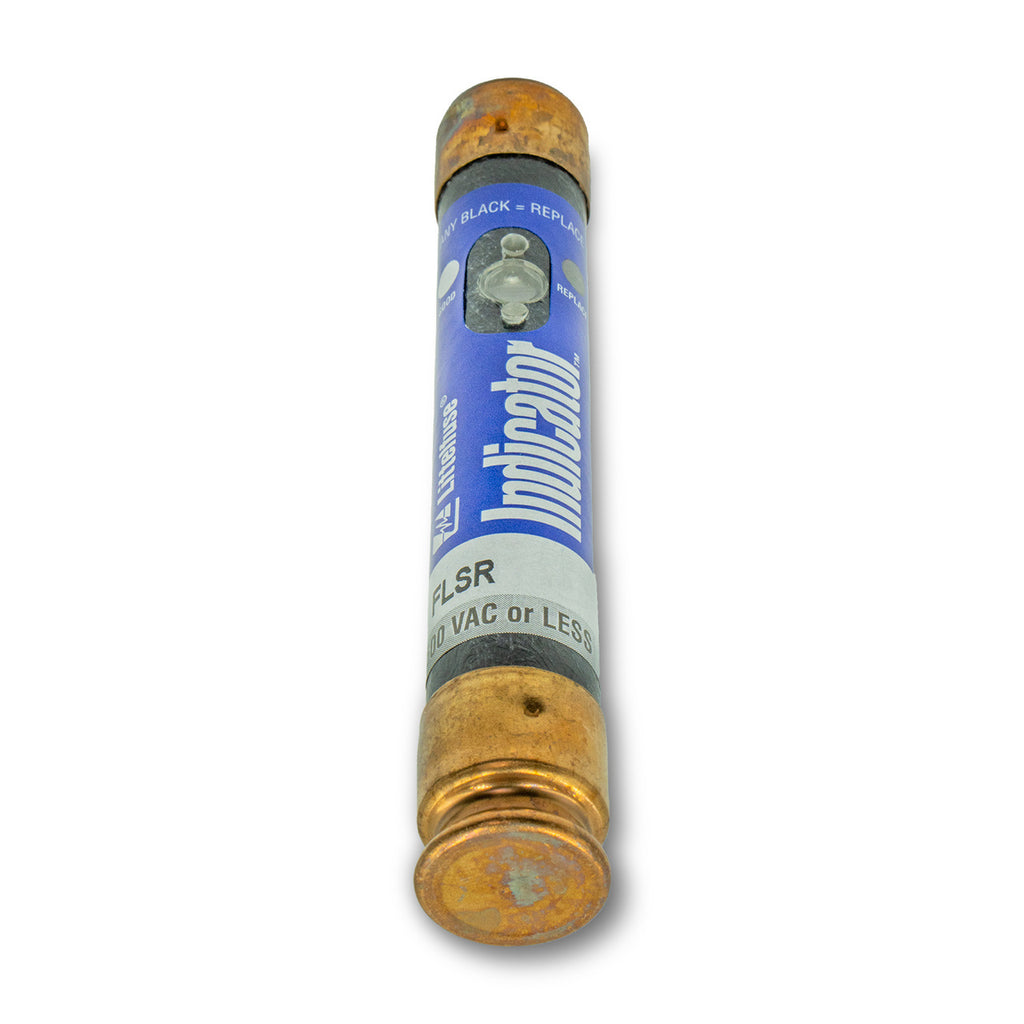

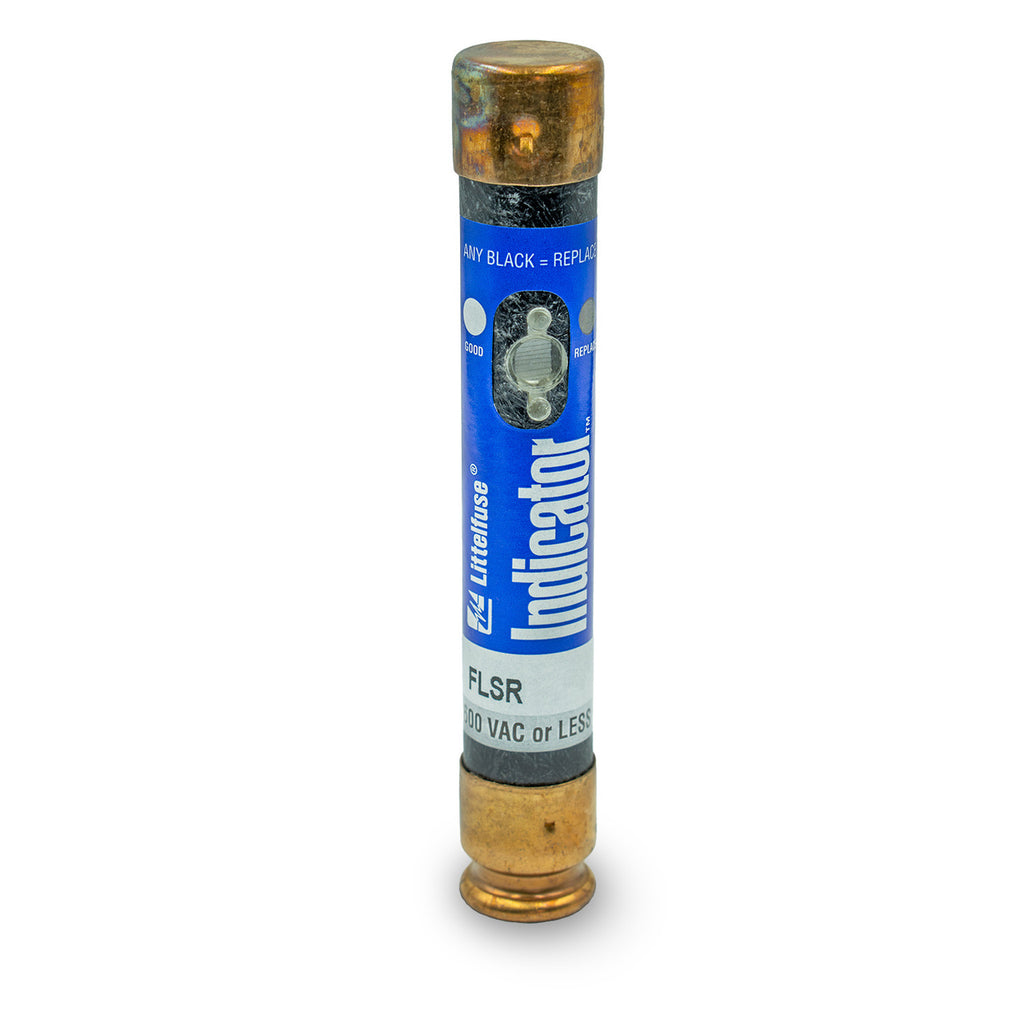

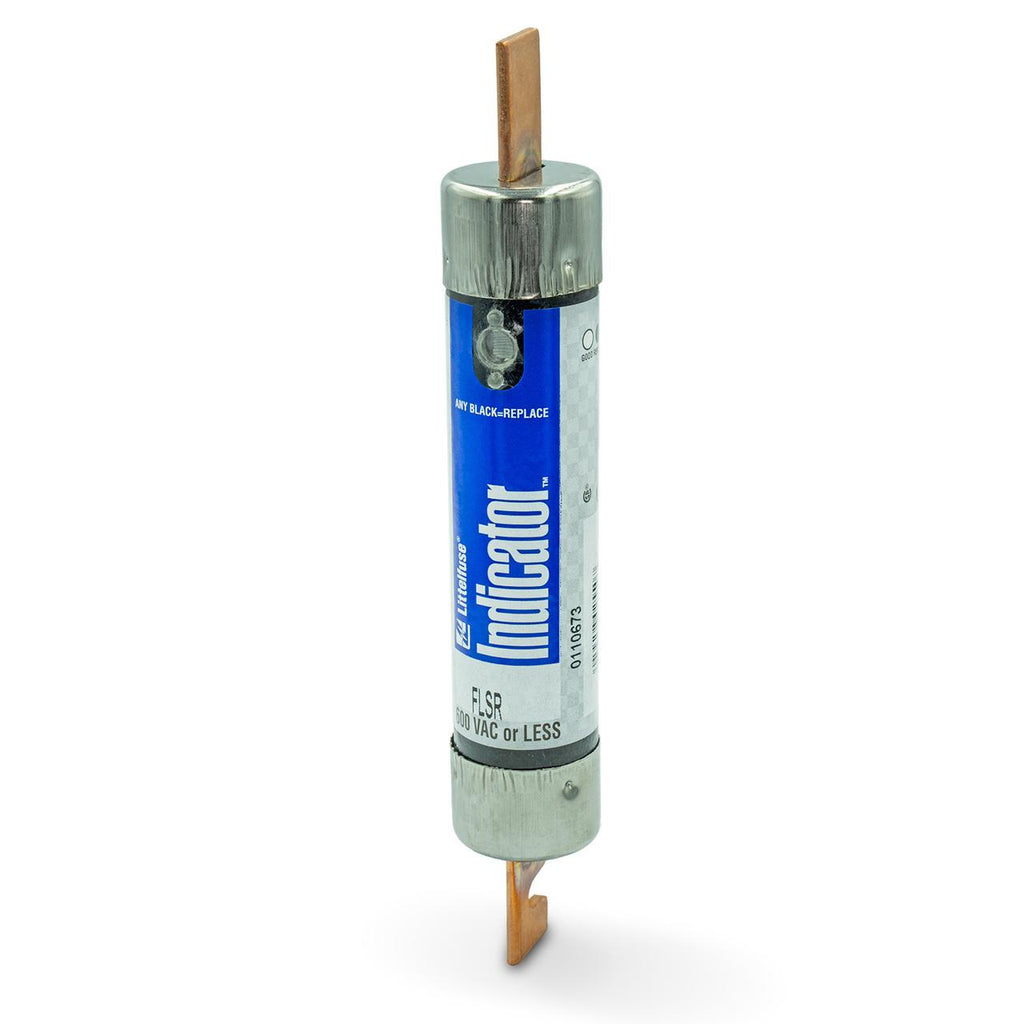

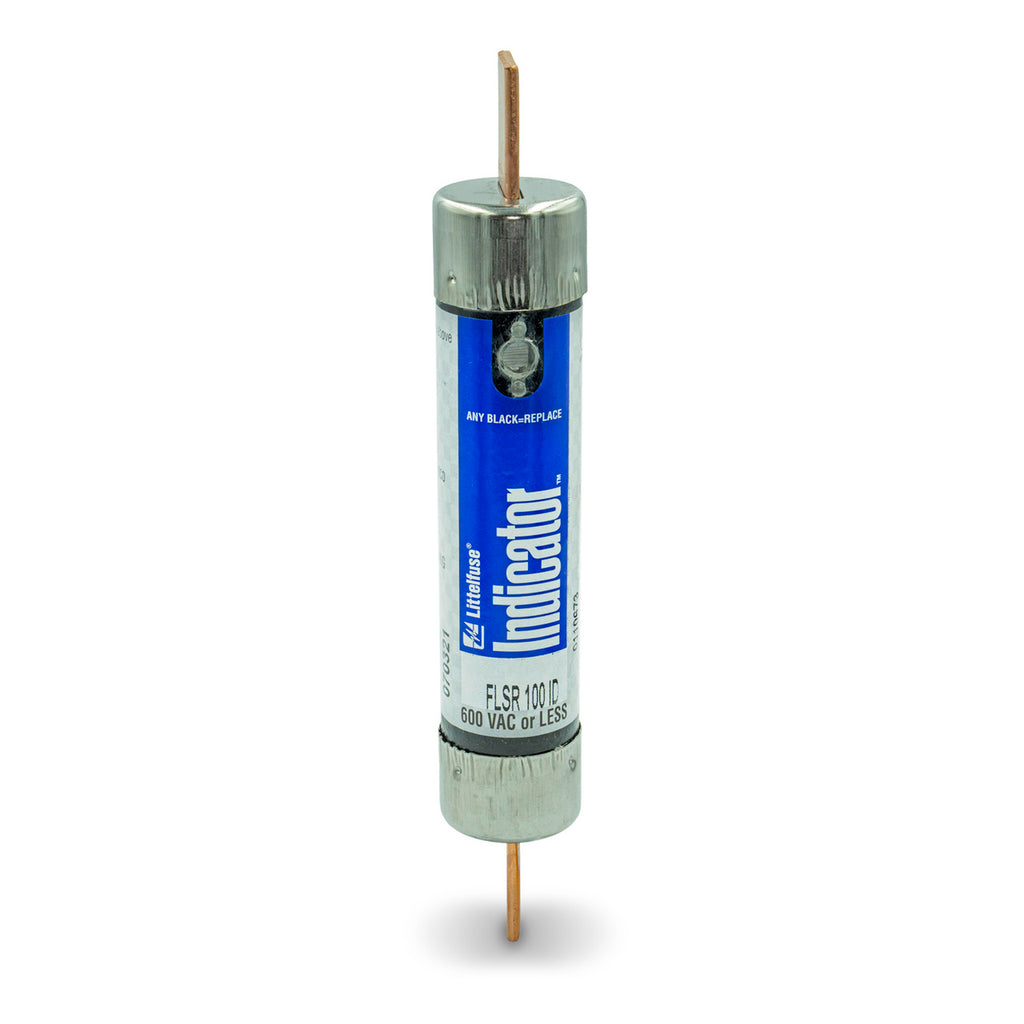

FLSR-100ID is a 100 Amp, 600 Volt AC indicating fuse from Littelfuse's Class RK5 series designed for reliable circuit protection.This dual-element, time delay fuse features a patented solid-state blown fuse indicator for quick visual identification. It offers current limiting protection with a 200,000 AIC interrupt rating at 600 VAC and 20,000 AIC at 300 VDC. The fuse is UL and CSA certified, suitable for general purpose circuits, switchboard mains, motor control centers, and service entrance switches. It has a cartridge body with blade terminals and measures 1-5/16 inches in diameter by 7-7/8 inches in length.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Type: Indicating, Time Delay, Dual Element
- Interrupt Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Mounting Type: Blade Terminal
- Body Style: Cartridge
- Dimensions: 1-5/16" diameter x 7-7/8" length
- Certifications: UL Listed (E81895), CSA Certified (LR29862), Federal Spec WF-1814
- Part Number: FLSR-100ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK5
- Barrels : 1
- UPC : 07945802550
- GTIN : 00079458025507
- Weight : 0.3
