Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-090ID

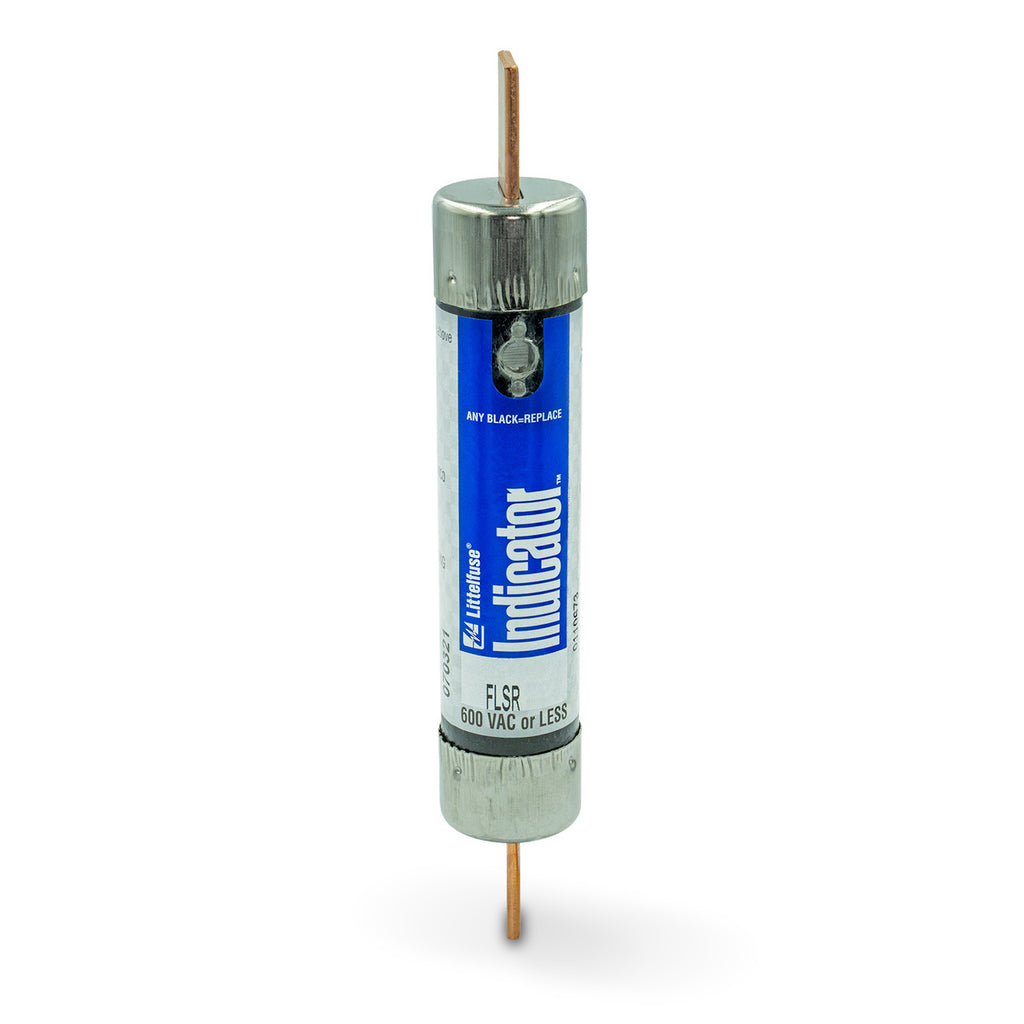

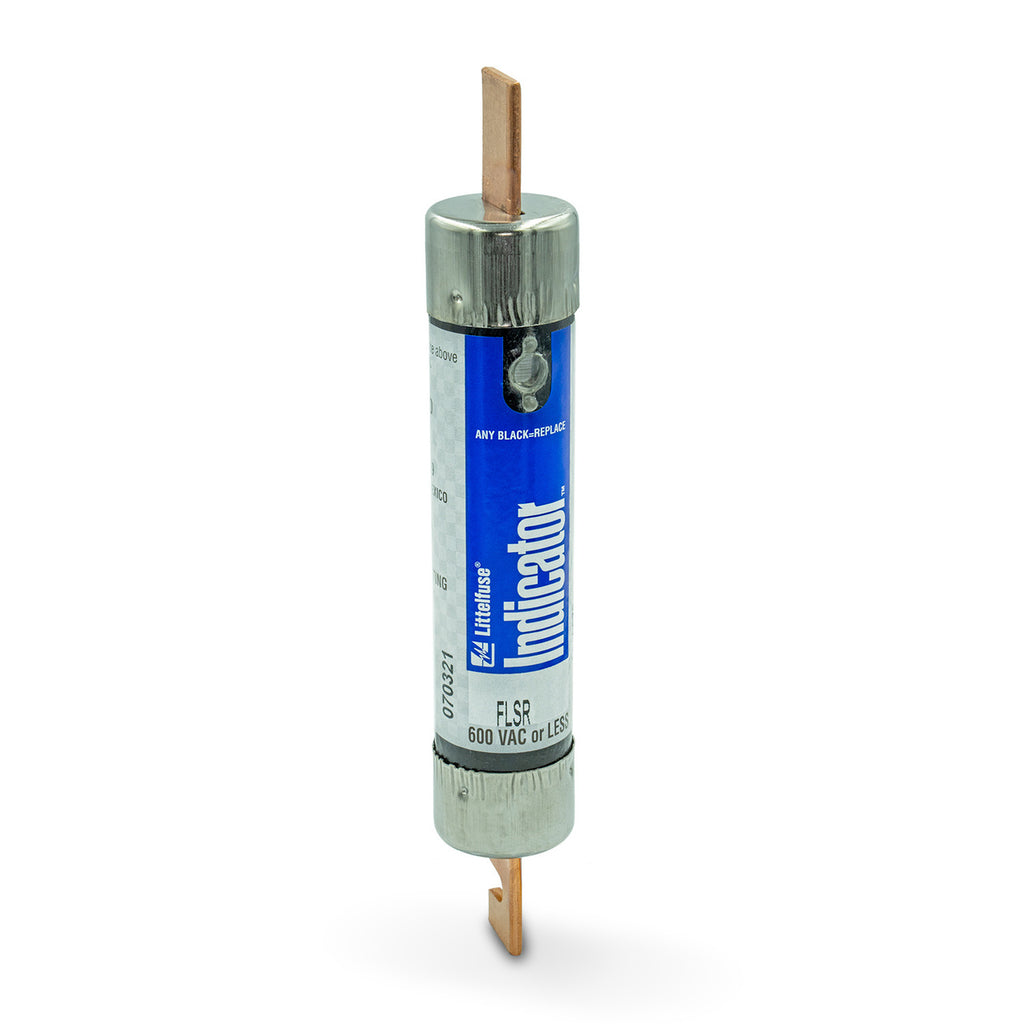

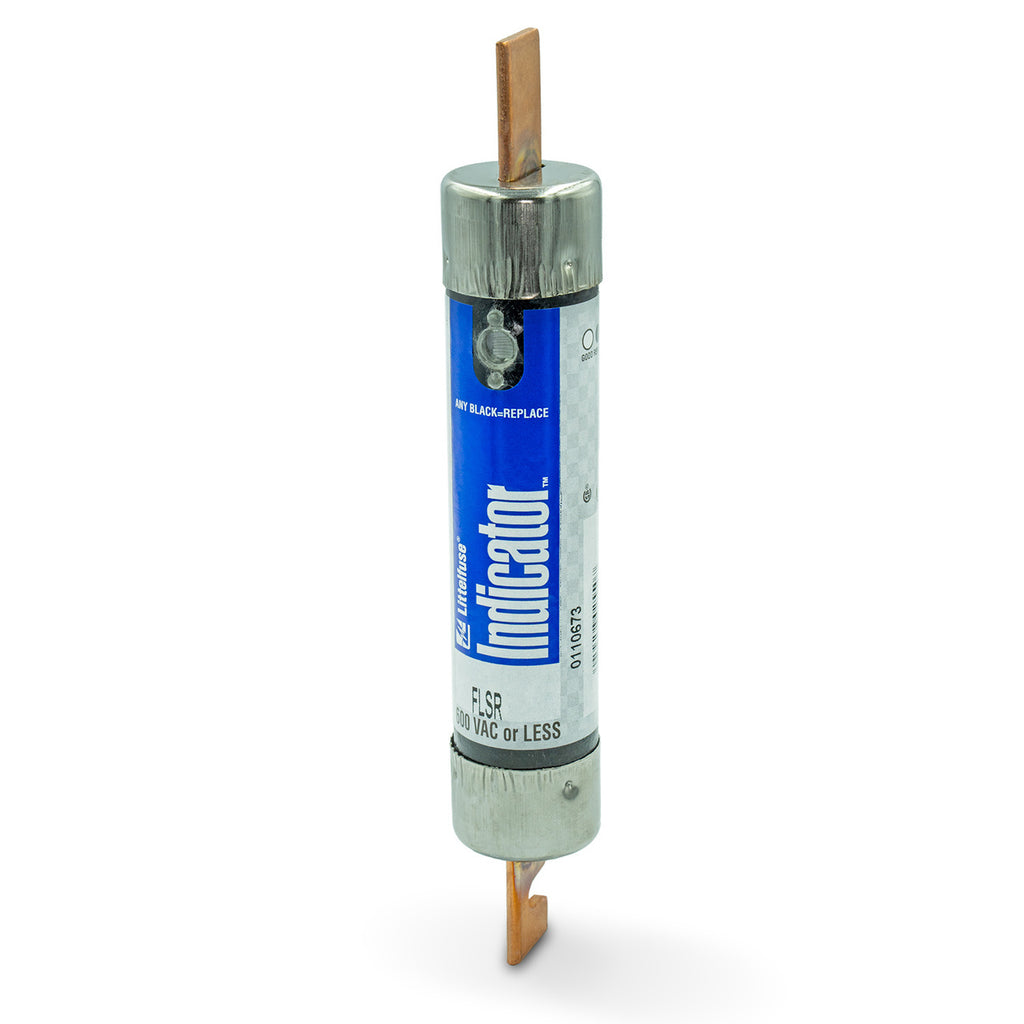

FLSR-090ID is a 90 Amp, 600 Volt AC Class RK5 time delay indicating fuse from Littelfuse designed for reliable circuit protection.This dual-element, current limiting fuse features a patented solid-state indicator for visual blown fuse identification, reducing downtime and improving safety. It supports 600 VAC and 300 VDC voltage ratings with interrupting ratings of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The fuse is UL listed, CSA certified, and suitable for general purpose circuits, switchboards, motor control centers, and service entrance switches.
- Key Specifications
- Amperage: 90 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200,000 AIC AC / 20,000 AIC DC
- Class: RK5
- Type: Time Delay, Dual Element
- Indicator: Visual blown fuse indicator
- Body Style: Cartridge, 1-5/16" diameter x 7-7/8" length
- Terminal Type: Blade
- Certifications: UL Listed (E81895), CSA Certified (LR29862)
- Applications: General purpose circuits, switchboards, motor control, service entrance
Specifications
- Part Number: FLSR-090ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 90
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802549
- GTIN : 00079458025491
- Weight : 5.19
