Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-080ID

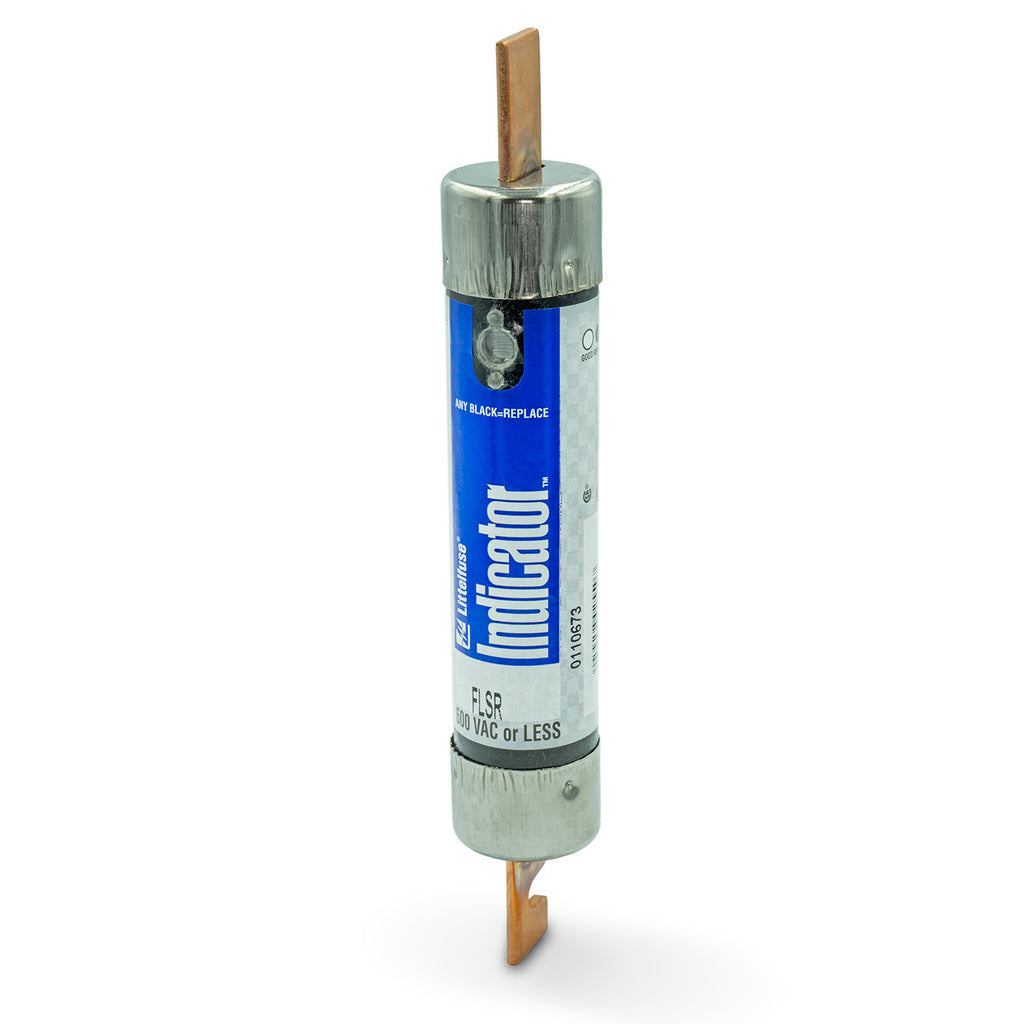

FLSR-080ID is an 80 Amp, 600 VAC/300 VDC indicating time delay fuse from Littelfuse's POWR-GARD® FLSR_ID series, Class RK5.This fuse features a dual-element, current-limiting design with visual blown fuse indication for fast and easy identification. It provides excellent short-circuit and overload protection with a 20 kA DC and 200/300 kA AC interrupting rating. The cartridge body includes blade terminals and meets UL 248-12, CSA LR29862, and Federal Spec WF-1814 certifications. Ideal for service entrance switches, motor control, and general purpose circuits.
- Amperage: 80 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200/300 kA RMS AC, 20 kA DC
- Fuse Class: RK5
- Type: Indicating, Slow Blow (Time Delay)
- Body Style: Cartridge with blade terminals
- Dual-element design for advanced protection
- Visual blown fuse indication window
- Length: 7-7/8 inches
- Diameter: 1-5/16 inches
- Certifications: UL 248-12, CSA LR29862, Federal Spec WF-1814
Specifications
- Part Number: FLSR-080ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 80
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802548
- GTIN : 00079458025484
- Weight : 0.3
