Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-070ID

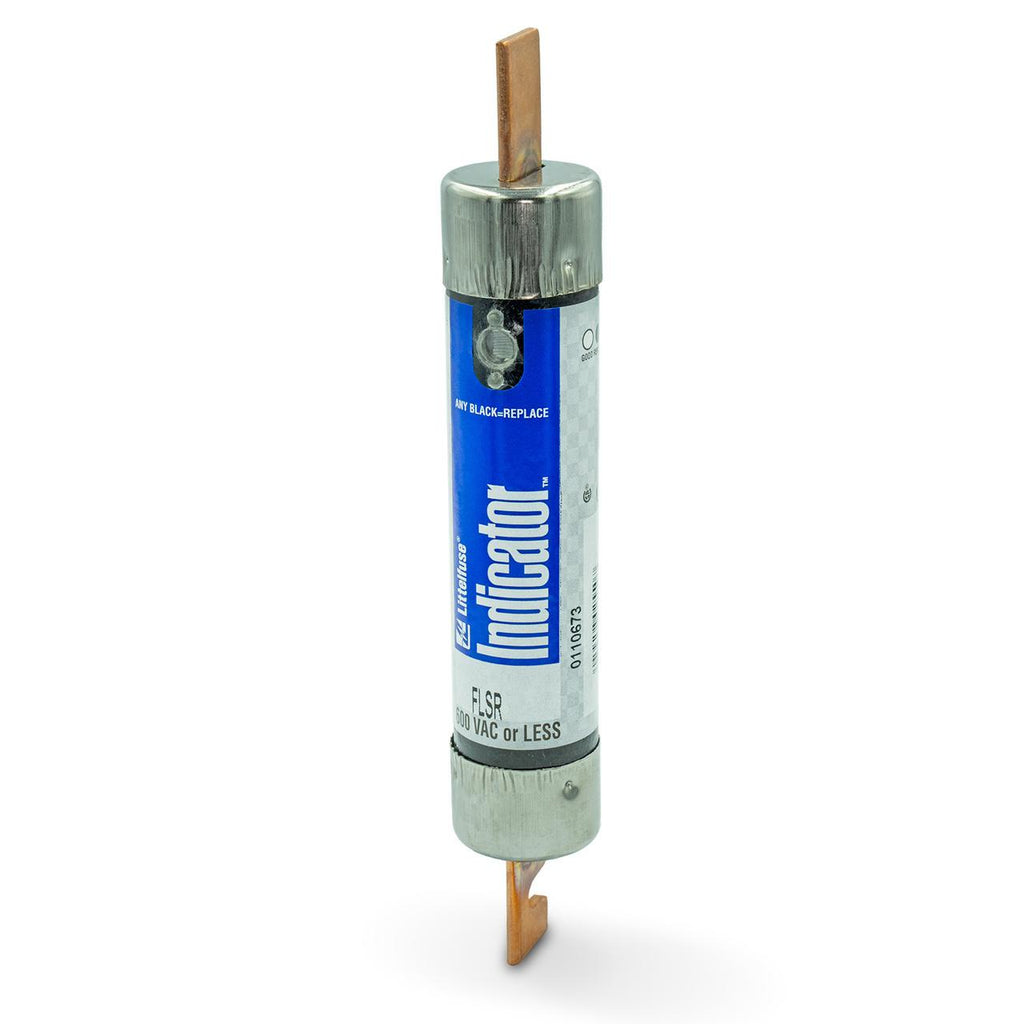

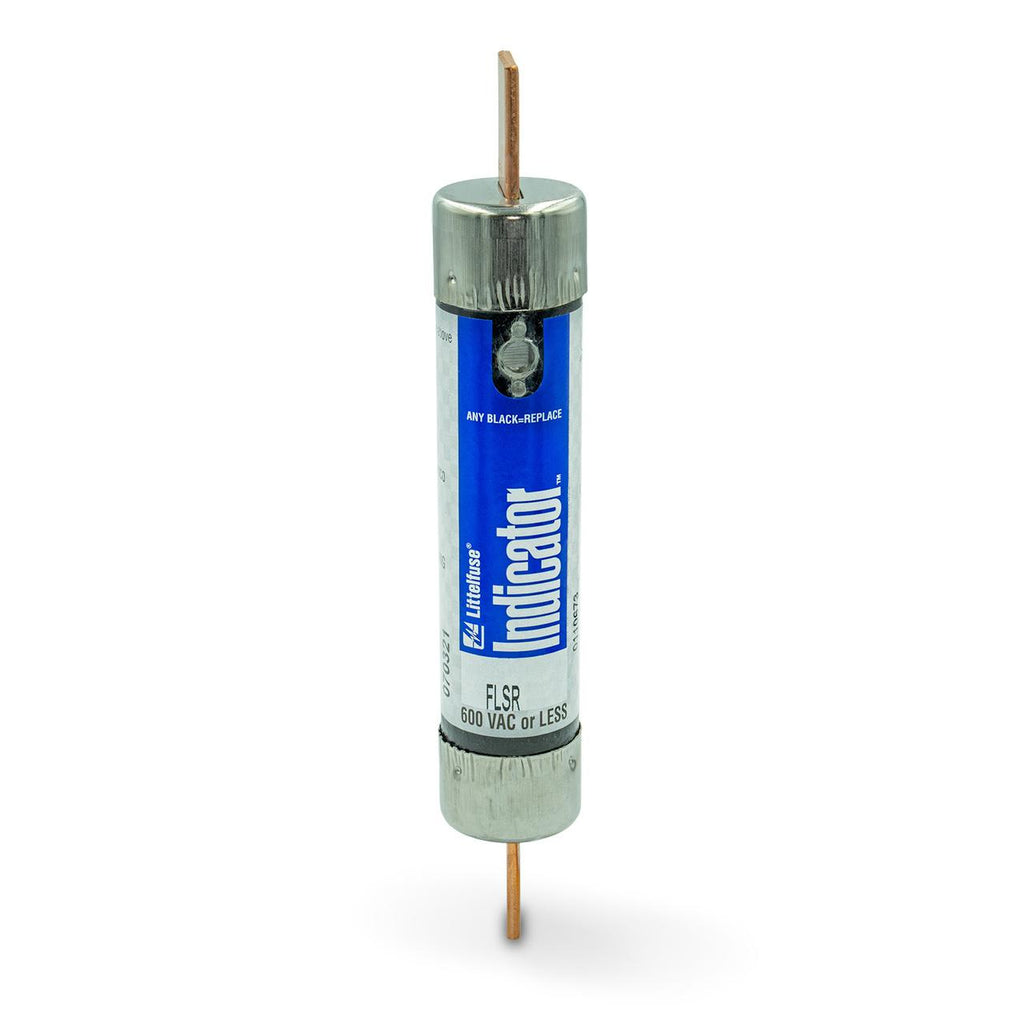

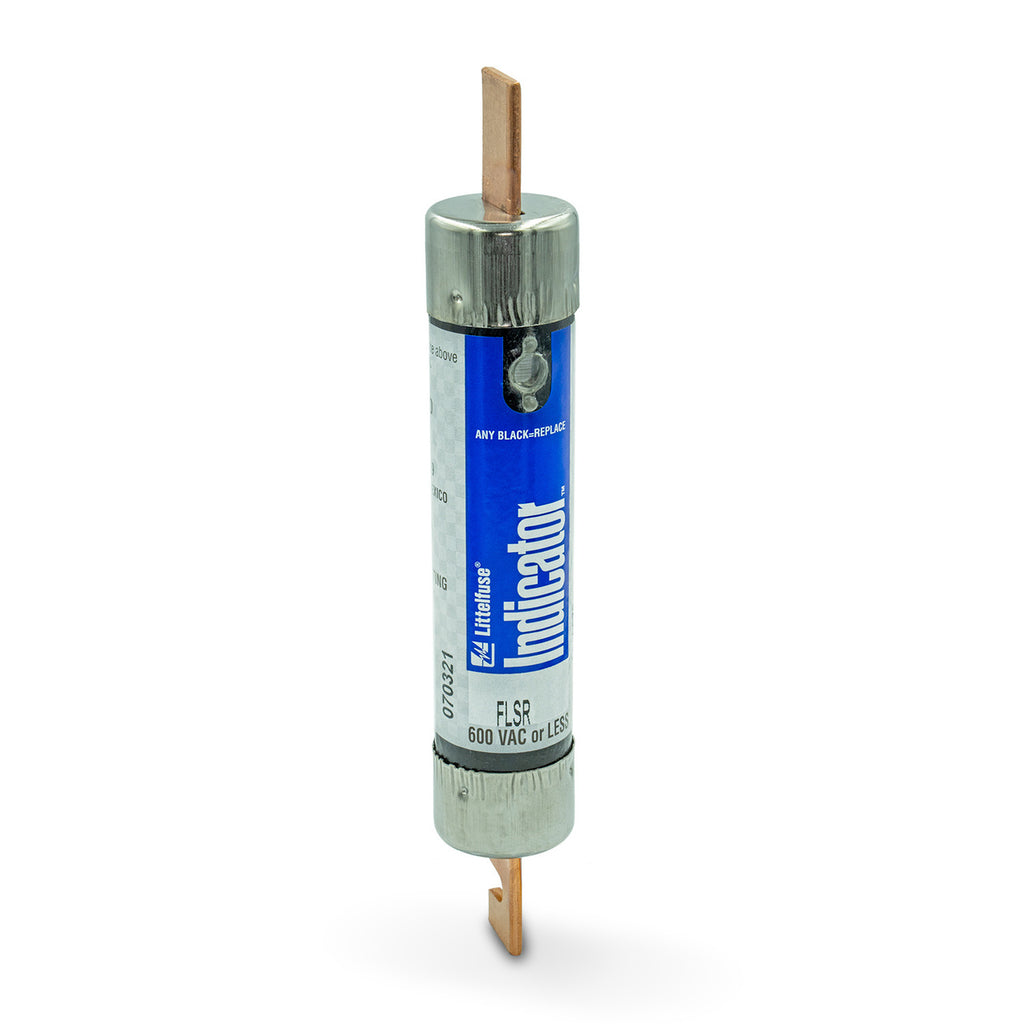

FLSR-070ID is a Littelfuse indicating time delay fuse rated for 70 amps and 600 VAC/300 VDC operation, designed for advanced circuit protection.This Class RK5 fuse features a dual-element, current limiting design with a patented solid-state visual blown fuse indicator for quick fault identification. It offers high interrupting ratings of 200/300 kA RMS AC and 20 kA DC, suitable for service entrance switches, switchboard mains and feeders, motor control centers, and general purpose circuits. The cartridge body with blade terminals ensures reliable mounting and connection.
- Key Specifications
- Amperage Rating: 70 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Interrupting Rating: 200/300 kA RMS AC, 20 kA DC
- Class: RK5
- Type: Indicating, Time Delay (Slow Blow)
- Element: Dual Element
- Terminal Type: Blade
- Body Style: Cartridge
- Diameter: 1-5/16 Inch
- Length: 7-7/8 Inch
- Certifications: UL 248-12, CSA LR29862, Federal Spec WF-1814
- Series: POWR-GARD FLSR_ID
Specifications
- Part Number: FLSR-070ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 70
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802546
- GTIN : 00079458025460
- Weight : 0.3
