Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

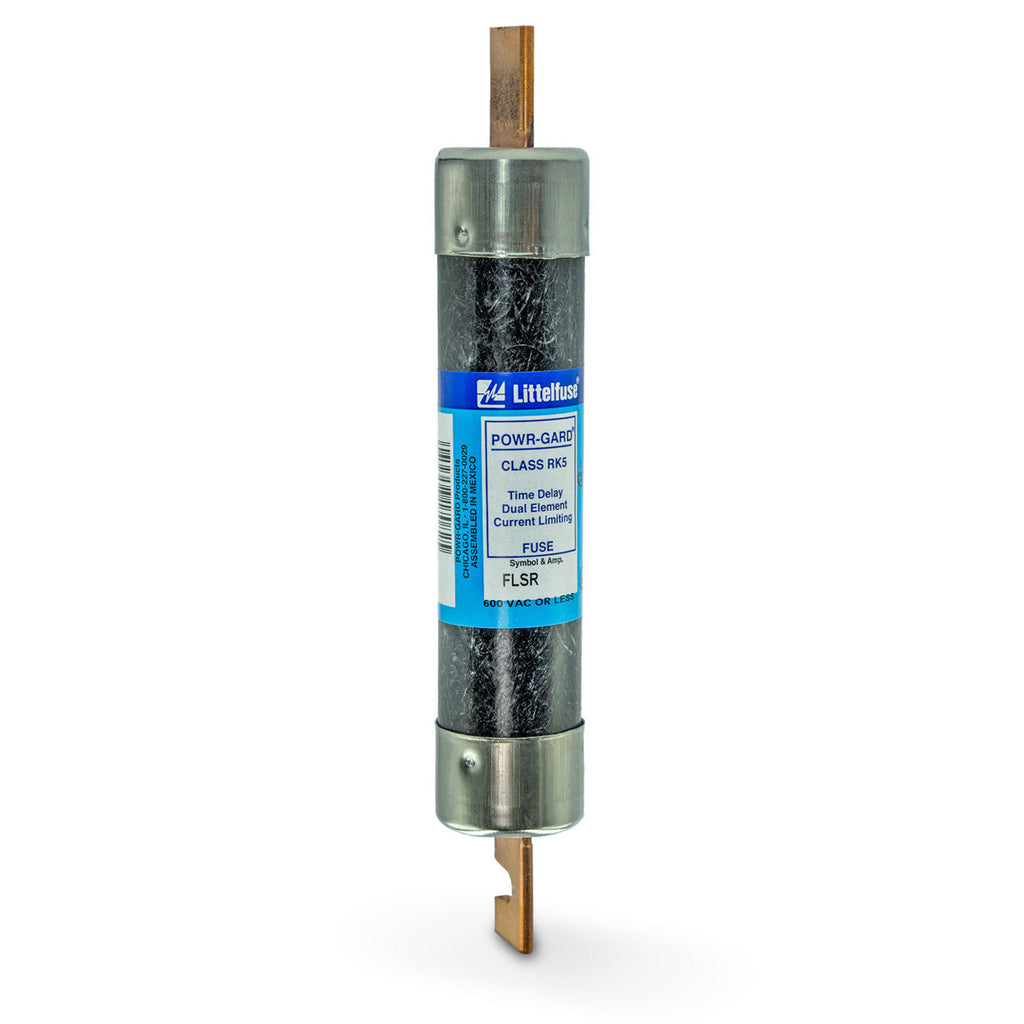

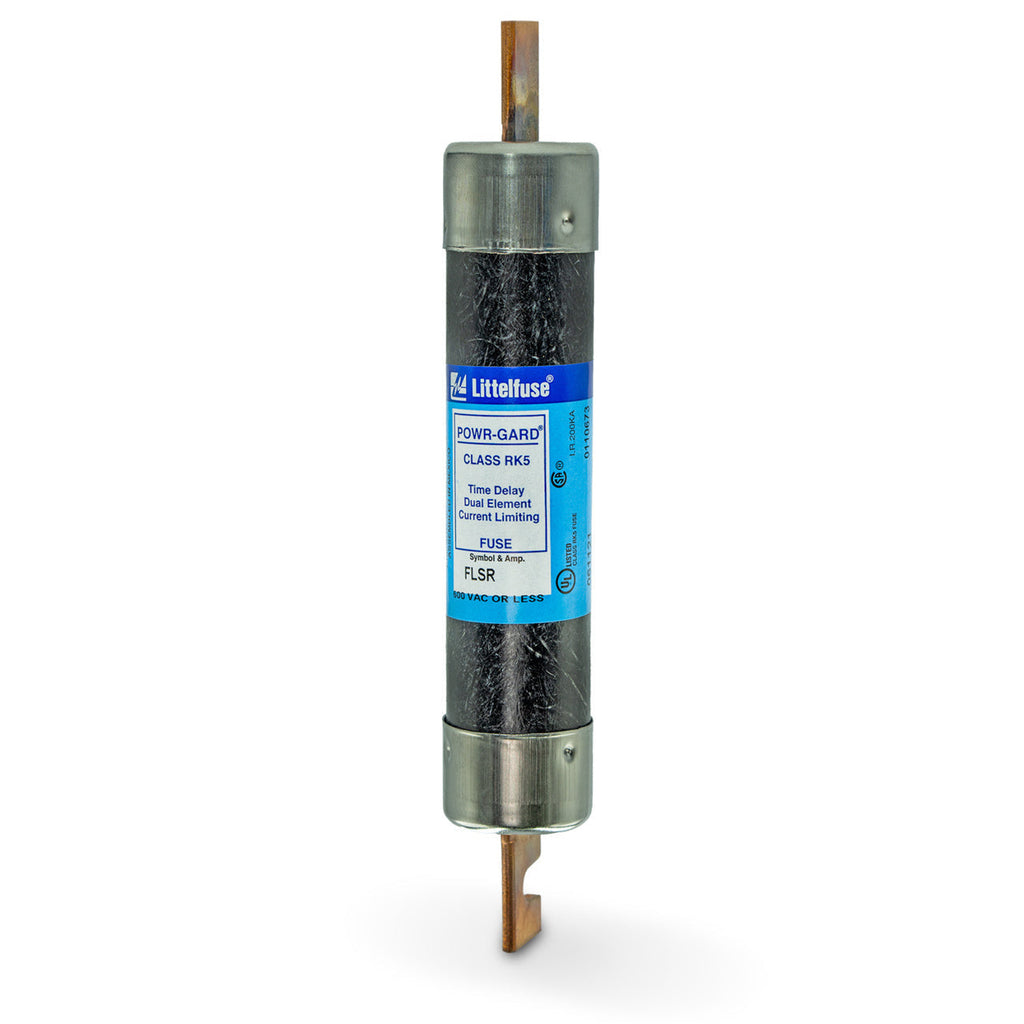

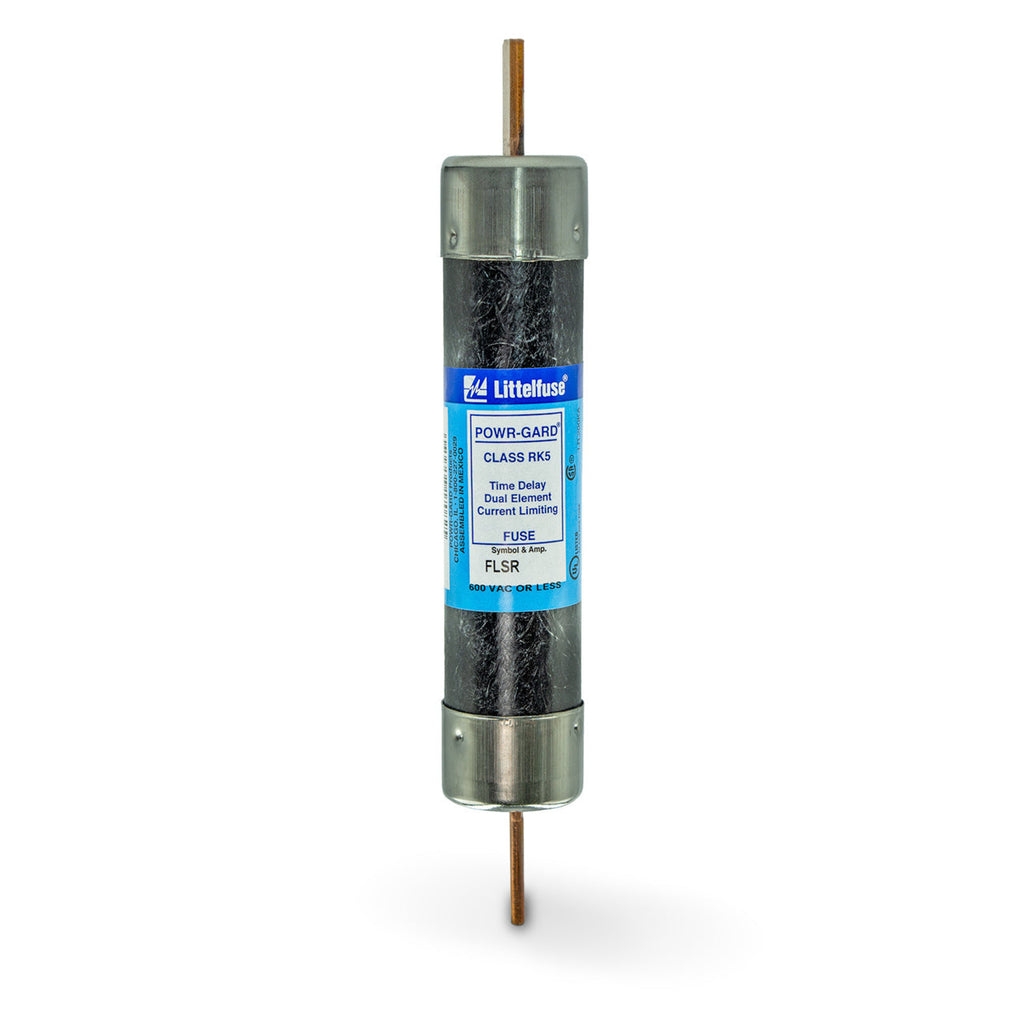

FLSR-070
FLSR-070 is a Littelfuse 70 Amp, 600 Volt AC Class RK5 time delay fuse designed for general purpose circuit protection.FLSR-070 features a dual element, current limiting design with a time delay (slow blow) opening characteristic. It is UL Listed and CSA Certified, rated for 600 VAC and 300 VDC with an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The fuse has a physical size of 1 5/16 inches diameter by 7 7/8 inches length, suitable for Class RK5 fuse holders and mounts.
- Key Specifications
- Amperage: 70 Amps
- Voltage Rating: 600 VAC, 300 VDC
- Fuse Class: RK5
- Time Delay (Slow Blow) Dual Element
- Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
- Physical Size: 1 5/16" diameter x 7 7/8" length
- Mounting Type: Cartridge Fuse
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Current Limiting Design
- Part Number: FLSR-070
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR
- Voltage : 600
- Amperage : 70
- AIC rating : 200kA@600V
- Connection : Plug-In
- Diameter : 1.31
- Class Rating : RK5
- Barrels : 1
- UPC : 07945817079
- GTIN : 00079458170795
- Weight : 0.3
