FLSR-060ID - Littelfuse 60A 600V Class RK5 Time Delay Dual Element Fuse with Visual Indicator, 200kA Interrupt, 1 1/16" x 5 1/2"

FLSR-060ID

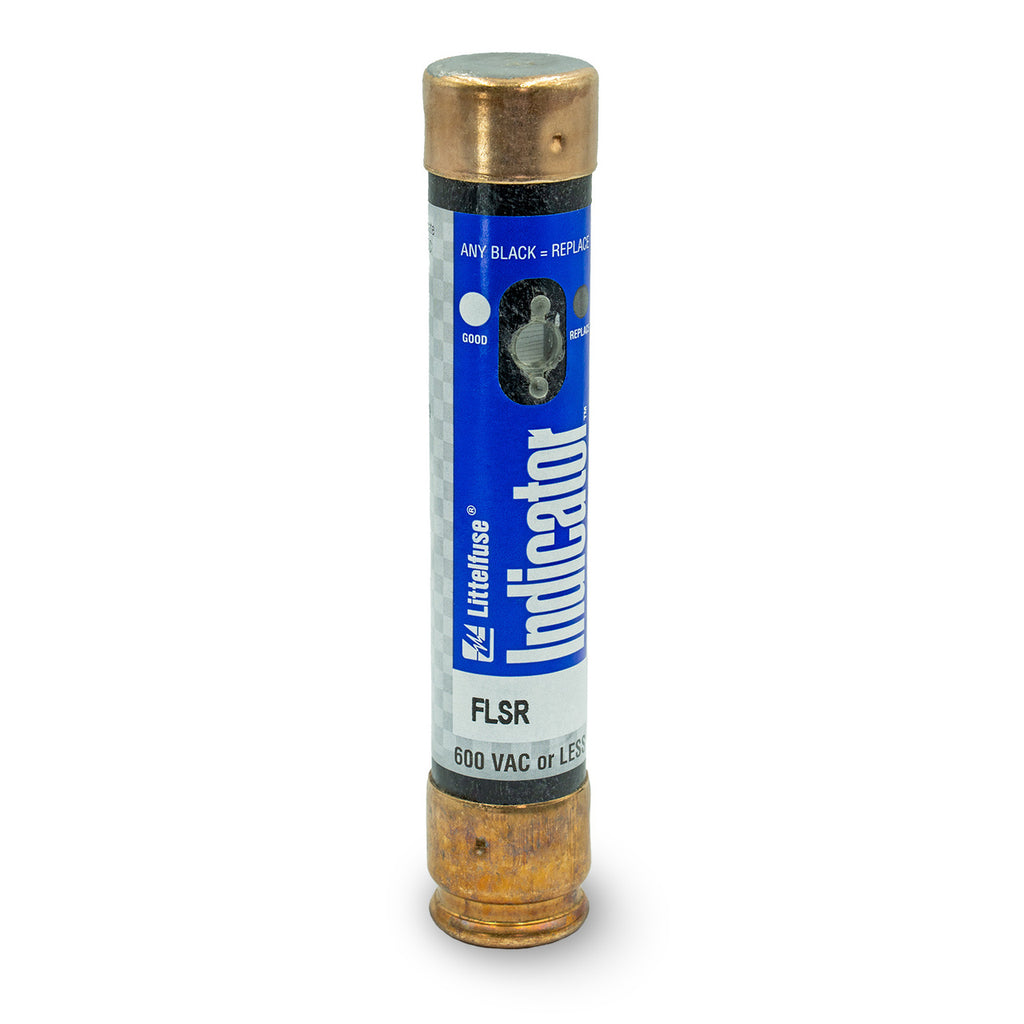

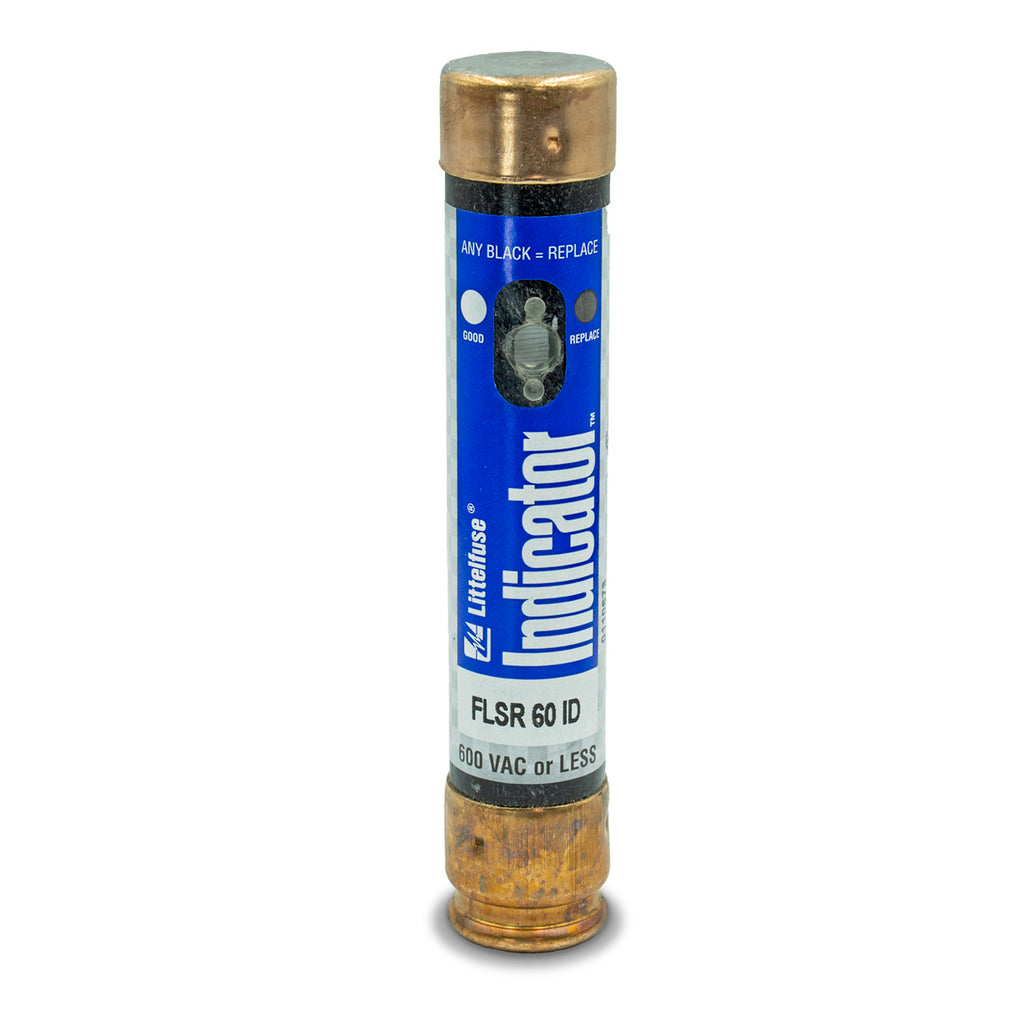

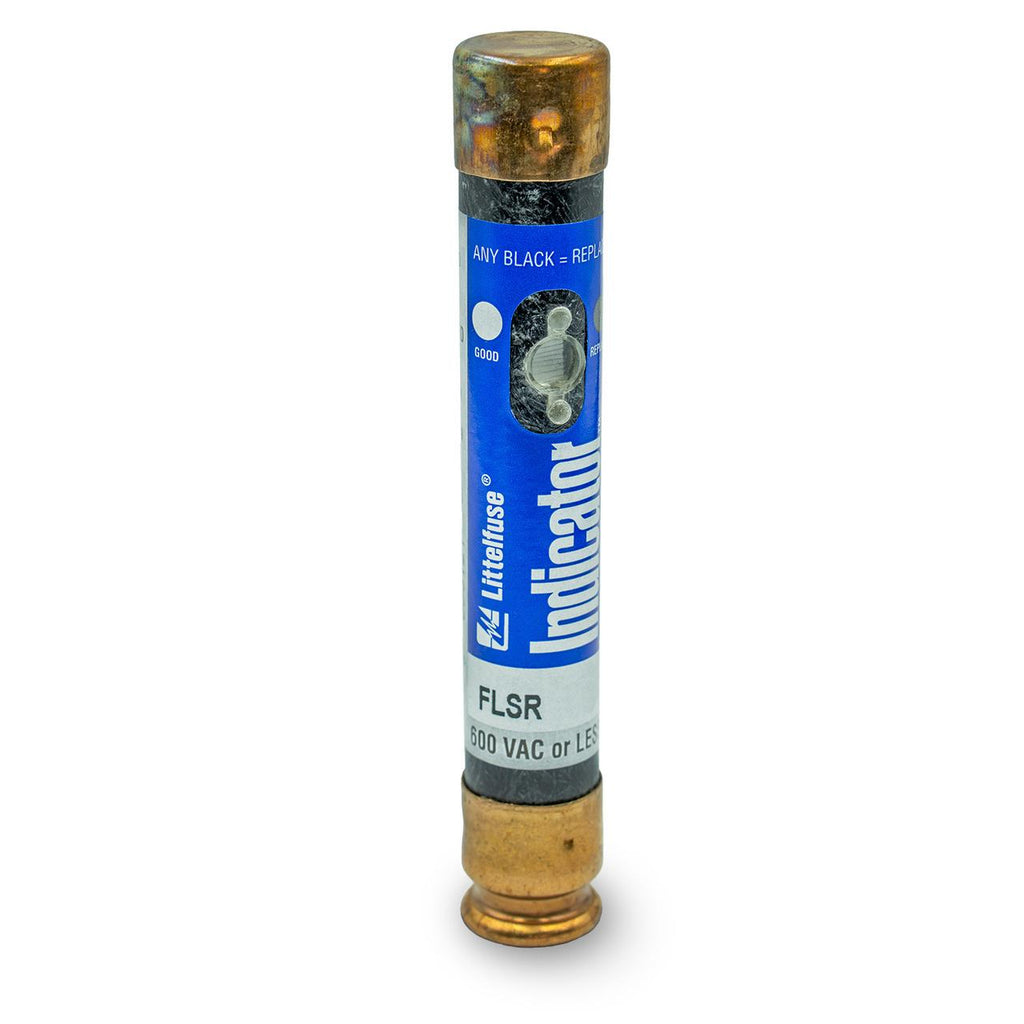

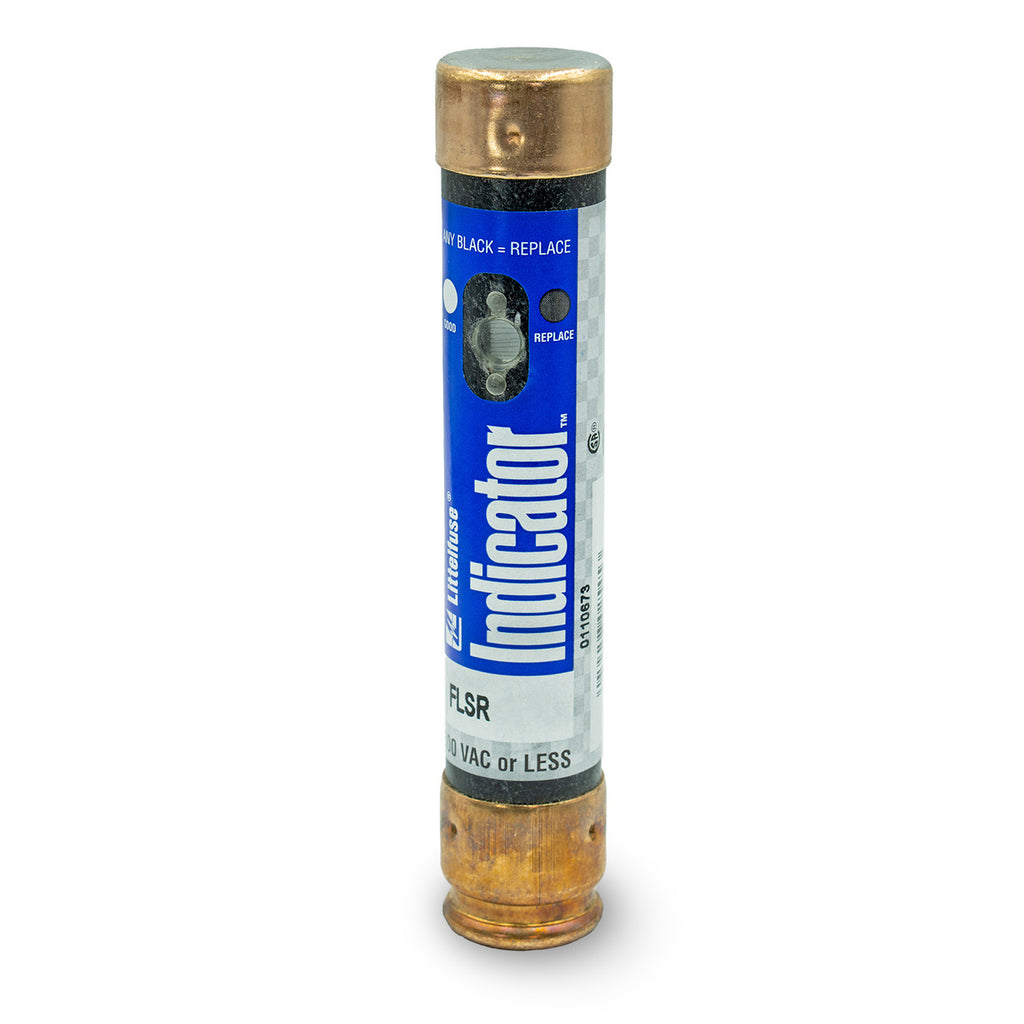

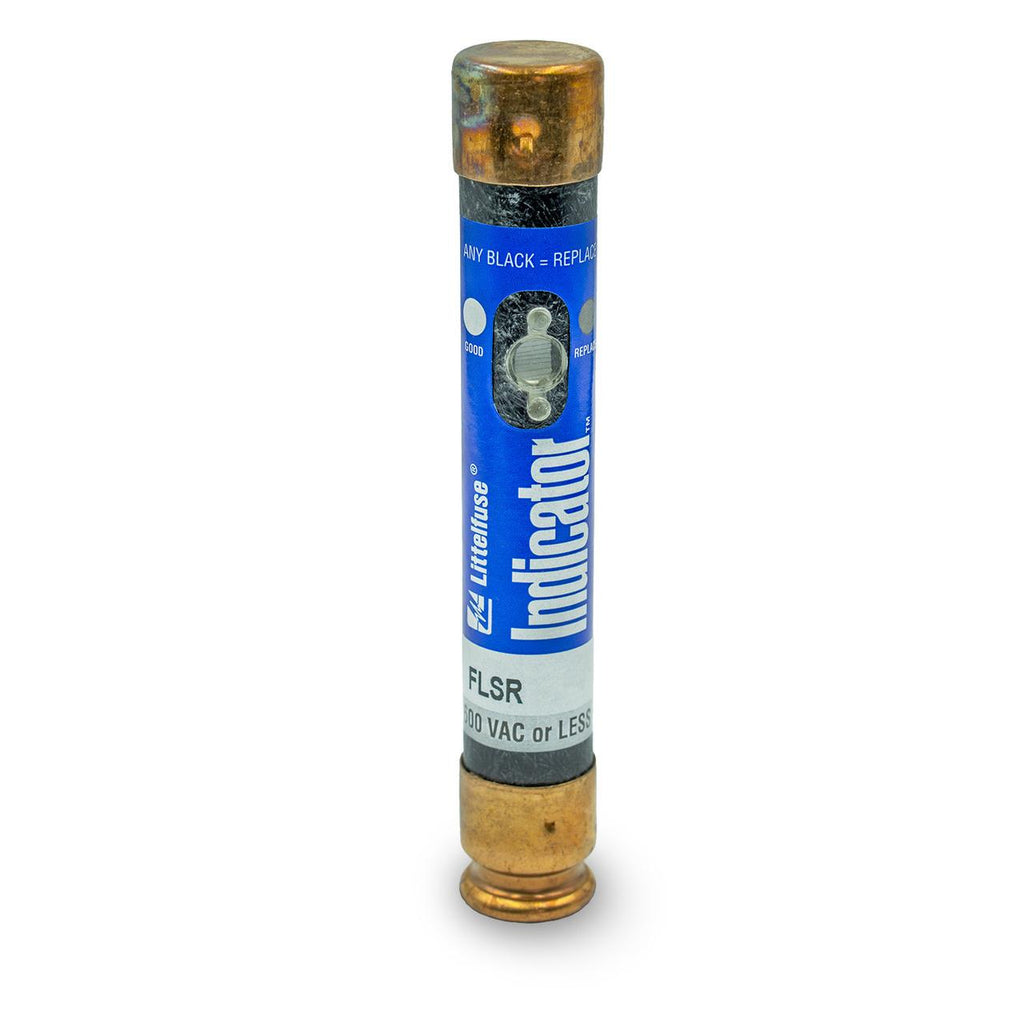

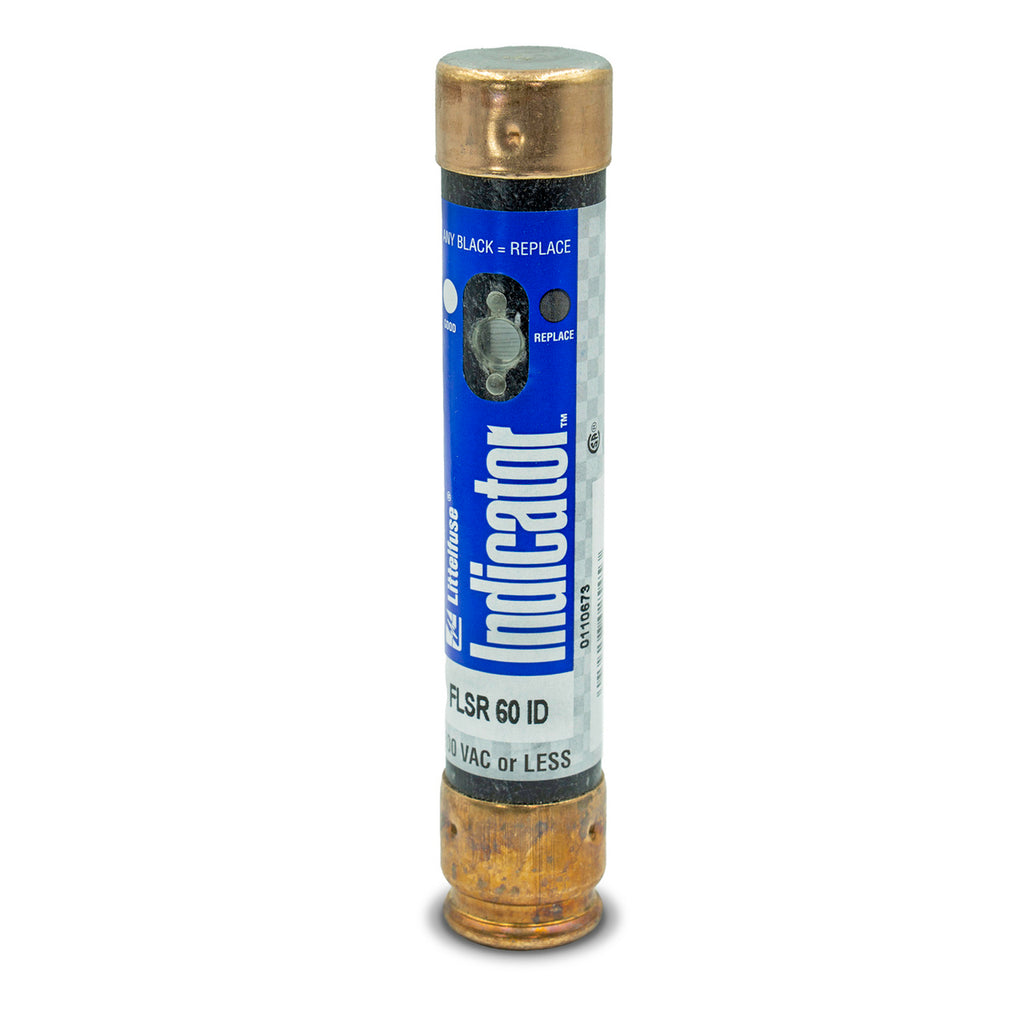

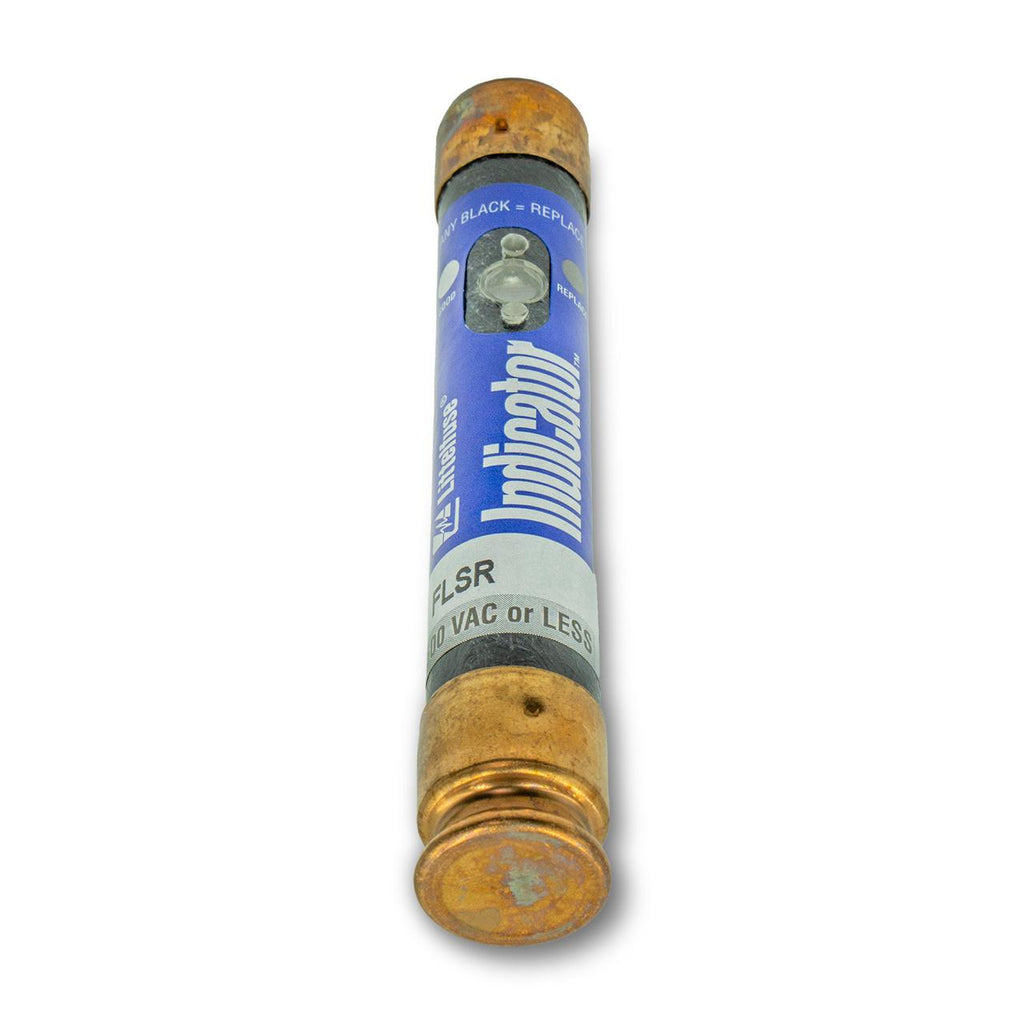

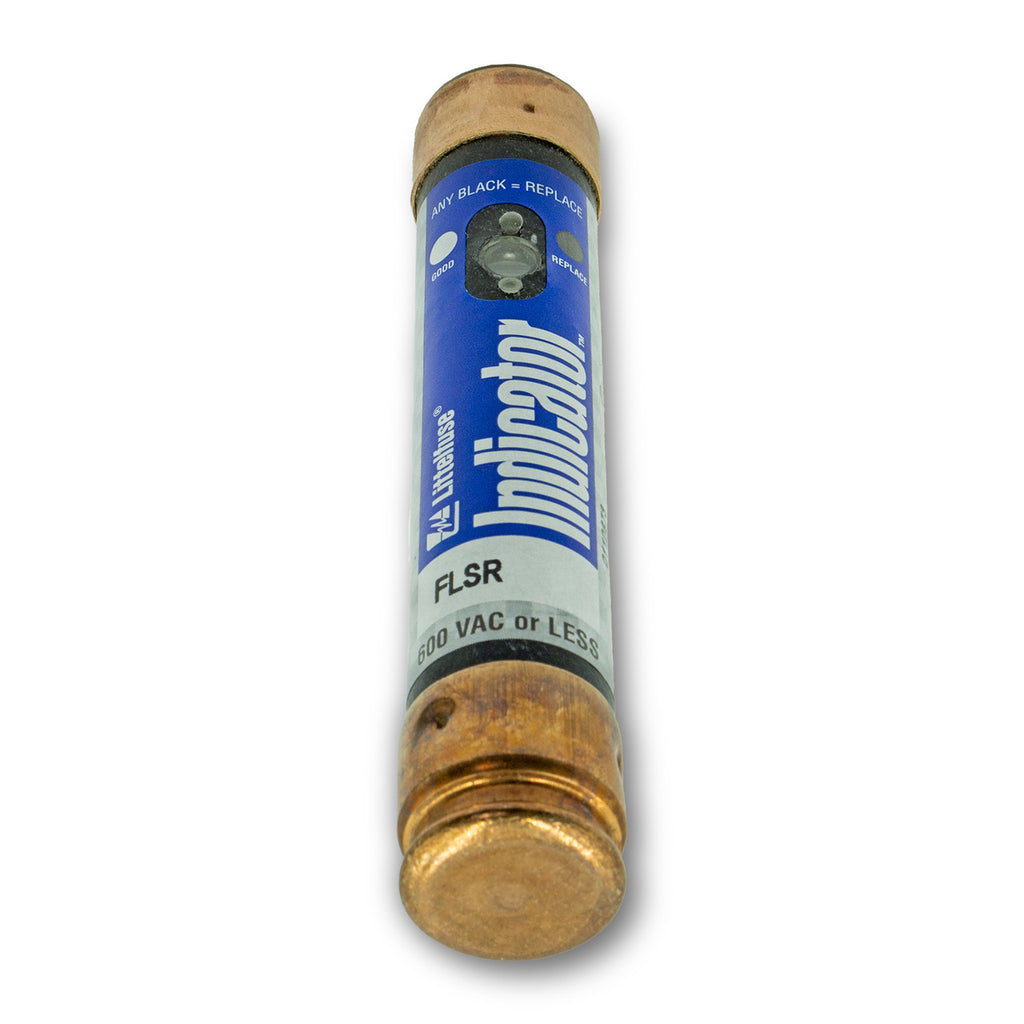

FLSR-060ID is a Littelfuse Class RK5, 60A, 600V AC/300V DC, time delay, dual element, current limiting fuse with visual blown fuse indication for enhanced safety and reliability.

This fuse is designed for advanced short-circuit and overload protection in general purpose circuits, service entrance switches, transformers, switchboard mains, feeders, and motor control applications. Its dual-element construction provides both fast-acting short-circuit protection and time-delay overload protection, while the visual indicator allows for quick identification of a blown fuse, reducing downtime and maintenance costs.

Key Specifications
• Amperage: 60A
• Voltage: 600V AC / 300V DC
• Poles: 1
• Mounting Type: Clip terminal, cartridge style
• Interrupt Rating: 200,000A AC / 20,000A DC
• Series/Frame: FLSR-ID, Class RK5
• Trip Unit: Dual element, time delay
• Certifications: UL Listed (E81895), CSA Certified (LR29862), CE, Qpl-Wf-1814
• Physical Size: 1 1/16" x 5 1/2"
• Visual Indicator: Yes
• Current Limiting: Yes
• Applications: General purpose, service entrance, transformers, switchboards, motor circuits

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR-060ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : FLSR_ID
• Voltage : 600
• Amperage : 60
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945802545
• GTIN : 00079458025453
• Weight : 5.19
