Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-050ID

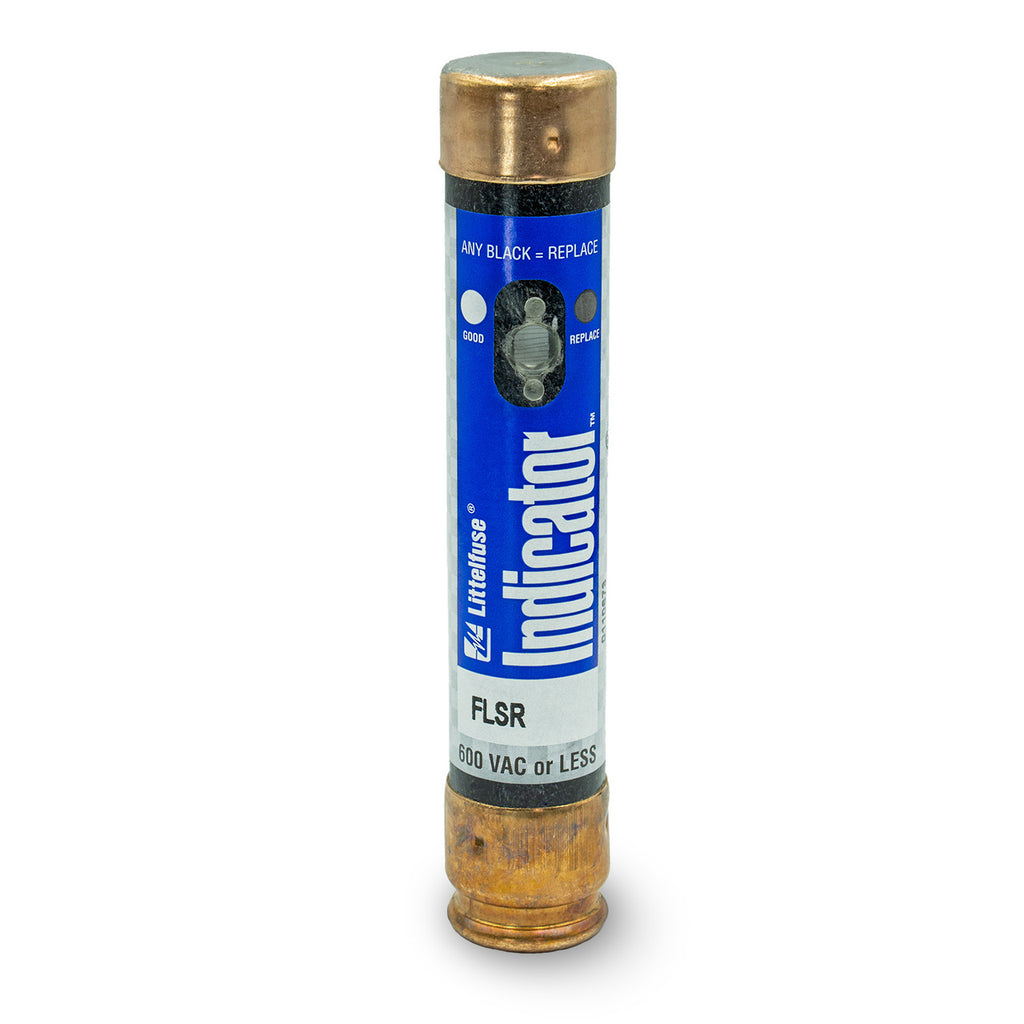

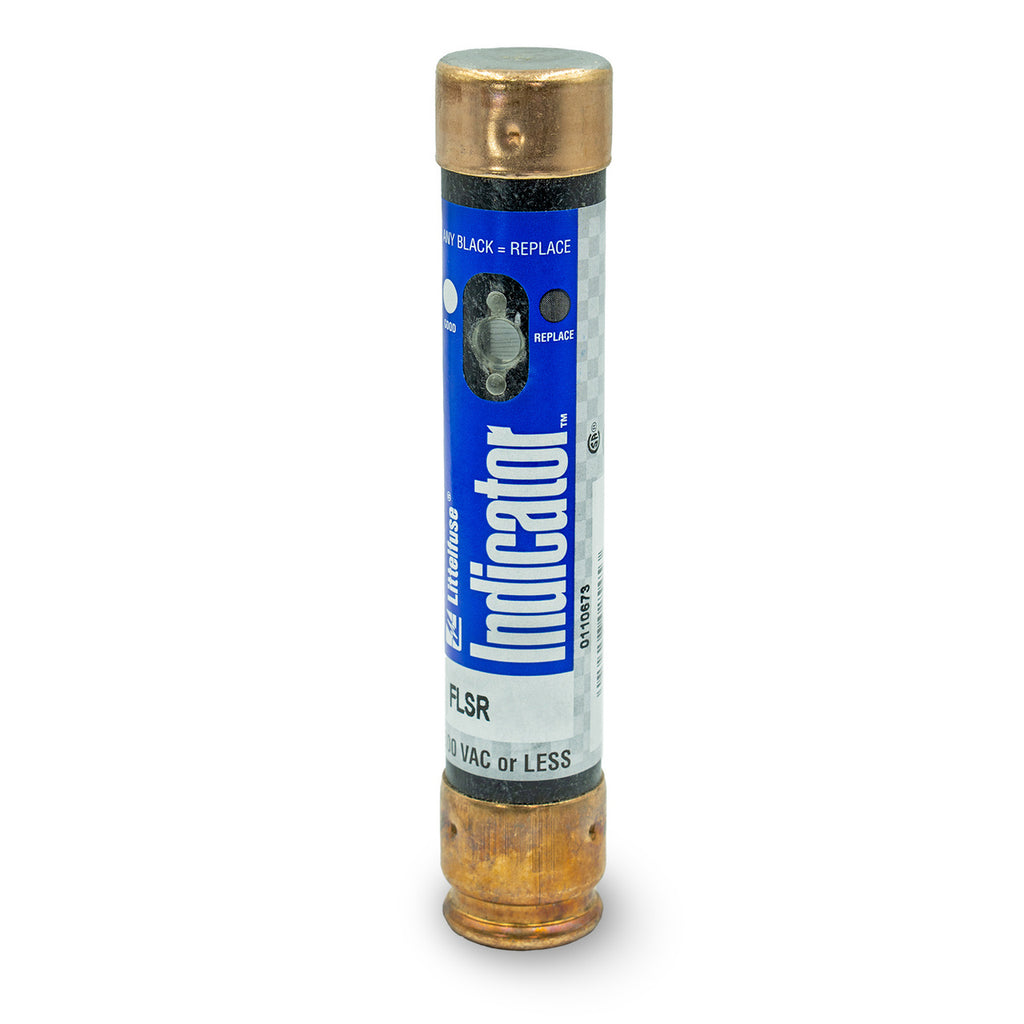

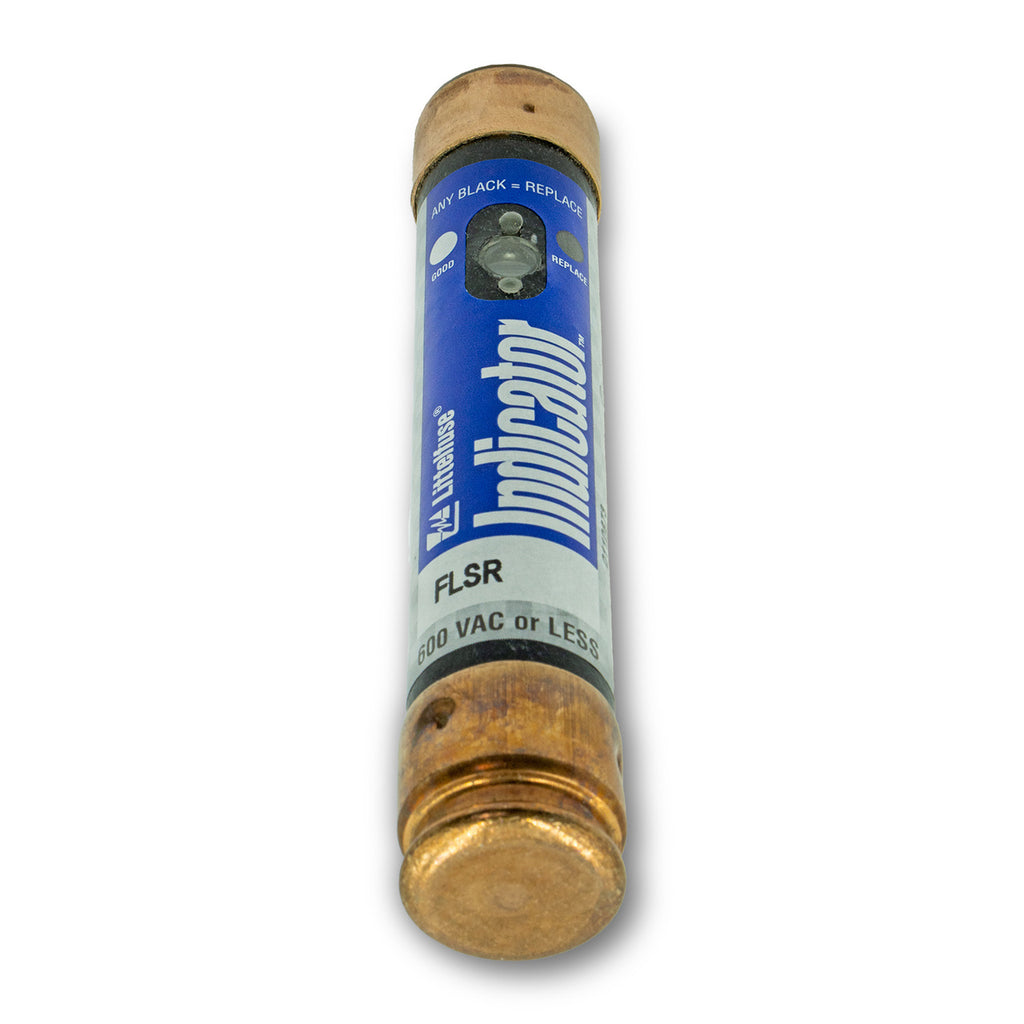

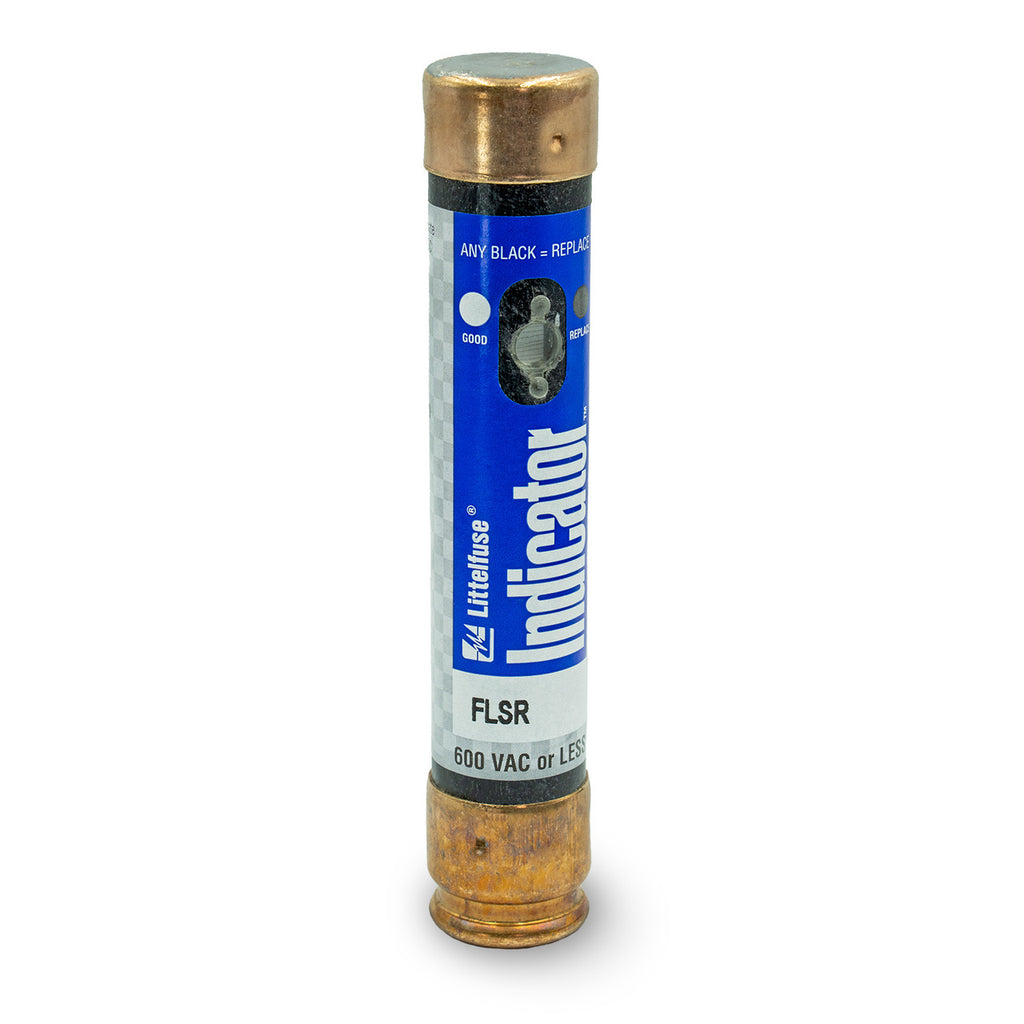

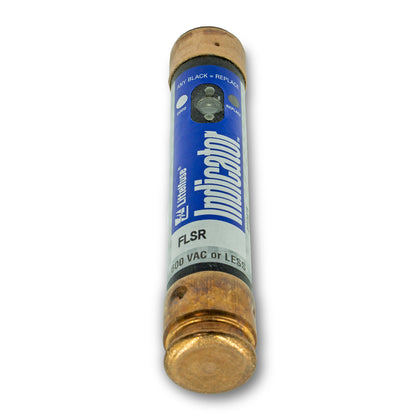

FLSR-050ID is a Littelfuse 50 Amp, 600 Volt AC Class RK5 indicating fuse designed for reliable circuit protection.This dual-element, time delay fuse features current limiting and a visual blown fuse indicator for fast identification. It is UL listed and CSA certified, suitable for general purpose circuits including service entrance switches, transformers, and motor control. The fuse has a cartridge mounting style with a physical size of 1 1/16" diameter by 5 1/2" length, and an interrupting rating of 200,000 AIC at 600VAC and 20,000 AIC at 300VDC.
- Key Specifications
- Amperage: 50 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Type: Dual Element, Time Delay
- Interrupting Rating: 200,000 AIC @ 600VAC, 20,000 AIC @ 300VDC
- Mounting Type: Cartridge
- Physical Size: 1 1/16" diameter x 5 1/2" length
- Visual Blown Fuse Indicator
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Current Limiting Feature
Specifications
- Part Number: FLSR-050ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802544
- GTIN : 00079458025446
- Weight : 0.3 lb
