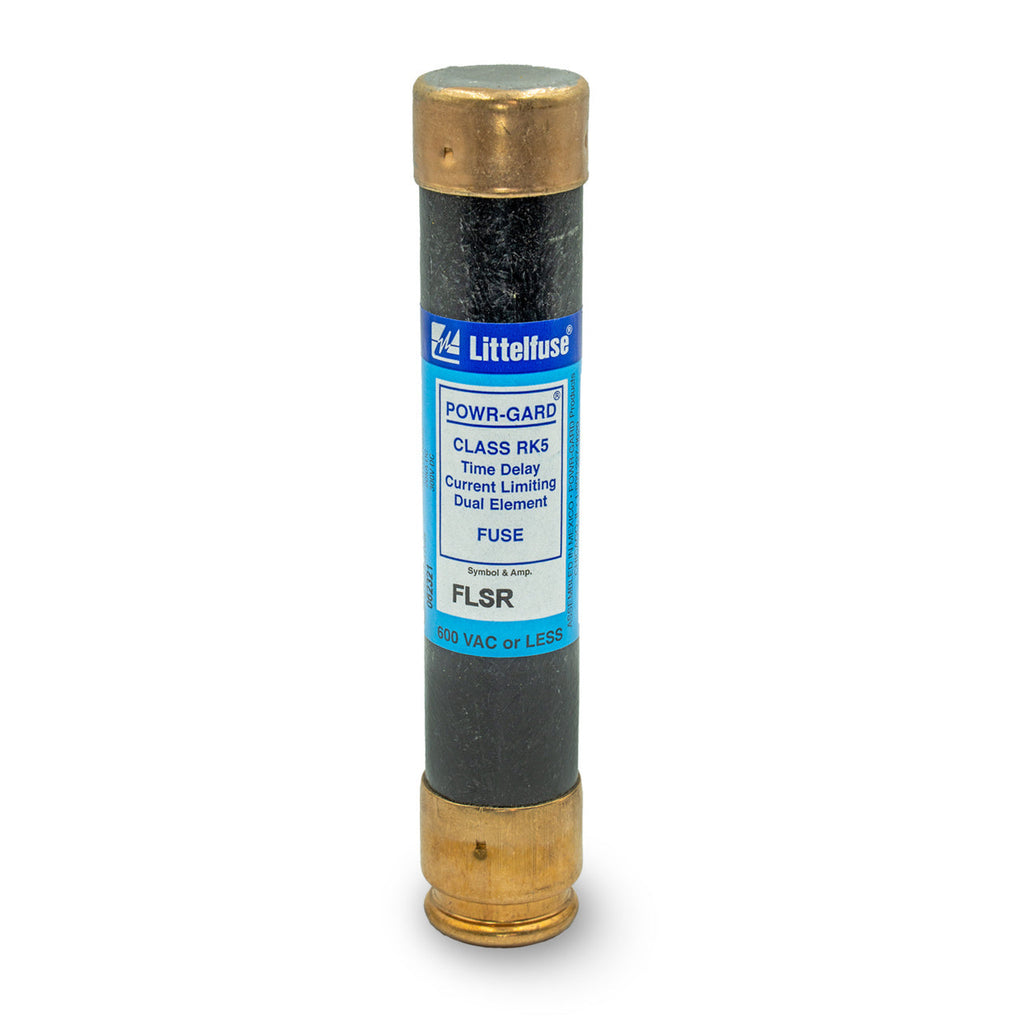

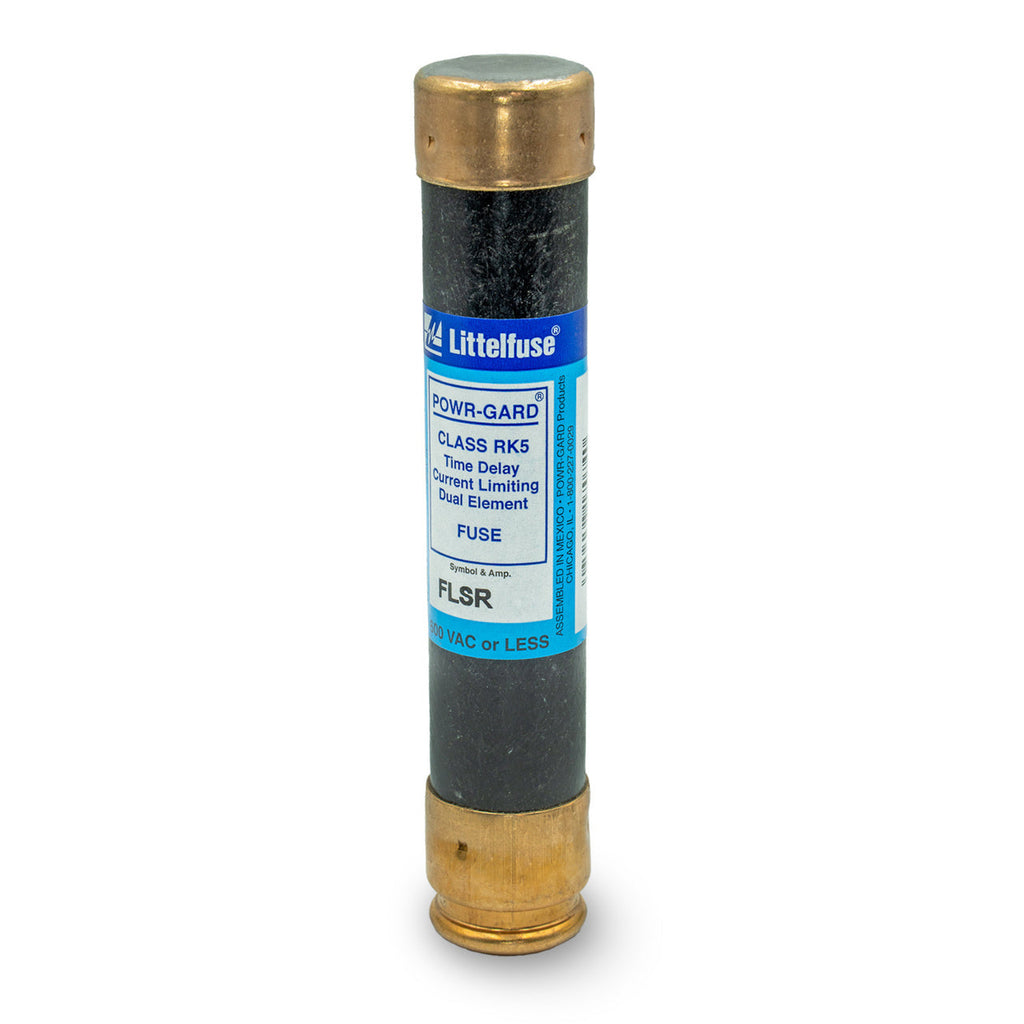

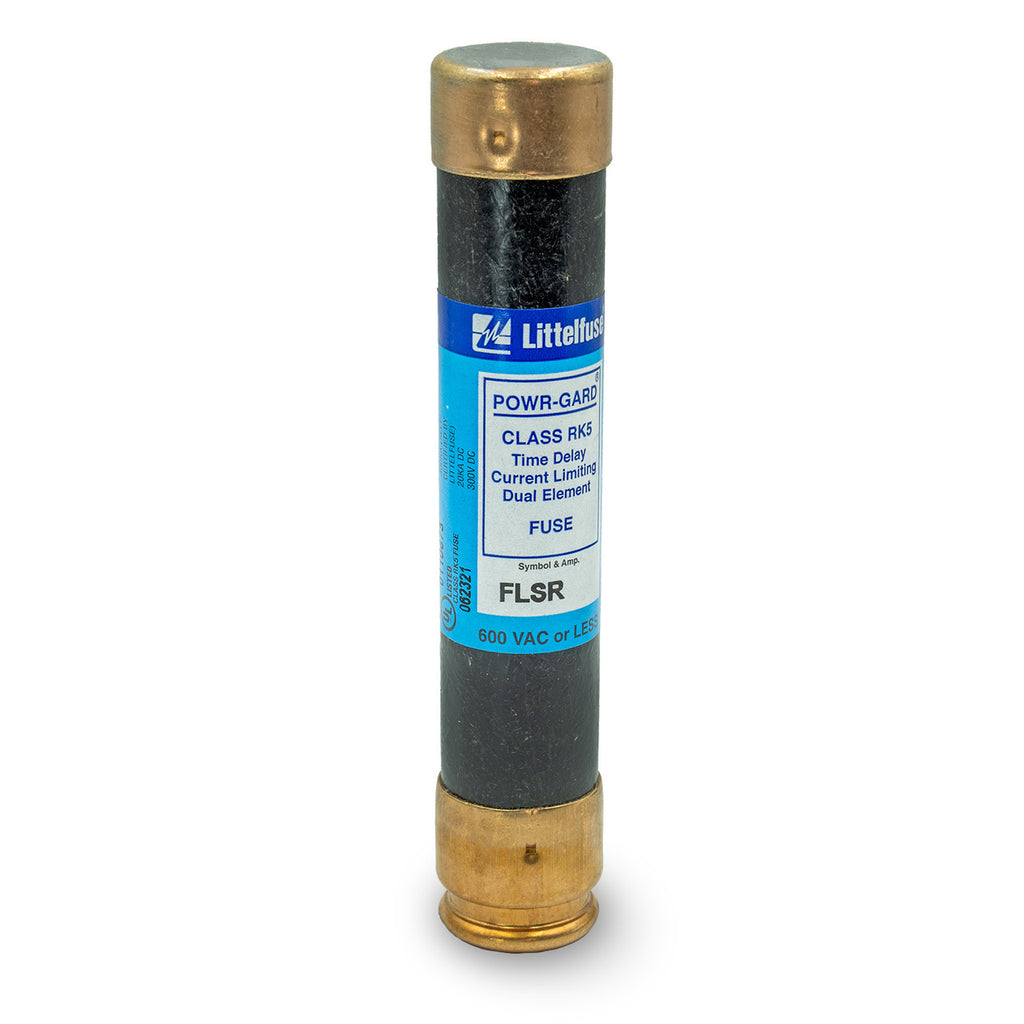

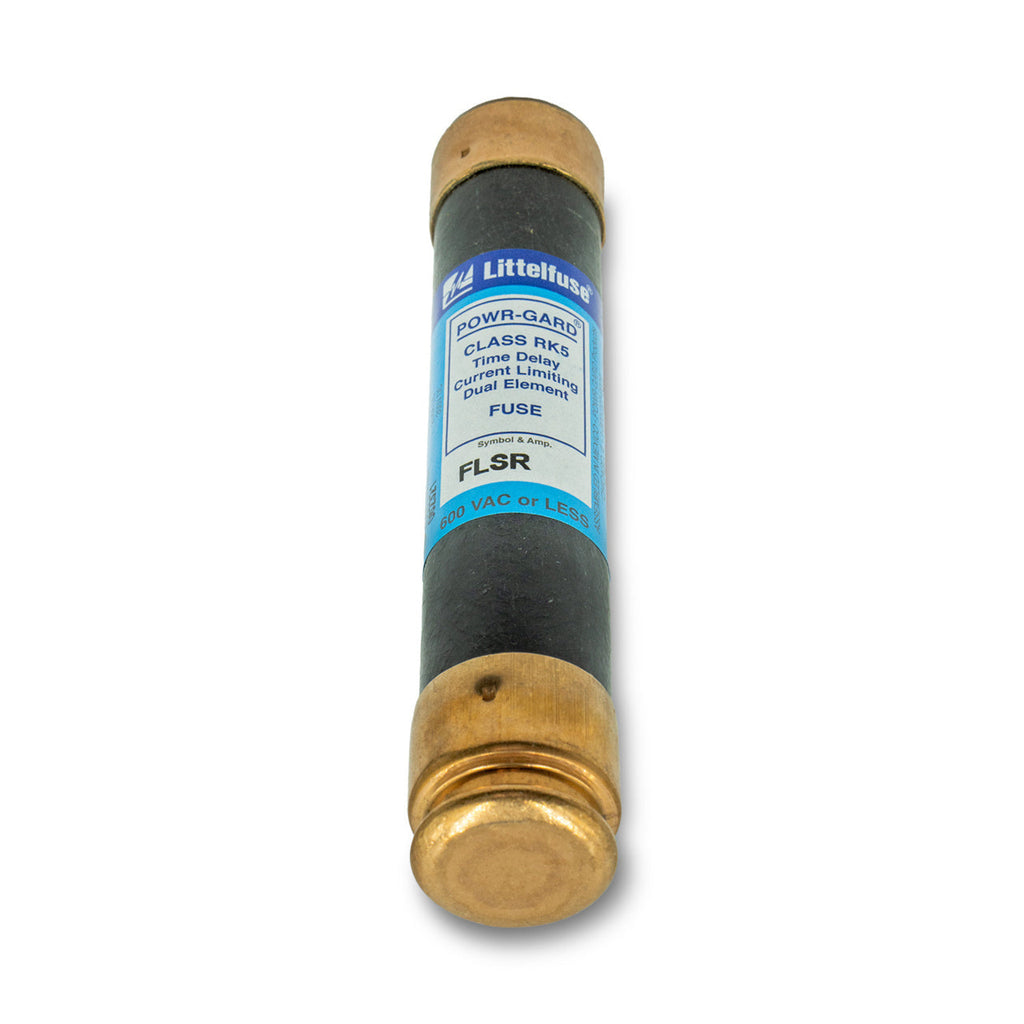

FLSR-050 - Littelfuse 50 Amp 600 Volt AC Class RK5 Dual Element Time Delay Fuse

FLSR-050

FLSR-050 is a Littelfuse 50 Amp, 600 Volt AC Class RK5 dual element time delay fuse designed for general purpose circuits.This fuse features a current limiting design with a time delay (slow blow) characteristic, suitable for protecting circuits with temporary overloads. It has an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The fuse is UL Listed and CSA Certified, measuring approximately 1 1/16" x 5 1/2" in size.

• Amperage: 50 Amps
• Voltage Rating: 600 VAC / 300 VDC
• Class: RK5
• Type: Dual Element, Time Delay (Slow Blow)
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Physical Size: 1 1/16" x 5 1/2"
• UL Listed (File: E81895)
• CSA Certified (File: LR29862)
• Current Limiting
• General Purpose Circuit Protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR-050
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : FLSR
• Voltage : 600
• Amperage : 50
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 07945817077
• GTIN : 00079458170771
• Weight : 0.15
