Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-045ID

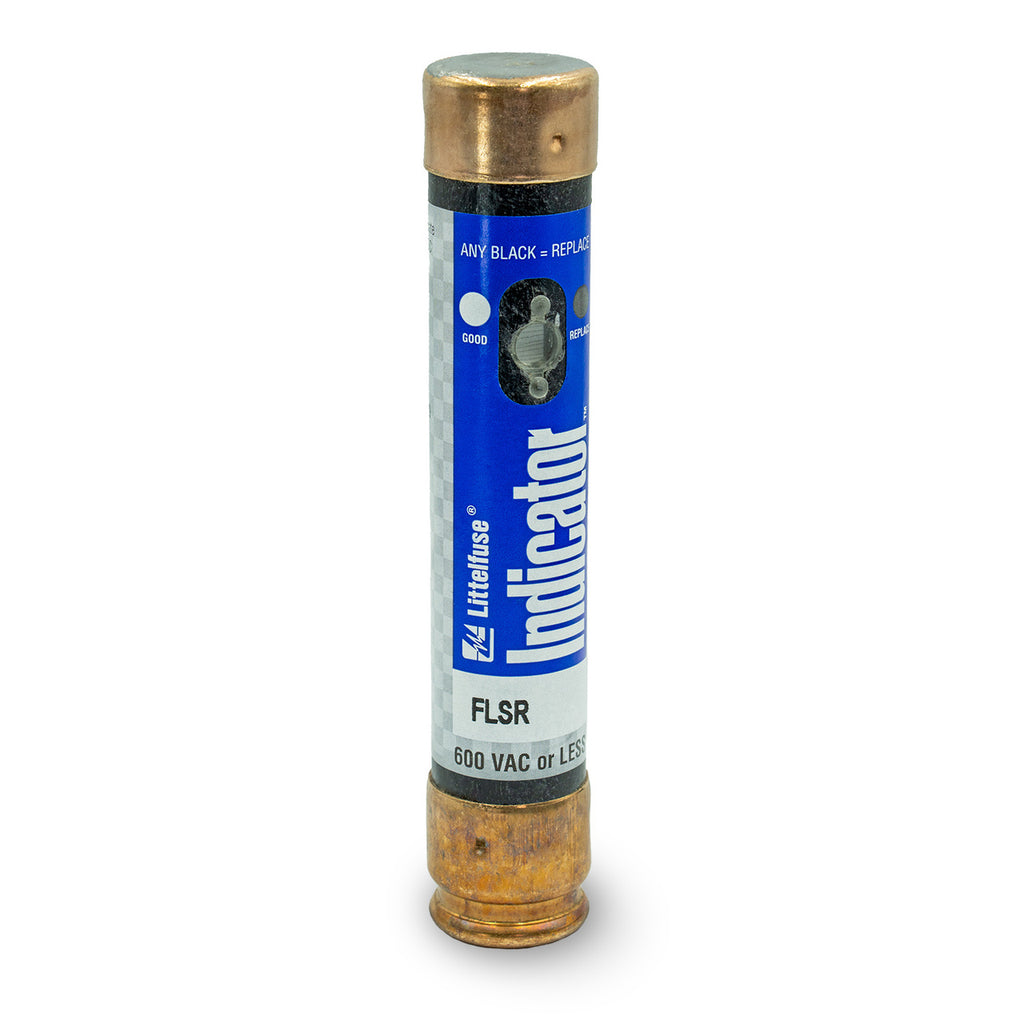

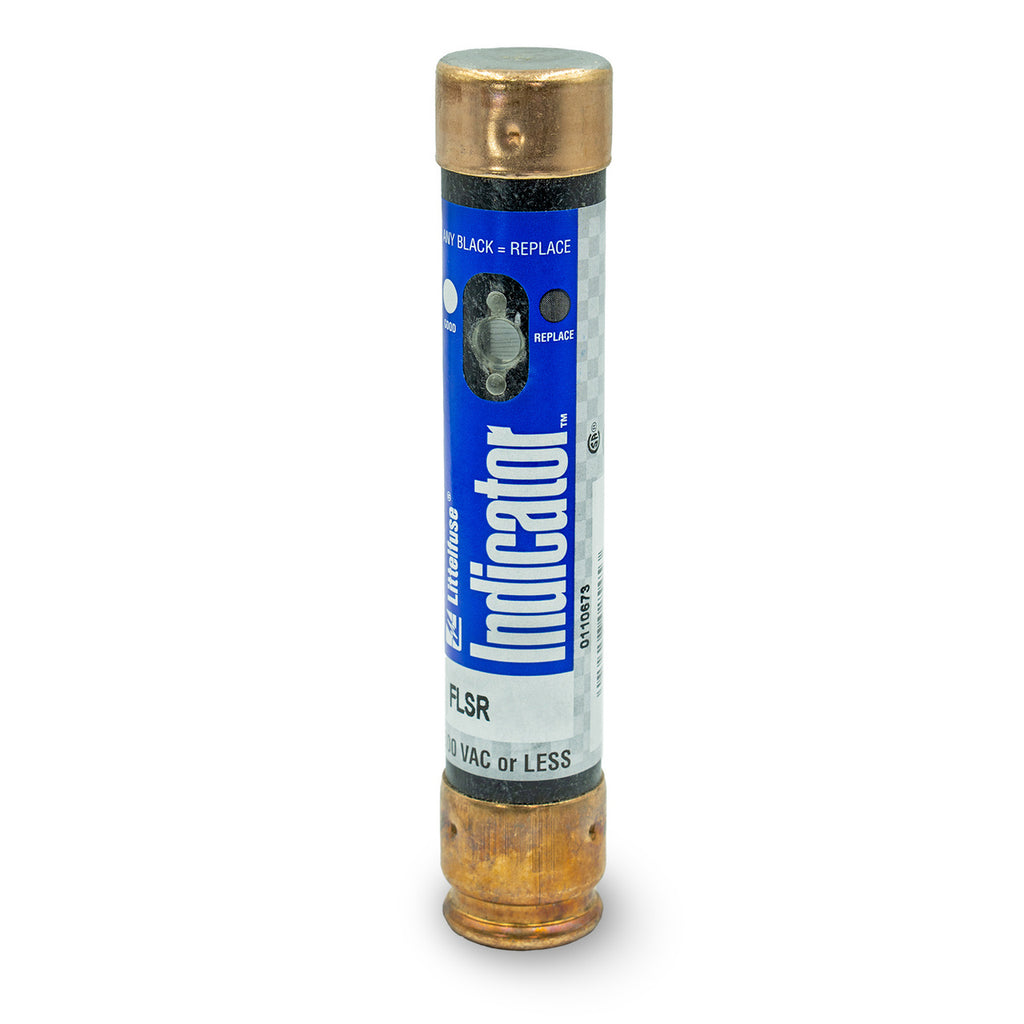

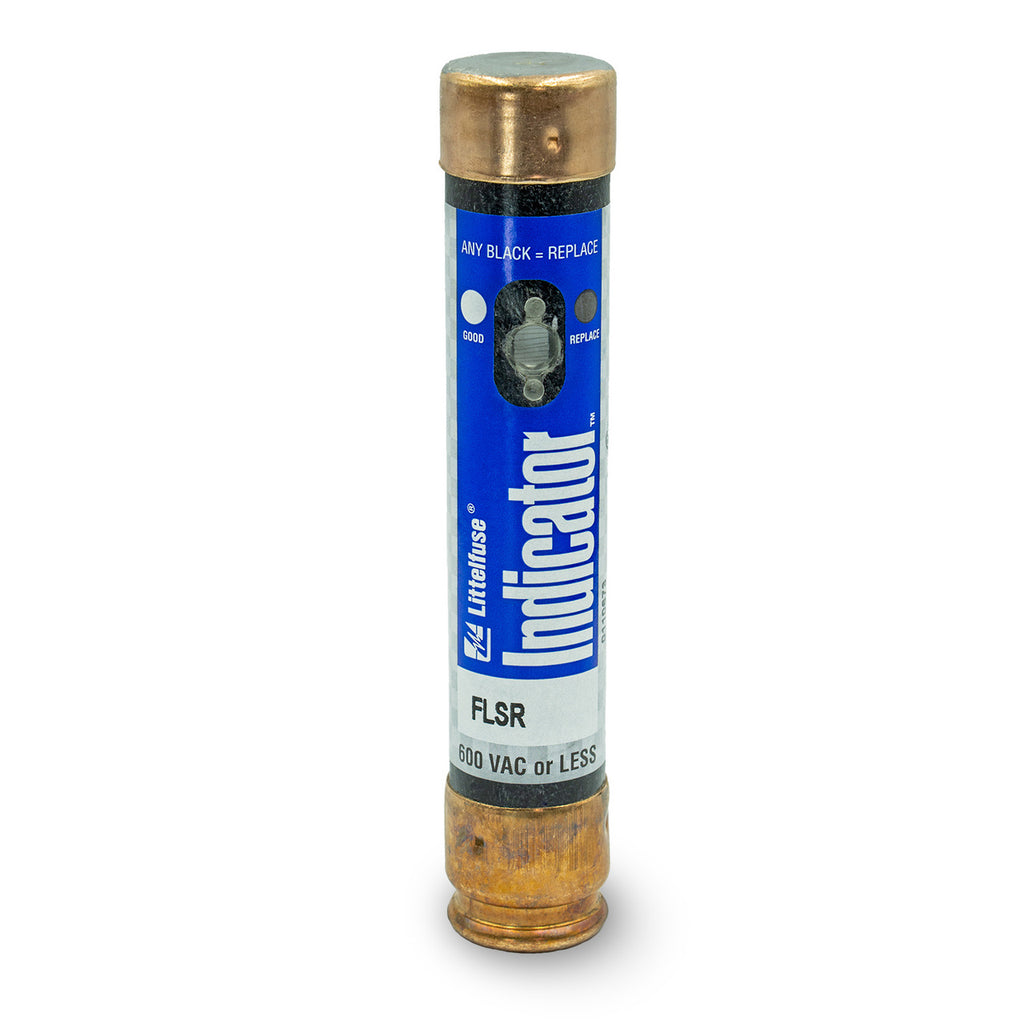

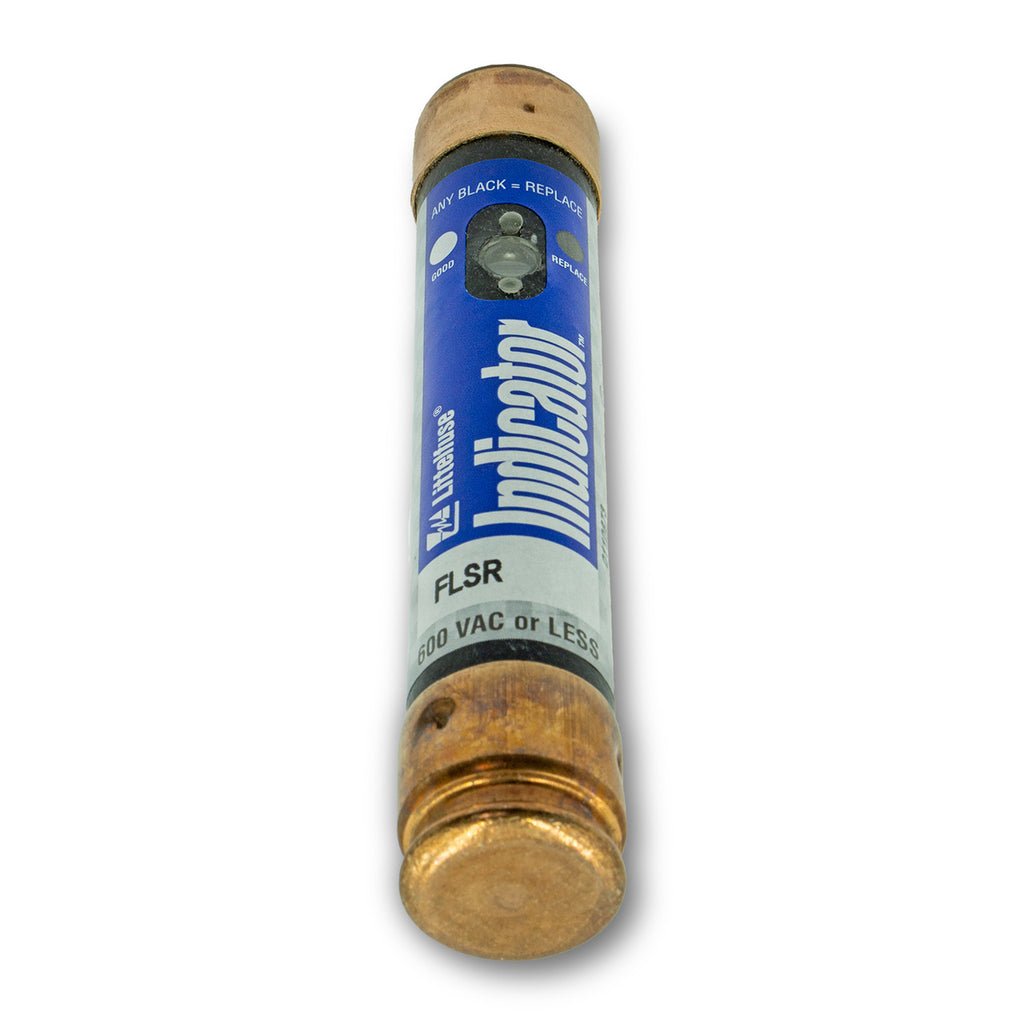

FLSR-045ID is a Littelfuse Class RK5 dual-element, time-delay, indicating fuse designed for advanced circuit protection.
This cartridge-style fuse features a solid-state, current-limiting design with visual blown fuse indication for fast troubleshooting. It is suitable for service entrance switches, transformers, switchboard mains, motor control circuits, and general purpose applications, offering superior short-circuit and overload protection with minimal downtime.
Key Specifications
- Amperage: 45A
- Voltage: 600VAC, 300VDC
- Poles: 1
- Mounting Type: Ferrule
- Interrupt Rating: 200kA @ 600VAC (300kA self-certified), 20kA @ 300VDC
- Series/Frame: FLSR_ID Indicator™, Class RK5
- Trip Unit: Dual-element, time-delay
- Certifications: UL 248-12, CSA, Qpl-Wf-1814, CE
- Physical Size: 1-1/16" diameter x 5-1/2" length
- Current Limiting: Yes
- Visual Indicator: Yes (window turns black when blown)
- Applications: Service entrance, transformers, switchboards, motor control, general purpose
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FLSR-045ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 45
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802543
- GTIN : 00079458025439
- Weight : 25
- Certification : UL, CSA
