Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLSR-040ID

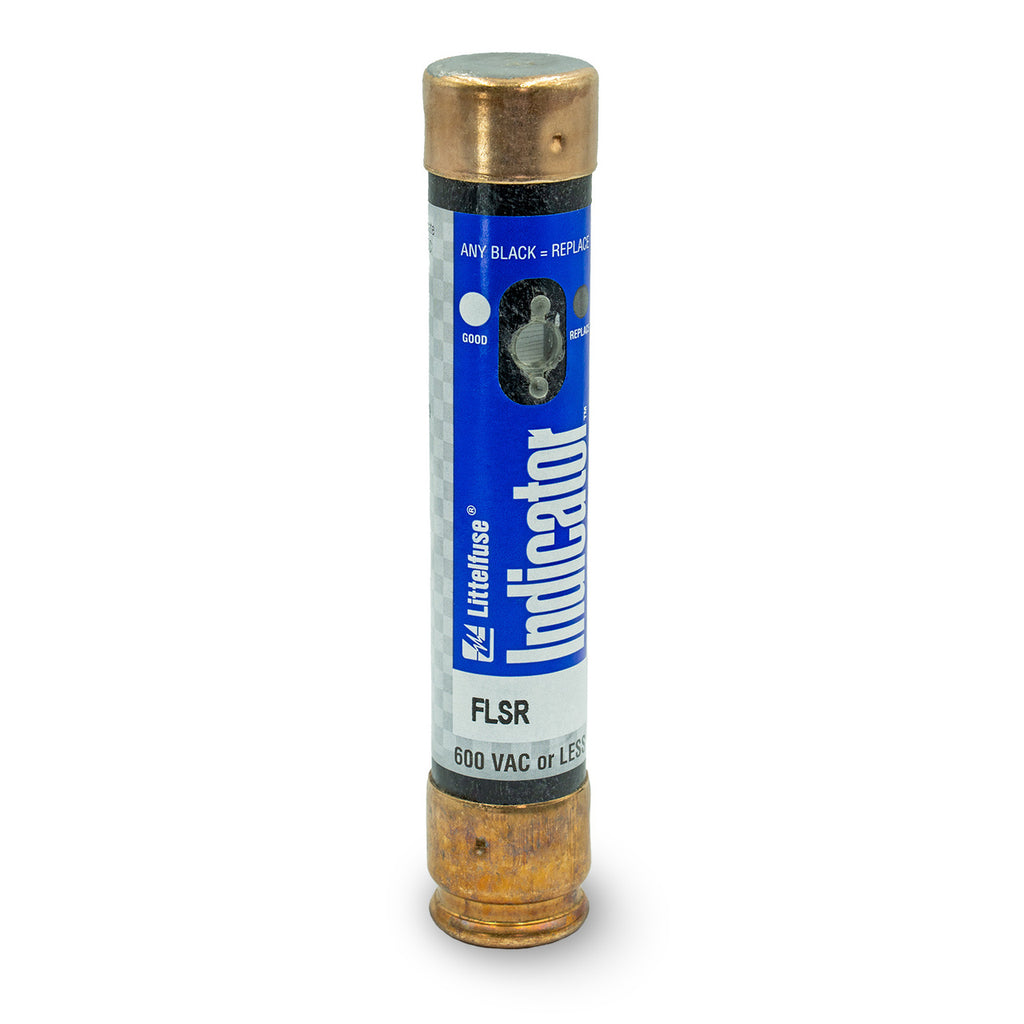

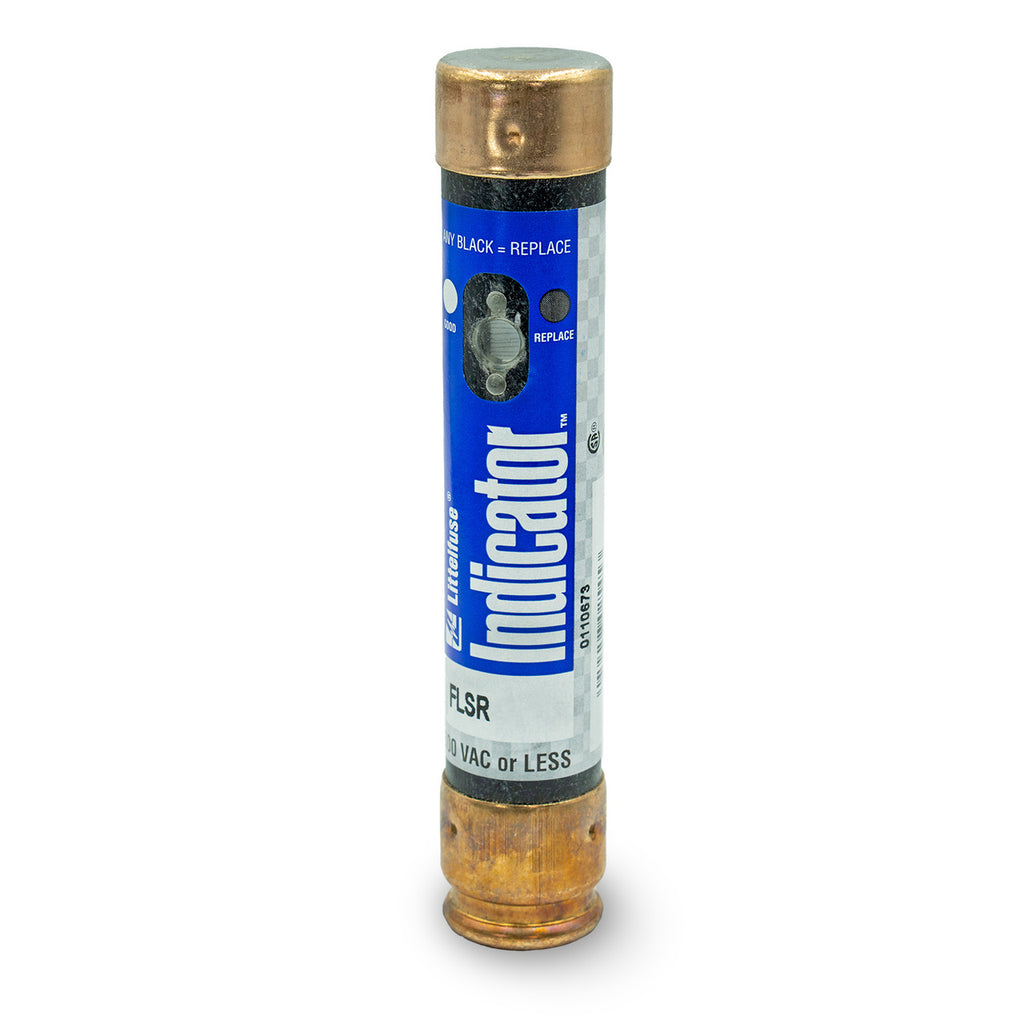

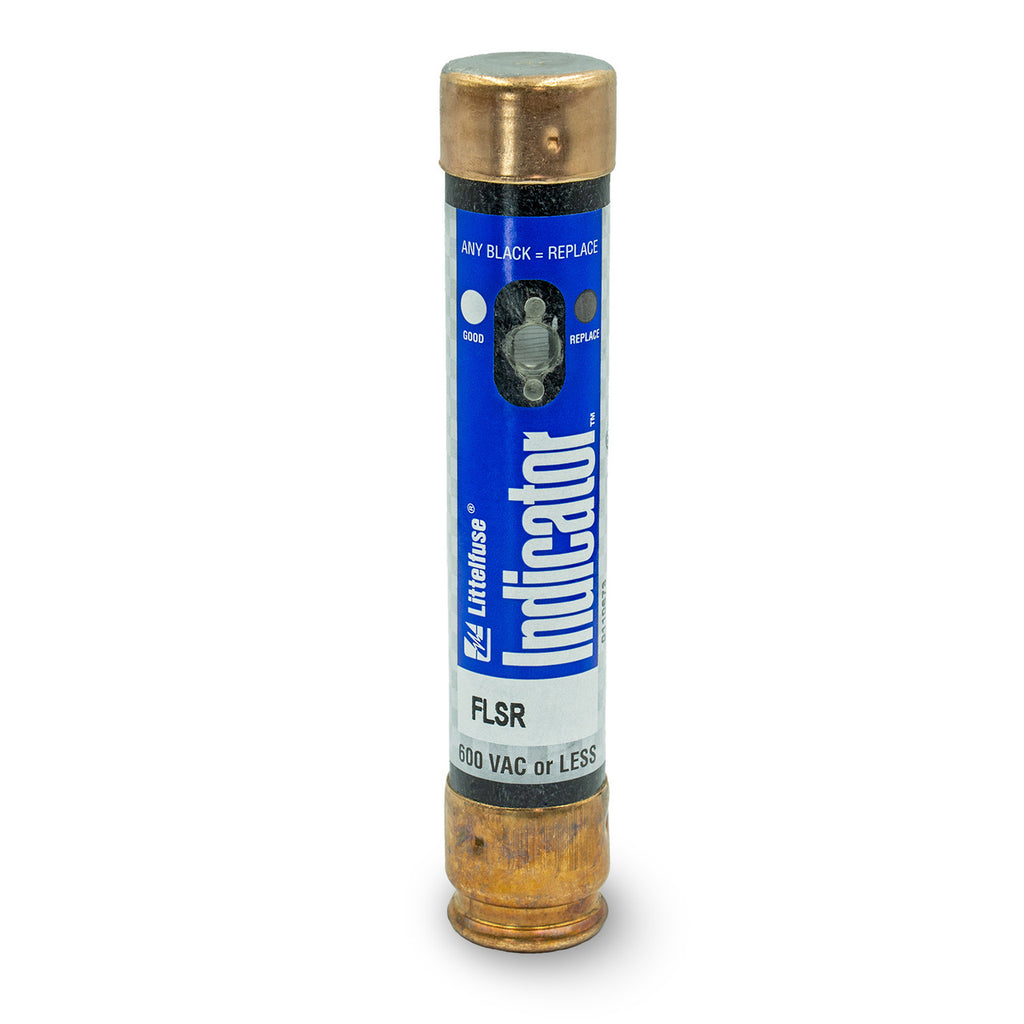

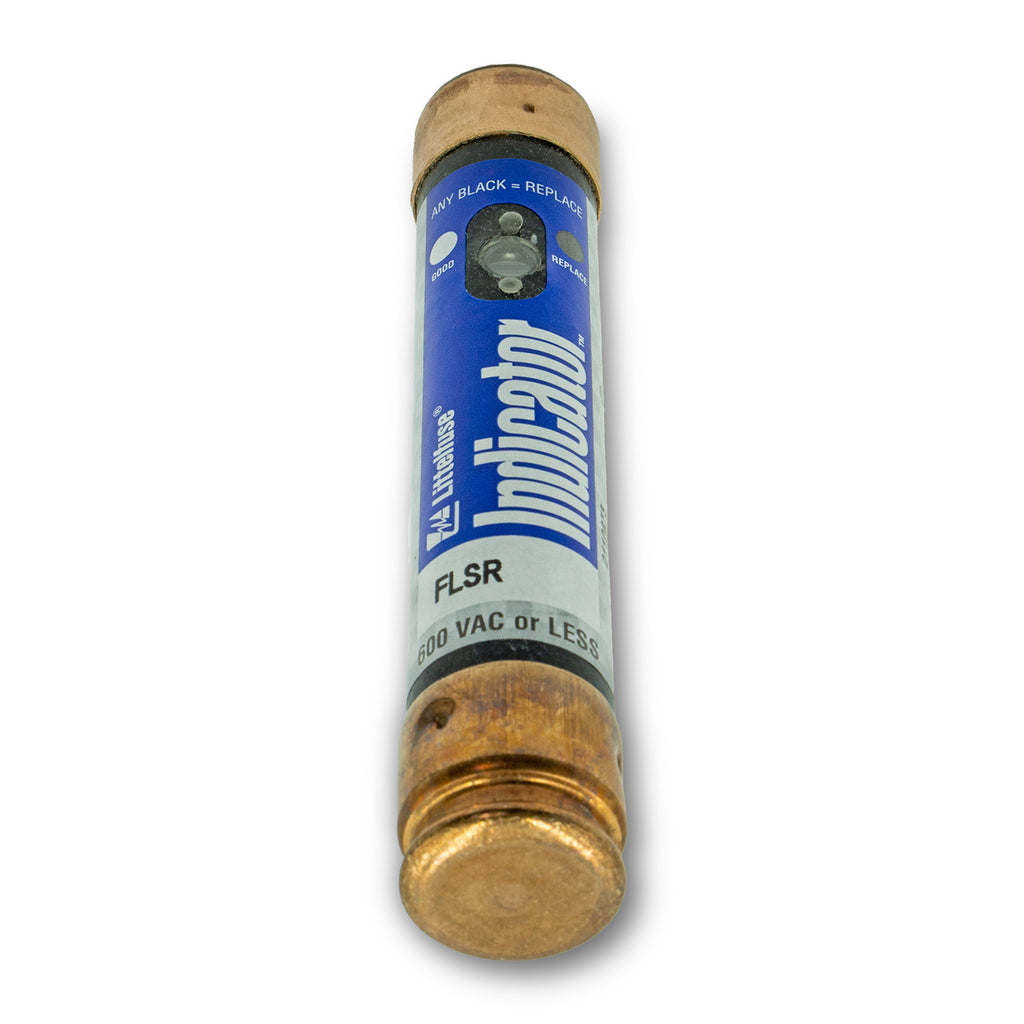

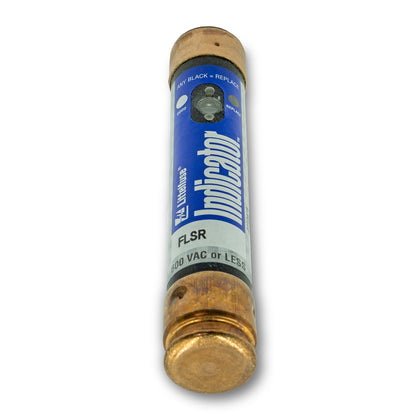

FLSR-040ID is a 40 Amp, 600 Volt AC indicating fuse from Littelfuse's Class RK5 series designed for general purpose circuit protection.This dual-element, time delay fuse features current limiting and a visual blown fuse indicator for fast identification. It has an interrupt rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. The fuse is UL listed and CSA certified, suitable for service entrance switches, transformers, switchboard mains, and motor control circuits.
- Key Specifications
- Amperage: 40 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Type: Indicating, Time Delay, Dual Element
- Interrupting Rating: 200 kA AC / 20 kA DC
- Physical Size: 1 1/16" diameter x 5 1/2" length
- Mounting Type: Cartridge style
- Certifications: UL Listed, CSA Certified
- Current Limiting: Yes
- Series: POWR-GARD® FLSR_ID
Specifications
- Part Number: FLSR-040ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR_ID
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 07945802542
- GTIN : 00079458025422
- Weight : 25
