FLSR-010 - Littelfuse 10 Amp 600 Volt AC Class RK5 Time Delay Dual Element Fuse

FLSR-010

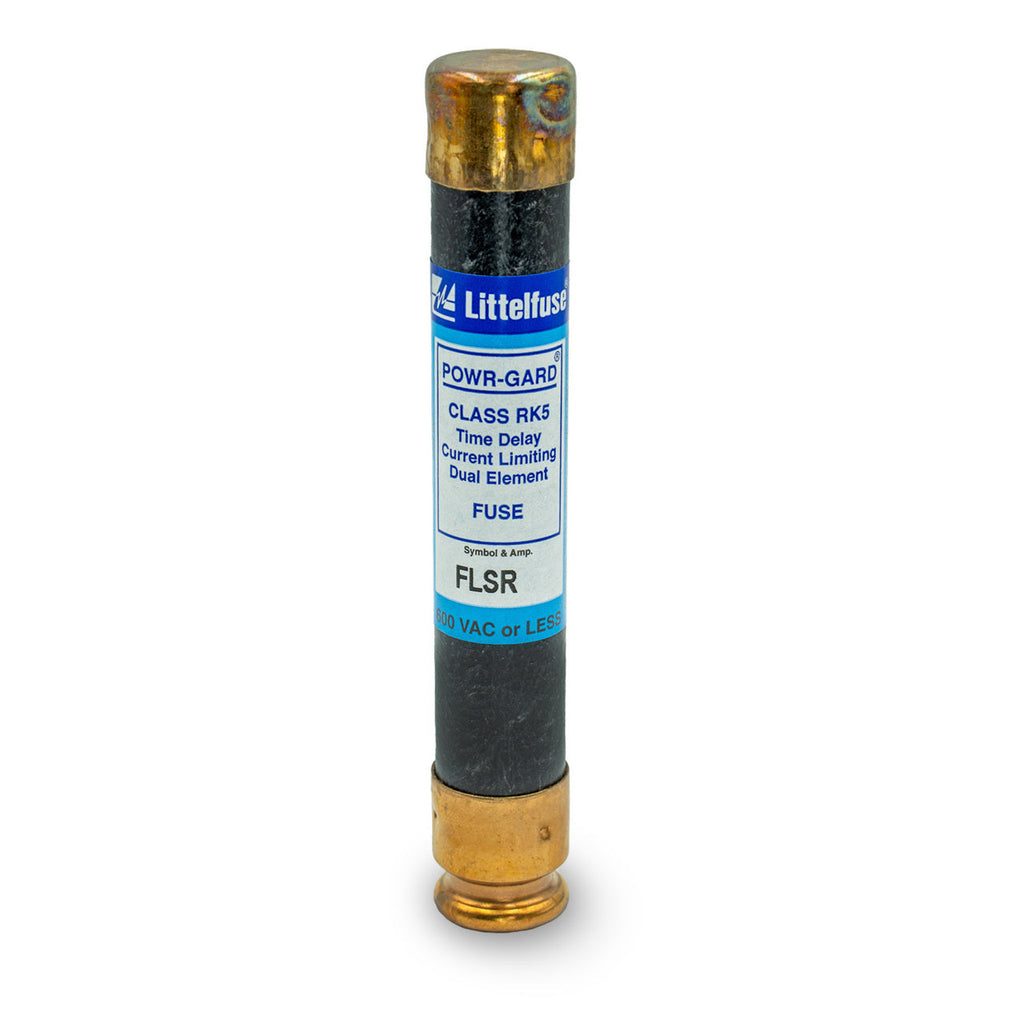

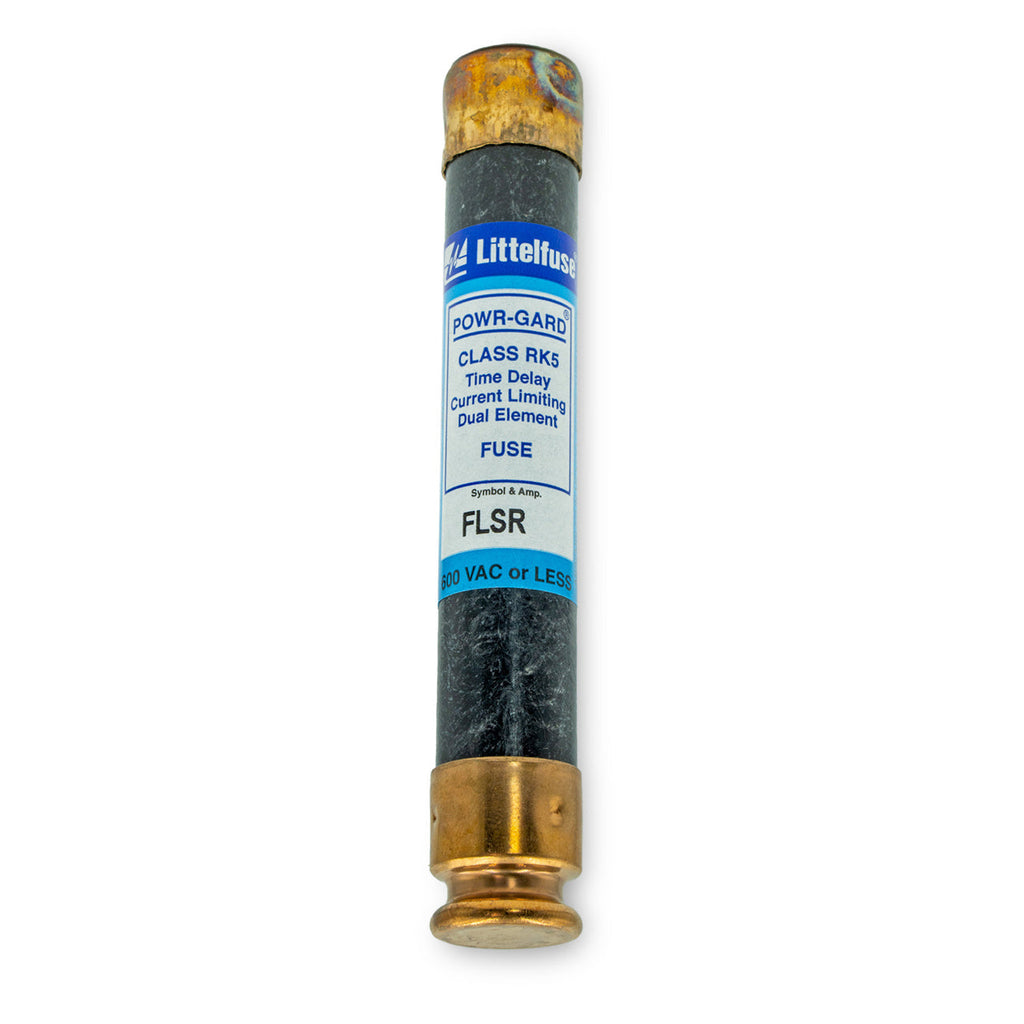

FLSR-010 is a Littelfuse 10 Amp, 600 Volt AC Class RK5 time delay dual element fuse designed for general purpose circuit protection.FLSR-010 features a current-limiting, dual-element design that provides excellent short-circuit and overload protection with a time delay for motor and general circuit applications. It is rated for 600 VAC and 300 VDC with an interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. This fuse is UL listed and CSA certified, with a physical size of 13/16" x 5" and complies with UL 248-12 standards.

Key Specifications
• Amperage: 10 A
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Class: RK5
• Fuse Type: Time Delay, Dual Element
• Interrupting Rating: 200,000 AIC @ 600 VAC, 20,000 AIC @ 300 VDC
• Physical Size: 13/16" x 5"
• Mounting Type: Cylindrical Body
• Certifications: UL Listed (File: E81895), CSA Certified (File: LR29862)
• Current Limiting: Yes
• Applications: General purpose circuits, motor circuits, switchboard mains

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLSR-010
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Powr-Gard
• Type : FLSR
• Voltage : 600
• Amperage : 10
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 079458170658
• GTIN : 00079458170658
• Dimensions : 13/16 inch (20.6 mm) diameter x 5 inches (127 mm) length
• Weight : 0.25 lb
