2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

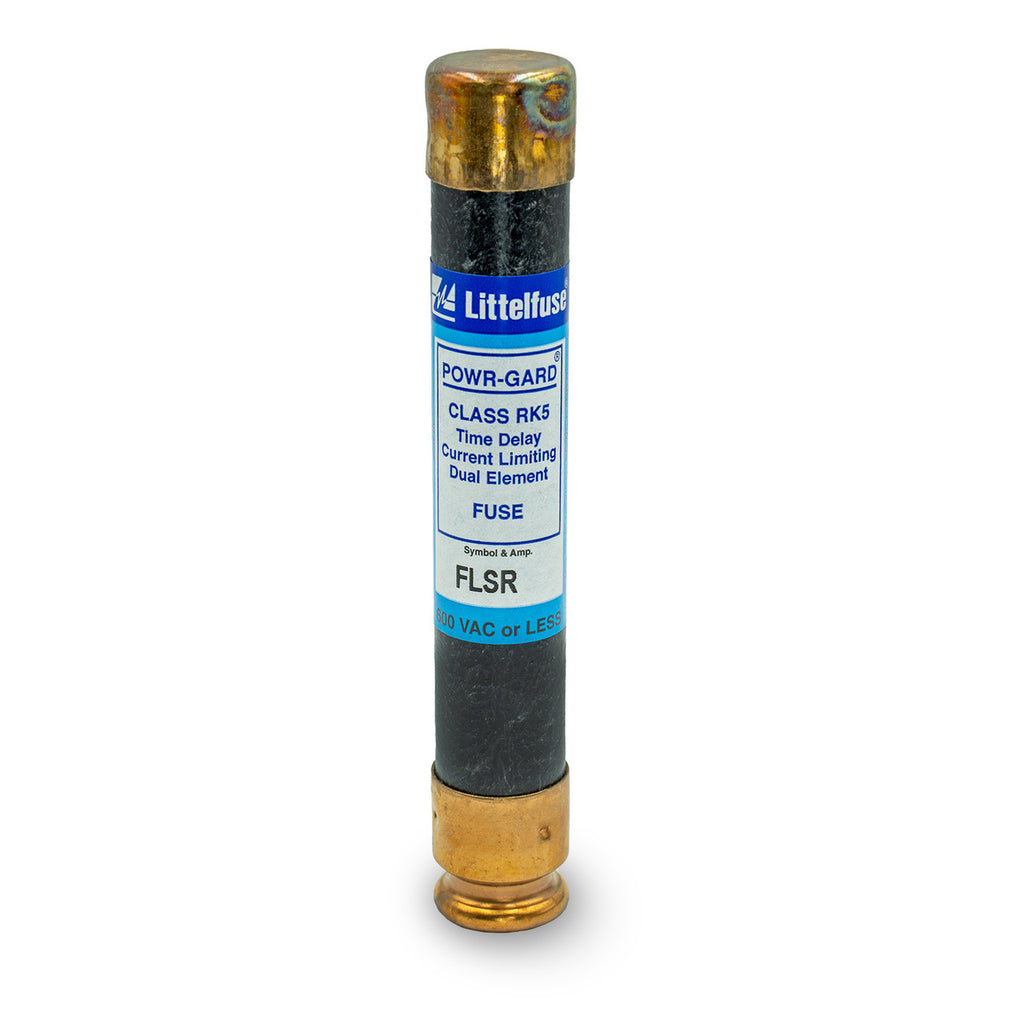

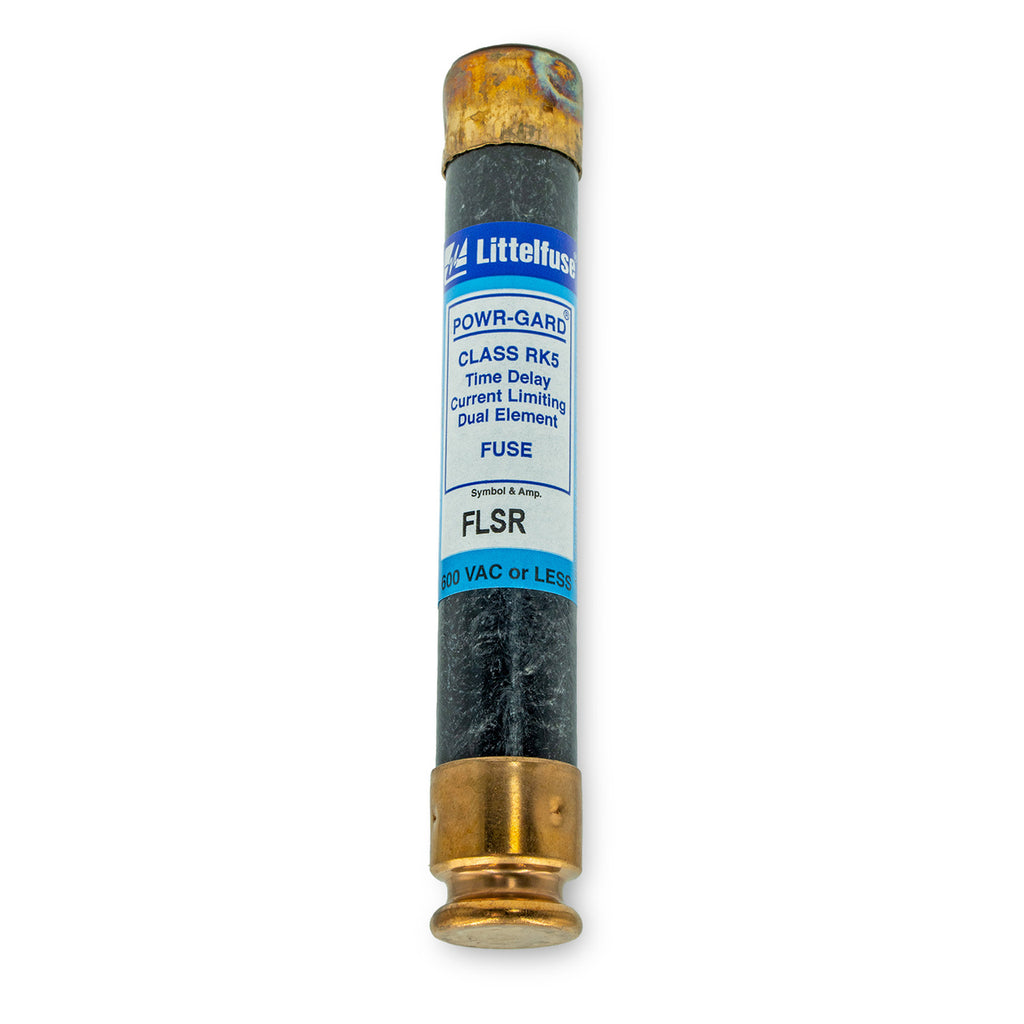

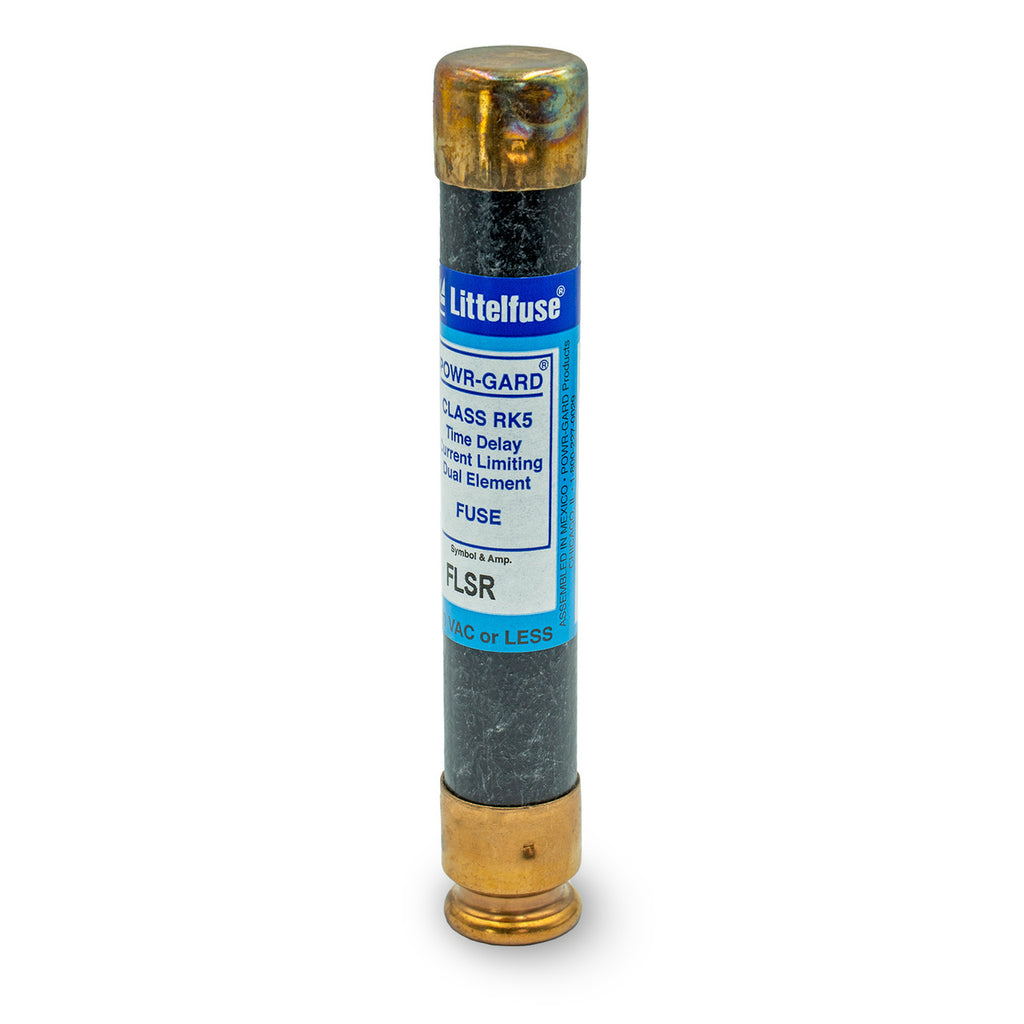

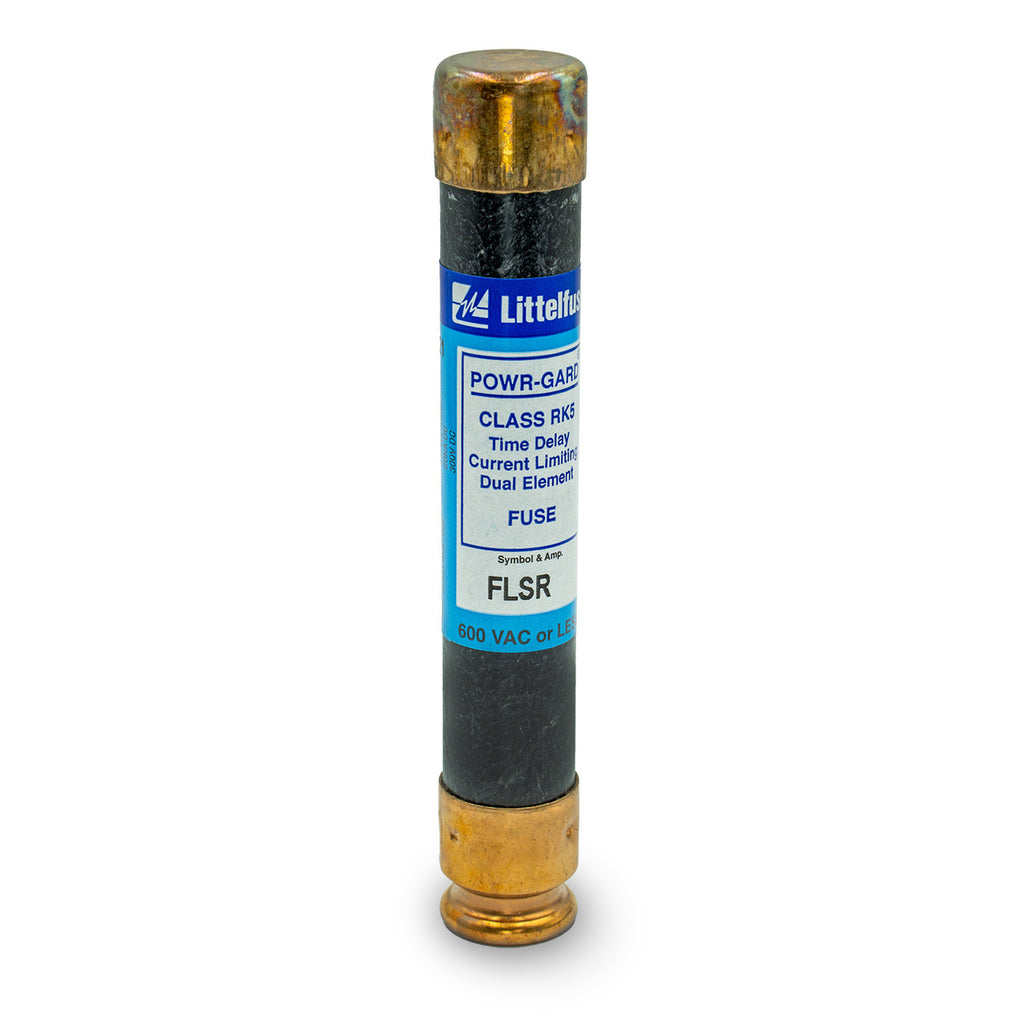

FLSR-001
FLSR-001 is a Littelfuse 1 amp, 600 volt, Class RK5 dual-element time-delay fuse designed for superior circuit protection.This fuse features a dual-element design providing advanced short-circuit and overload protection with a time-delay characteristic ideal for motor and general purpose circuits. It has a 200 kA interrupting rating at 600 VAC and 20 kA at 300 VDC, meeting UL 248-12 Class RK5 standards. The fuse uses a ferrule connection and is suitable for service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.
- Key Specifications
- Amperage: 1 Amp
- Voltage Rating: 600 VAC, 300 VDC
- Interrupting Rating: 200 kA AC, 20 kA DC
- Fuse Type: Class RK5
- Fuse Response: Time-Delay (Dual Element)
- Connection Type: Ferrule
- Poles: 1 Barrel
- Mounting Type: Cartridge
- Standards: UL 248-12 Class RK5
- Country of Origin: Mexico
- Part Number: FLSR-001
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Powr-Gard
- Type : FLSR
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
- UPC : 07945817031
- GTIN : 00079458170313
- Weight : 5.19
