Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLQ2.25

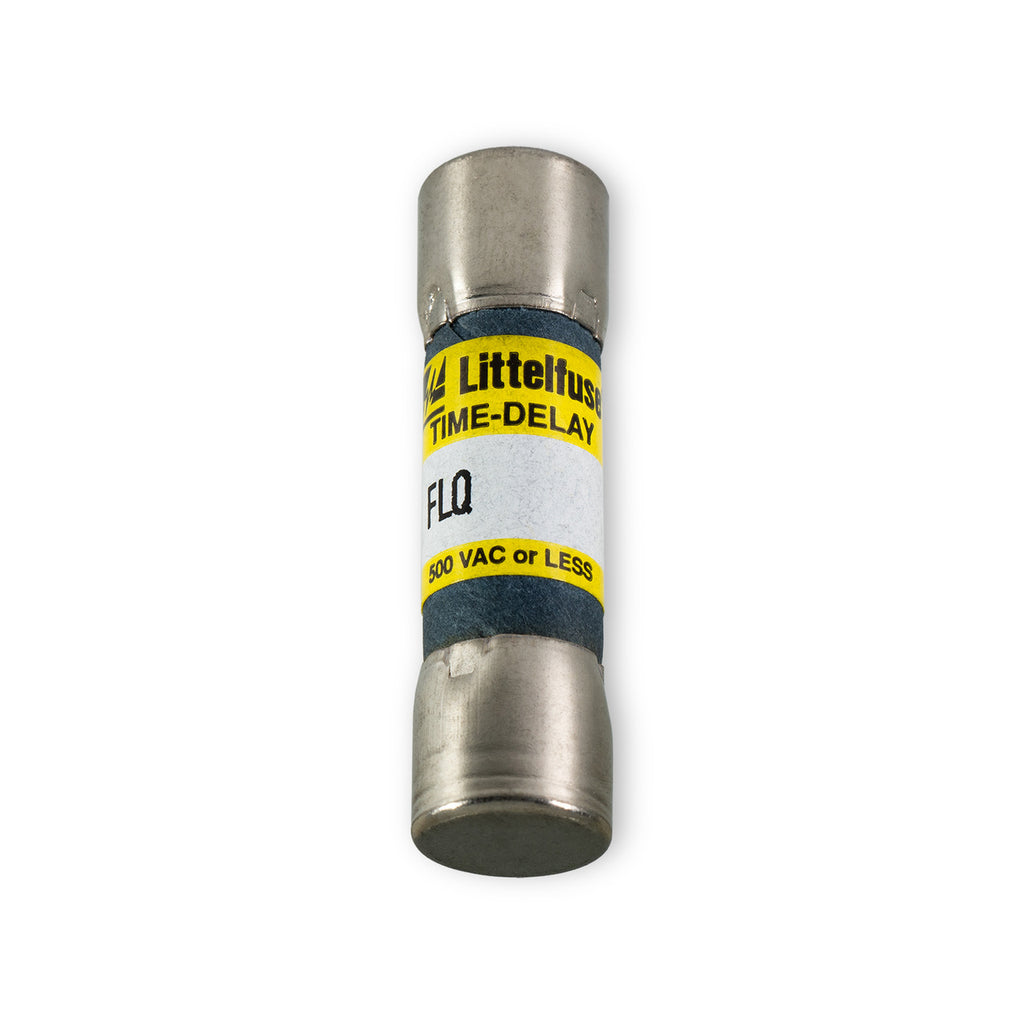

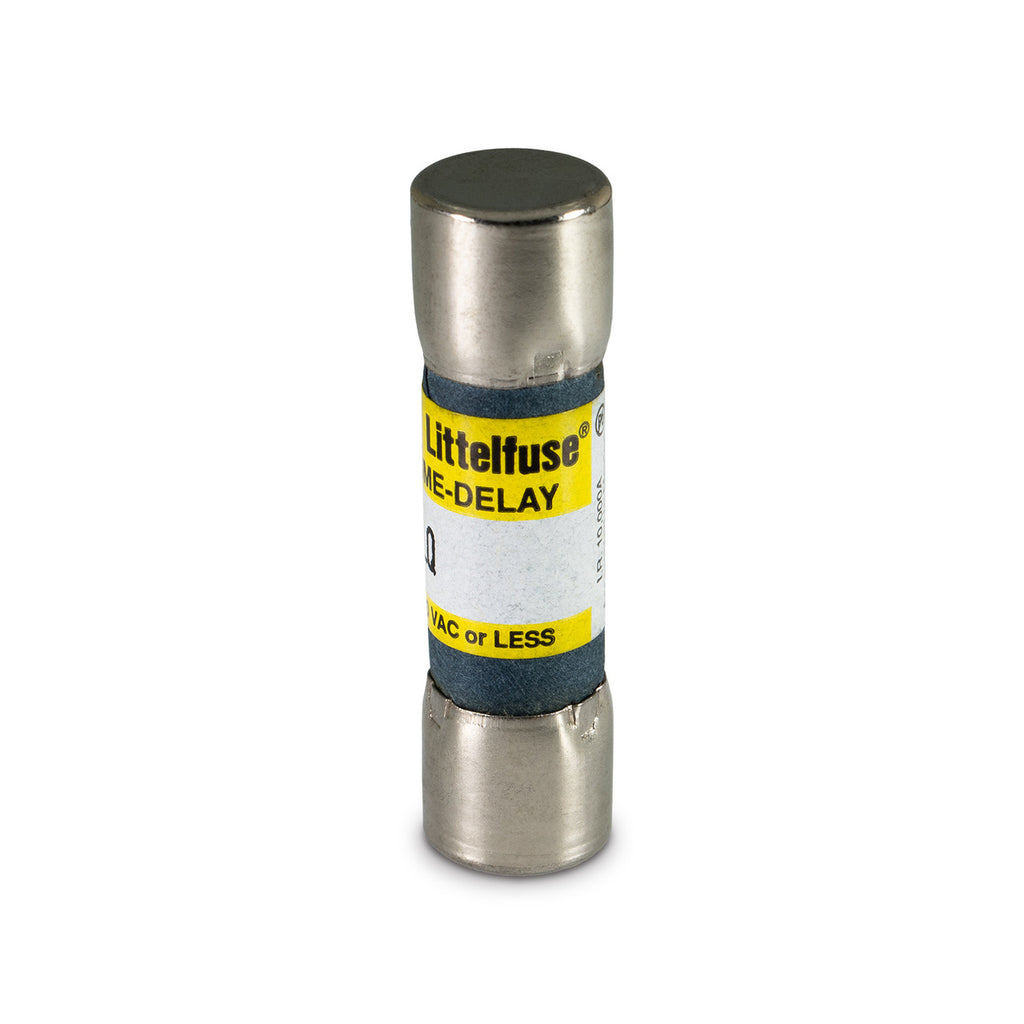

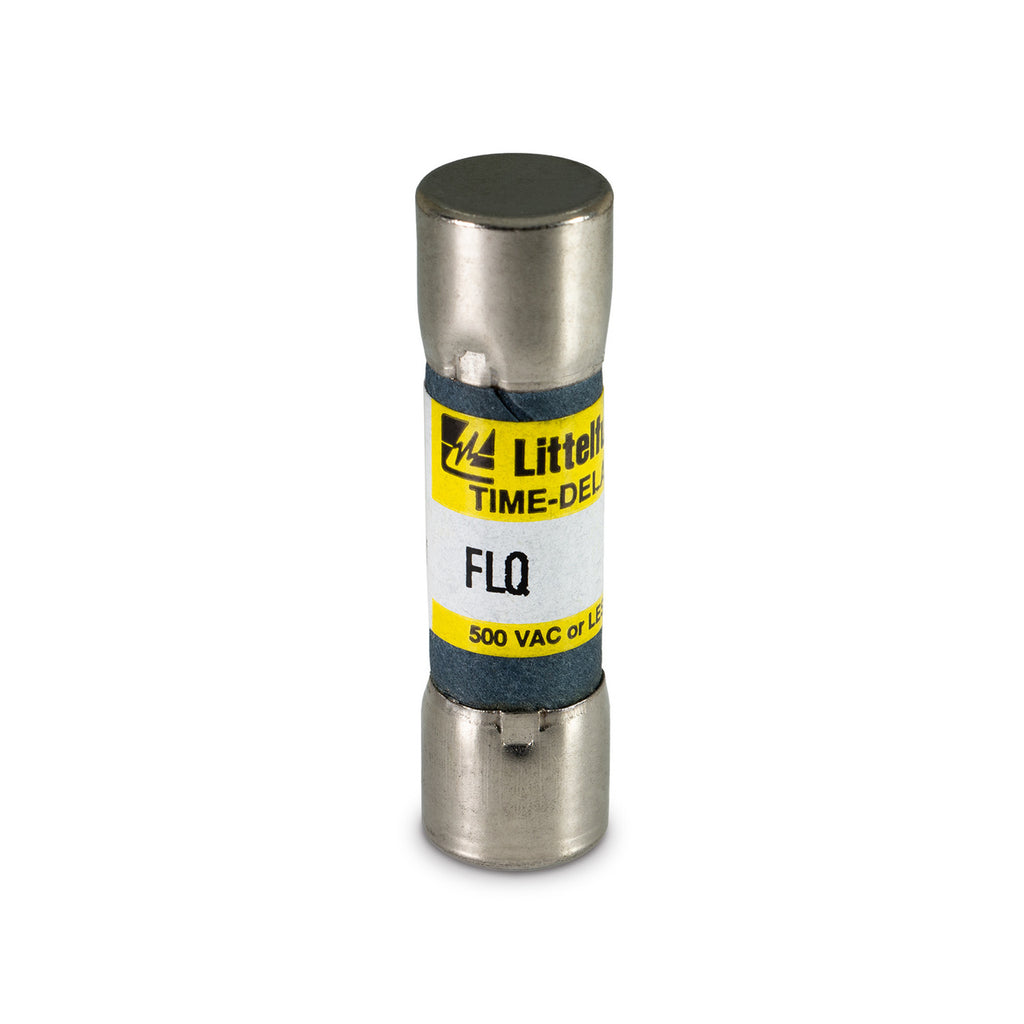

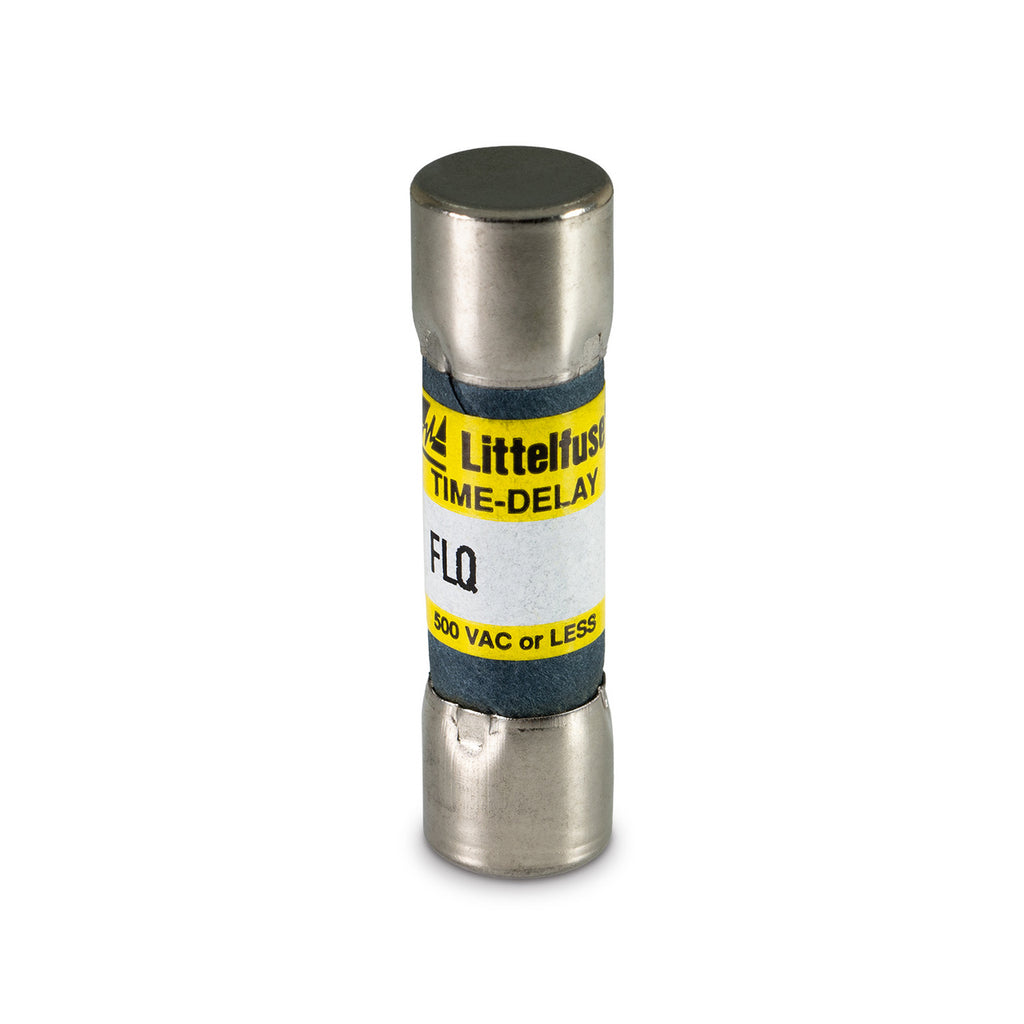

FLQ2.25 is a Littelfuse 2.25 amp, 500 volt time-delay midget fuse designed for supplemental protection in control circuits.This FLQ series fuse features a cylindrical 1 barrel design with a 10,000 amp interrupt rating at 500 VAC, ideal for circuits with high inrush currents such as control power transformers and solenoids. It is UL and CSA approved and provides reliable time-delay protection to prevent nuisance blowing.
- Key Specifications
- Amperage: 2.25 A
- Voltage Rating: 500 VAC / 300 VDC
- Poles: 1
- Mounting Type: Cylindrical Barrel
- Interrupt Rating: 10 kA at 500 VAC
- Fuse Type: Time-Delay (Slo-Blo)
- Series: FLQ
- Approvals: UL, CSA
- Dimensions: Approx. 1.5 inch length, 0.406 inch diameter
- Part Number: FLQ2.25
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLQ Series - Time-Delay Midget Fuses
- Type : FLQ Series - Time-Delay Midget Fuses
- Voltage : 500
- Amperage : 2.25
- AIC rating : 10kA@500V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
- UPC : 07945816042
- GTIN : 00079458160420
- Weight : 6.1
