Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLQ020

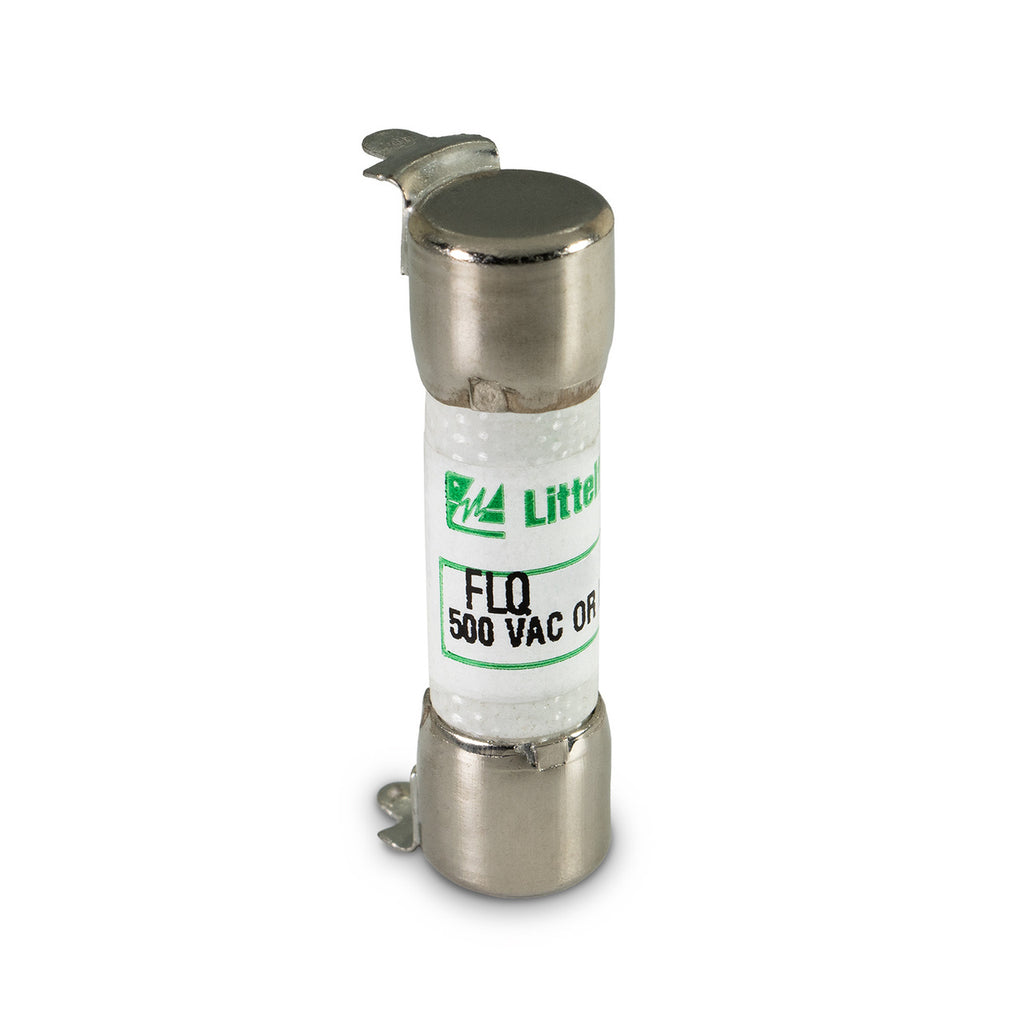

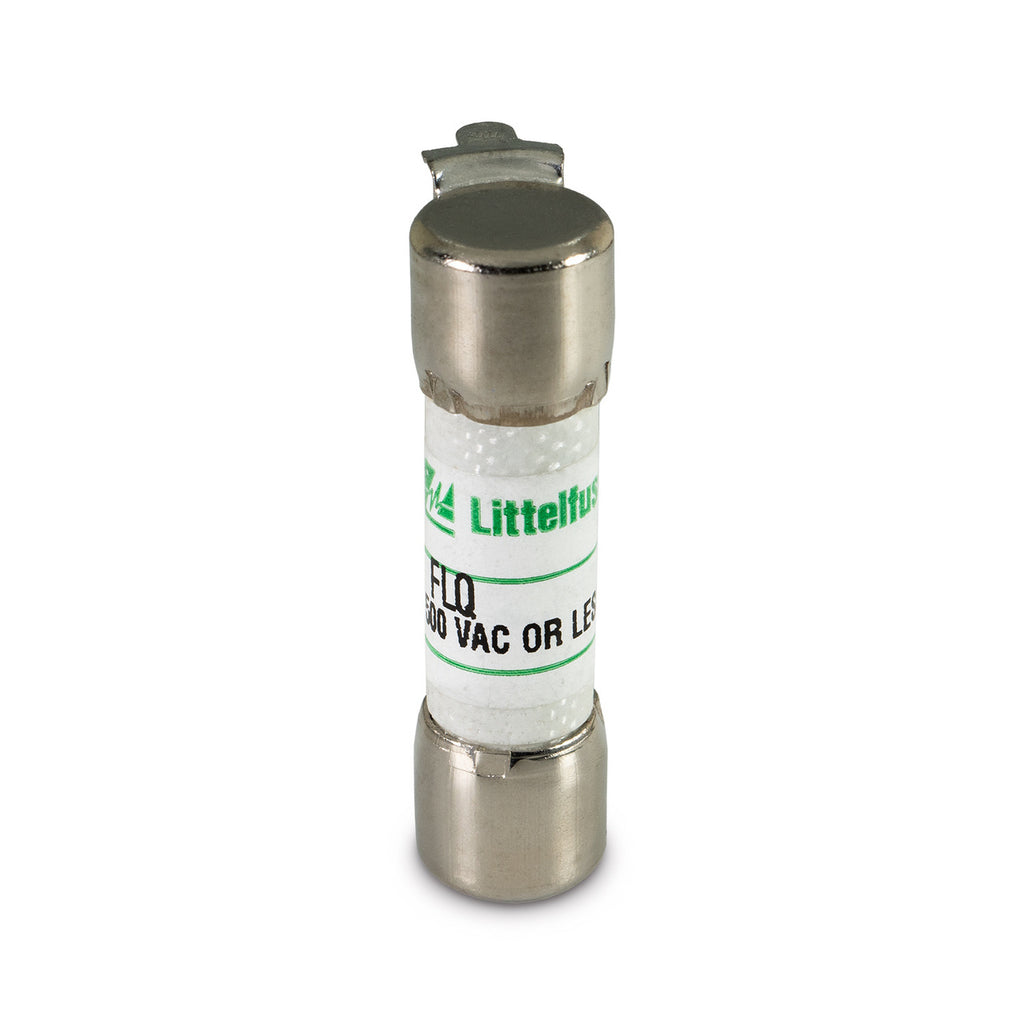

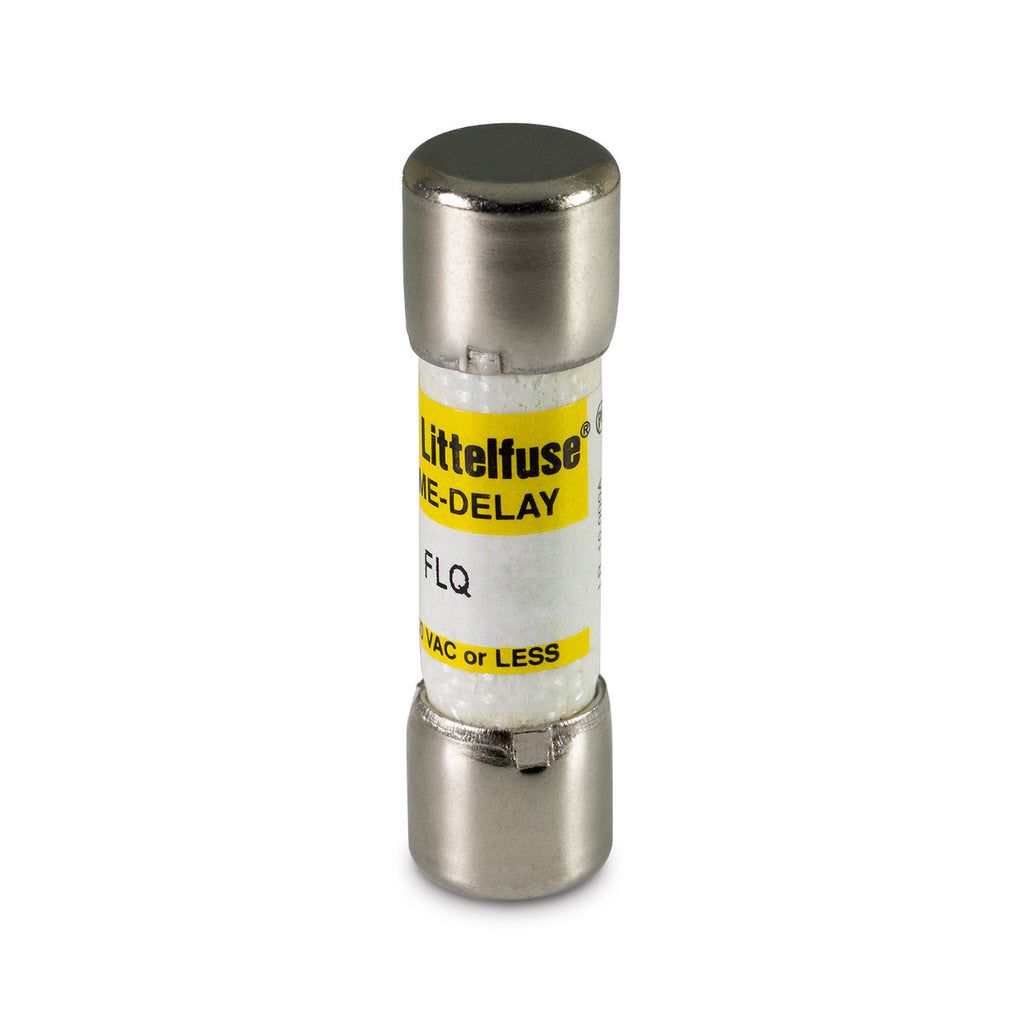

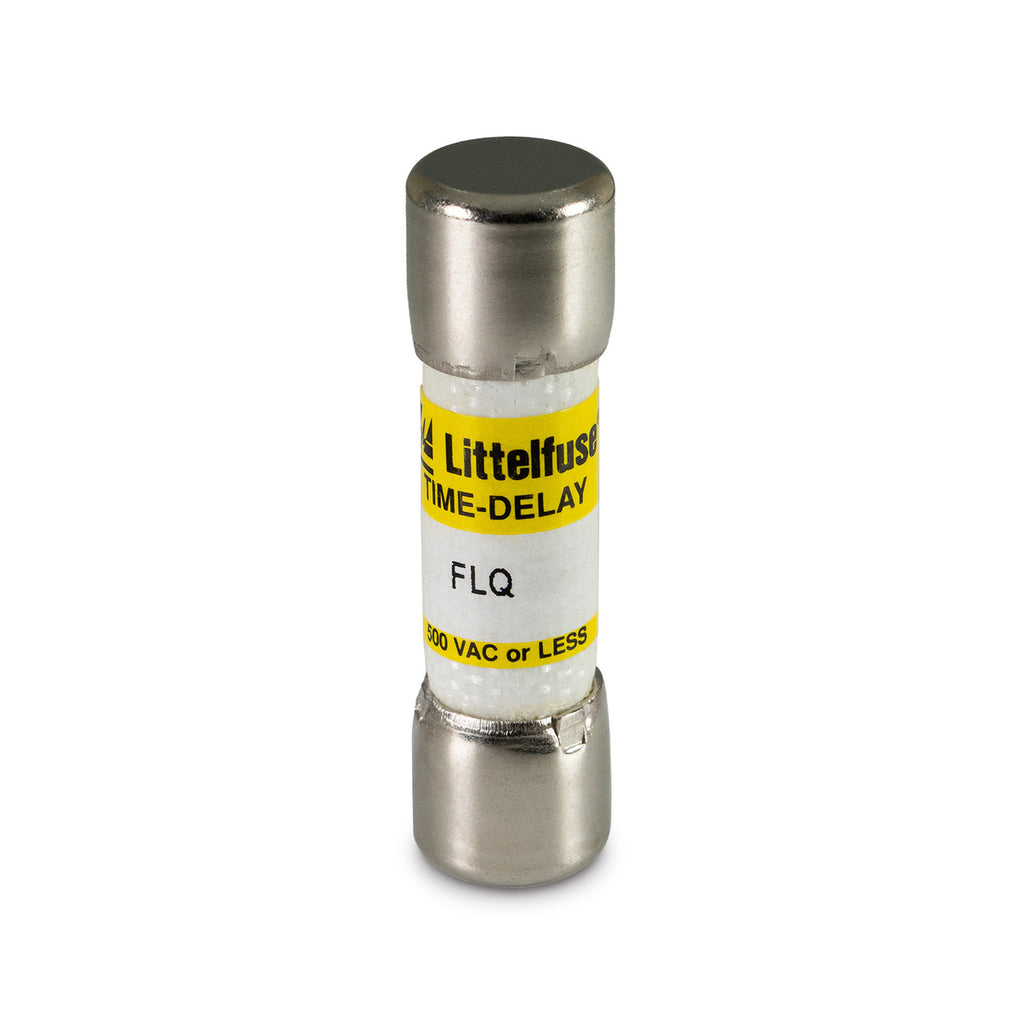

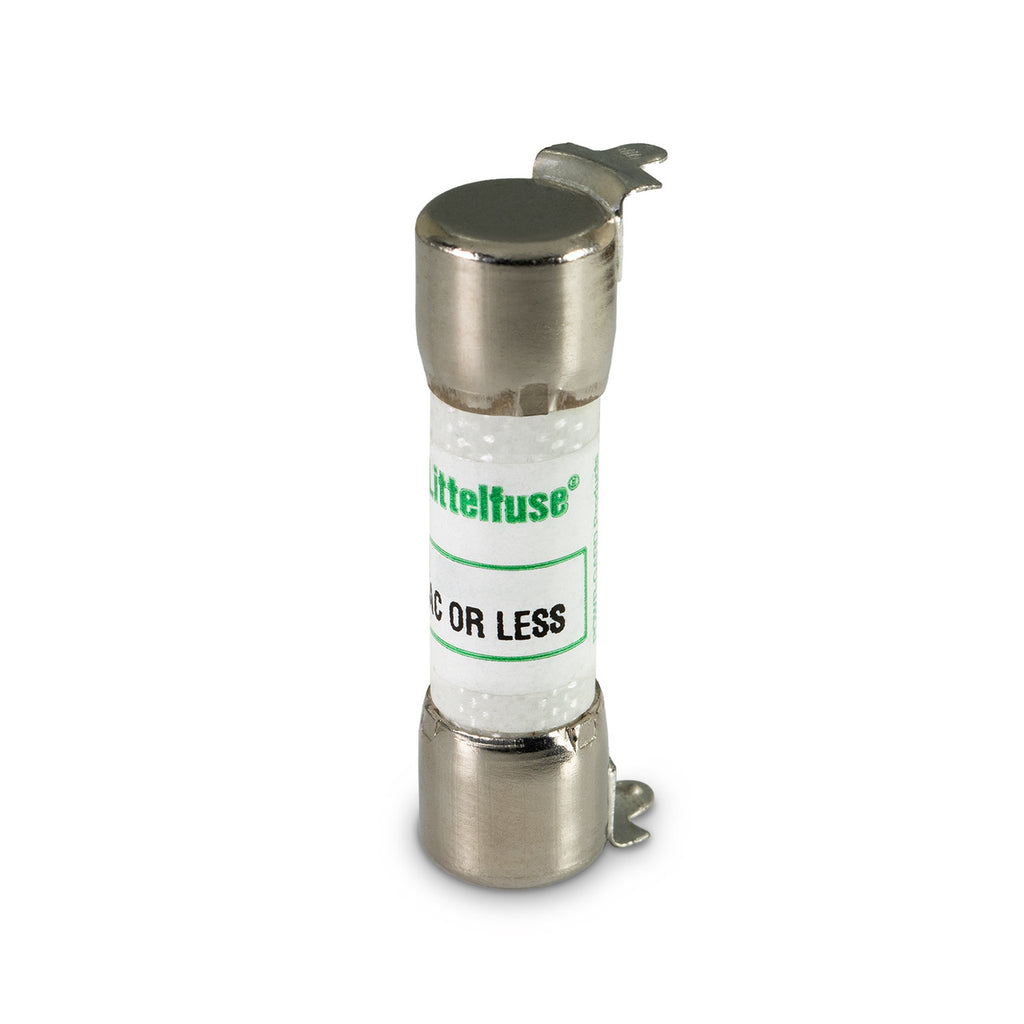

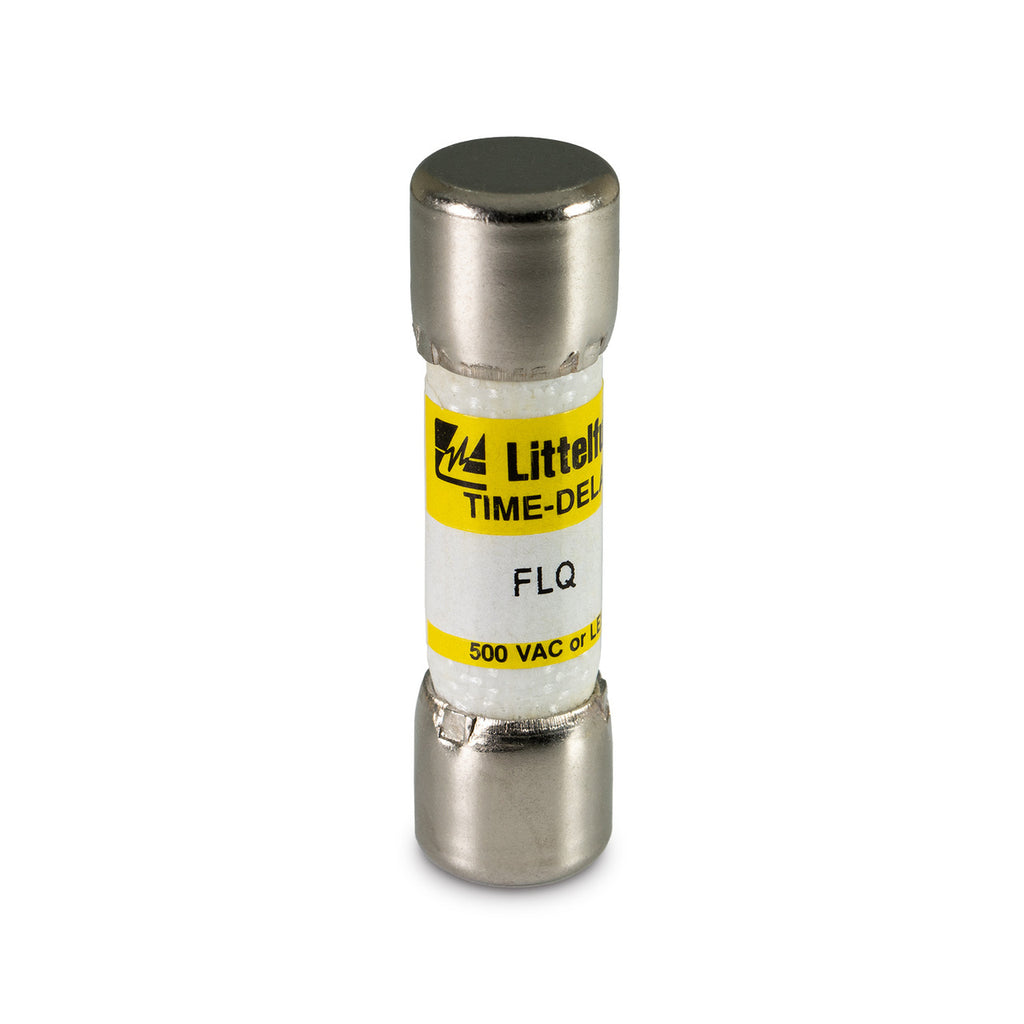

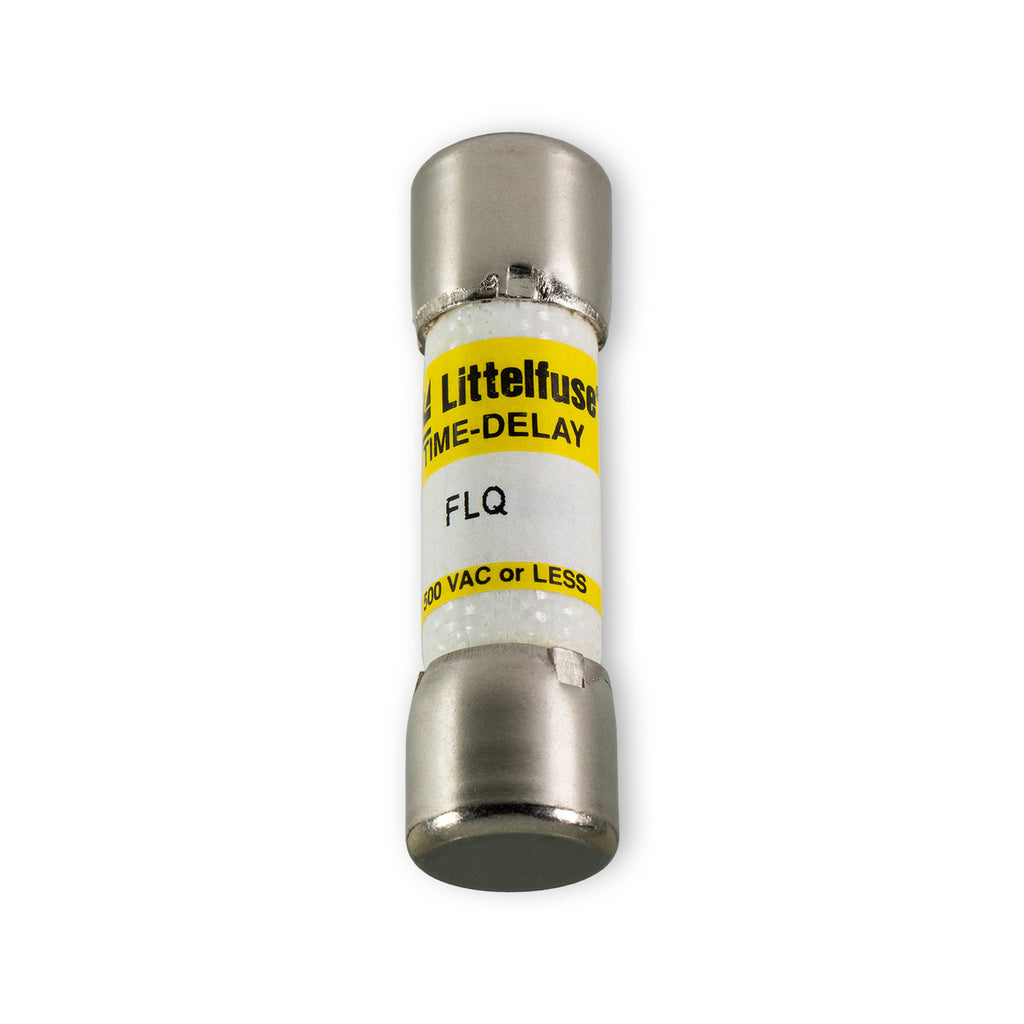

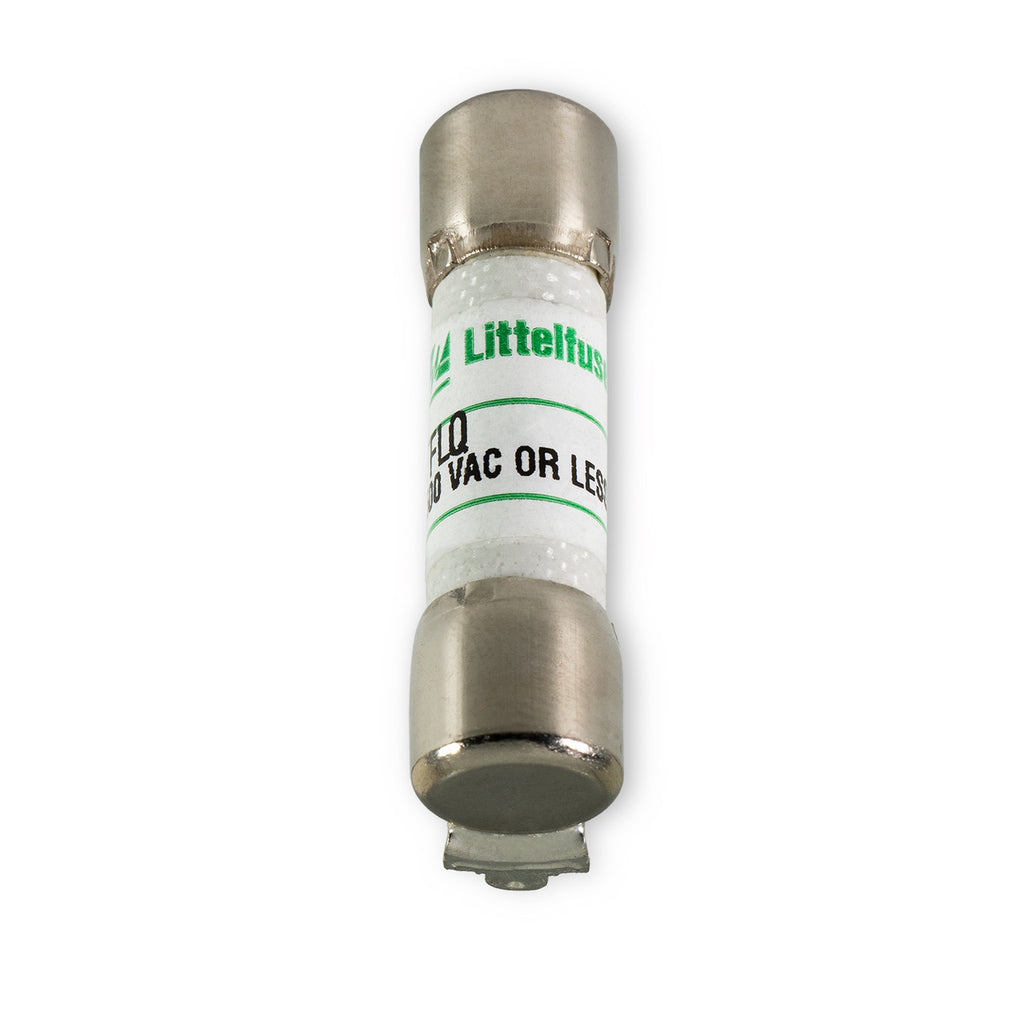

FLQ020 is a Littelfuse 20A time delay midget fuse designed for reliable protection in motor control and transformer applications. This fuse features a 500VAC/300VDC voltage rating and a 10kA interrupt rating, making it suitable for demanding electrical environments. The FLQ020 is UL and CSA listed, ensuring compliance with industry standards for safety and performance. This midget fuse is commonly used in industrial and commercial power distribution systems where time delay characteristics are required. Its compact size and robust construction provide dependable protection for sensitive equipment. The fuse is designed for use in 5AG type fuse holders and is ideal for applications requiring supplemental overcurrent protection.
- Part Number: FLQ020
- Manufacturer: Littelfuse
- Current Rating: 20A
- Voltage Rating: 500VAC / 300VDC
- Interrupt Rating: 10kA RMS AC / 10kA DC
- Fuse Type: Midget (5AG)
- Response Time: Time Delay
- Class: CC
- Mounting Type: Ferrule Terminal
- Length: 38mm
- Diameter: 10mm
- Certifications: UL, CSA
Specifications
- Part Number: FLQ020
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLQ Series - Time-Delay Midget Fuses
- Type : FLQ Series - Time-Delay Midget Fuses
- Voltage : 500
- Amperage : 20
- AIC rating : 10kA@500V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 079458160710
- GTIN : 00079458160710
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 9.14
- Certification : UL Listed, CSA Certified, RoHS
