Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLQ010

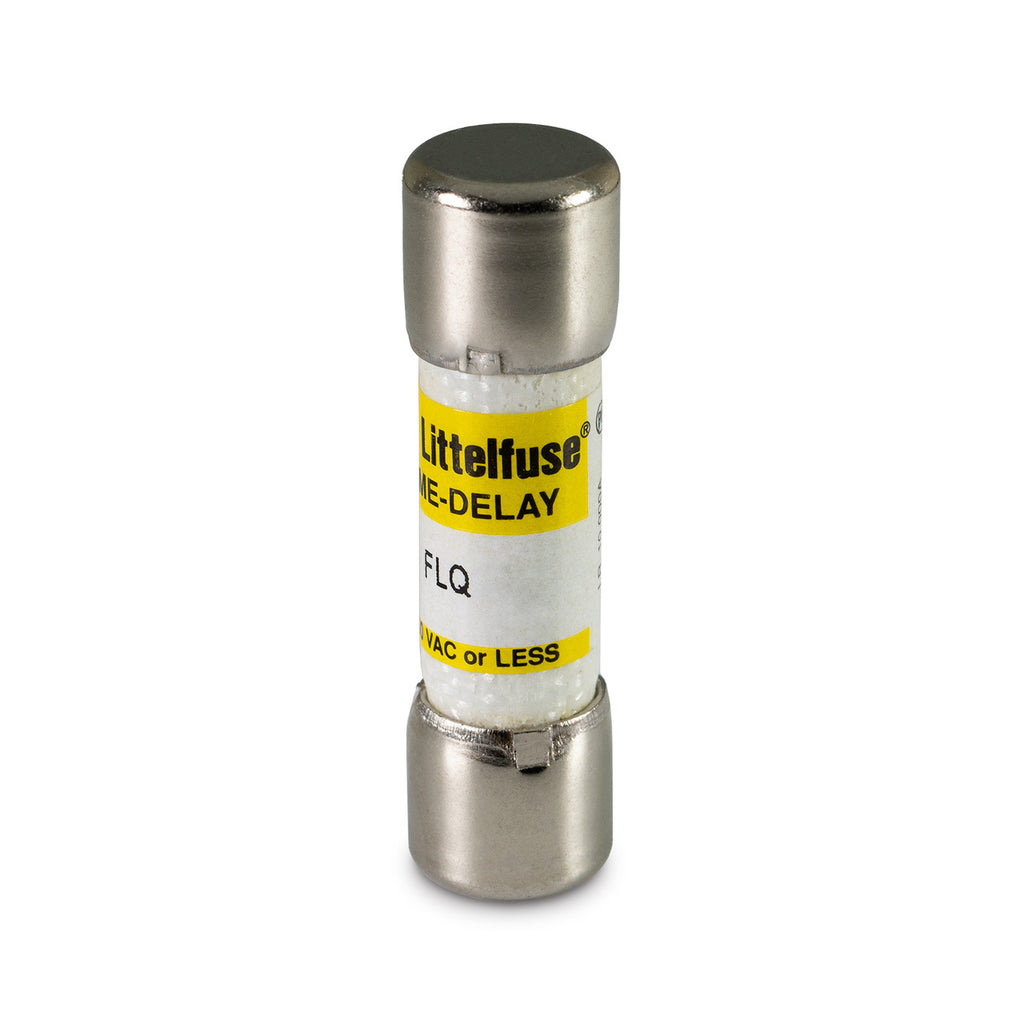

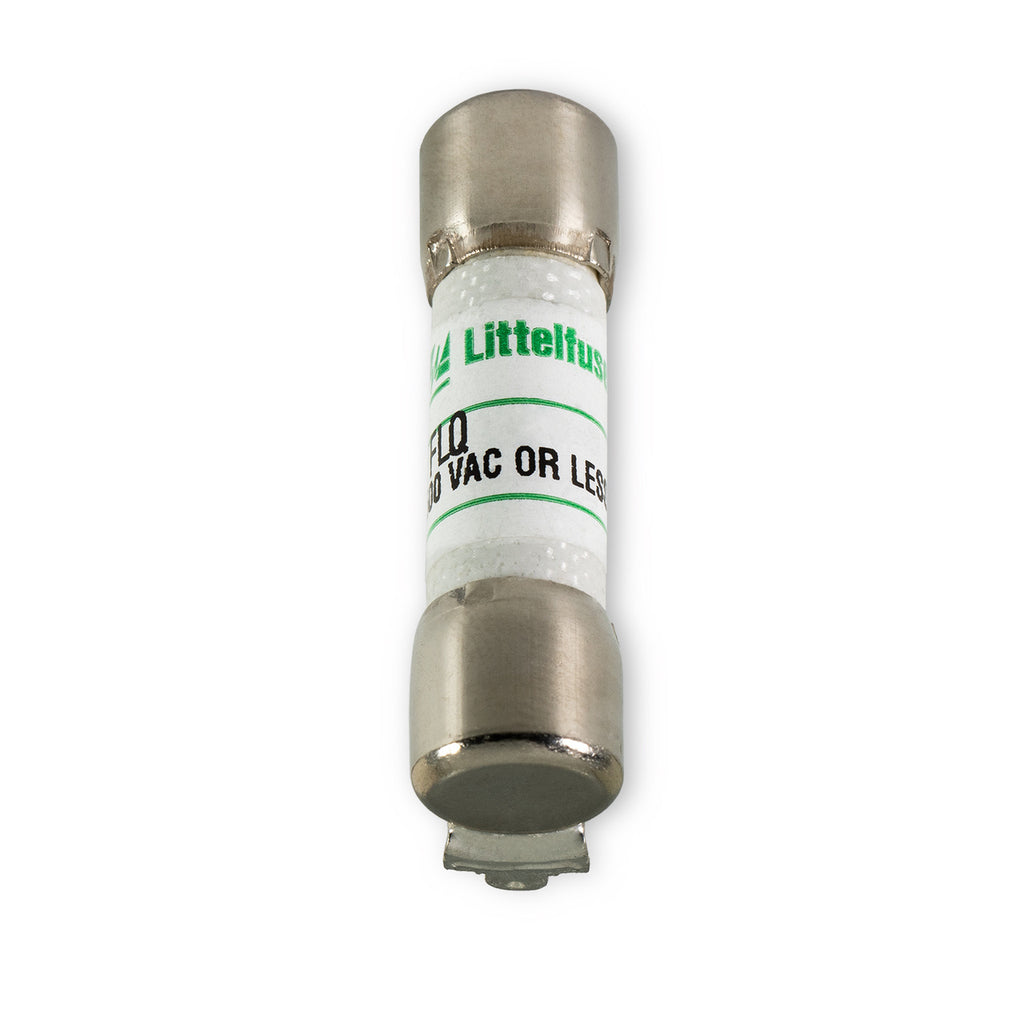

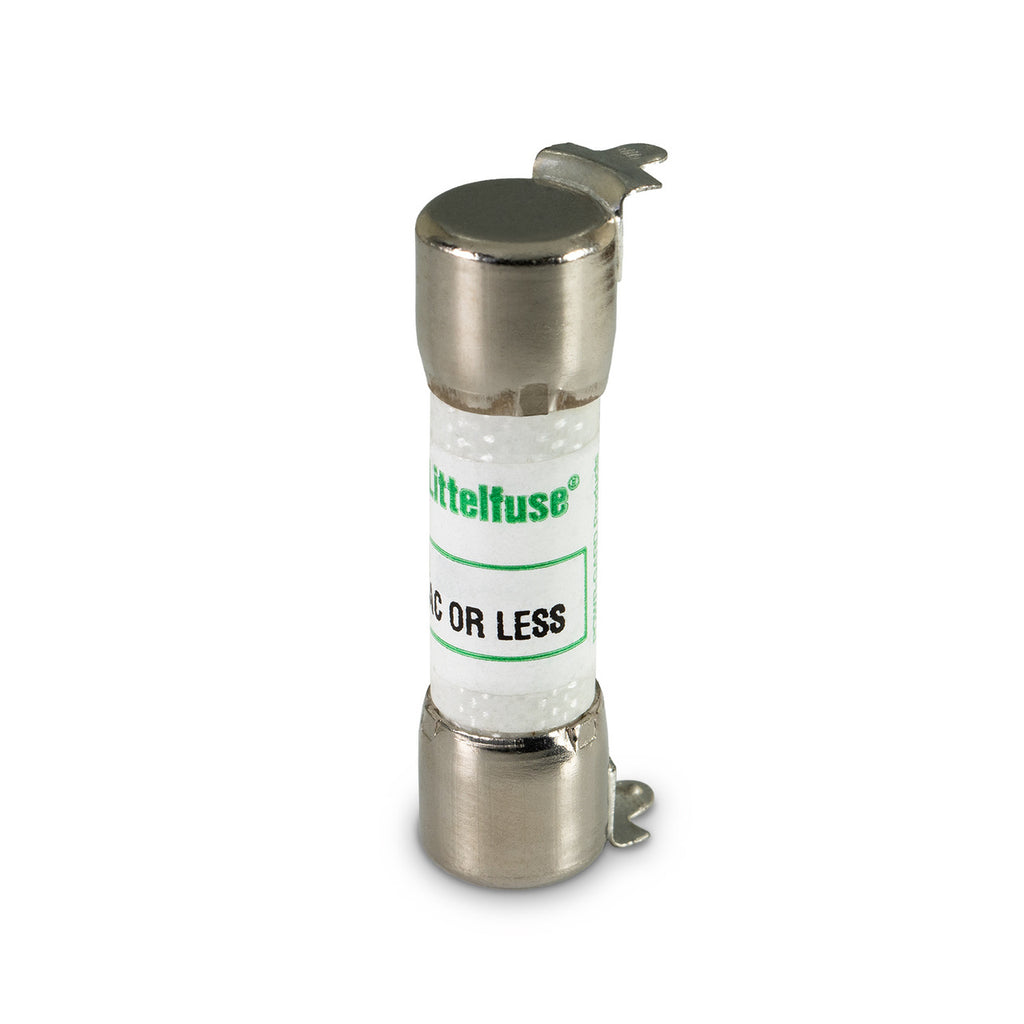

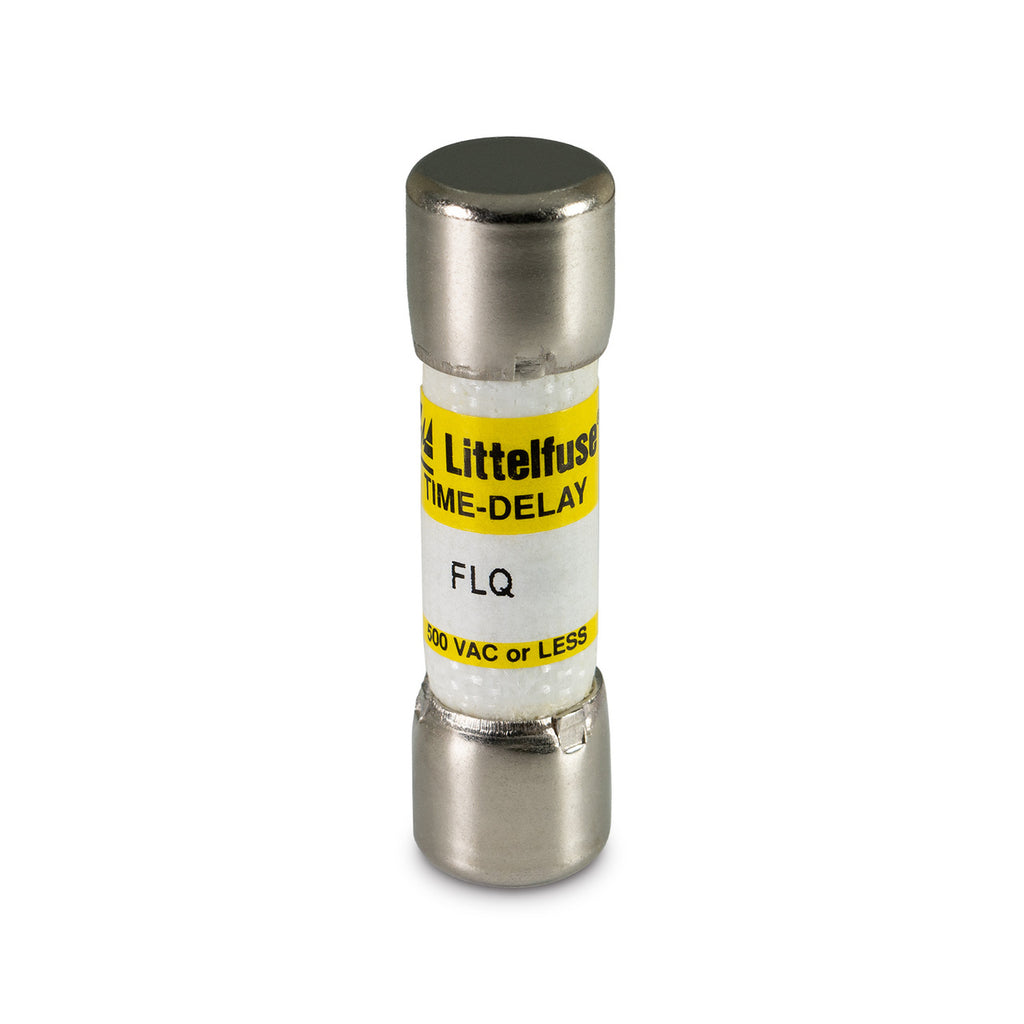

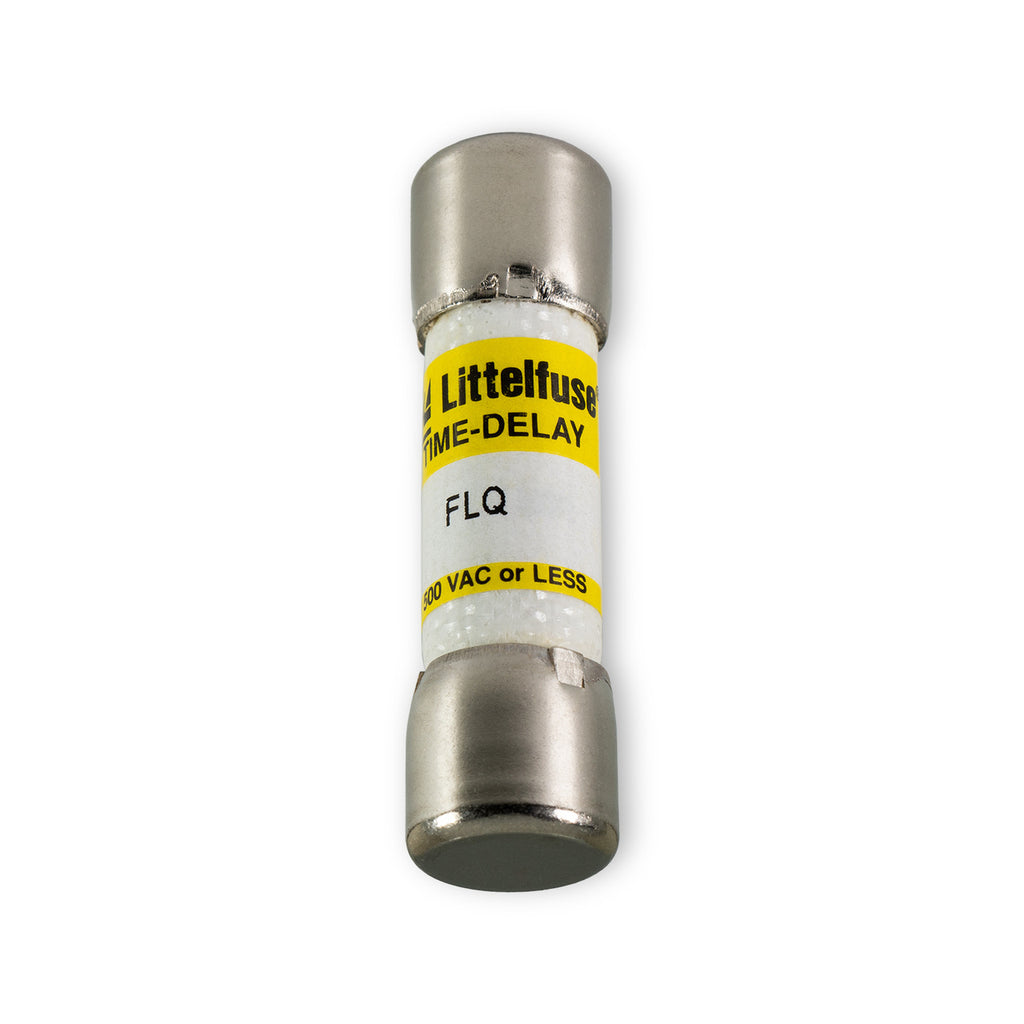

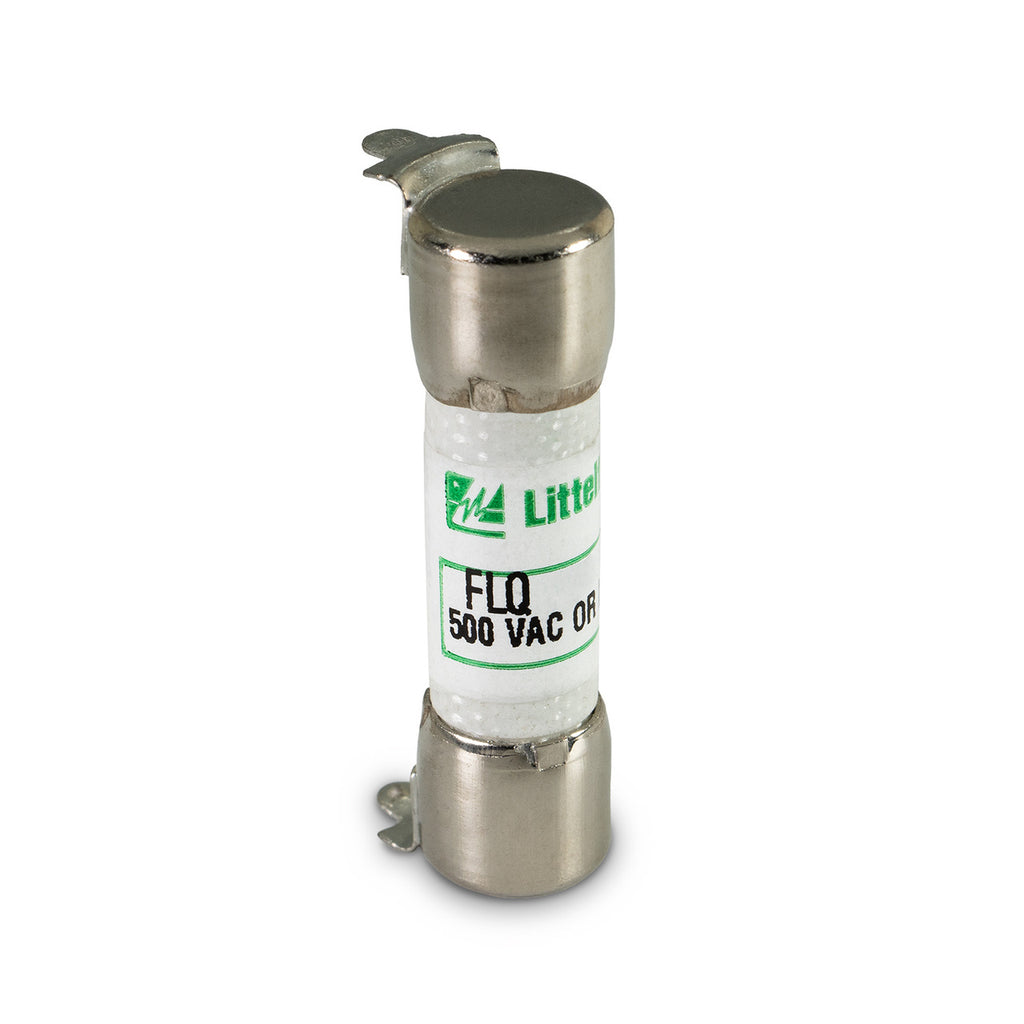

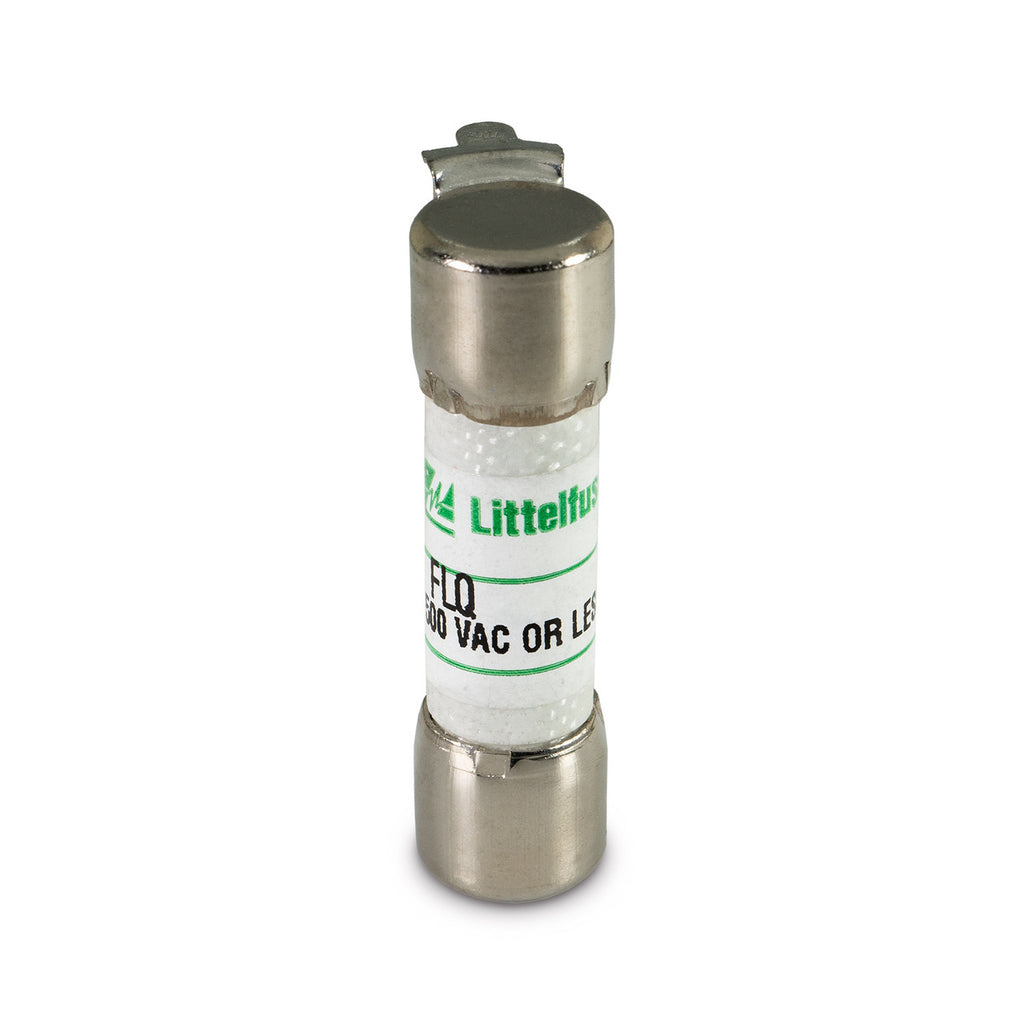

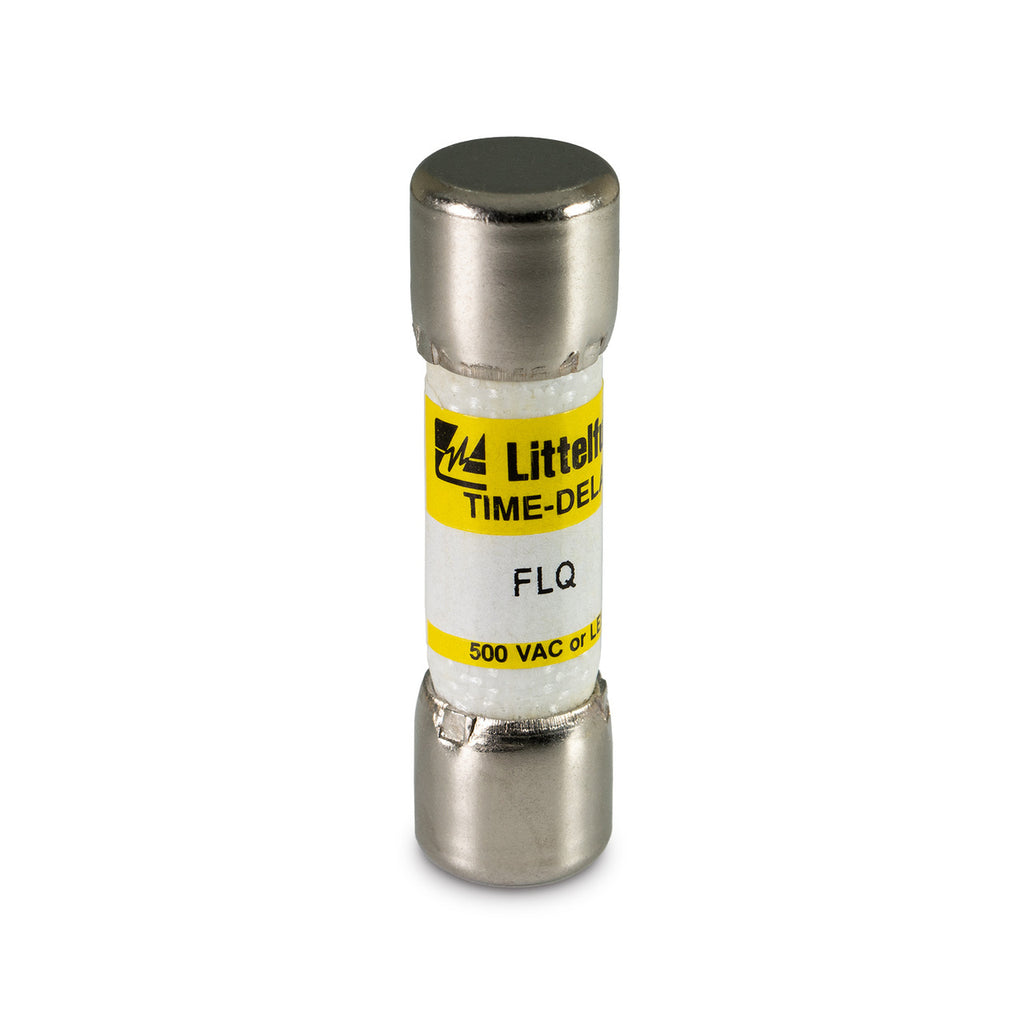

FLQ010 is a 10A, 500VAC/300VDC midget time-delay fuse from Littelfuse, designed for reliable circuit protection in demanding applications.
This fuse features a 5AG body style, 38mm length, and 10mm diameter, with a 10kA interrupt rating for both AC and DC circuits. It is ideal for protecting control power transformers, solenoids, and circuits with high inrush currents. The FLQ010 is UL and CSA approved, ensuring compliance with North American safety standards.
-
Key Specifications
- Amperage: 10A
- Voltage: 500VAC/300VDC
- Poles: 1
- Mounting Type: Cartridge (5AG)
- Interrupt Rating: 10kA RMS AC, 10kA DC
- Series/Frame: FLQ Series
- Trip Unit: Time-Delay (Slow Blow)
- Certifications: UL, CSA
- Body Size: 13/32" x 1 1/2" (10mm x 38mm)
- Response Time: 1 hour at 135% of rated current
- Application: Motor control transformers, solenoids, high inrush circuits
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FLQ010
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLQ Series - Time-Delay Midget Fuses
- Type : FLQ Series - Time-Delay Midget Fuses
- Voltage : 500
- Amperage : 10
- AIC rating : 10kA@500V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 079458160659
- GTIN : 00079458160659
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 9
- Certification : UL Listed, CSA Certified, RoHS
