Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLQ003

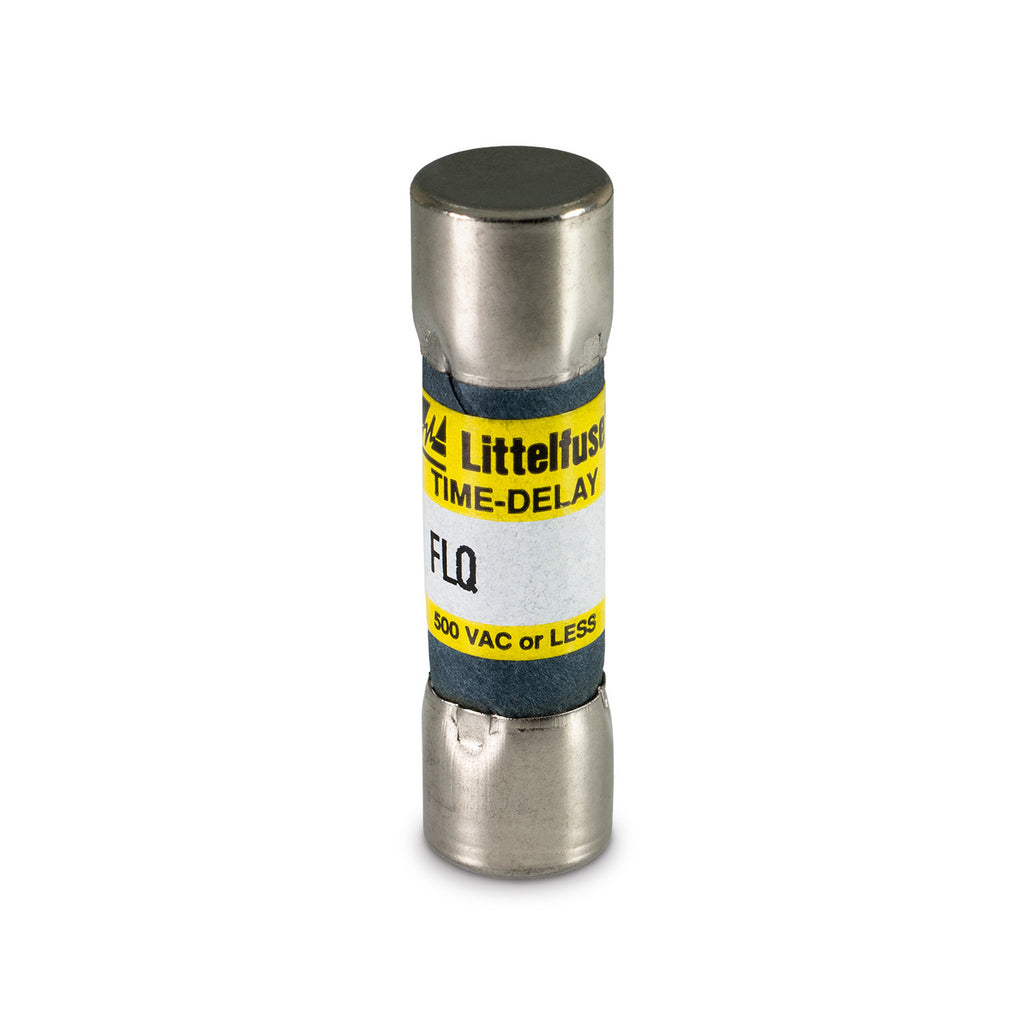

FLQ003 is a Littelfuse 3 Amp time delay midget fuse designed for supplemental protection in motor control transformers and other applications.This FLQ series fuse features a voltage rating of 500 VAC and 300 VDC, with a high interrupting rating of 10,000 amps. It has a cylindrical melamine body measuring approximately 13/32 inch diameter by 1 1/2 inch length. The fuse is UL and CSA certified and provides reliable time-delay protection to prevent nuisance blowing during motor startup.
- Key Specifications
- Amperage: 3 Amps
- Voltage Rating: 500 VAC / 300 VDC
- Interrupting Rating: 10 kA
- Fuse Type: Time Delay (Slo-Blo)
- Body Material: Melamine
- Dimensions: 13/32 inch diameter x 1 1/2 inch length
- Fuse Series: FLQ
- Certifications: UL, CSA
- Mounting Type: Cylindrical Midget
- Application: Motor Control Transformers
- Part Number: FLQ003
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLQ Series - Time-Delay Midget Fuses
- Type : FLQ Series - Time-Delay Midget Fuses
- Voltage : 500
- Amperage : 3
- AIC rating : 10kA@500V
- Connection : Ferrule Non-Rejection
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
- Velocity : TD - Time Delay
- UPC : 079458160475
- GTIN : 00079458160475
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 6.7
- Certification : UL Listed, CSA Certified, RoHS
