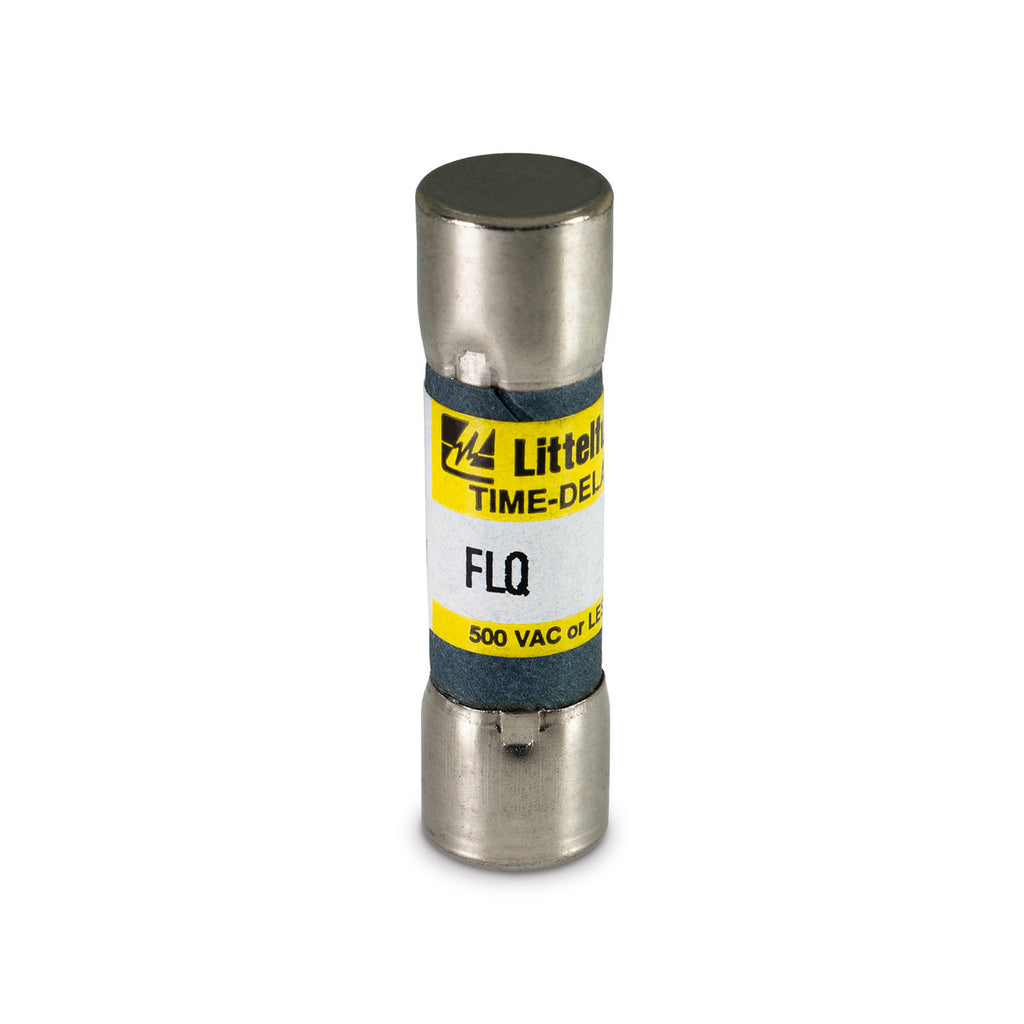

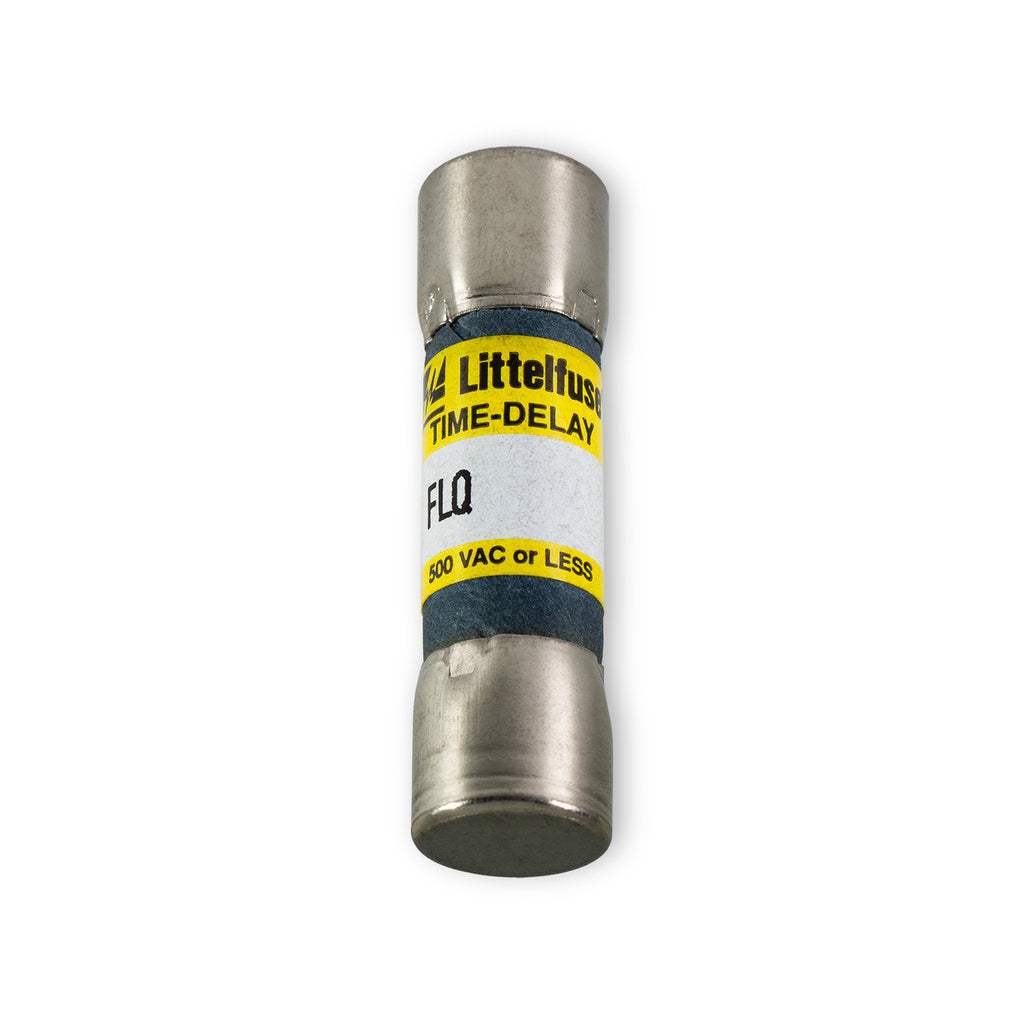

FLQ002 - Littelfuse FLQ Series 2A 500VAC 300VDC Midget Time-Delay Fuse for Control Circuits

FLQ002

FLQ002 is a Littelfuse FLQ Series midget time-delay fuse designed for supplemental overcurrent protection in control circuits, transformers, and other sensitive applications. This fuse features a 2A current rating and a 500VAC/300VDC voltage rating, making it suitable for a wide range of industrial and commercial uses. The time-delay characteristic allows for temporary inrush currents without nuisance tripping, ensuring reliable circuit protection. The FLQ002 is constructed with a 10x38mm midget body, UL and CSA certified, and features a 10kA interrupting rating at 500VAC. It is commonly used for motor control transformers, control power transformers, and other circuits requiring supplemental protection.

• Part Number: FLQ002
• Manufacturer: Littelfuse
• Fuse Type: Midget (Class Midget)
• Amperage Rating: 2A
• Voltage Rating: 500VAC, 300VDC
• Interrupting Rating: 10kA at 500VAC
• Response Time: Time-Delay
• Body Size: 10mm x 38mm (13/32" x 1-1/2")
• Series: FLQ
• Certifications: UL, CSA
• Application: Control circuits, transformers, motor control
• Mounting Type: Midget fuse holder compatible

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLQ002
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLQ Series - Time-Delay Midget Fuses
• Type : FLQ Series - Time-Delay Midget Fuses
• Voltage : 500
• Amperage : 2
• AIC rating : 10kA@500V
• Connection : Ferrule Non-Rejection
• Diameter : 0.41
• Class Rating : Midget
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458160413
• GTIN : 00079458160413
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 6.9
• Certification : UL Listed, CSA Certified, RoHS
