Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLQ.125

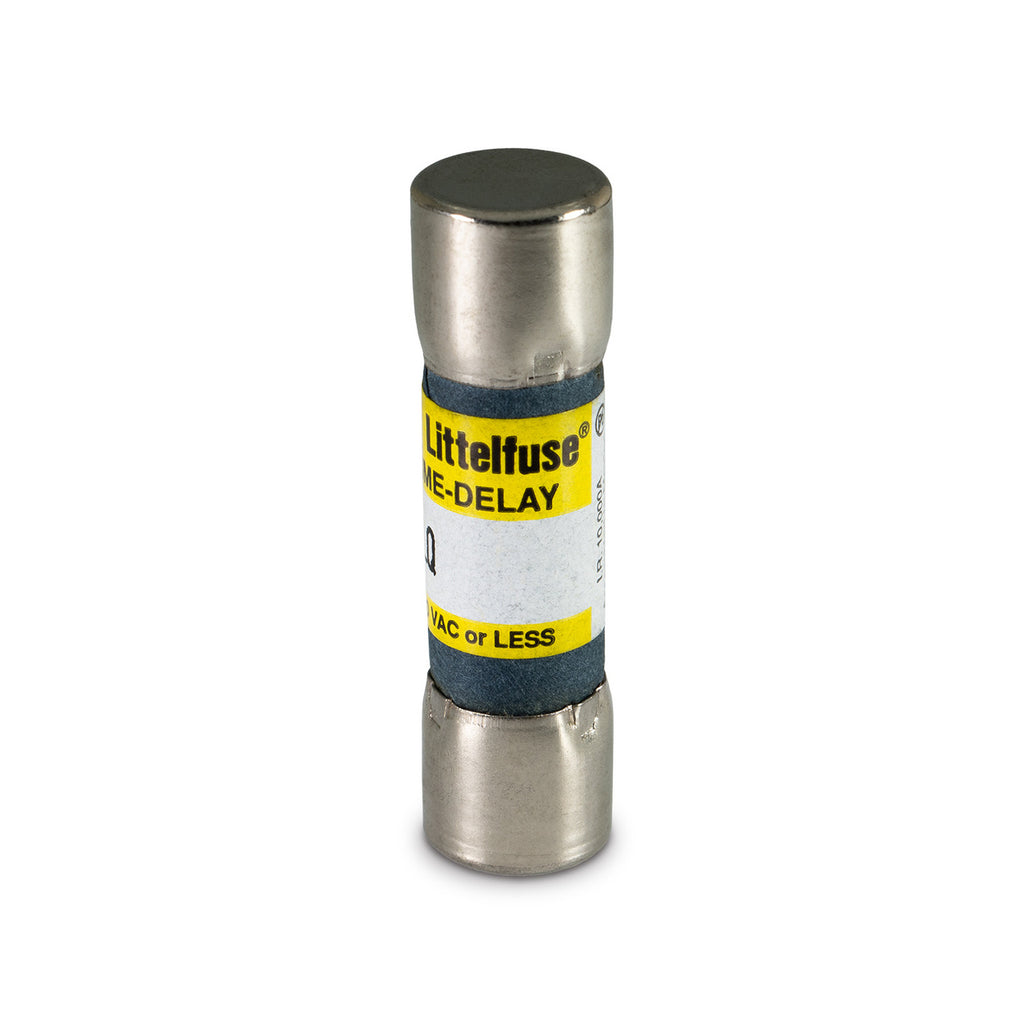

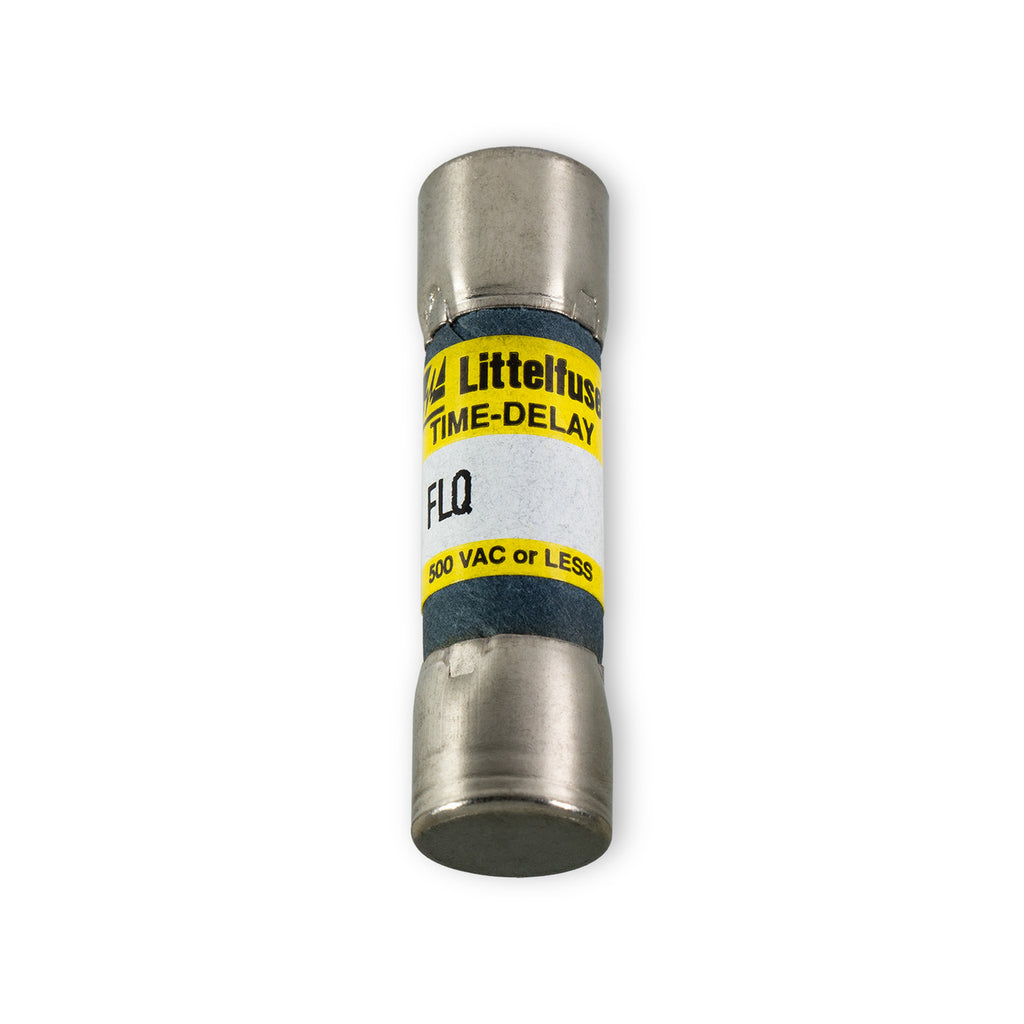

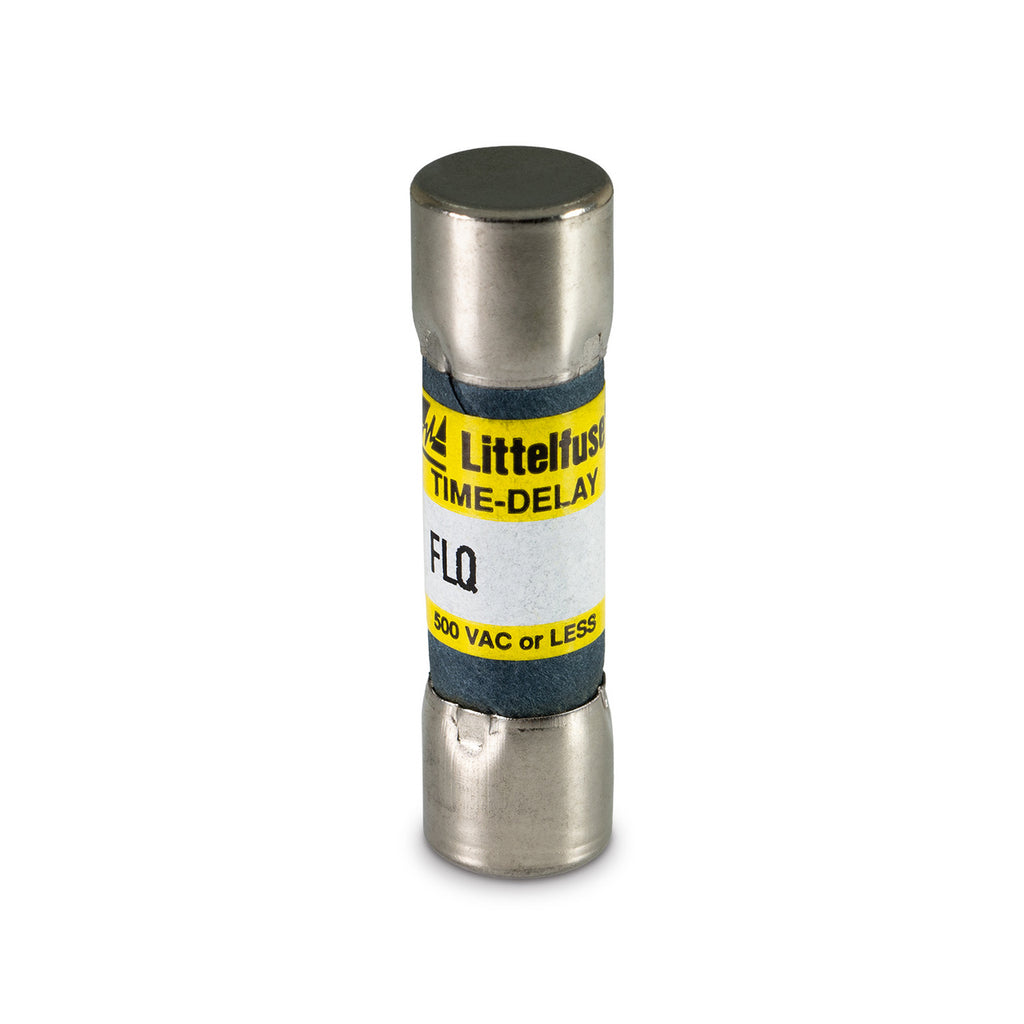

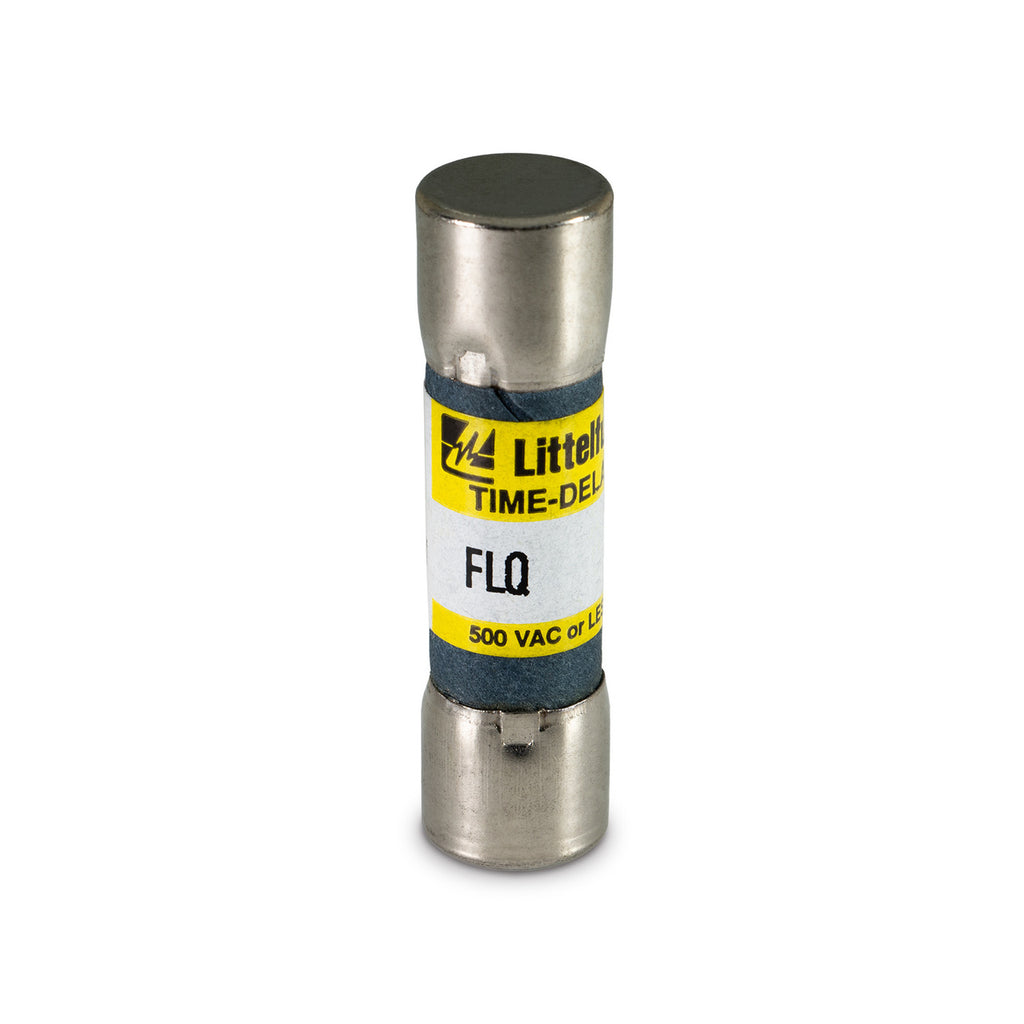

FLQ.125 is a Littelfuse time delay midget fuse designed for reliable circuit protection in control power transformers and circuits with high inrush current.FLQ.125 features a 0.125 ampere rating with a voltage capacity of 500 volts AC and 300 volts DC, providing time-delay characteristics for enhanced protection. It is a Class RK5 fuse with dual element construction, UL and CSA certified, and offers a 10,000 amp interrupting rating. The fuse measures approximately 13/32 inch diameter by 1 1/2 inch length and uses ferrule terminals for mounting.
- Key Specifications
- Amperage: 0.125 Amp
- Voltage Rating: 500 VAC / 300 VDC
- Fuse Type: Time Delay, Dual Element
- Fuse Class: RK5, Midget
- Interrupting Rating: 10,000 Amps
- Dimensions: 0.406 inch diameter x 1.5 inch length
- Mounting Type: Ferrule Terminal
- Certifications: UL Listed, CSA Certified
- Application: Control power transformers, solenoids, circuits with high inrush current
Specifications
- Part Number: FLQ.125
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLQ Series - Time-Delay Midget Fuses
- Type : FLQ Series - Time-Delay Midget Fuses
- Voltage : 500
- Amperage : 0.125
- AIC rating : 10kA@500V
- Connection : Ferrule
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 079458160123
- GTIN : 00079458160123
- Country of Origin : Mexico
- Dimensions : x 1-1/2 in x
- Weight : 6.7
- Certification : UL Listed, CSA Certified, RoHS
