Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description

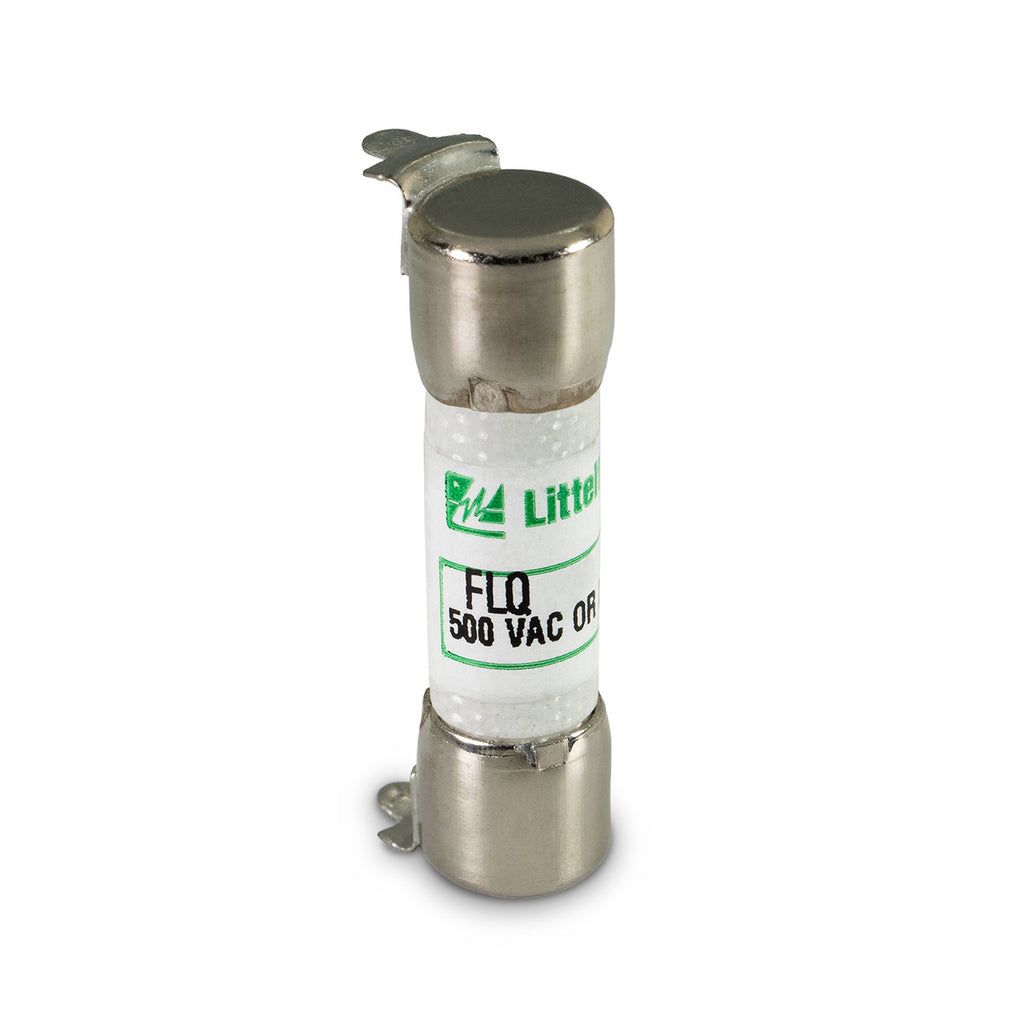

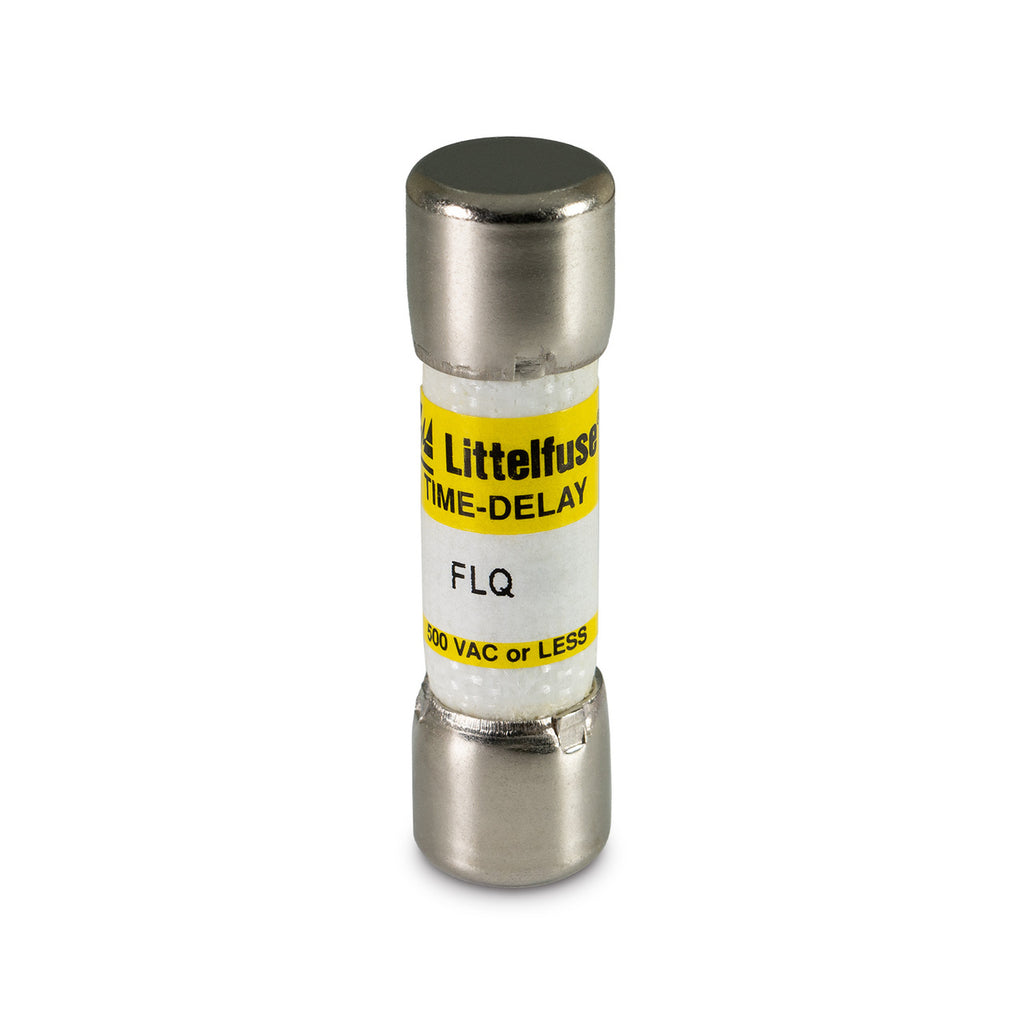

FLQ-015
FLQ-015 is a Littelfuse 15 Amp, 500 Volt time-delay midget fuse designed for supplemental overcurrent protection.This FLQ series fuse features a cylindrical body style with a 1-pole configuration and is ideal for control power transformers, solenoids, and circuits with high inrush currents. It has a high interrupting rating of 10,000 amps RMS symmetrical and is UL Listed and CSA Certified. The fuse mounts in holders or clips compatible with the FLQ series and provides reliable time-delay protection in 480 VAC systems.
- Key Specifications
- Amperage: 15 Amps
- Voltage Rating: 500 VAC, 300 VDC
- Fuse Type: Time-Delay (Slo-Blo)
- Body Style: Cylindrical Midget
- Poles: 1
- Interrupting Rating: 10,000 Amps RMS Symmetrical
- Mounting Type: Holder/Clip
- Dimensions: 13/32 in diameter x 1 1/2 in length
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: FLQ-015
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Diameter : 0.41
- Class Rating : Midget
- Barrels : 1
Product Data
- UPC : 079458160680
- GTIN : 00079458160680
- Weight : 25
