FLNR6.25 - Littelfuse 6.25A 250V AC 125V DC Class RK5 Dual Element Time Delay Fuse

FLNR6.25

FLNR6.25 is a Littelfuse Class RK5 dual-element time delay fuse designed for advanced short-circuit and overload protection in general purpose circuits.

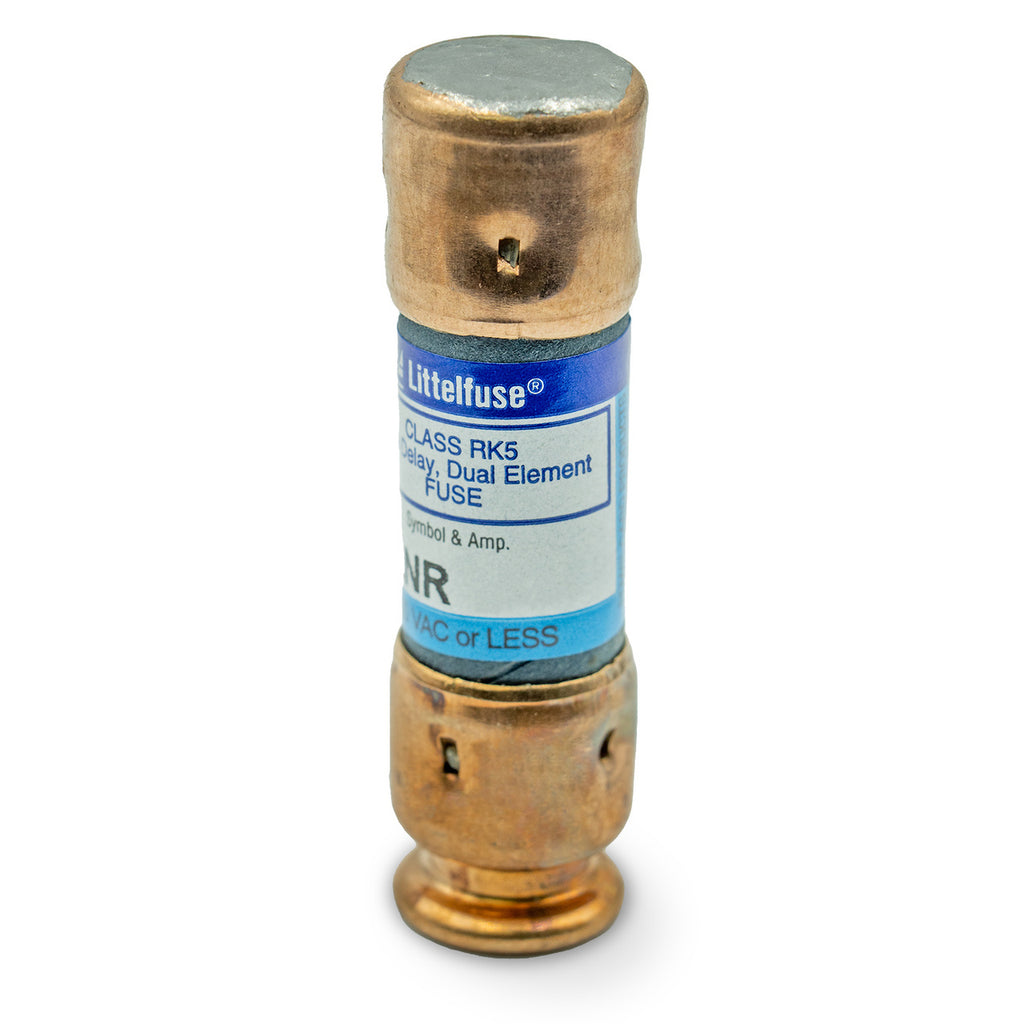

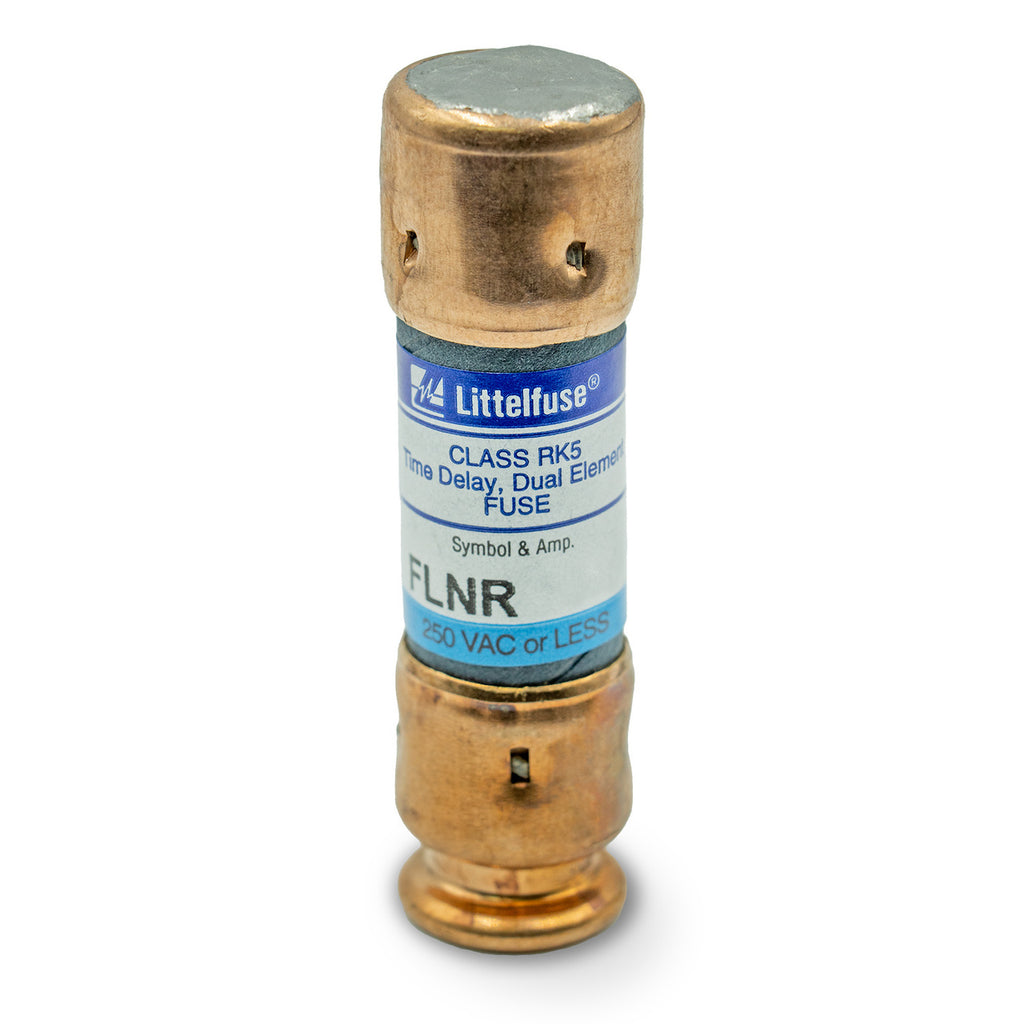

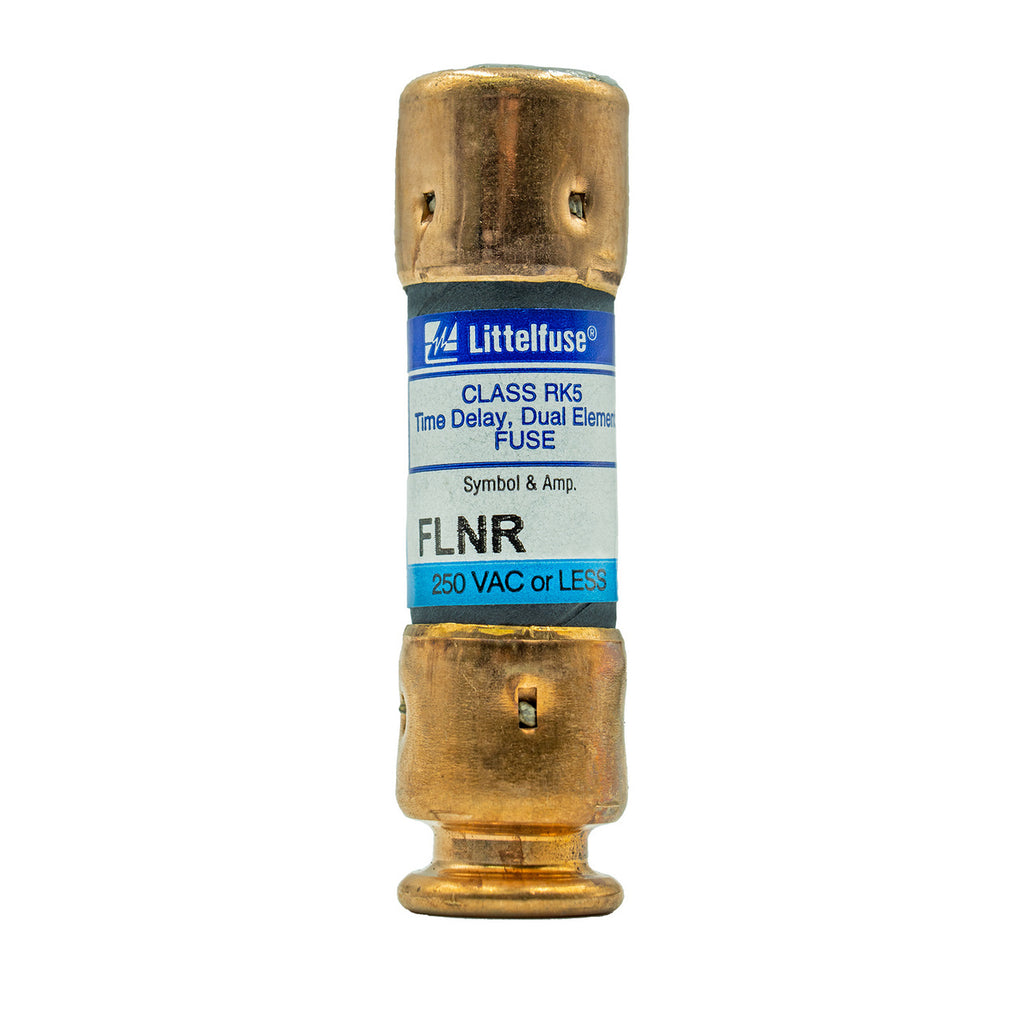

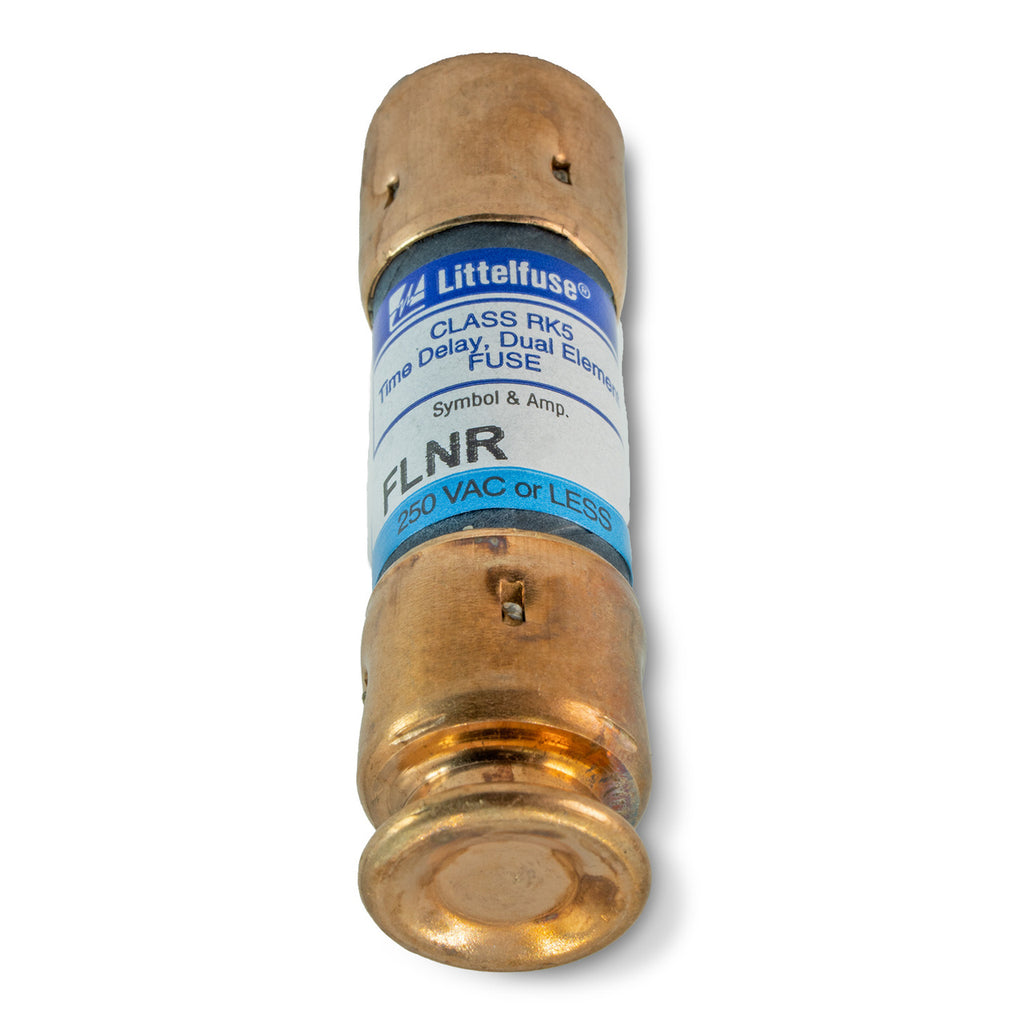

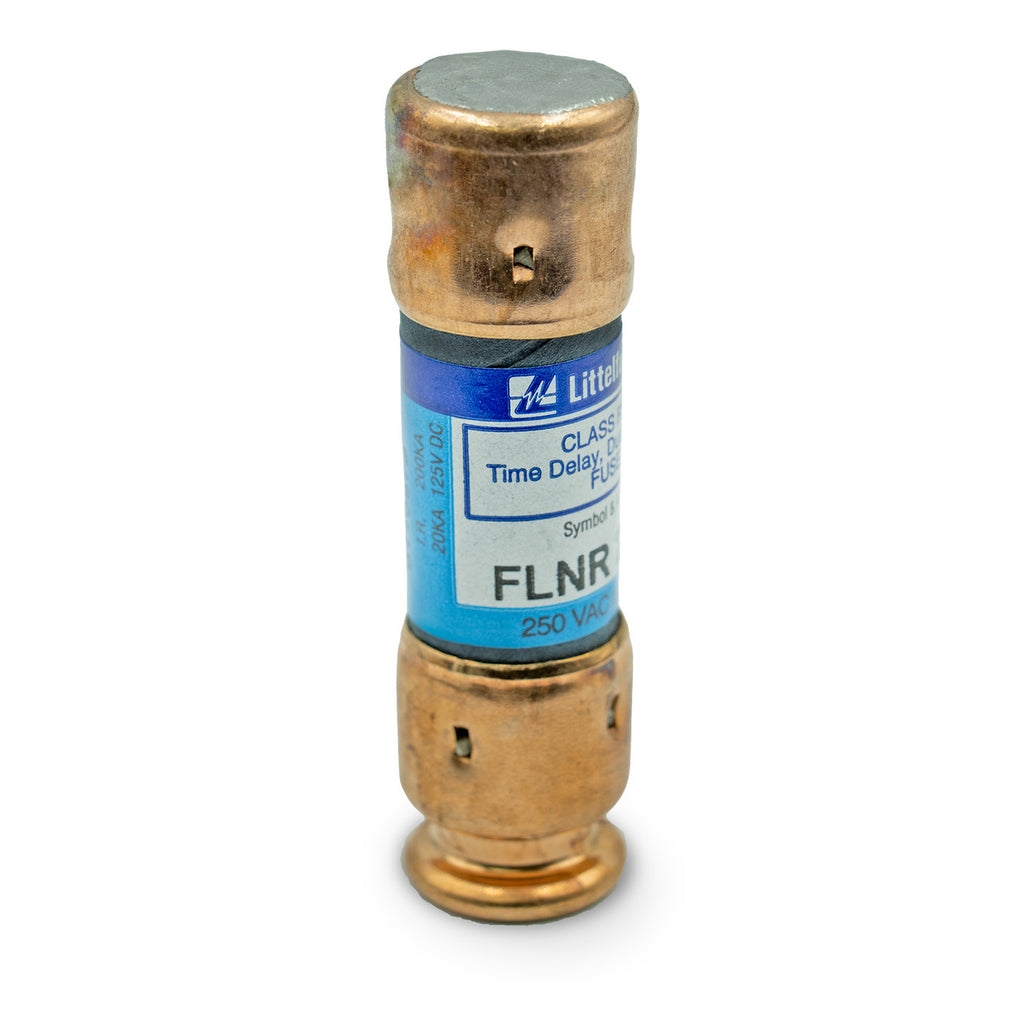

This fuse features a cartridge-style construction with a continuous current rating of 6.25 amps, a maximum AC voltage rating of 250 volts, and a DC voltage rating of 125 volts. It provides current limiting to restrict fault current and offers a high interrupting rating of up to 300,000 amperes AC and 20,000 amperes DC. The FLNR6.25 is intended for mounting in fuse blocks, clips, or holders and complies with UL 248-12 standards. It is UL Listed and CSA Certified for reliable circuit protection in applications such as service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.

• Part Number: FLNR6.25
• Manufacturer: Littelfuse
• Fuse Class: RK5
• Current Rating: 6.25 Amps
• Voltage Rating: 250 V AC, 125 V DC
• Fuse Type: Dual Element, Time Delay
• Interrupting Rating: 300 kA AC, 20 kA DC
• Mounting Method: Fuse Block / Clip / Holder
• Construction: Cartridge Style
• Certifications: UL Listed, CSA Certified

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR6.25
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 6.25
• AIC rating : 200kA@250V
• Connection : Ferrule Rejection
• Diameter : 0.56
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458150599
• GTIN : 00079458150599
• Country of Origin : Mexico
• Dimensions : x 2 in x
• Weight : 20.8
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
