Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR450

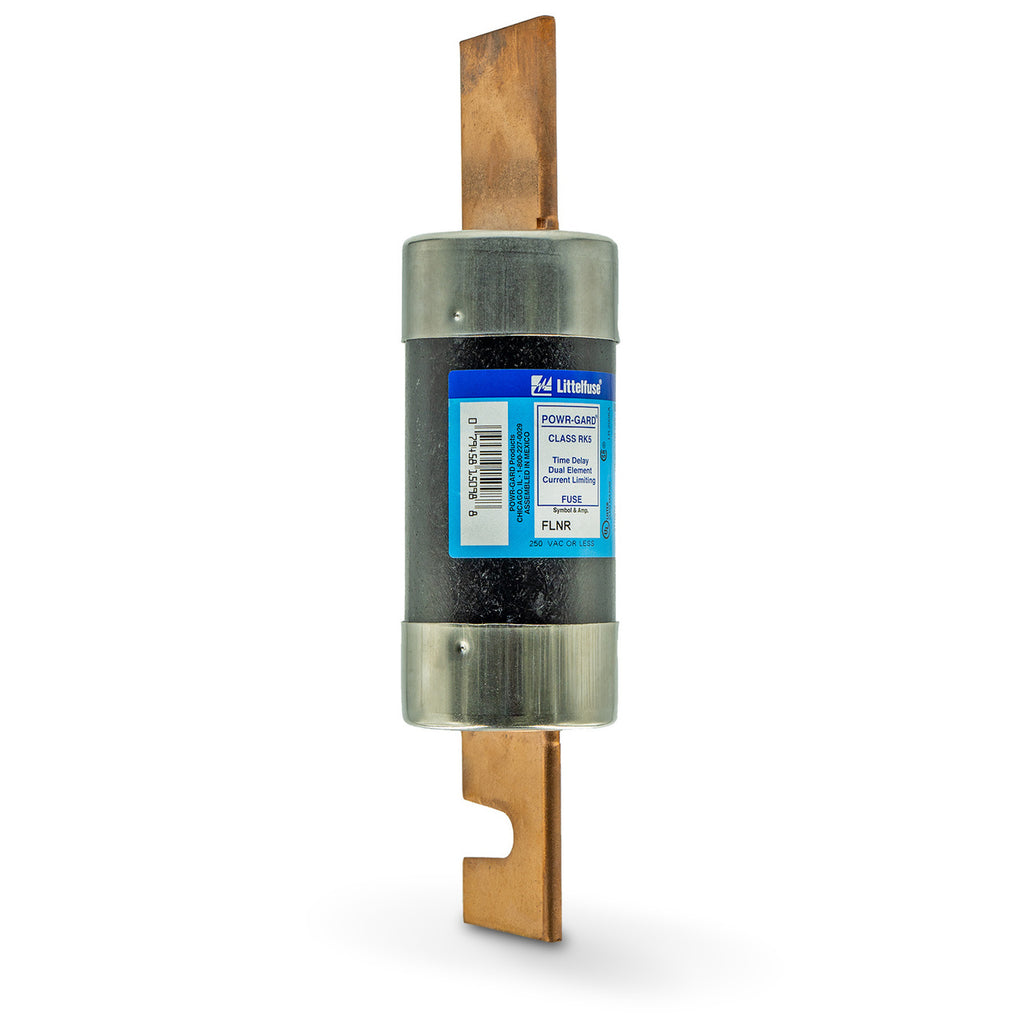

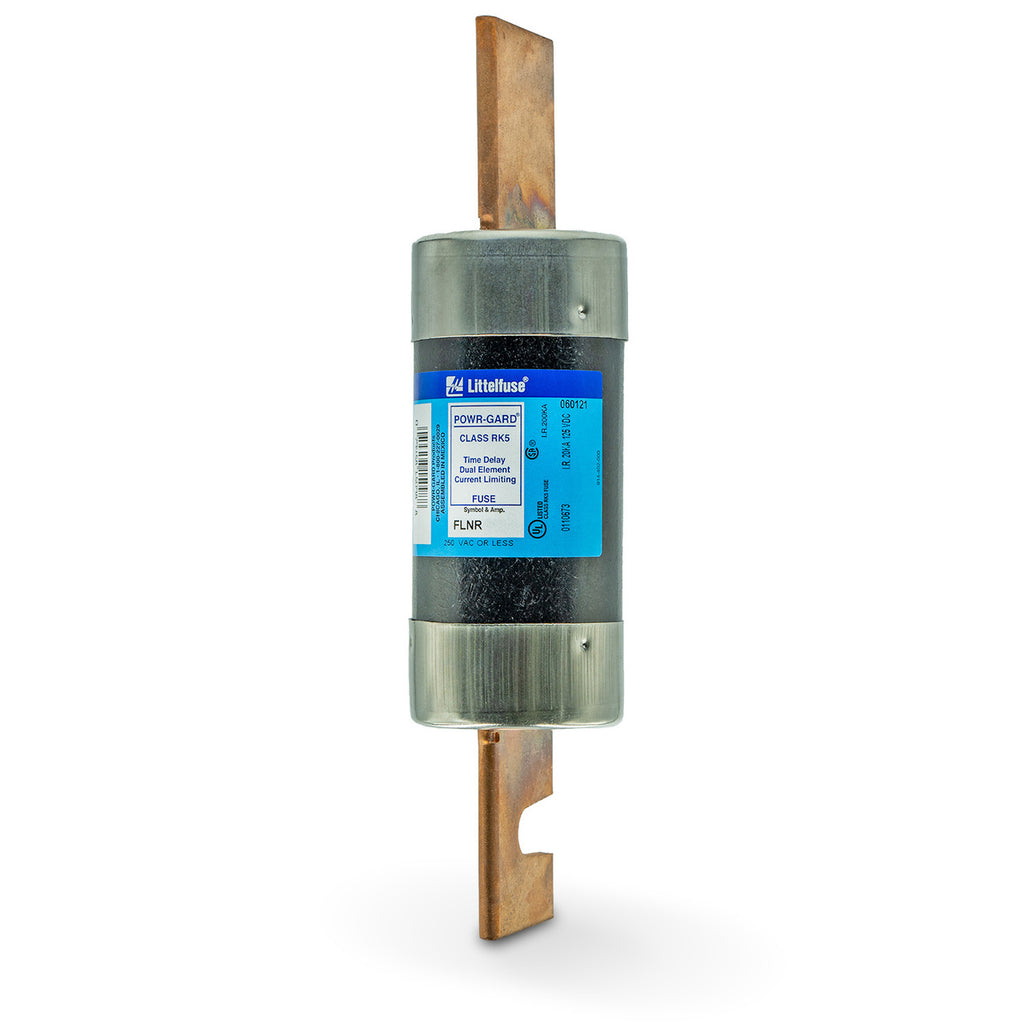

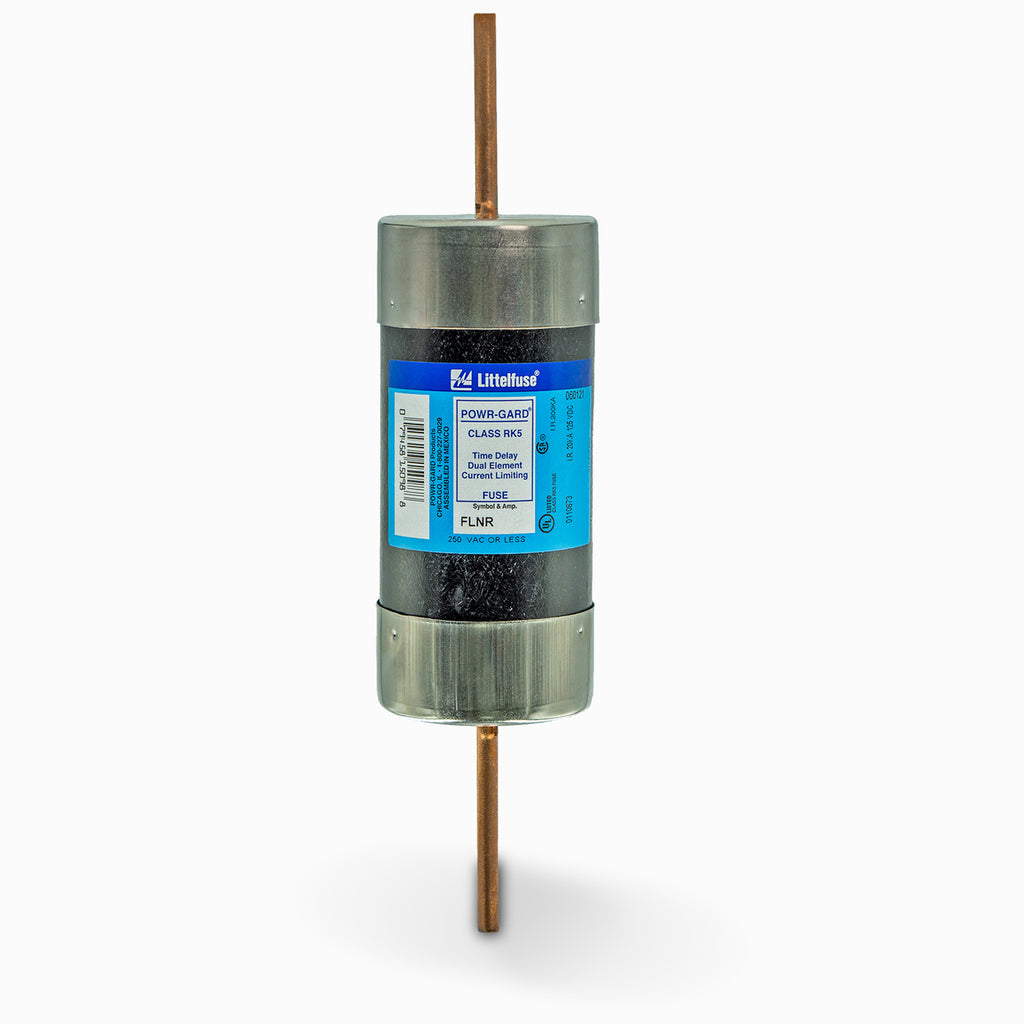

FLNR450 is a Littelfuse 450 Amp, 250 Volt Class RK5 dual-element time-delay fuse designed for general purpose circuit protection.This fuse features a dual-element design for advanced short-circuit and overload protection with current-limiting capabilities. It is rated for 250 VAC and 125 VDC operation, with an interrupting rating of 200,000 AIC at 250 VAC and 20,000 AIC at 125 VDC. The fuse size measures 2-19/32" by 10-3/8" and it requires mounting in a fuse block, clip, or holder. It is UL Listed and CSA Certified, suitable for service entrance switches, transformers, switchboard mains and feeders, motor control central mains, and motor branch circuits.
- Amperage Rating: 450 Amps
- Voltage Rating: 250 VAC / 125 VDC
- Fuse Class: RK5
- Fuse Type: Dual-Element, Time-Delay
- Interrupting Rating: 200,000 AIC AC, 20,000 AIC DC
- Mounting Type: Fuse Block / Clip / Holder
- Dimensions: 2-19/32" x 10-3/8"
- UL Listed and CSA Certified
- Current Limiting
- General Purpose Circuit Protection
Specifications
- Part Number: FLNR450
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 250
- Amperage : 450
- AIC rating : 200kA@250V
- Connection : Rejection Blade
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 07945815095
- GTIN : 00079458150957
- Weight : 3
