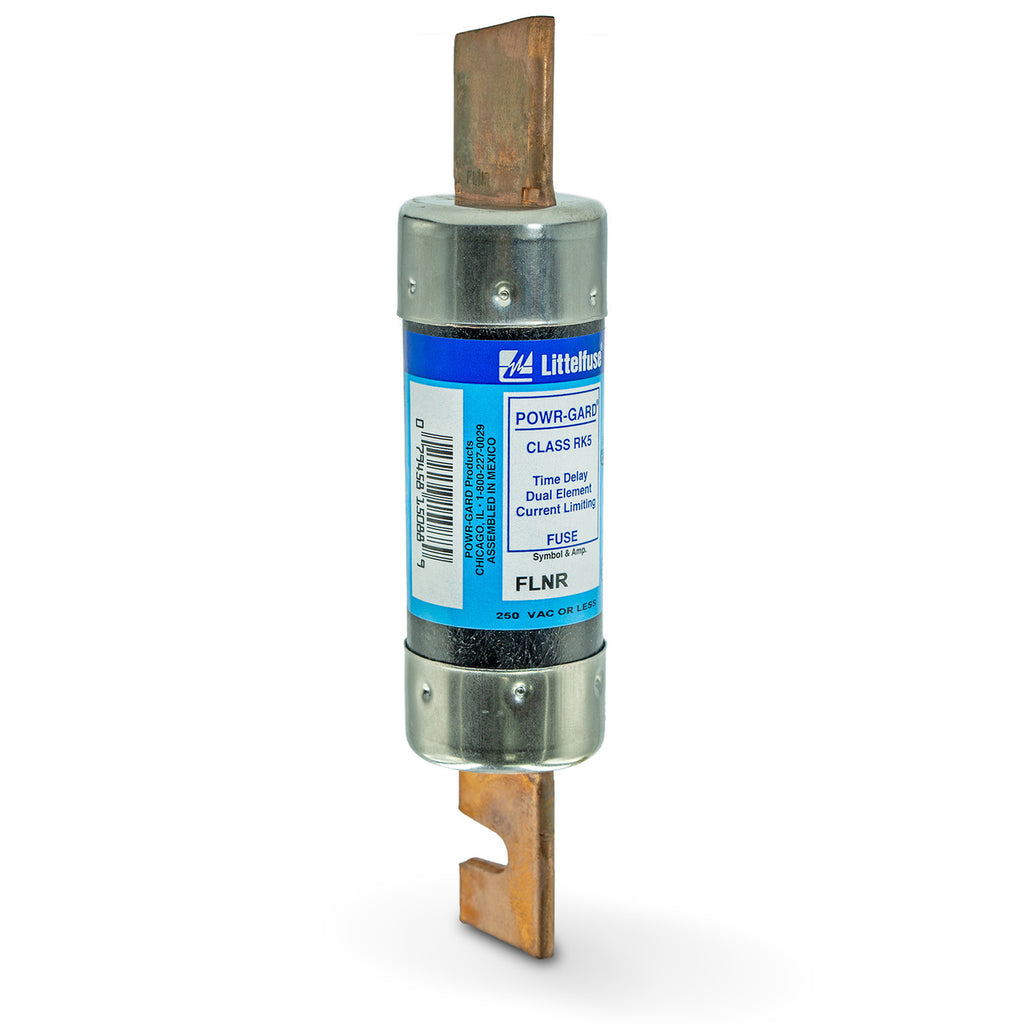

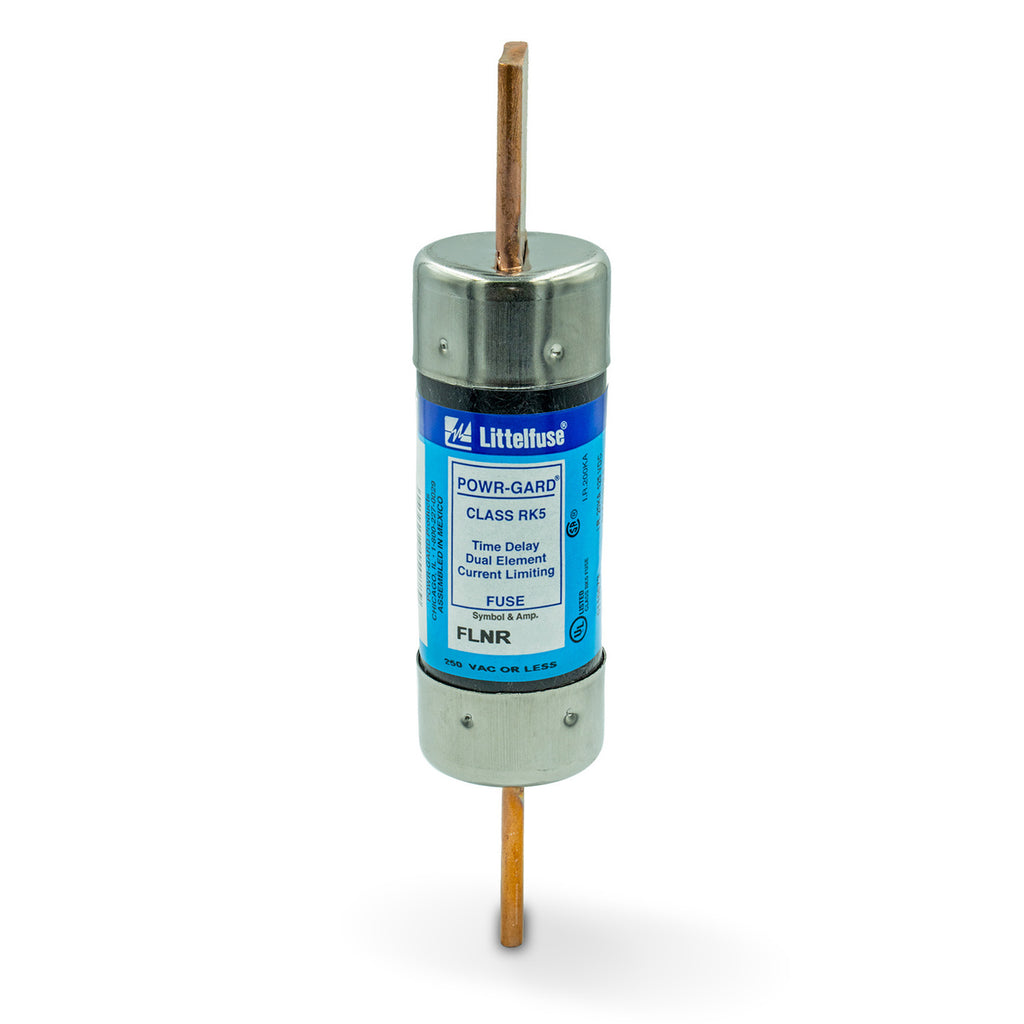

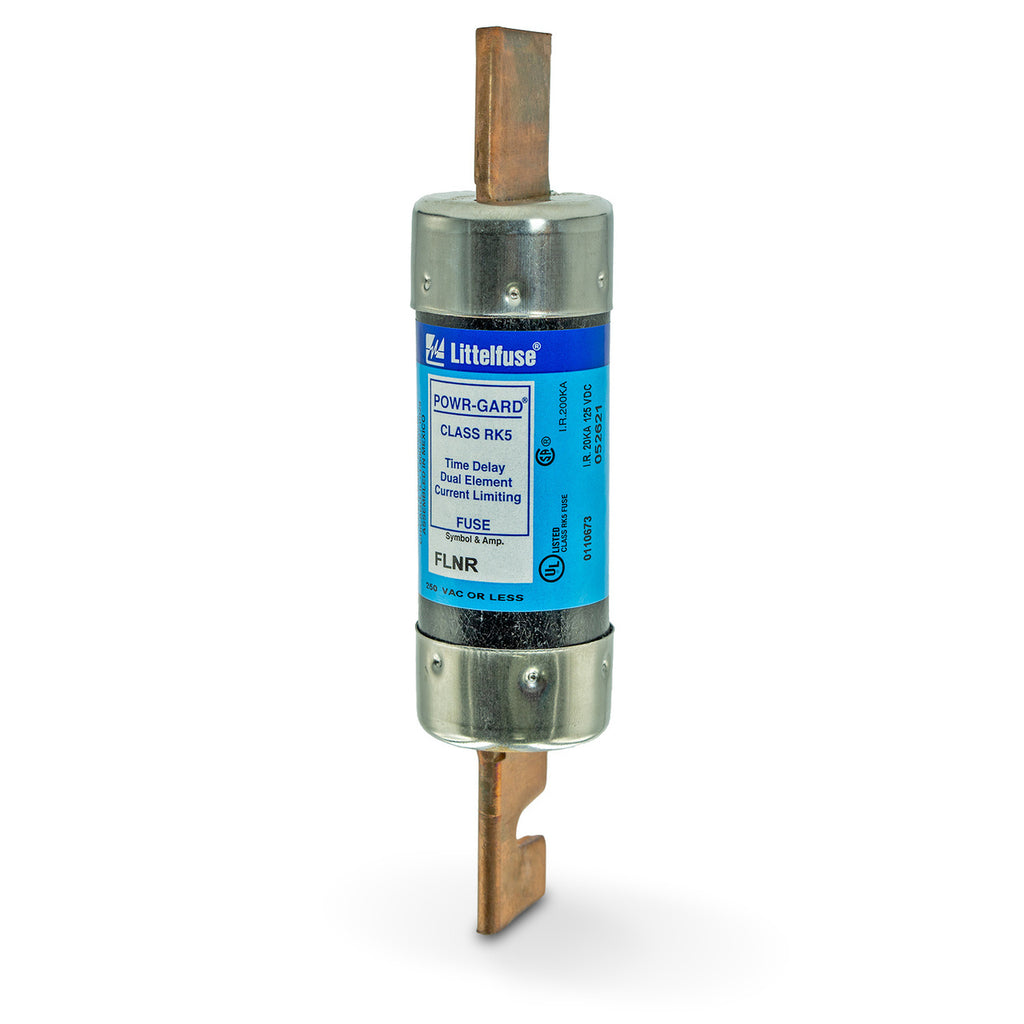

FLNR175 - Littelfuse 175A 250V Class RK5 Time Delay Dual Element Fuse

FLNR175

FLNR175 is a Littelfuse Class RK5 fuse rated for 175 amps and 250 volts AC, designed for reliable time-delay protection in general purpose circuits.This dual-element, current-limiting fuse features a knife-blade style construction and provides advanced short-circuit and overload protection with a time-delay (Slo-Blo) opening characteristic. It has an interrupting rating of 300 kA AC and 20 kA DC, suitable for high fault current applications. The fuse is designed for mounting in fuse blocks, clips, or holders and complies with UL 248-12 standards.

Key Specifications
• Amperage: 175 A
• Voltage Rating: 250 V AC, 125 V DC
• Fuse Class: RK5
• Fuse Type: Dual Element, Time Delay (Slo-Blo)
• Interrupting Rating: 300 kA AC, 20 kA DC
• Mounting Method: Fuse Block / Clip / Holder
• Size: Knife-Blade
• UL Listed and CSA Certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FLNR175
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
• Voltage : 250
• Amperage : 175
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 1.59
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay



Product Data

• UPC : 079458150872
• GTIN : 00079458150872
• Country of Origin : Mexico
• Dimensions : x 7-1/8 in x
• Weight : 0.81
• Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
