FLNR150ID - Littelfuse Class RK5 150A 250VAC 125VDC Time Delay Indicating Fuse

FLNR150ID

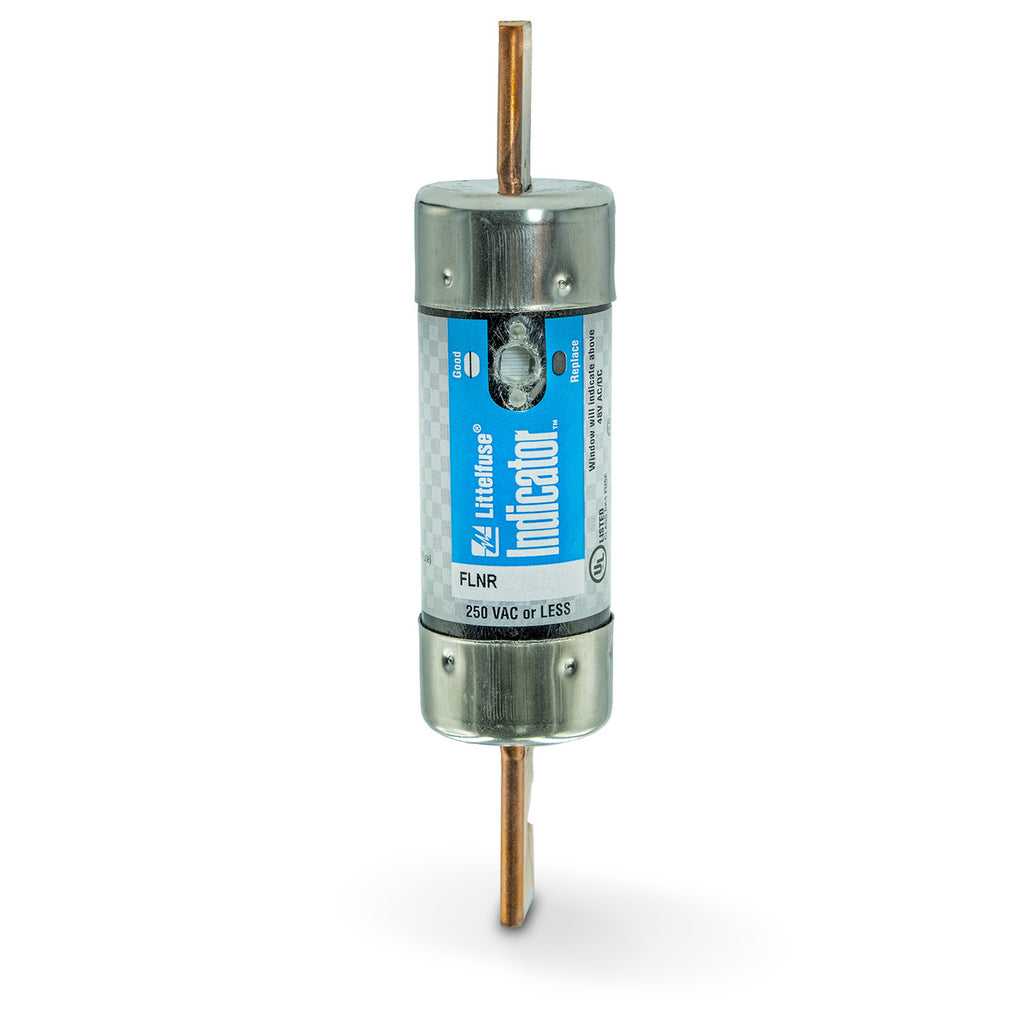

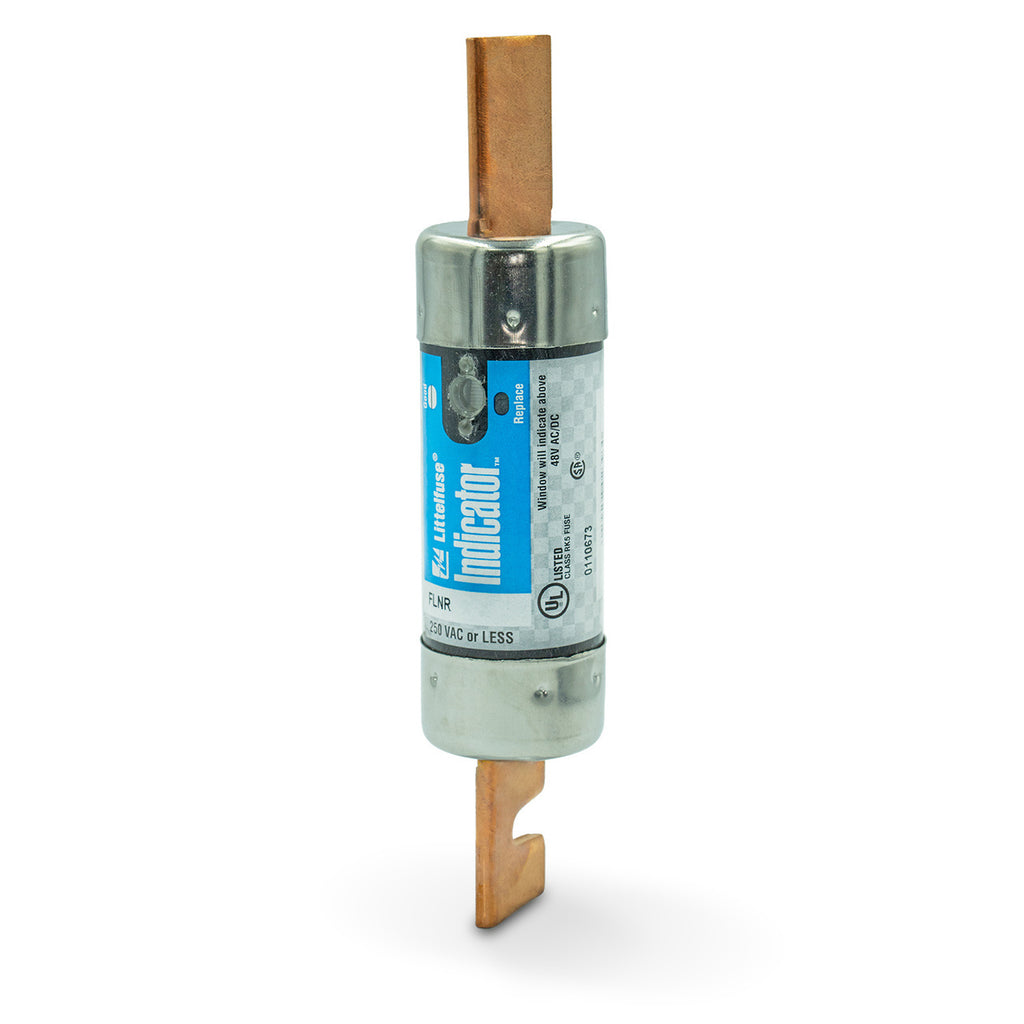

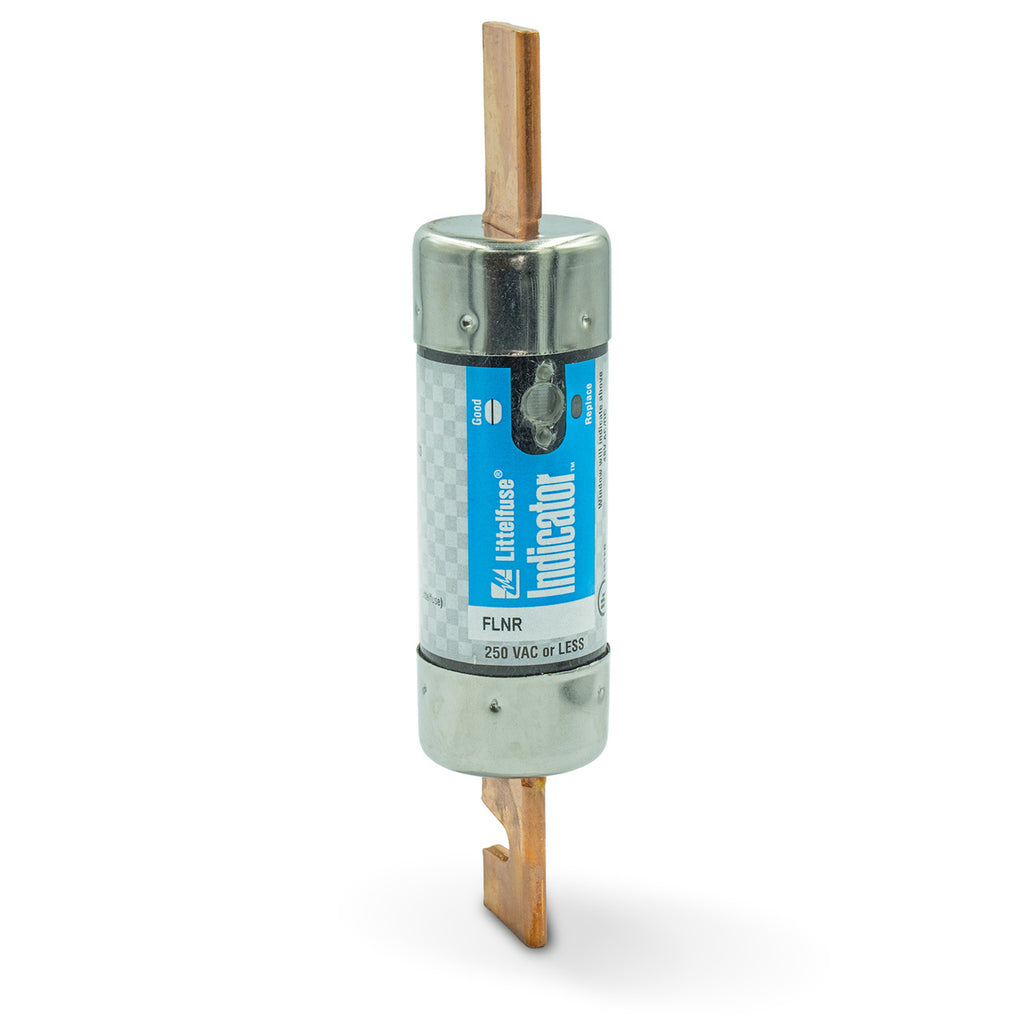

FLNR150ID is a Littelfuse Class RK5 indicating time delay fuse designed for general purpose circuit protection with visual blown fuse indication. This dual-element, current-limiting fuse provides reliable protection for a wide range of industrial and commercial applications. The FLNR150ID features a knife-blade mounting style and a cartridge body, making it suitable for use in fuse blocks, clips, or holders. Its solid-state indicator design allows for quick identification of a blown fuse, reducing downtime and improving safety. The fuse is rated for 150 amps, 250 volts AC, and 125 volts DC, with a high interrupting rating for robust circuit protection.

• Amperage Rating: 150 A
• AC Voltage Rating: 250 V
• DC Voltage Rating: 125 V
• Fuse Class: Class RK5
• Response Time: Time Delay
• Mounting Type: Knife-Blade
• Interrupting Rating: 200 kA RMS AC, 20 kA DC
• Body Style: Cartridge
• Element Type: Dual Element
• Indicating: Yes
• Standards: UL 248-12, CSA, CE, QPL-WF-1814
• Applications: General Purpose Circuits, Service Entrance Switches, Switchboard Mains and Feeders

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR150ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 250
• Amperage : 150
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 1.59
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458023916
• GTIN : 00079458023916
• Country of Origin : Mexico
• Dimensions : x 7 1/8 in x
• Weight : 1
• Certification : CSA, cUL, UL
