Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR150

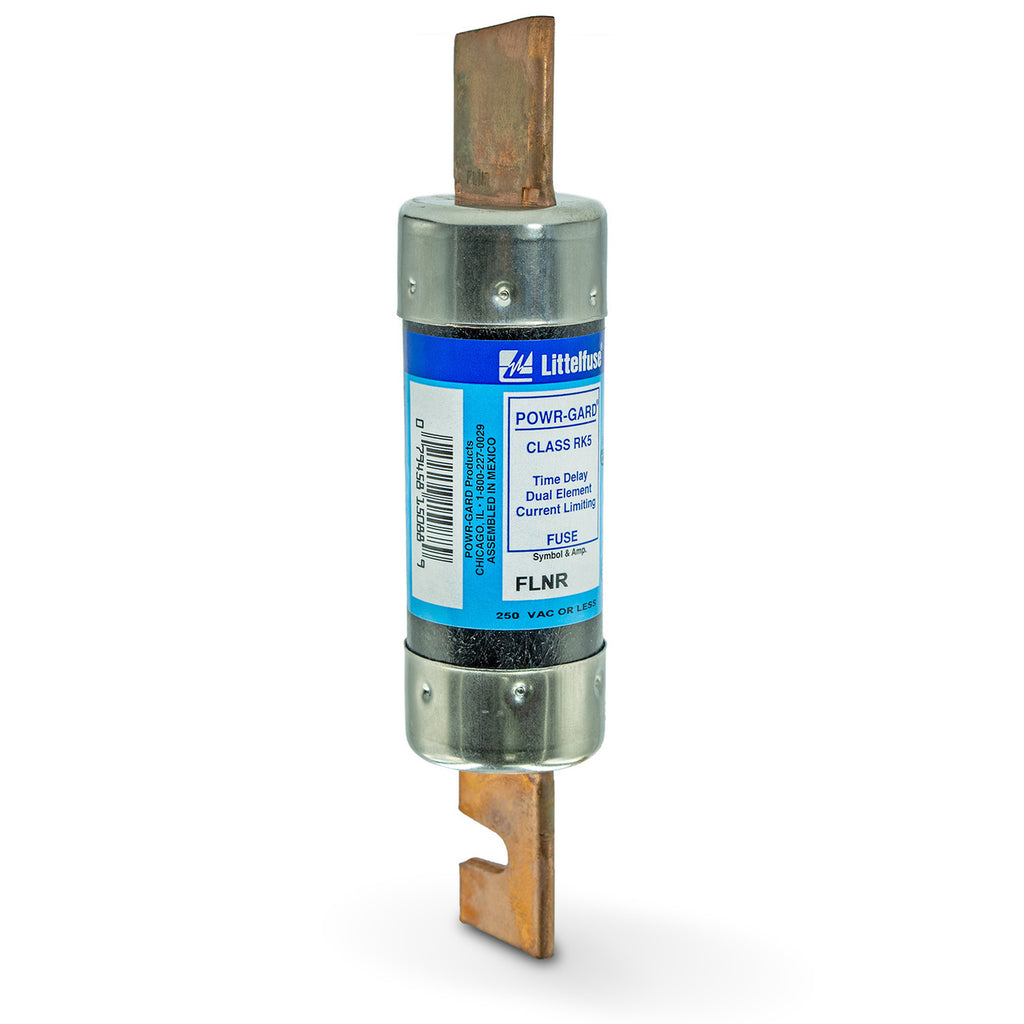

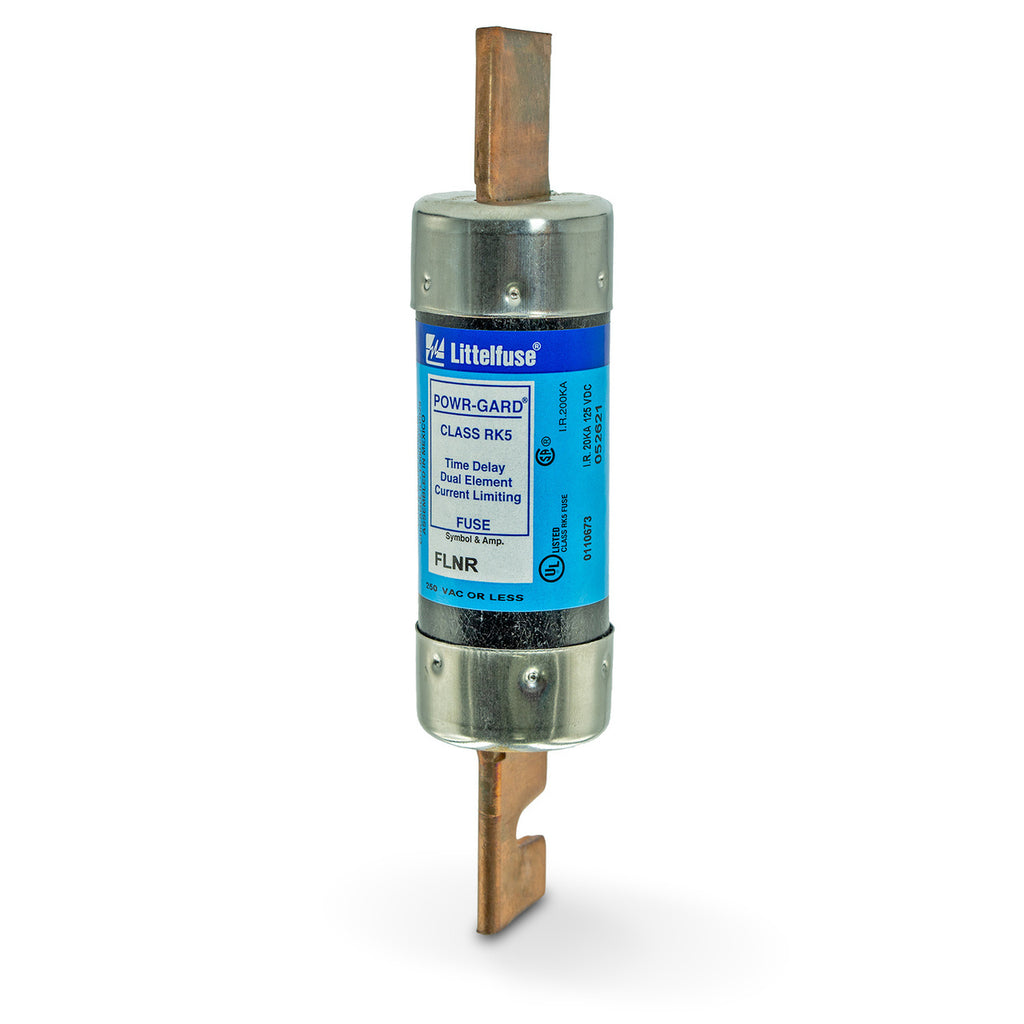

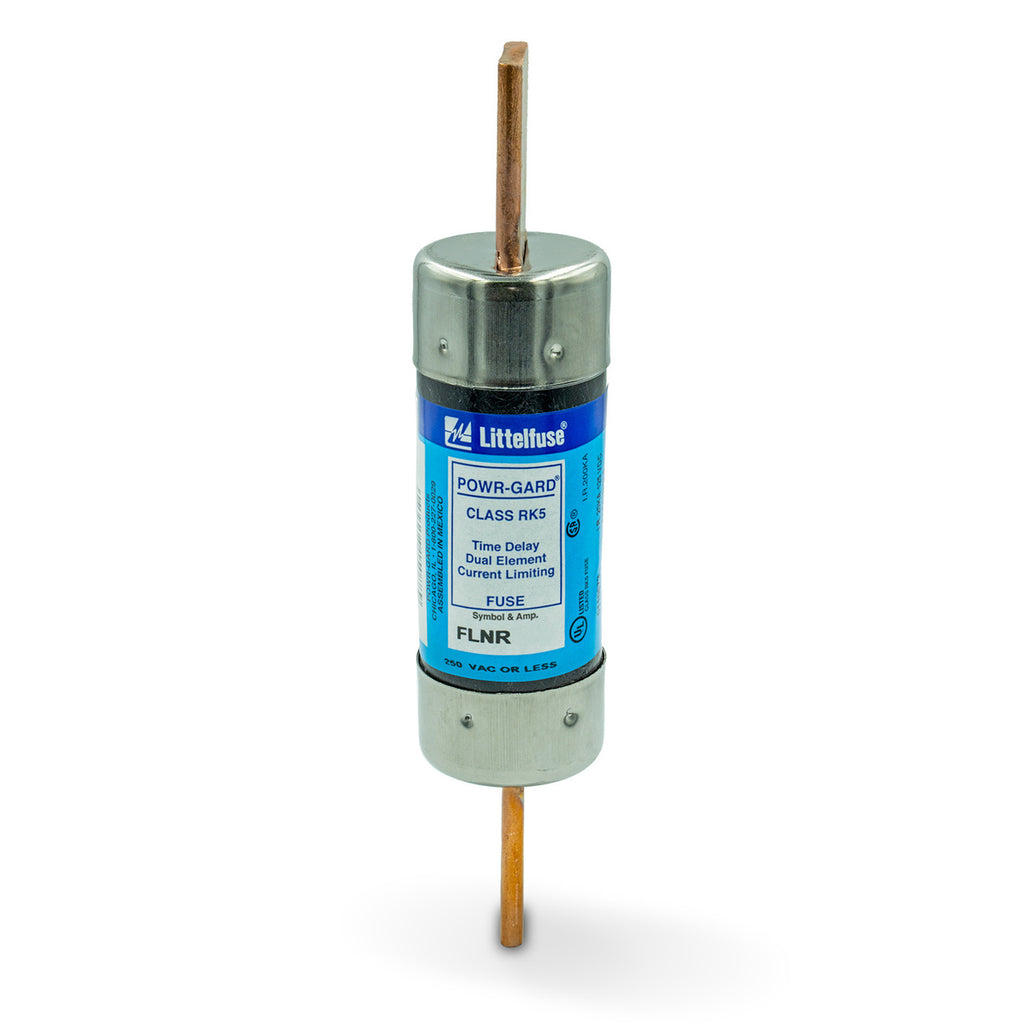

FLNR150 is a Littelfuse Class RK5 fuse with a 150 ampere rating and 250 volts AC maximum voltage rating featuring knife-blade construction.
This fuse provides advanced short-circuit and overload protection with a dual-element, time-delay design. It has a high interrupting rating of 300kA AC and 20kA DC, suitable for general purpose circuit protection. The fuse mounts using fuse blocks, clips, or holders and complies with UL 248-12 and CSA certifications.
- Amperage: 150 A
- Maximum AC Voltage: 250 V
- DC Voltage Rating: 125 V
- Fuse Class: RK5
- Construction: Knife-Blade
- Time Delay (Slo-Blo) Operation
- Dual Element Design
- Interrupting Rating: 300 kA AC, 20 kA DC
- Mounting Method: Fuse Block / Clip / Holder
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
- Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FLNR150
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 250
- Amperage : 150
- AIC rating : 200kA@250V
- Connection : Rejection Blade
- Diameter : 1.59
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 007945815086
- GTIN : 00079458150865
- Country of Origin : Mexico
- Dimensions : x 7-1/8 in x
- Weight : 0.82
- Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
