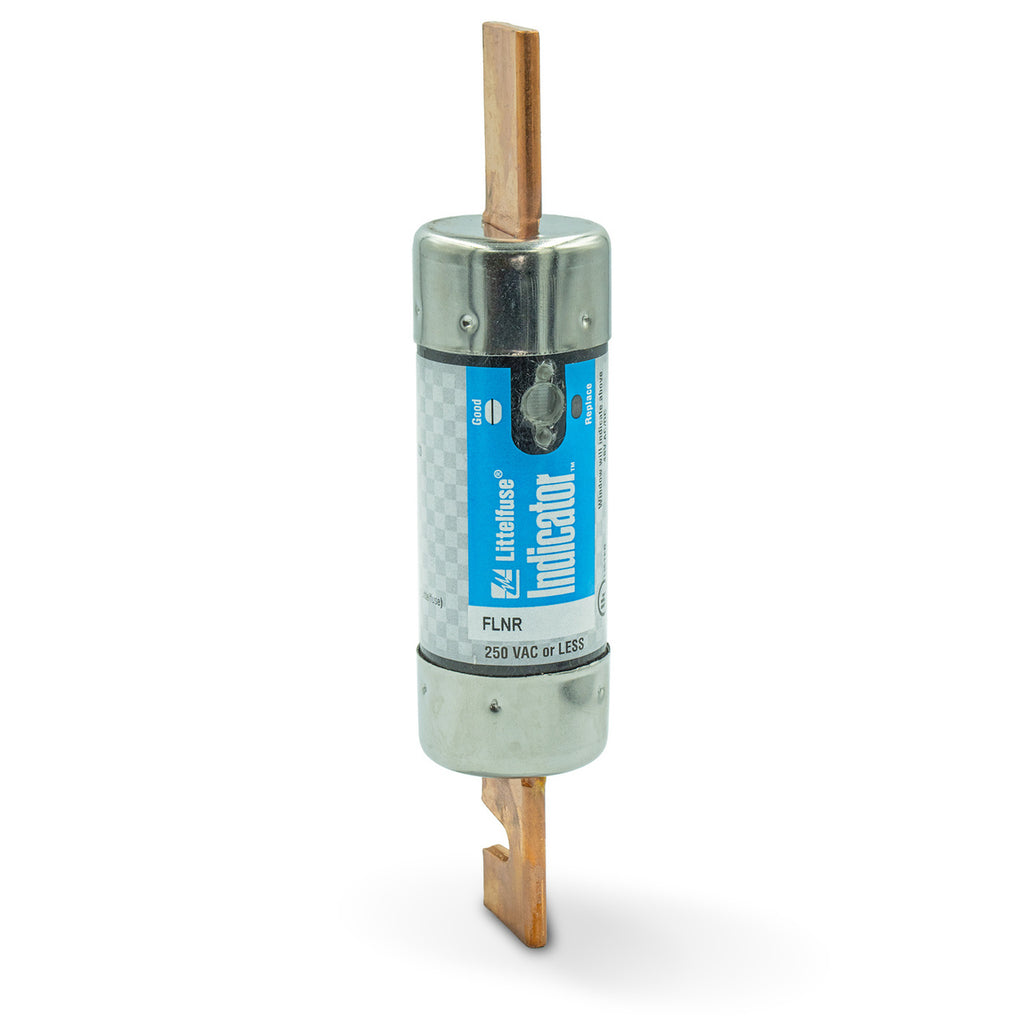

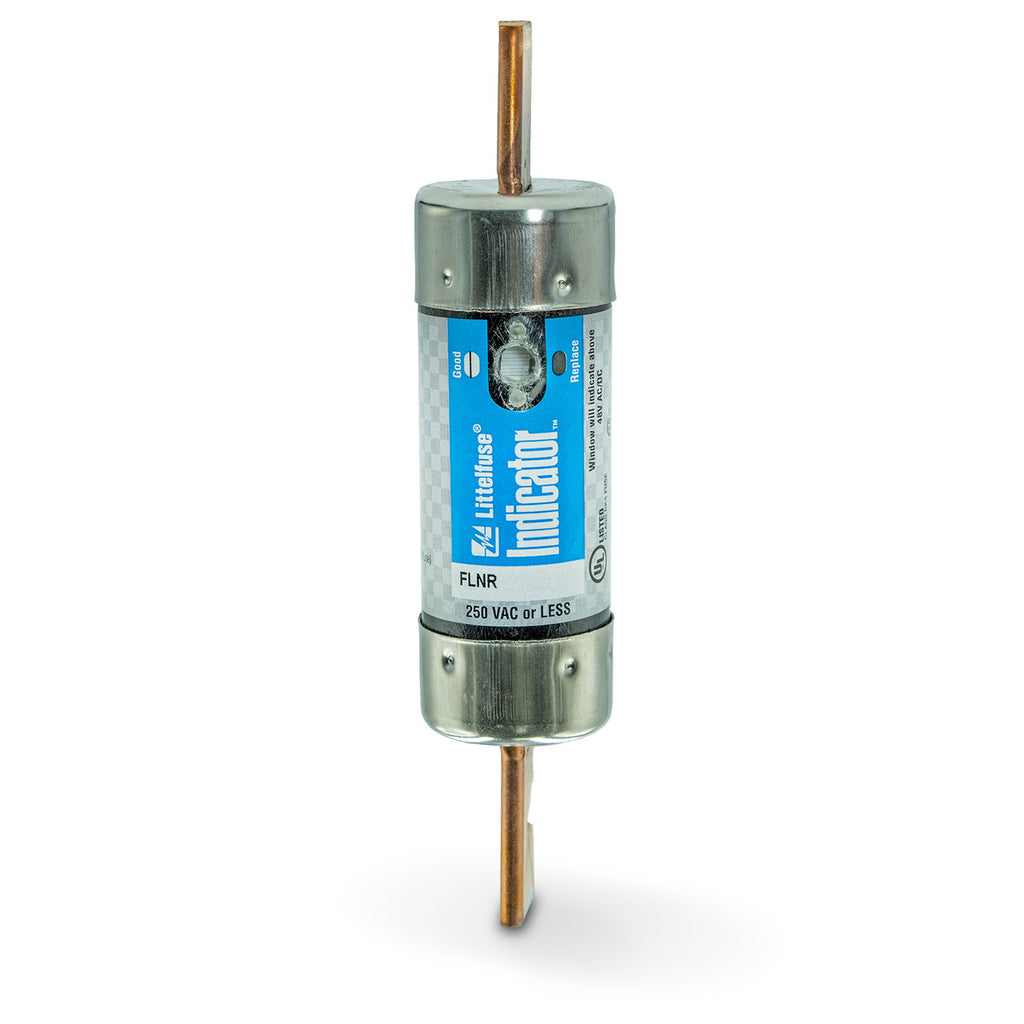

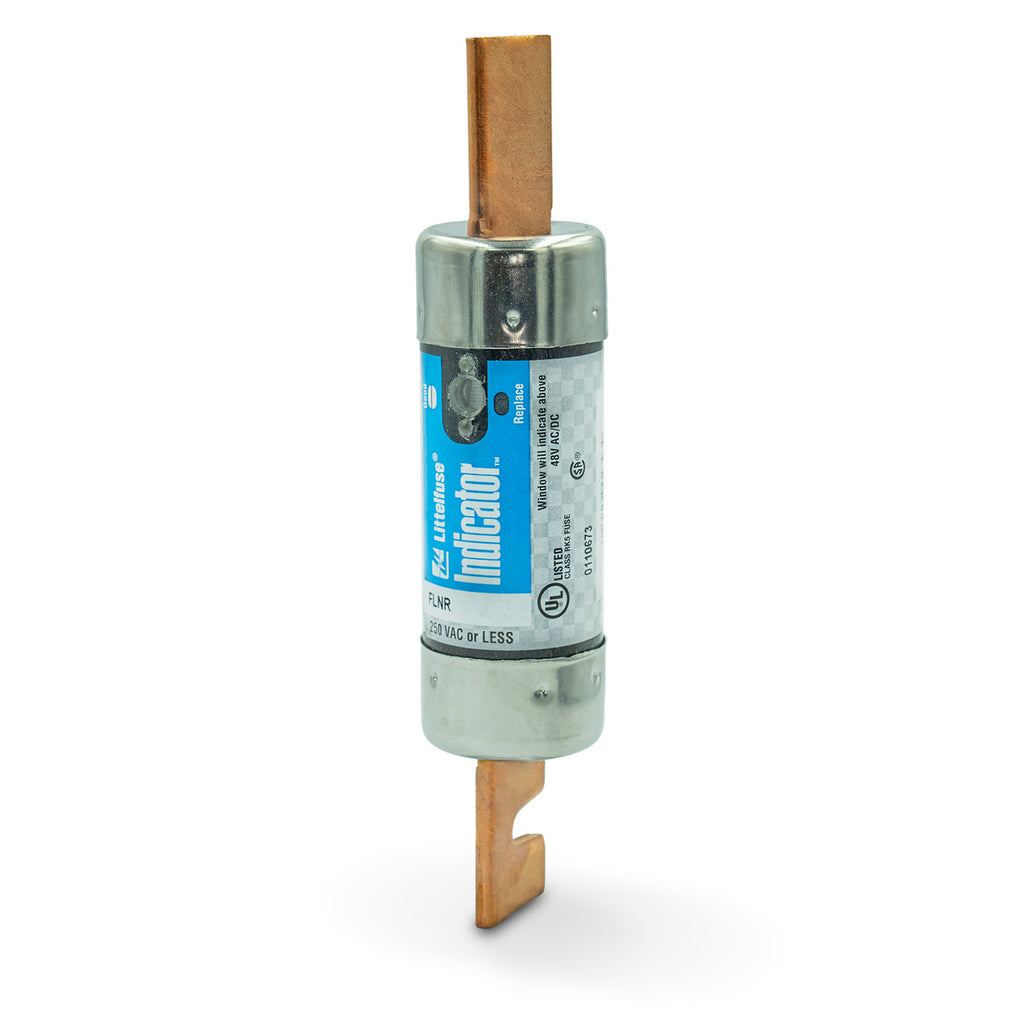

FLNR110ID - Littelfuse 110 Amp 250 Volt Class RK5 Time Delay Indicating Fuse

FLNR110ID

FLNR110ID is a Littelfuse Class RK5 indicating fuse rated for 110 amps and 250 volts AC, designed for advanced circuit protection.This fuse features a dual-element, time-delay design with current limiting to provide superior short-circuit and overload protection. It includes a patented visual blown fuse indicator for quick and easy identification of fuse status, reducing downtime and improving safety. The fuse is UL 248-12 and CSA certified, suitable for general purpose circuits including service entrance switches, transformers, switchboard mains, feeders, and motor control circuits.

• Amperage Rating: 110 Amp
• Voltage Rating: 250 VAC / 125 VDC
• Fuse Type: Class RK5
• Fuse Response: Time Delay (Dual Element)
• Interrupt Rating: 200,000 AIC at 250 VAC, 20,000 AIC at 125 VDC
• Physical Size: 1-19/32" diameter x 7-1/8" length
• Visual Blown Fuse Indication
• Current Limiting Design
• UL Listed and CSA Certified
• Applications: General purpose circuits, motor control, transformers, switchboard mains

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FLNR110ID
• Manufacturer : Littelfuse
• Brand : Littelfuse
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Type : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
• Voltage : 250
• Amperage : 110
• AIC rating : 200kA@250V
• Connection : Rejection Blade
• Diameter : 1.59
• Class Rating : RK5
• Barrels : 1
• Velocity : TD - Time Delay

Product Data

• UPC : 079458023893
• GTIN : 00079458023893
• Country of Origin : Mexico
• Dimensions : x 7 1/8 in x
• Weight : 1
• Certification : CSA, cUL, UL
