Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR100ID

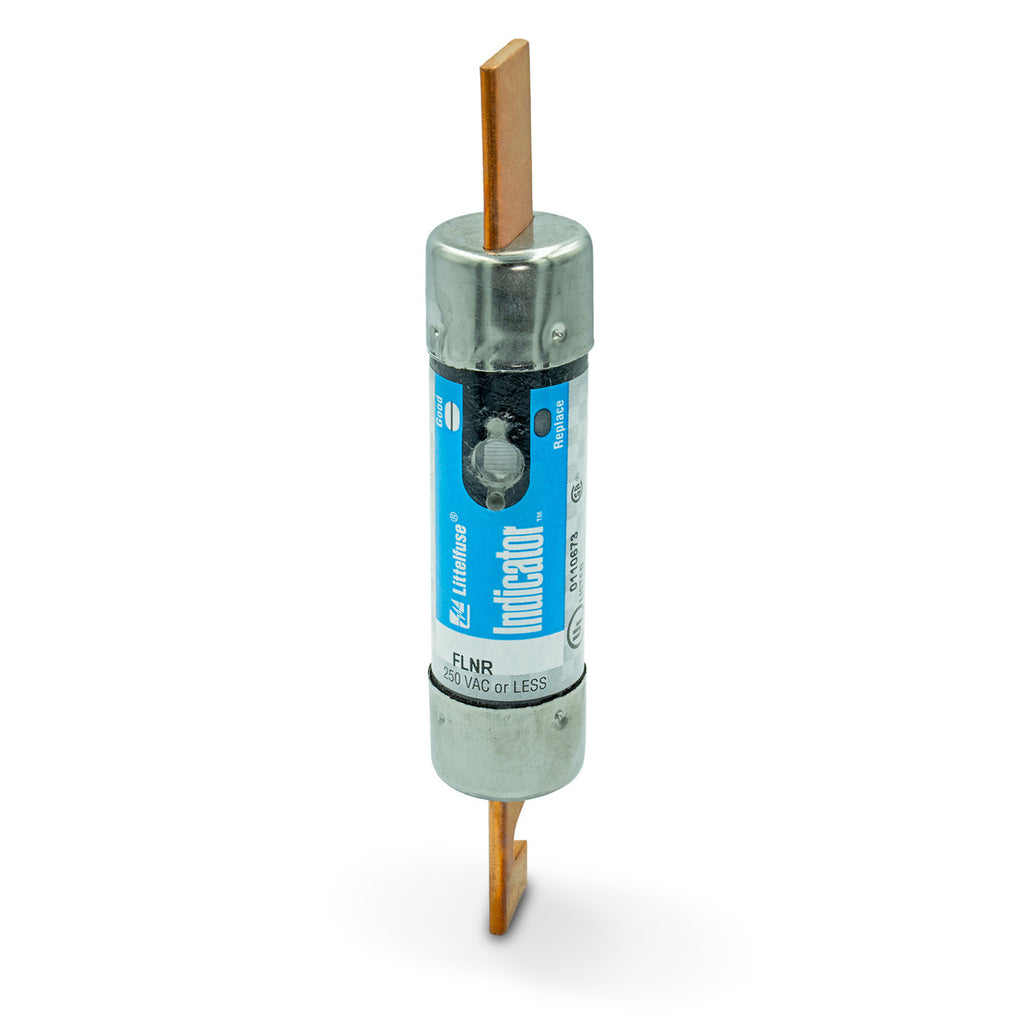

FLNR100ID is a 100 amp, 250 volt AC Class RK5 time delay fuse with indicating feature and knife-blade construction.FLNR100ID provides advanced short-circuit and overload protection with a dual-element, current limiting design. It features a visual blown fuse indicator for quick identification and is suitable for general purpose circuits including service entrance switches, transformers, switchboard mains, and motor control circuits. The fuse has an interrupting rating of 300kA AC and 20kA DC, and mounts using fuse blocks or clips.
- Amperage: 100 A
- Voltage Rating: 250 V AC, 125 V DC
- Fuse Class: RK5
- Time Delay (Slo-Blo) Dual Element
- Interrupting Rating: 300 kA AC, 20 kA DC
- Mounting Type: Knife-Blade
- Indicating Fuse with Visual Blown Fuse Indicator
- UL Listed (File: E81895)
- CSA Certified (File: LR29862)
- Current Limiting
- Length: 5 7/8 inches
- Diameter: 1 1/16 inches
Specifications
- Part Number: FLNR100ID
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Type : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
- Voltage : 250
- Amperage : 100
- AIC rating : 200kA@250V
- Connection : Rejection Blade
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 079458023886
- GTIN : 00079458023886
- Country of Origin : Mexico
- Dimensions : x 5 7/8 in x
- Weight : 0.32
- Certification : CSA, cUL, UL
