Product Info
- Manufacturer:Littelfuse
- Sub-Category:Low Voltage Fuse
Description
FLNR100

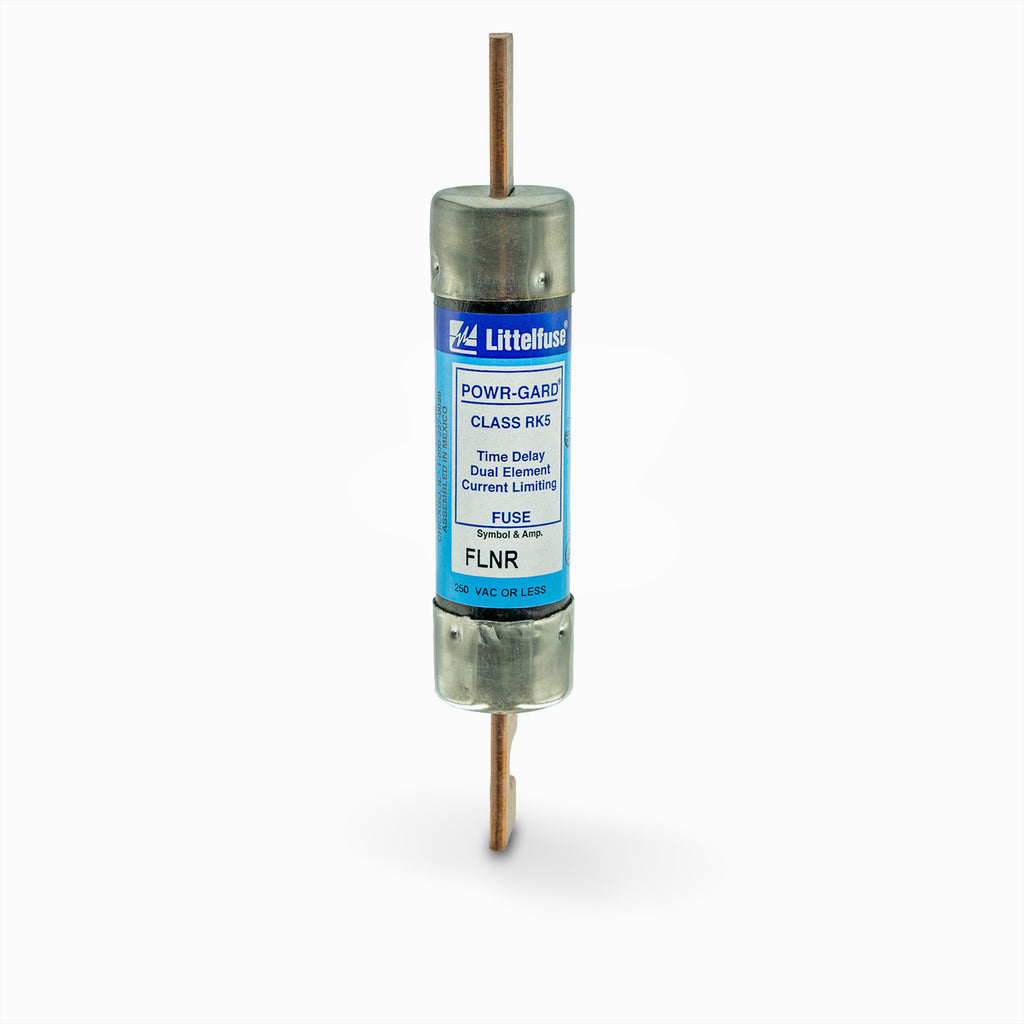

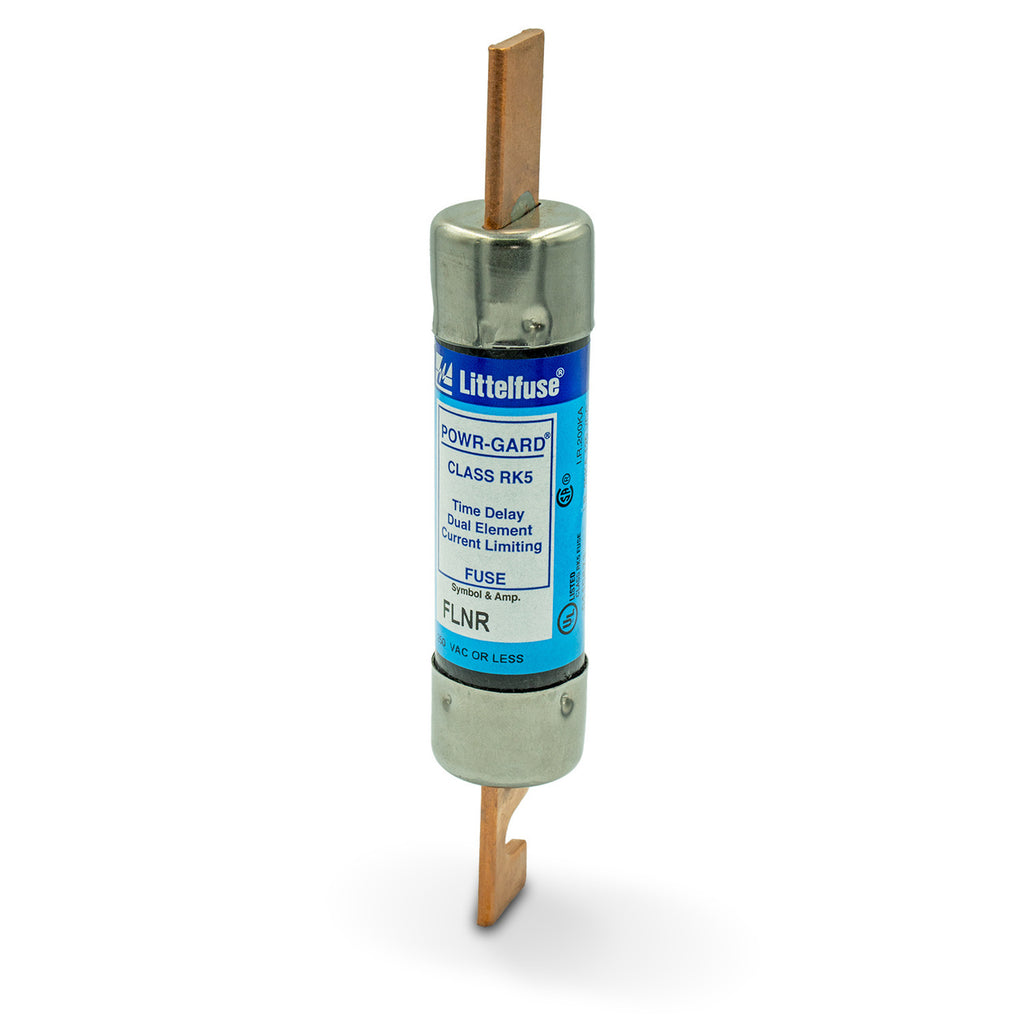

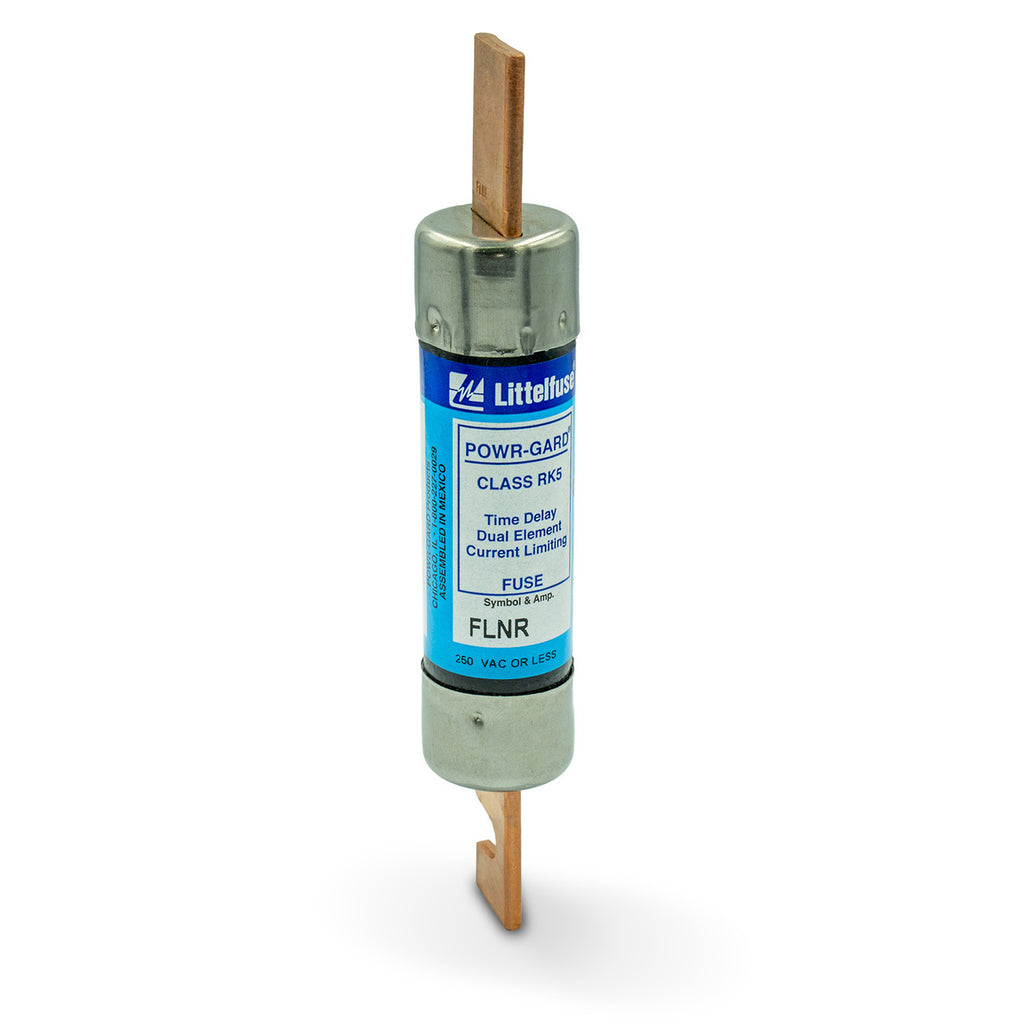

FLNR100 is a Class RK5 dual element time delay fuse manufactured by Littelfuse for general purpose overcurrent protection in industrial and commercial applications. This knife-blade style fuse combines advanced short-circuit and overload protection with current limiting technology to restrict fault current and provide superior circuit protection. Key Specifications
- Amperage Rating: 100 A continuous
- Voltage Rating: 250 V AC / 125 V DC
- Fuse Class: Class RK5
- Style: Dual Element Time Delay (Slo-Blo)
- Construction: Knife-Blade
- Interrupting Rating: 300 kA AC (rms symmetrical); 20 kA DC
- Mounting: Fuse Block / Clip / Holder
- Certifications: UL Listed (File E81895), CSA Certified (File LR29862)
- Standards: UL 248-12, Class RK5
- Country of Origin: Mexico
Specifications
- Part Number: FLNR100
- Manufacturer : Littelfuse
- Brand : Littelfuse
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Type : FLNR Series - UL Class RK5 Dual-Element Time-Delay Fuses
- Voltage : 250
- Amperage : 100
- AIC rating : 200kA@250V
- Connection : Rejection Blade
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
- Velocity : TD - Time Delay
Product Data
- UPC : 007945815082
- GTIN : 00079458150827
- Country of Origin : Mexico
- Dimensions : x 5-7/8 in x
- Weight : 0.64
- Certification : CE, UL 248-12 Class RK5, CSA Certification, QPL-W-F-1814
