FLNR080ID - Littelfuse 80 Amp 250 Volt Class RK5 Time Delay Indicating Fuse

Save $31.11
SKU: FLNR080ID-New
Condition: New
Price:
$25.09 $56.20
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

FLNR080ID Littelfuse® FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 80A Fuse - Essential Electric Supply
FLNR080ID Littelfuse® FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 80A Fuse - Essential Electric Supply
FLNR080ID Littelfuse® FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 80A Fuse - Essential Electric Supply
FLNR080ID Littelfuse® FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 80A Fuse - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
FLNR080ID Littelfuse® FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 80A Fuse - Essential Electric Supply
FLNR080ID Littelfuse® FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 80A Fuse - Essential Electric Supply
FLNR080ID Littelfuse® FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 80A Fuse - Essential Electric Supply
FLNR080ID Littelfuse® FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication Low Voltage Fuse 250V 80A Fuse - Essential Electric Supply

Description

FLNR080ID

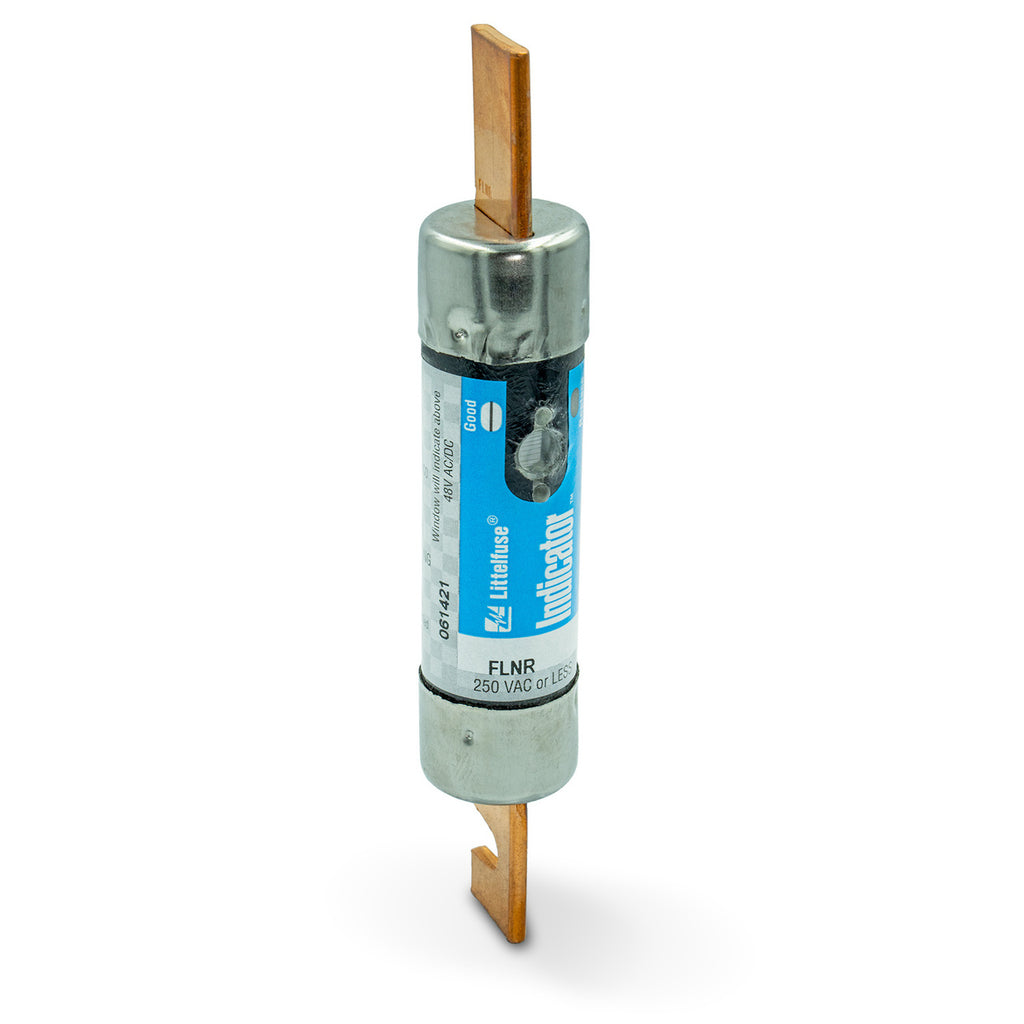

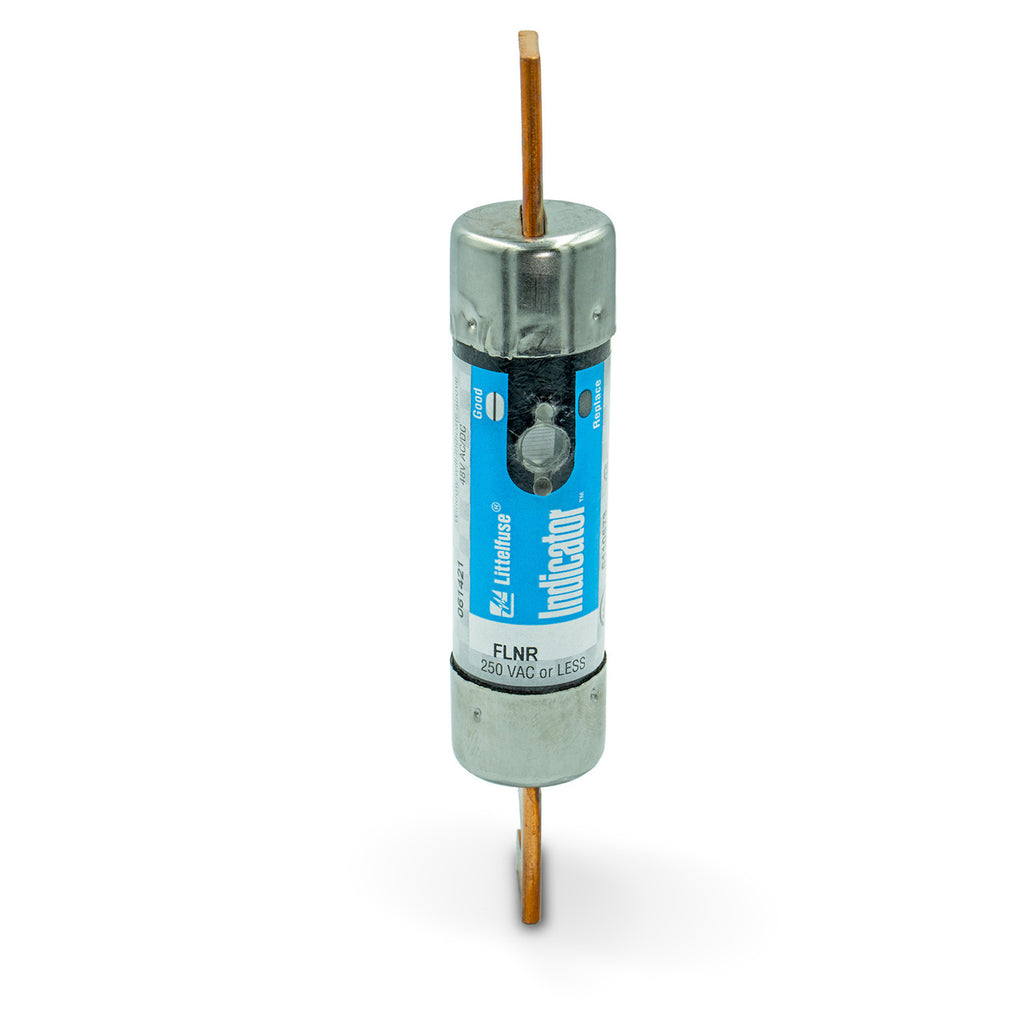

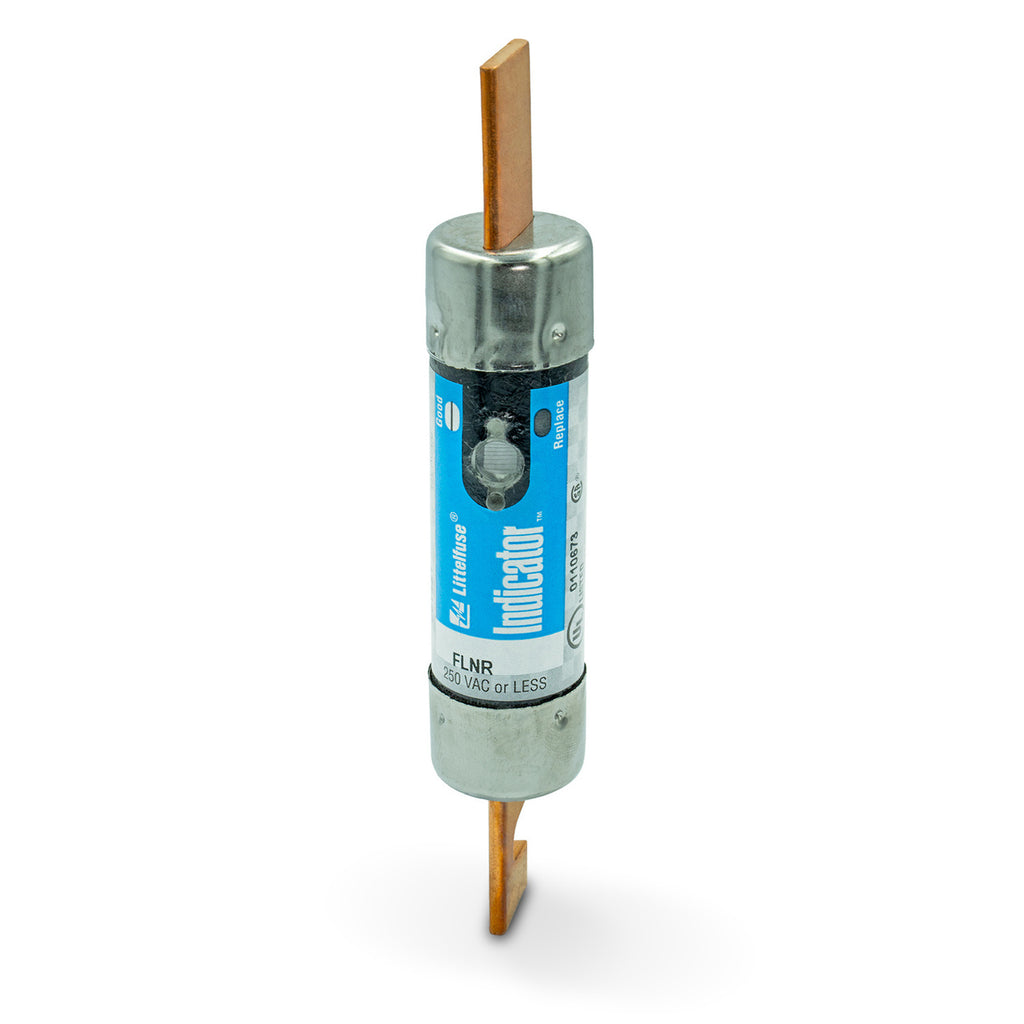

FLNR080ID is an 80 Amp, 250 Volt Class RK5 time delay indicating fuse from Littelfuse designed for general purpose circuit protection.

This fuse features a dual-element design providing advanced short-circuit and overload protection with current limiting capabilities. It includes a patented solid-state visual blown fuse indicator for quick identification, reducing downtime and enhancing safety. The fuse has a cylindrical cartridge body with knife-blade terminals, suitable for mounting in fuse blocks, clips, or holders. It is UL 248-12 and CSA certified, rated for 200,000 A interrupt at 250 VAC and 20,000 A at 125 VDC, making it ideal for service entrance switches, motor control centers, switchboards, and industrial control panels.

  • Amperage Rating: 80 Amps
  • Voltage Rating: 250 VAC / 125 VDC
  • Fuse Class: RK5
  • Fuse Type: Time Delay (Slow Blow), Dual Element
  • Interrupting Rating: 200,000 AIC at 250 VAC, 20,000 AIC at 125 VDC
  • Visual Blown Fuse Indication: Yes
  • Terminal Type: Knife-Blade
  • Body Style: Cylindrical Cartridge
  • Dimensions: 1-1/16 inch diameter x 5-7/8 inch length
  • Mounting Method: Fuse Block / Clip / Holder
  • Certifications: UL 248-12, CSA, QPL WF-1814

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

  • Part Number: FLNR080ID
  • Manufacturer : Littelfuse
  • Brand : Littelfuse
  • Category : Fuse
  • Item Subcategory : Low Voltage Fuse
  • Family : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
  • Type : FLNR_ID Series - UL Class RK5 Dual-Element Time-Delay Fuses with Indication
  • Voltage : 250
  • Amperage : 80
  • AIC rating : 200kA@250V
  • Connection : Rejection Blade
  • Diameter : 1.06
  • Class Rating : RK5
  • Barrels : 1
  • Velocity : TD - Time Delay

Product Data

  • UPC : 07945802386
  • GTIN : 00079458023862
  • Country of Origin : Mexico
  • Dimensions : x 5 7/8 in x
  • Weight : 0.64
  • Certification : CSA, cUL, UL
